Description

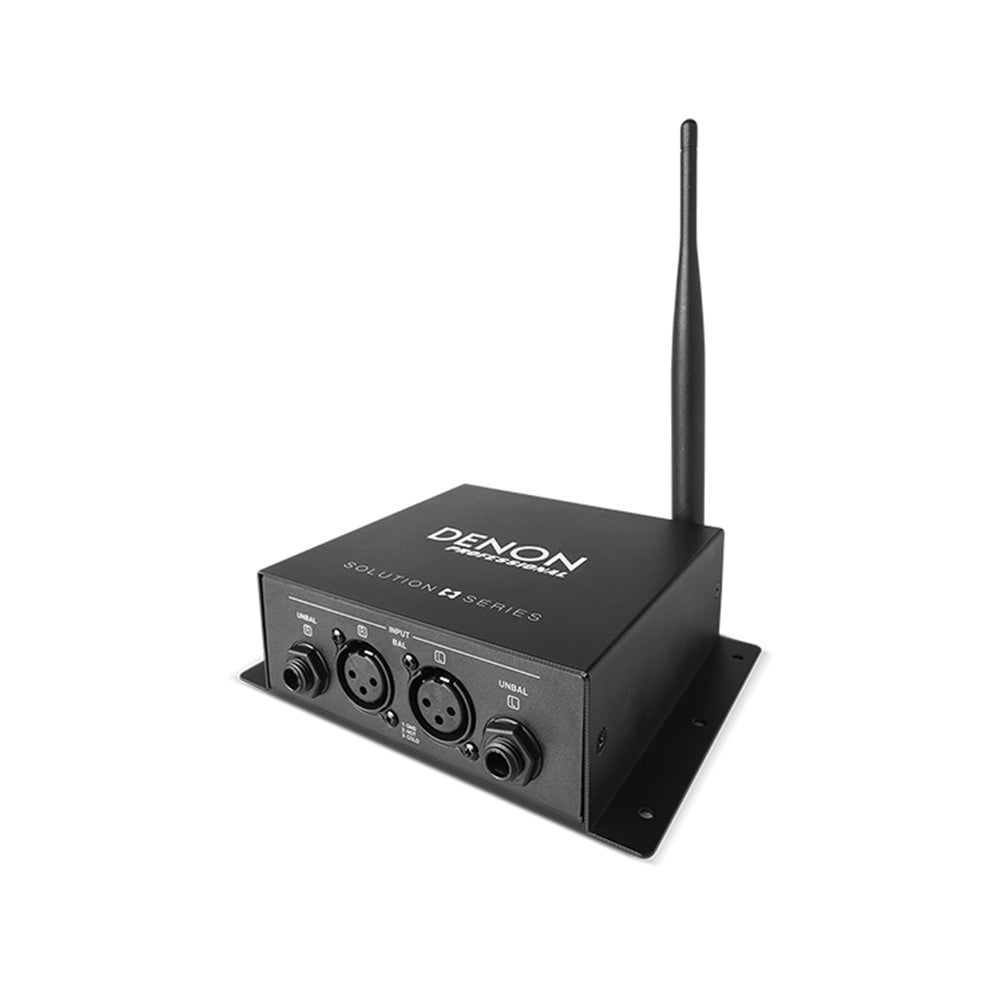

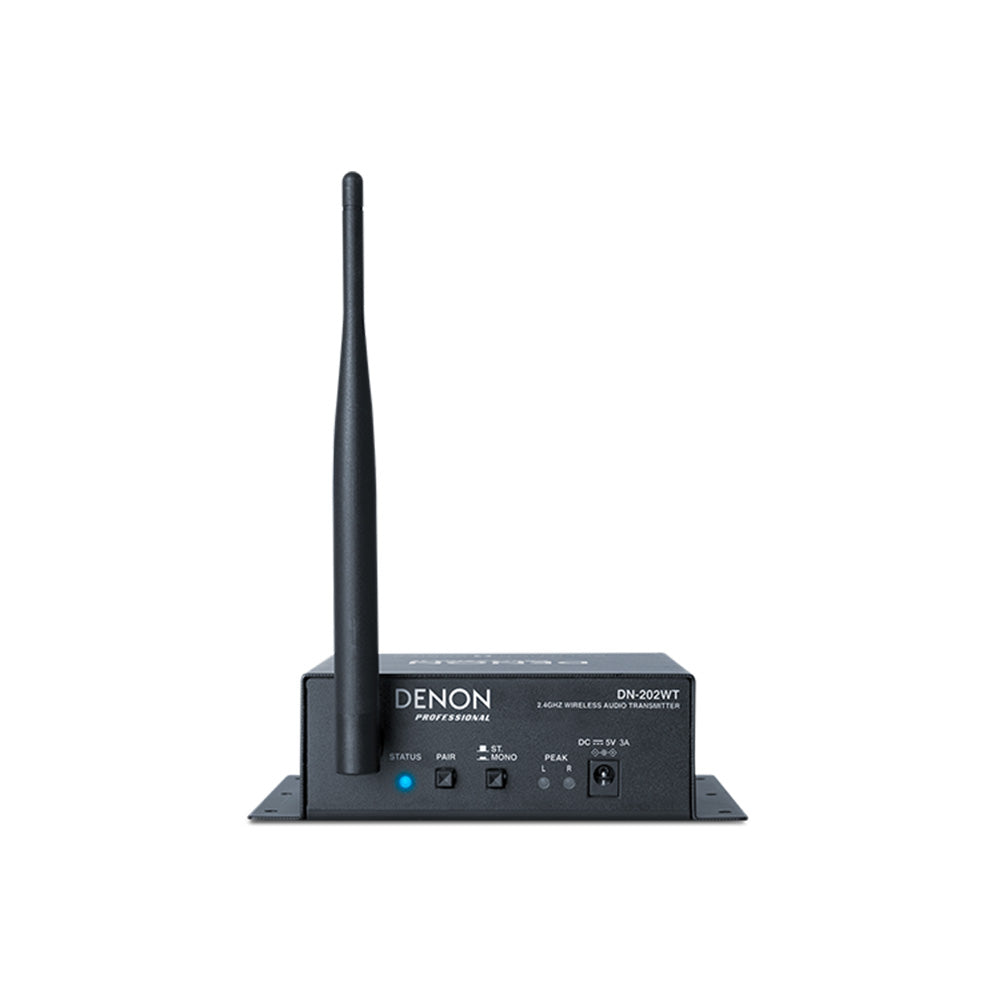

For applications where unsightly cable runs or drilling of holes is not permissible, the DN202 series is ideal for getting stereo audio from point A to B. The DN202WT is a wireless audio transmitter with balanced XLR and ¼inch inputs, enabling users to send audio from a professional audio mixer or source through walls and ceilings up to 200 feet (60m) away. The DN202WR is the companion receiver, featuring balanced XLR and ¼inch outputs for connection to loudspeakers or amplification systems. Multiple DN202WR’s may be used with a single DN202WT to optimize sound coverage at an event or split indoor/outdoor/multilevel venues.
Features:
- For use with DN-202WR
- Sends audio up to 30m (100 ft) without wires

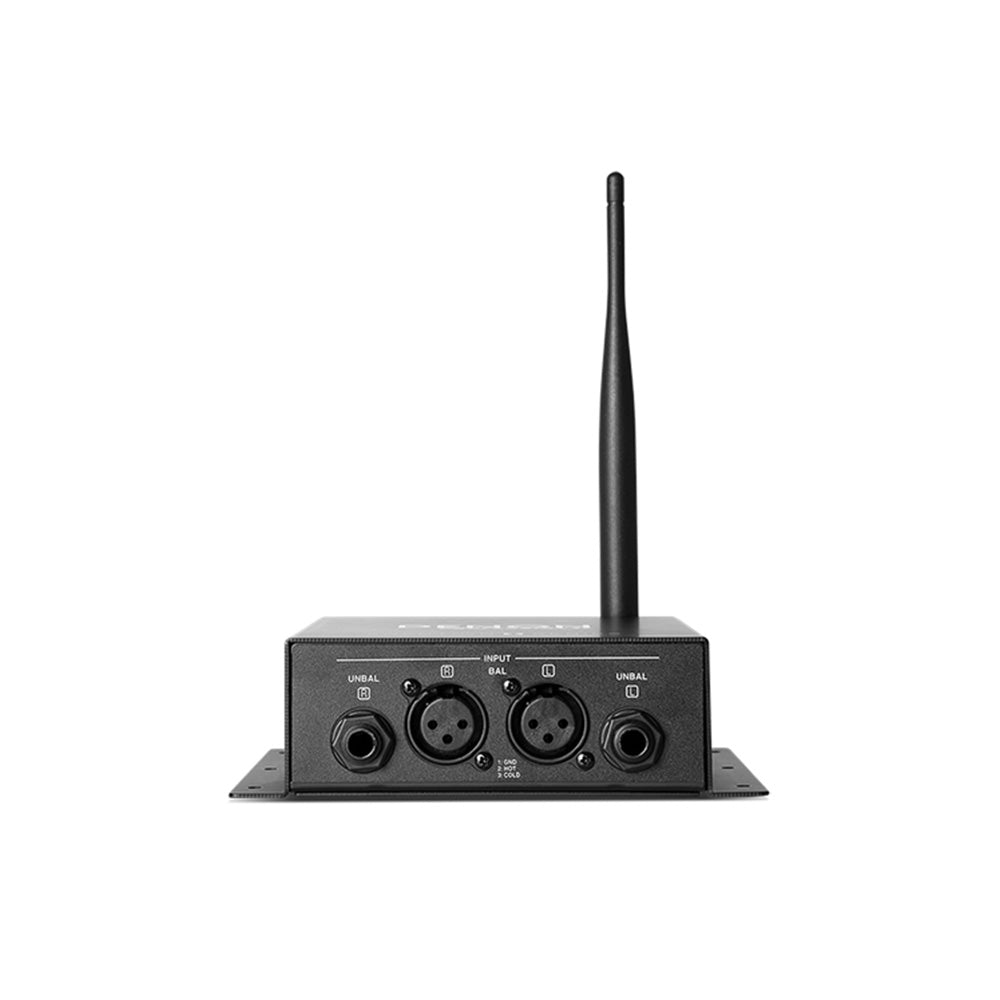

- XLR and 1/4” audio inputs
- Able to broadcast to multiple receivers (sold seperately)
- External, articulating antennas ensure optimum transmission and reception
- Perfect for event spaces, houses of worship, entertainment venues, education, retail, and more
Frequency Response | 20 Hz Ð 20 KHz, +3 dB |
Signal-to-Noise Ratio | > 80 dB |
THD | < 0.1% |
Input Level | +5 dBu |
Dynamic Range | > 90 dB at 1 KHz |
Crosstalk | > 90 dB at 1 KHz |
Latency | 20 ms |
Wireless Specifications | Channel: 25 Modulation: GFSK Bandwidth:> 1.8 MHz Transmission Frequency: 2.404 Ð 2.476 GHz Transmission Range: Up to 100 ft. (30.5 m) Transmission Power: 10 dBm |
Power | 100Ð240 V AC, 50/60 Hz 5 V DC, 3 A, center-positive (adapter included) |
Dimensions (width x depth x height) | 5.8Ó x 4.6Ó x 1.8Ó 149 x 117 x 45 mm |
Weight | 1.3 lbs. 0.6 kg |
For applications where unsightly cable runs or drilling of holes is not permissible, the DN202 series is ideal for getting stereo audio from point A to B. The DN202WT is a wireless audio transmitter with balanced XLR and ¼inch inputs, enabling users to send audio from a professional audio mixer or source through walls and ceilings up to 200 feet (60m) away. The DN202WR is the companion receiver, featuring balanced XLR and ¼inch outputs for connection to loudspeakers or amplification systems. Multiple DN202WR’s may be used with a single DN202WT to optimize sound coverage at an event or split indoor/outdoor/multilevel venues.
Features:
- For use with DN-202WR
- Sends audio up to 30m (100 ft) without wires
- XLR and 1/4” audio inputs
- Able to broadcast to multiple receivers (sold seperately)
- External, articulating antennas ensure optimum transmission and reception
- Perfect for event spaces, houses of worship, entertainment venues, education, retail, and more
Frequency Response | 20 Hz Ð 20 KHz, +3 dB |
Signal-to-Noise Ratio | > 80 dB |
THD | < 0.1% |
Input Level | +5 dBu |
Dynamic Range | > 90 dB at 1 KHz |
Crosstalk | > 90 dB at 1 KHz |
Latency | 20 ms |
Wireless Specifications | Channel: 25 Modulation: GFSK Bandwidth:> 1.8 MHz Transmission Frequency: 2.404 Ð 2.476 GHz Transmission Range: Up to 100 ft. (30.5 m) Transmission Power: 10 dBm |
Power | 100Ð240 V AC, 50/60 Hz 5 V DC, 3 A, center-positive (adapter included) |
Dimensions (width x depth x height) | 5.8Ó x 4.6Ó x 1.8Ó 149 x 117 x 45 mm |
Weight | 1.3 lbs. 0.6 kg |
