DiGiCo 4REA4 Central DSP Mixing Engine

  • Dale #:

    DICO-XA4REA4
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

4REA4 puts high quality audio at the heart of your installed sound solution, giving you the tools to build and shape the right solution with ease. At your fingertips you have a vast processing resource and redundancy support not normally found at this price point. The ability to integrate with to... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

4REA4 puts high quality audio at the heart of your installed sound solution, giving you the tools to build and shape the right solution with ease. At your fingertips you have a vast processing resource and redundancy support not normally found at this price point. The ability to integrate with top tier live performance products natively without complex programming enhances the flexibility of this solution delivering a truly unique audio processing product for installations.

Features:

  • Control, Route and Mix up to four areas using a single, compact mix engine
  • Apply powerful DSP with comprehensive signal processing on each input and output
  • Expand with a variety of I/O modules
  • 536 x 538 point to point matrix in any combination
  • Add a range of input/output units for up to 128 inputs and 56 mix busses
  • Connect controllers and expanders using standard CAT5e cable
  • Route any signal input to any signal output, area or mix
  • Integrate with DiGiCo or 3rd party consoles across a multiroom venue
  • Network controllers using standard Ethernet switches and PoE/PoE+
  • Provide advanced personal mixing for musicians
  • Built in 64 channel Automatic Mic Mixer (AMM)
  • Triggerable Audio File playback
  • 96kHz Sample Rate

Possible Applications:

  • Performance Venues
  • Conference Centres
  • Cruise Ships
  • Houses of Worship
  • Theatre
  • Higher Education Auditoria and Seminar Spaces
  • Live Music Venues
  • Arts, Leisure and Cultural Facilities
  • Shared Stages at Festivals
  • Broadcast

4REA4 is a new type of system processor leveraging the power of FPGA technology, 96kHz sample rate and intuitive, console-based, software to enable superior performance networked audio throughout your venue.

The mainframe can process 128 input channels and 56 outputs with on board connectivity via a range of network ports, SD Card slots (up to 3) and DMI card slots (up to 4). In addition to processing channels, 4REA4 can act as a point-to-point router for up to 512 channels, so any channel from any device on the network can routed directly to any other device on the network without affecting your processing capacity.

You can also split the workspace into 4 zones each with their own stereo master, to which access is limited through User Groups and Permissions.

It also has 8 Macros that can change the configuration at the touch of a button, so the system can be optimised for a range of set ups and applications, then recalled on demand.

The 4REA4 has bi-directional audio connectivity with any device on the network in both its proprietary format and a range of other standards (Dante, MADI, Avoim, Waves SoundGrid, Optocore, ME-1, AES/EBU). The system can also interface with external control devices using TCP/IP, GPIO, Midi and AMX/Crestron.

The system has a range of I/O and control peripherals that can interface over a standard, standalone network. It's designed to be plug and play working off the shelf using Layer 2 network hardware; no IP or Mac addresses, just simple ID settings established over a web browser.

Building the software platform in a mixing console style is designed to open up the set-up, control and management to in-house Technical Managers or Heads of Audio, allowing venues to be in control of updates, changes or upgrades should they have the right in-house expertise.

More +

Product Specs

FRONT PANEL 1 x Ethernet port for control (1000Mbps)
1 x ¼” Headphone socket & volume control
1 x USB2.0 slot
8 x Programmable buttons with LED indication
SIGNAL PROCESSING
Inputs 128 Inputs (Stereo channels use 2 DSP channels)
Busses 48 Mix Busses configurable as :
Mono/Stereo Auxes, Mono/Stereo Groups, Mono/Stereo Matrix Busses, Mono/Stereo FX Sends
Zones / Areas 4 Dedicated Stereo Area Masters
128 x 48 Processing Channels • HPF/LPF
• 4 Band Parametrics EQ
• Dynamics: Gate, Ducker, Slow Ducker, Manual Peak Compressor
• 2 Insert points per channel
• 341.32ms Input delay
• 682.65ms Output delay
• Graphic EQ on outputs
16 FX Processing • Reverbs
• Stereo Tap Delays
• Chorus
• Gated Verbs
• Pitch Shifters
• De-Essers
• 4 Band Dynamic EQ’s
• 3 Band Multiband Compressor

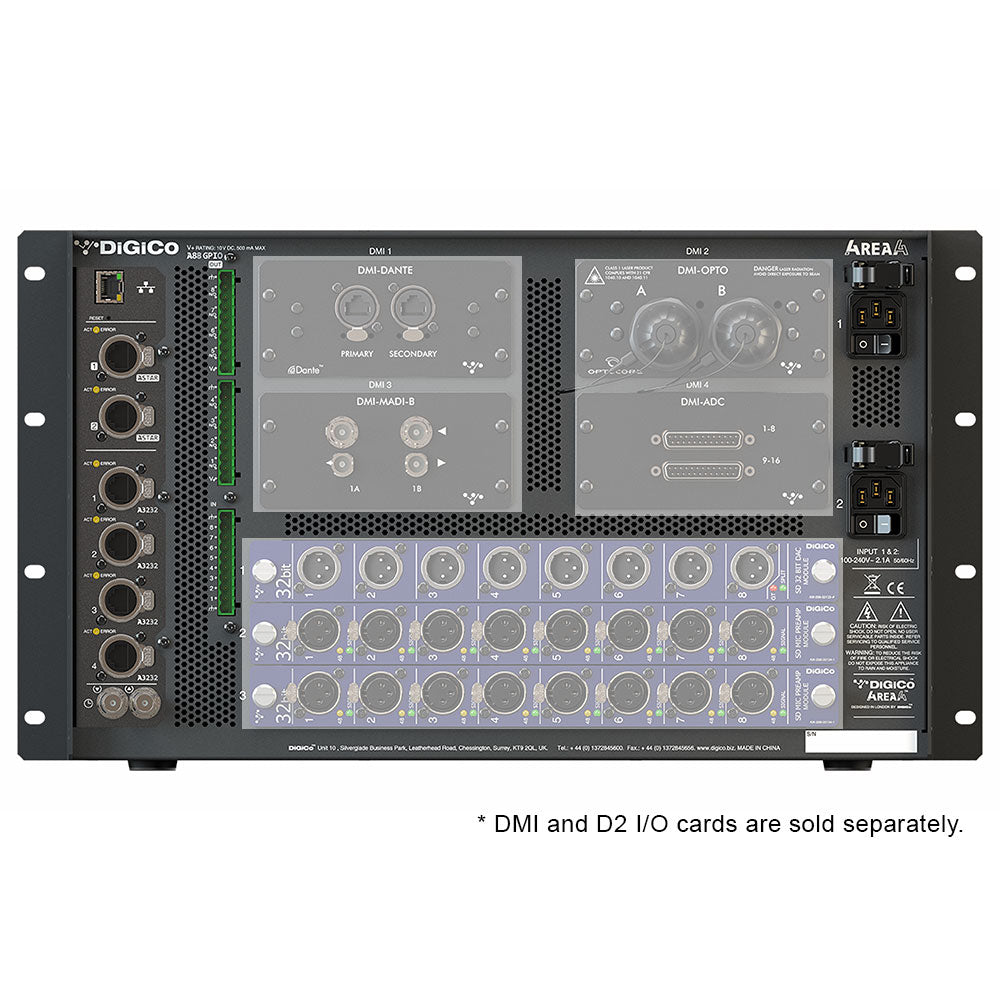

REAR PANEL 1 x Ethernet port for control (1000Mbps)
3 x 8-Channel SD-Rack I/O card slots for analogue and AES connectivity with up to 32-bit conversion
4 x DMI card slots for MADI, Dante, Optocore, Waves, AES, Mic & AVIOM expansion
4 x A3232 Ports 32 x 32 Channel to connect to remote I/O modules
1 x Dual redundant ASTAR port 128 x 128 channel
Word clock in and out
(IEC) Mains power dual redundant
100-240V 2.1A 50/60Hz
8 x GPI (Switch to ground)
8 x GPO (Relay contacts 10V 500mA)
PHYSICAL
Rack Size 6 RU
Dimensions 482.8 (w) x 380 (d) x 265 (h) mm
19 (w) x 14.96 (d) x 10.43 (h) inches
Weight 20.2 kg (NET) (44.53lbs)
90 W Power consumption (per PSU)
Heat Output 402 BTU/h
