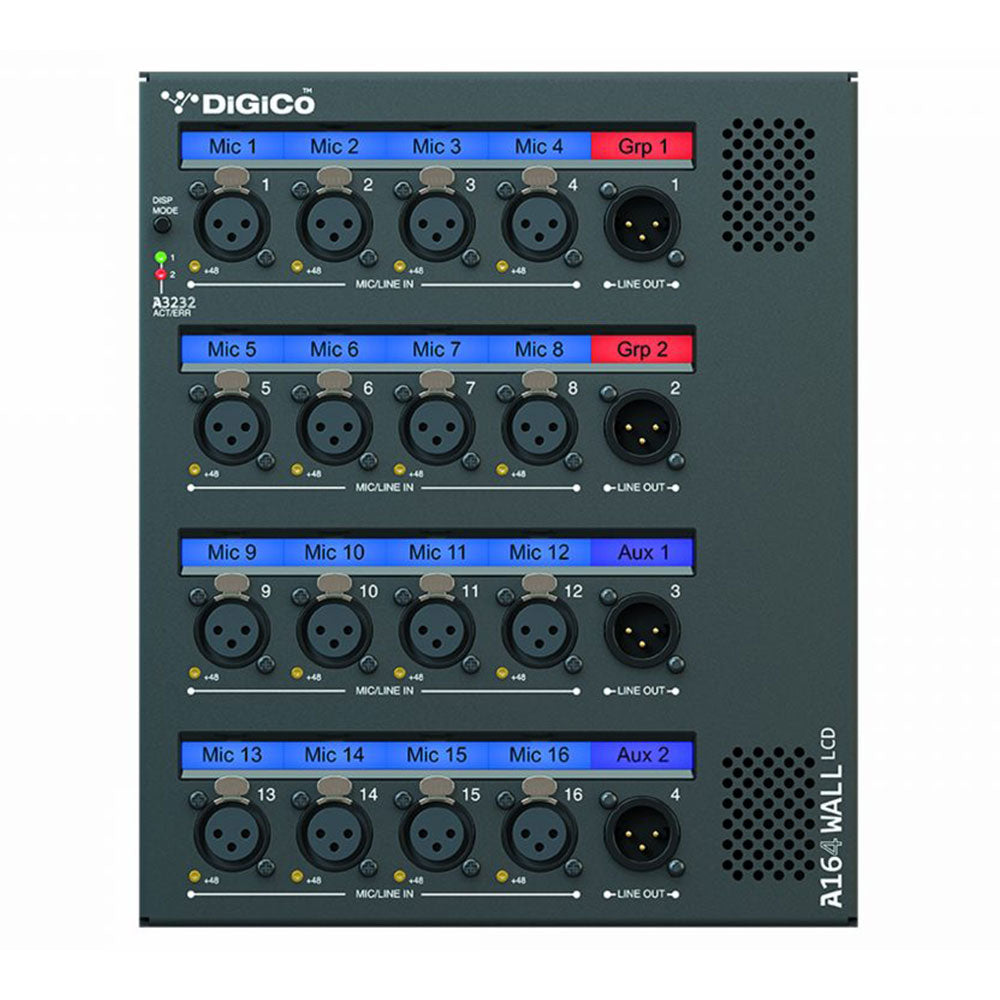

DiGiCo A164 WALL LCD - Wall or Floor Mount Input/Output Box for 4REA4 System with LCD Strips
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
16 mic/line in and 4 line out I/O Expander using A3232 network protocol and providing fixed, additional I/O anywhere on the network. Up to two A164WALL LCD units can be daisy-chained via A3232, or the second A3232 port can be used to create a redundant network. All LCD labels are dimmable and can be customised using 4REA4 software.
Features:
- Designed for Wall or Floor mounting
- Intelligent labelling and interrogation S-LCDs
- Proprietary CAT5e / etherCON RJ45 connection via DiGiCo A3232 protocol
- 16 Mic Preamps on XLR with Phantom Power status LEDs
- 4 x XLR Line Outs
- 2 x A3232 Port for expansion or redundancy
- Customisable and dimmable LCD labels
| TOP PANEL | 2 x A3232 connections 1 x IEC C14 or Hardwired (optional) 1 x Mains input (100-240VAC) 1 x Mode switch |
| FRONT PANEL | 16 x Mic Preamps on XLR with Phantom Power status LEDs 4 x XLR Line outs |
| Mix/Line XLR Inputs | Balanced XLR, +48V Phantom Power |
| Mic/Line Preamp | Fully recallable |
| Analogue Gain | +5 to +60dB, 1dB steps |
| Pad | -20dB Active PAD |
| Maximum Input Level | +30dBu (PAD in) |
| Input Impedance | >4k½ (Pad out),>10k½ (Pad in) |
| Mic EIN | -127dB with 150½ source |
| Analogue XLR Outputs | Balanced, Relay protected |
| Output Impedance | <75½ |
| Nominal Output | +4dBu = 0dB meter reading |
| Maximum Output Level | +22dBu |
| Residual Output Noise | -93dBu (22Hz-22kHz) |
| Operating Temperature Range | 0¡C to 35¡C (32¡F to 95¡F) |
| Mains Voltage Operating Range | 100-240V AC, 50/60Hz |
| Mains Power Consumption | 35W max |
| DC Input | 12V DC, 3A max |
| Dimensions | 210 (w) x 250 (h) x 87 (d) mm 8.27 (w) x 9.84 (h) x 3.43 (d) inches |
| Unpacked Weight | 6Kgs (13.23lbs) |
