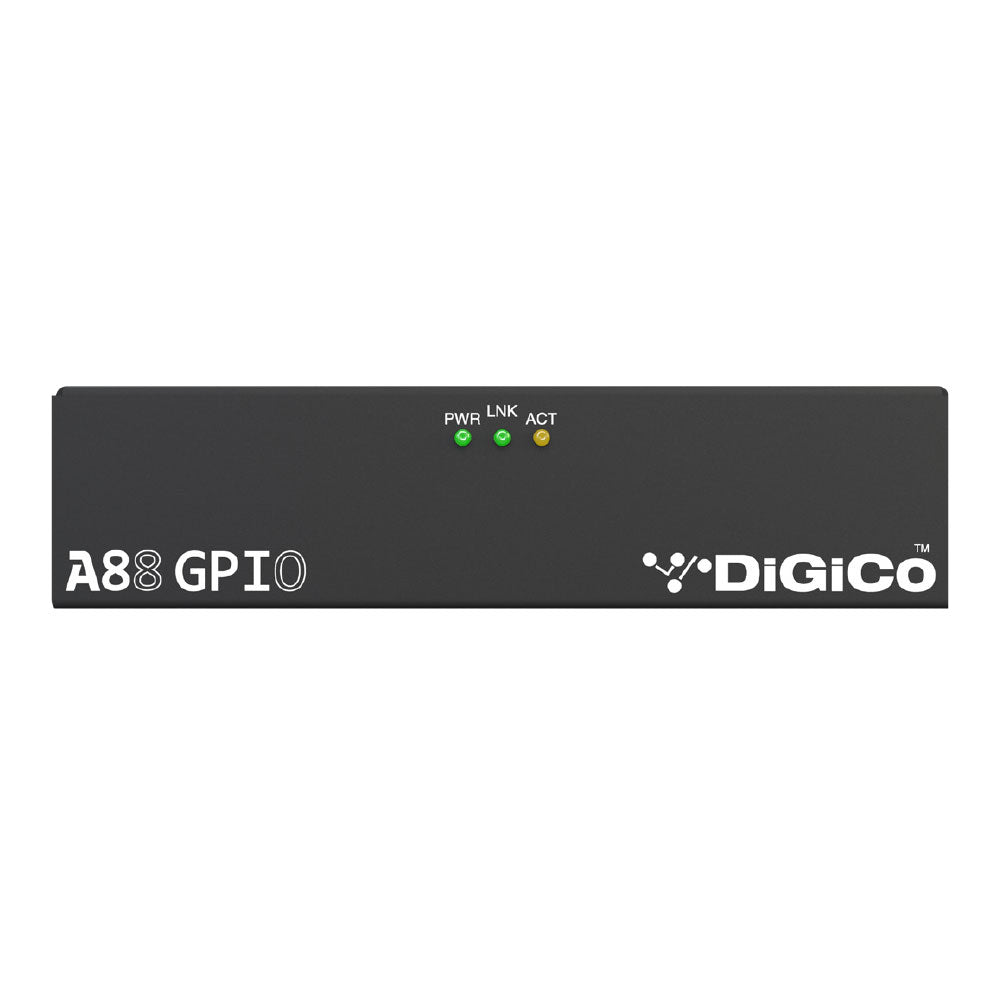

DiGiCo A88 GPIO - General Purpose I/O Interface for 4REA4 System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
DiGiCo A88 GPIO - General Purpose I/O Interface for 4REA4 System
Sale price$1,559.69
Description
The 4REA4 Customised DSP Engine has 8×8 on board GPIO ports. You can extend the number of GPIO's anywhere in the installation using the network-based A88GPIO.
Features:
- Expand GPIO ports in different physical locations
- PoE powered or External 12V PSU
- Sits on 4REA4 Control network – standard TCP/IP
- Compatible with standard network products
| REAR PANEL | 1 x Ethernet port for control (PoE). 1 x 12V DC input 8 x opto-isolated inputs 8 x N/O relay outputs 1 x Network reset switch |
| Relay Output Max Voltage | 24V |
| Relay Output Max Current | 400mA |
| External Power Output | +10VDC / 500mA max |
| Operating Temperature Range | 0¡C to 35¡C (32¡F to 95¡F) |
| Power Requirement | 12V DC via external PSU, 1A max or PoE (IEEE 802.3af-2003) 0.9A max |
| Dimensions | 42.4 (h) x 171 (w) x 197.6 (d) mm 1.66 (h) x 6.73 (w) x 7.77 (d) inches |
| Unpacked Weight | 1.3Kgs. (2.87lbs.) |
The 4REA4 Customised DSP Engine has 8×8 on board GPIO ports. You can extend the number of GPIO's anywhere in the installation using the network-based A88GPIO.
Features:
- Expand GPIO ports in different physical locations
- PoE powered or External 12V PSU
- Sits on 4REA4 Control network – standard TCP/IP
- Compatible with standard network products
| REAR PANEL | 1 x Ethernet port for control (PoE). 1 x 12V DC input 8 x opto-isolated inputs 8 x N/O relay outputs 1 x Network reset switch |
| Relay Output Max Voltage | 24V |
| Relay Output Max Current | 400mA |
| External Power Output | +10VDC / 500mA max |
| Operating Temperature Range | 0¡C to 35¡C (32¡F to 95¡F) |
| Power Requirement | 12V DC via external PSU, 1A max or PoE (IEEE 802.3af-2003) 0.9A max |
| Dimensions | 42.4 (h) x 171 (w) x 197.6 (d) mm 1.66 (h) x 6.73 (w) x 7.77 (d) inches |
| Unpacked Weight | 1.3Kgs. (2.87lbs.) |
