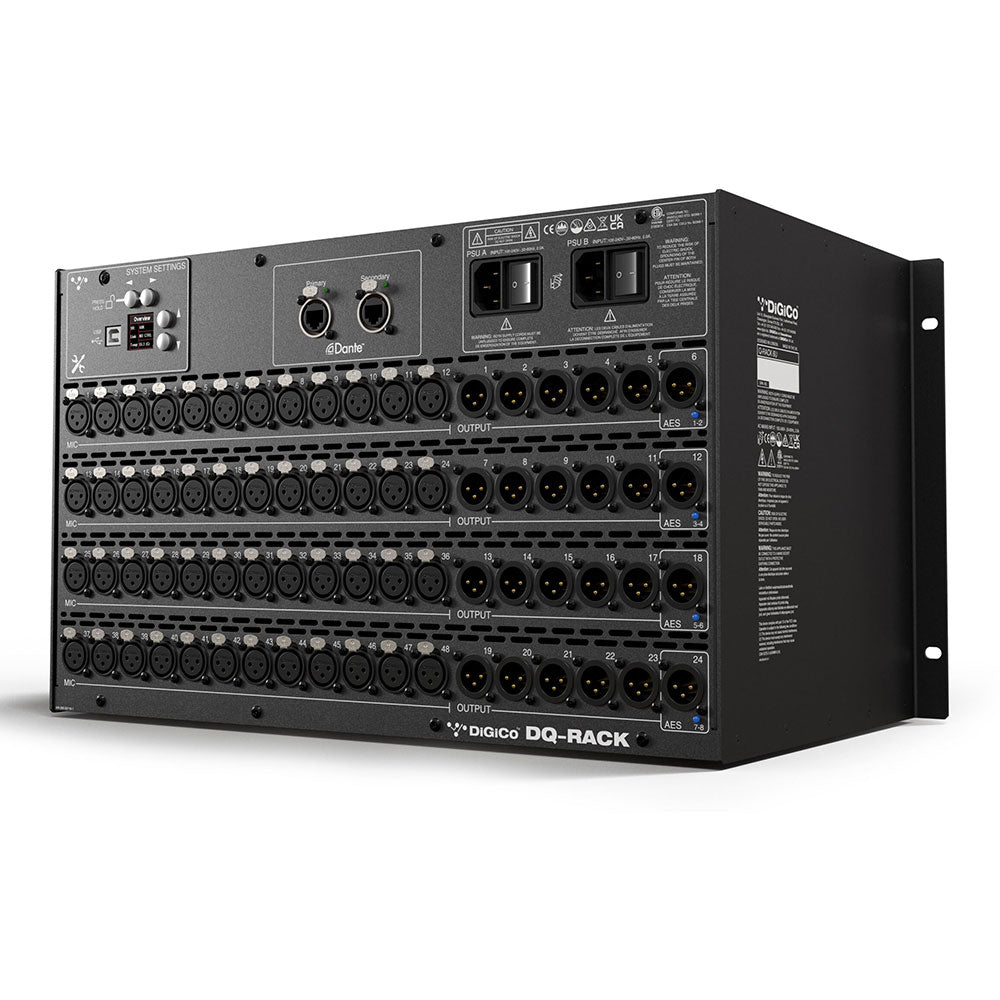

DiGiCo DQ-Rack - 48-Input 24-Output Dante Stage Box
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DQ-Rack provides all of the power of our larger racks, but in a more compact unit, and harnessing the flexibility of Audinate's Dante protocol.
The compact 6U rack sports 48 mic inputs and up to 24 line outputs. Clever audio design allows the last 4 outputs to be switched between line outputs and stereo AES/EBU outputs, adding up to a maximum of 8 AES/EBU output channels.
Making use of Dante means that existing infrastructure can be used for flexible and familiar installation. Plus, connection to a DiGiCo console via the DMI-DANTE64@96 means all inputs and outputs on the racks can be accessed at both 48kHz and 96kHz.
To ensure ultimate reliability the DQ-Rack is equipped with dual redundant power supplies as standard.
Features:
- 48 Mic Inputs
- Up to 24 Line Outputs
- 4 Switchable AES Outputs
- Dante Connectivity
- Rack sharing or digital splits at 48kHz
- 6U Rack Mountable
- Gain Tracking™
- Redundant PSUs
- Flashing screen to indicate system OK from a distance
- Locked controls to prevent accidental setting changes
- Internal Oscillator

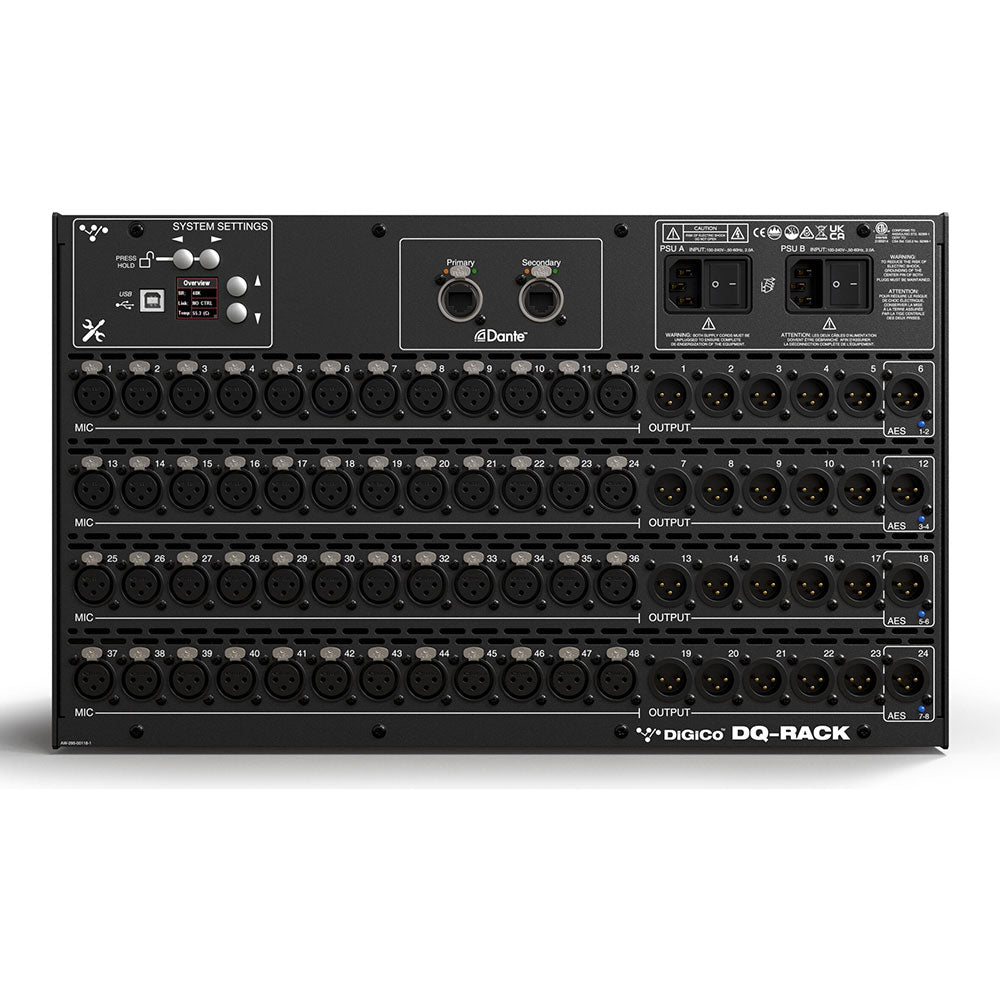

| CONNECTIONS | 48 x XLR Mic Inputs 20 x XLR Line Outputs 4 x XLR Switchable AES/Line Outputs 1 x TFT LCD Menu Screen 4 x Menu Buttons 2 x Dante EtherCON ports 2 x Redundant PSUs 1 x USB 2.0 Type B port |
| SIGNAL PROCESSING | Internal Oscillator Gain Trackingª |
| Dimensions | 482.7mm (w) x 253mm (d) x 265.9mm (h) |
| Weight | 11kg |
| Power Requirements | 100-240V~, 50-60Hz, 2.0A |
| Redundancy | PSUs x 2 |
The DQ-Rack provides all of the power of our larger racks, but in a more compact unit, and harnessing the flexibility of Audinate's Dante protocol.
The compact 6U rack sports 48 mic inputs and up to 24 line outputs. Clever audio design allows the last 4 outputs to be switched between line outputs and stereo AES/EBU outputs, adding up to a maximum of 8 AES/EBU output channels.
Making use of Dante means that existing infrastructure can be used for flexible and familiar installation. Plus, connection to a DiGiCo console via the DMI-DANTE64@96 means all inputs and outputs on the racks can be accessed at both 48kHz and 96kHz.
To ensure ultimate reliability the DQ-Rack is equipped with dual redundant power supplies as standard.
Features:
- 48 Mic Inputs
- Up to 24 Line Outputs
- 4 Switchable AES Outputs
- Dante Connectivity
- Rack sharing or digital splits at 48kHz
- 6U Rack Mountable
- Gain Tracking™
- Redundant PSUs
- Flashing screen to indicate system OK from a distance
- Locked controls to prevent accidental setting changes
- Internal Oscillator
| CONNECTIONS | 48 x XLR Mic Inputs 20 x XLR Line Outputs 4 x XLR Switchable AES/Line Outputs 1 x TFT LCD Menu Screen 4 x Menu Buttons 2 x Dante EtherCON ports 2 x Redundant PSUs 1 x USB 2.0 Type B port |
| SIGNAL PROCESSING | Internal Oscillator Gain Trackingª |
| Dimensions | 482.7mm (w) x 253mm (d) x 265.9mm (h) |
| Weight | 11kg |
| Power Requirements | 100-240V~, 50-60Hz, 2.0A |
| Redundancy | PSUs x 2 |
