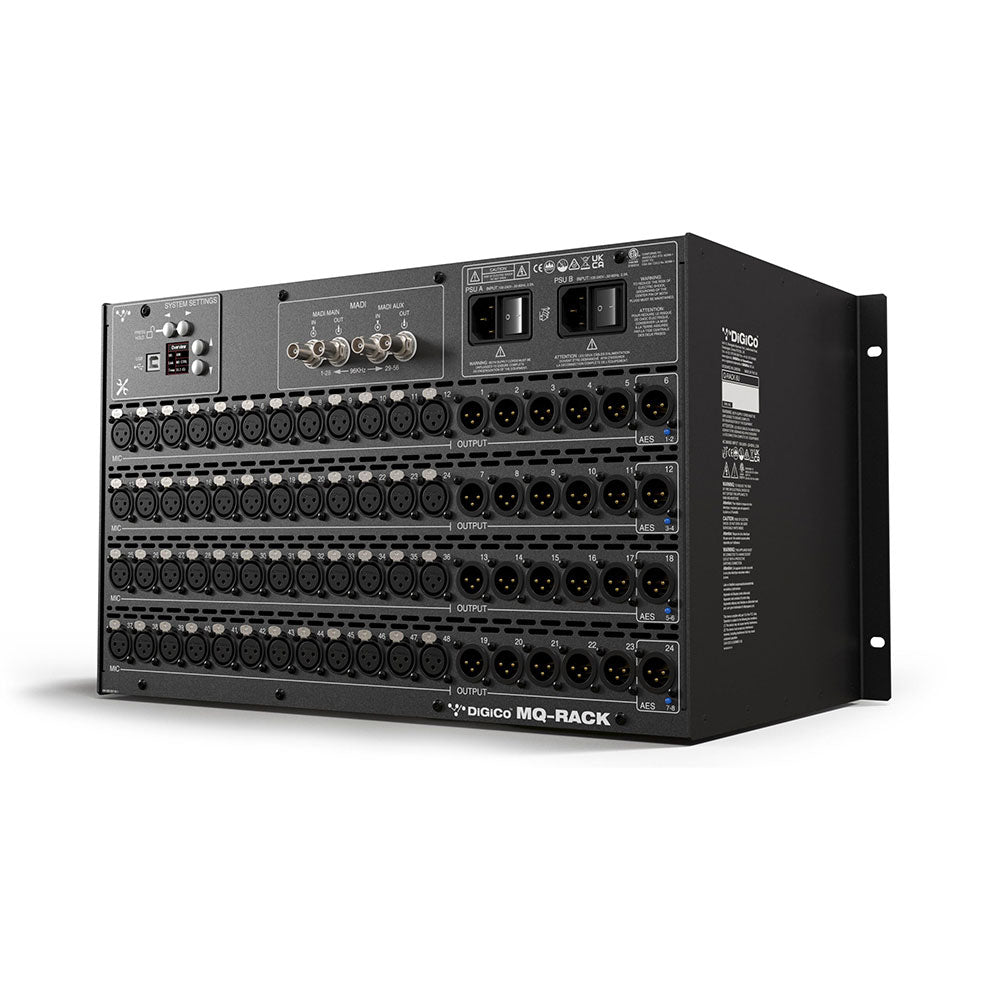

DiGiCo MQ-Rack - 48-Input 24-Output MADI Stage Box
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The MQ-Rack provides all of the power of DiGiCo's larger racks, but in a more compact unit.
The compact 6U rack sports 48 mic inputs and up to 24 line outputs. Clever audio design allows the last 4 outputs to be switched between line outputs and stereo AES/EBU outputs, adding up to a maximum of 8 AES/EBU output channels.
Dual MADI ports, available on BNC connections, either allow rack sharing at 48kHz between any two SD Range or Quantum consoles or provide digital splits for recording. When combined, these ports create a single high definition 96kHz MADI connection with absolutely no reduction in I/O.
To ensure ultimate reliability the MQ-Rack is equipped with dual redundant power supplies as standard.
Features:
- 48 Mic Inputs
- Up to 24 Line Outputs
- 4 Switchable AES Outputs
- BNC MADI Connectivity
- Rack sharing or digital splits at 48kHz
- 6U Rack Mountable
- Gain Tracking™
- Redundant PSUs
- Flashing screen to indicate system OK from a distance
- Locked controls to prevent accidental setting changes
- Internal Oscillator
| CONNECTIONS | 48 x XLR Mic Inputs 20 x XLR Line Outputs 4 x XLR Switchable AES/Line Outputs 1 x TFT LCD Menu Screen 4 x Menu Buttons 1 x MADI Main I/O BNC 1 x MADI Aux I/O BNC 2 x Redundant PSUs 1 x USB 2.0 Type B port |
| SIGNAL PROCESSING | Internal Oscillator Gain Trackingª |
| Dimensions | 482.7mm (w) x 253mm (d) x 265.9mm (h) |
| Weight | 11kg |
| Power Requirements | 100-240V~, 50-60Hz, 2.0A |
| Redundancy | PSUs x 2 |
The MQ-Rack provides all of the power of DiGiCo's larger racks, but in a more compact unit.
The compact 6U rack sports 48 mic inputs and up to 24 line outputs. Clever audio design allows the last 4 outputs to be switched between line outputs and stereo AES/EBU outputs, adding up to a maximum of 8 AES/EBU output channels.
Dual MADI ports, available on BNC connections, either allow rack sharing at 48kHz between any two SD Range or Quantum consoles or provide digital splits for recording. When combined, these ports create a single high definition 96kHz MADI connection with absolutely no reduction in I/O.
To ensure ultimate reliability the MQ-Rack is equipped with dual redundant power supplies as standard.
Features:
- 48 Mic Inputs
- Up to 24 Line Outputs
- 4 Switchable AES Outputs
- BNC MADI Connectivity
- Rack sharing or digital splits at 48kHz
- 6U Rack Mountable
- Gain Tracking™
- Redundant PSUs
- Flashing screen to indicate system OK from a distance
- Locked controls to prevent accidental setting changes
- Internal Oscillator
| CONNECTIONS | 48 x XLR Mic Inputs 20 x XLR Line Outputs 4 x XLR Switchable AES/Line Outputs 1 x TFT LCD Menu Screen 4 x Menu Buttons 1 x MADI Main I/O BNC 1 x MADI Aux I/O BNC 2 x Redundant PSUs 1 x USB 2.0 Type B port |
| SIGNAL PROCESSING | Internal Oscillator Gain Trackingª |
| Dimensions | 482.7mm (w) x 253mm (d) x 265.9mm (h) |
| Weight | 11kg |
| Power Requirements | 100-240V~, 50-60Hz, 2.0A |
| Redundancy | PSUs x 2 |
