DiGiCo Quantum 225 Digital Mixer - Dante Install Package


  • Dale #:

    DICO-XQ225DQ
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

DQ Rack x 1, DMI-DANTE2 x 1, 75M CAT6 cable x 1 Following on from Quantum 338, Quantum 225 brings the power of Quantum in a compact and robust worksurface. Quantum 225 incorporates all of the new design features introduced in 2020 with the Quantum 338, and of course uses three large-scale seven... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

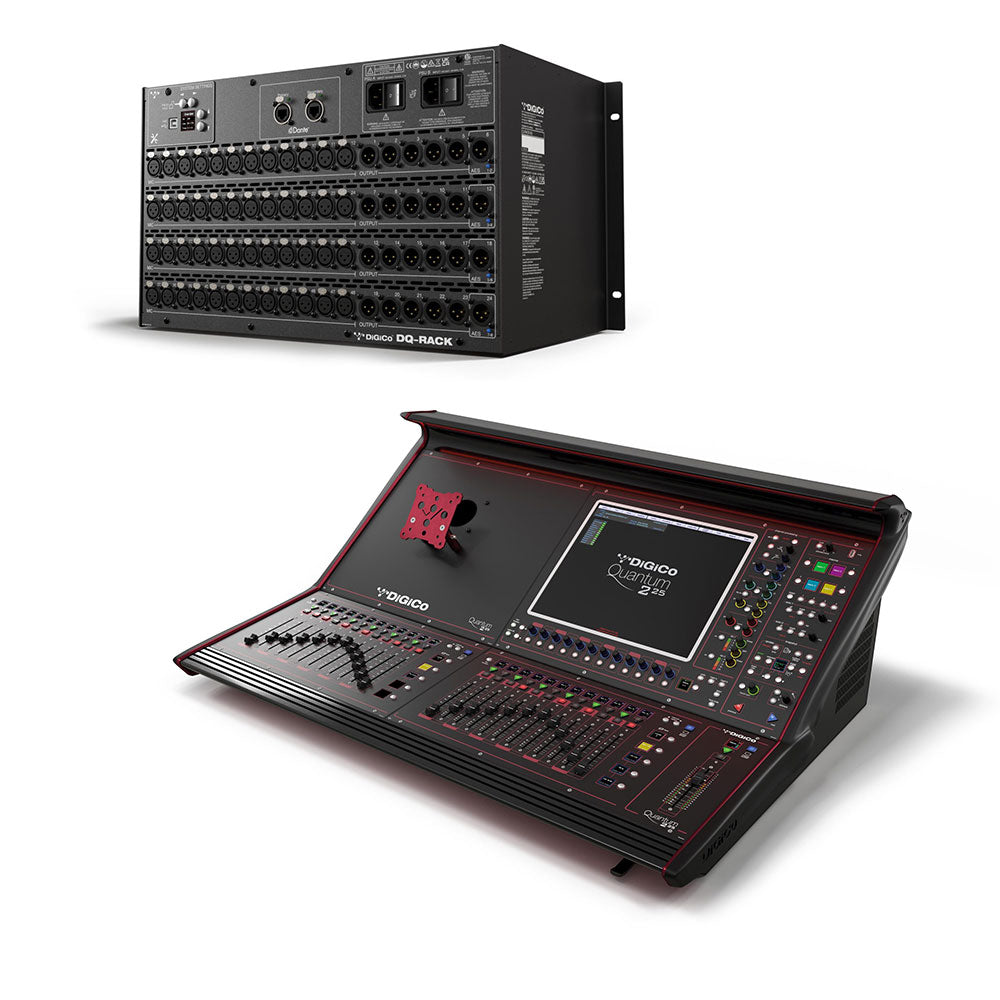

DQ Rack x 1, DMI-DANTE2 x 1, 75M CAT6 cable x 1

Following on from Quantum 338, Quantum 225 brings the power of Quantum in a compact and robust worksurface.

Quantum 225 incorporates all of the new design features introduced in 2020 with the Quantum 338, and of course uses three large-scale seventh generation FPGAs to continue the unrivaled Quantum legacy. The console merges tried and tested workflows with immense processing muscle, bold innovation and all of the Quantum features, giving you the ultimate tool set.

Under The Hood
Quantum 225 brings a 17-inch, 1000 nit, high brightness multitouch screen with both a meter bridge and soft quick select buttons for quick and intuitive operation. 41 individual TFT LCDs displaying channel information and metering, bank information, macros and more guide you immediately to the controls you need. Plus, 25 100mm touch sensitive faders in two banks of 12 plus a dedicated user-assignable master fader with high resolution metering.

But there’s more… The defining feature of the Quantum 225 is the ability to customise the left worksurface with the Mounting Bracket. Mount a laptop for creative control, or a KLANG:kontroller for immersive control. You could even mount an extra screen to show your KLANG:app, plugin computer, console overview screen, or it could even display the channel screen for your left bank of faders, transforming your Quantum 225 into a dual screen console at an unbelievable price point!

With a maximum of 72 input channels with 36 busses and a 12 x 12 matrix, all with full channel processing, Quantum 225 brings Quantum to a wider user base. Also included as standard are Mustard Processing channel strips, Spice Rack plugin style native FPGA processing options, Nodal Processing and True Solo.

I/O
Despite being a smaller format console, there hasn’t been any sacrifice when it comes to connectivity.

  • Local I/O: Quantum 225’s local I/O includes 8 analogue inputs, 8 analogue outputs and 2 AES I/O (4 channels)
  • MADI: Quantum 225 offers 2 redundant MADI in/out at 48kHz, which can also be configured as 4 MADI I/O. At 96kHz this acts as 2 MADI I/O with full channel counts.
  • Optocore: The Quantum 225 offers the option to add a single or dual loops of Optocore. On each loop, which is 504 channels of audio; there can be up to 14 DiGiCo racks, or a combination of racks and tie-lines around the loop. With dual Optocore loops, that’s 1,008 Optocore channels of audio and 28 racks running.
  • UBMADI: In addition, the engine has a 48-channel UBMADI, so you can connect any laptop via USB and get 48 channels of recording and playback.
  • DMI: Quantum 225 incorporates two dedicated DMI slots to accommodate the growing family of DiGiCo DMI card options. Allowing the console connectivity to be configured for the demand of the tour or event, you could plug in a Dante module, or the latest automatic mic mixing module. Each dedicated DMI slot provides you with an additional 64 x 64 I/O.
  • Waves: There is also an option to add Waves connectivity if you want to utilise SoundGrid processing, giving you a 64 x 64 additional I/O.

More +

Product Specs

General Specifications
Faders 25 x 100mm touch-sensitive, motorised
Screens 1 x 17” LCD high – brightness, high – resolution touch screen
Input Channels 72
Busses Up to 36 Aux / Group busses with full processing Mono / Stereo / LCR plus a Master
Matrix Up to 12 Input / 12 Outputs with full processing
Control Groups Up to 12, selectable for VCA-style, Moving fader, Mute Group
Graphic Eq 16 x 32-band, Gain +/- 12dB
Internal FX Up to 12 stereo effects comprising floating point reverbs and delay/chorus/pitch/enhancer
Spice Rack 6 mono / 3 stereo Rack Slots
Mustard Proc 24 Processing Strips
Nodal Proc 32 Nodal Processors
Local I/O 8 x mic/line I/O, 2 x AES I/O (4 channels)
MADI interface 4 x interfaces @ 48kHz, 2 interfaces @ 96kHz, BNC connectivity
Optocore Interface Optional (dual loop available)
Sampling rates 48kHz / 96kHz
GPI/GPO 2
DMI 2 x DiGiCo Multichannel Interface
Waves Optional
Ext Sync Wordclock, MADI, Optocore
Quantum 2 Dimensions 1124mm (w) x 801mm (d) x 436mm (h)
Quantum 2 Weight 43Kg / 95lbs (138Kg / 304 lbs. with flightcase)
Quantum 2 Flightcase 1260mm (w) x 601mm (d) x 1141mm (h)
Power Requirements 100V-240V, 50-60Hz, 255VA
Audio Specification
Sample Rate 48kHz or 96kHz
Processing Delay TBC
Internal Processing Up to 40-bit, Floating Point
A>D & D>A 24-bit Converter Bit Depth
Frequency Response TBC
THD TBC
Channel Separation TBC
Residual Output Noise TBC
Microphone Input TBC
Maximum Output Level TBC
Maximum Input Level TBC
Processing Channel Specification
Input Channel
Name User-Defined / Presets
Channel Selection Mono / Stereo / Multi
Input Routing Main & Alternate Input
Analogue Gain -20 to +60dB
Phase Normal / Reverse
Digital Trim -40 to +40dB
Delay Up to 1.3s
DiGiTuBe Drive 0.01 – 50.0
Bias 0 – 6
LPF 20 – 20kHz, 24dB/Oct
HPF 20 – 20kHz, 24dB/Oct
Insert A (Pre EQ/Dyn) On/Off
Equalisation 4 Band EQ: Parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hi Shelf, Hi/Hishelf)
On/Off
Freq; 20 – 20kHz
Gain; +/- 18dB
Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf)
Dynamic EQ On/Off
Over/Under
Band On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Dynamics 1 Single or Multiband (3-Band)Compressor:
On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Gain; 0 to +40dB with Autogain Option
Link; Any Channel/Buss
Hi Crossover; 20Hz – 20kHz
Lo Crossover; 20Hz – 20kHz
Knee : Hard, Med, SoftDe-Esser:
Threshold : 20us – 20ms
Release : 1ms – 100ms
Ratio : 1:1 – 50:1
Ess-Band : Listen On/Off
Ess-Band Filter Freq / Width: 20Hz – 20kHz
Dynamics 2 On/OffGate / Ducker:
Threshold; -60 – 0dB
Attack; 50us – 100ms
Hold; 2ms – 2s
Release; 5ms – 5s
Range; 0 – 90dB
Key; Any Source
Key Listen
Freq/Width; 20 – 20kHzCompressor:
On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Gain; 0 to +40dB with Autogain Option
Link; Any Channel / Buss
Hi Crossover; 20Hz – 20kHz
Lo Crossover; 20Hz – 20kHz
S/C Source : Any Source
S/C Listen : On/Off
S/C Filter Freq/Width: 20Hz – 20kHz
Insert B (Post EQ/Dyn) On/Off
EQ/Dyn order: EQ/Dyn or Dyn/EQ
Mute: Channel Mute / Hard Mute
Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo
Channel Safe: Input, EQ, Dyn, Aux, Pan, Fade/Mute, Inserts, Buss, Directs,
Full Safe
Output Routing: Buss, Insert A, Insert B, FX
Direct: On/Off, Pre-Mute / Pre-Fade / Post-Fade, Level +/- 18dB
Fader: 100mm Motorised Fader ∞ to +10dB
Processing Channel Specification Aux / Group / Matrix Output
Name User-Defined / Presets
Phase Normal / Reverse
Digital Trim -20 to +60dB
Delay Up to 1.3 sec
DiGiTuBe Drive 0.01 – 50.0
Bias 0 – 6
LPF 20 – 20kHz, 24dB / Oct
HPF 20 – 20kHz, 24dB / Oct
Insert A (Pre EQ/Dyn) On/Off
Equalisation 8 Band EQ: 4 band Parametric and 4 band parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hi Shelf, Hi/Hishelf)
On/Off
Freq; 20 – 20kHz
Gain; +/- 18dB
Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf)
Dynamic EQ On/Off
Over/Under
Band On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Dynamics 1 Single or Multiband (3-band)Compressor:
On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Gain; 0 to +40dB with Autogain Option
Link; Any Channel / Buss
Hi Crossover; 20Hz – 20kHz
Lo Crossover; 20Hz – 20kHz
Knee : Hard, Med, SoftDe-Esser:
Threshold: 20us – 20ms
Release: 1ms – 100ms
Ratio: 1:1 – 50:1
Ess-Band: Listen On/Off
Ess-Band Filter Freq/Width: 20Hz – 20kHz
Dynamics 2 On/OffGate / Ducker:
Threshold; -60 – 0dB
Attack; 50us – 100ms
Hold; 2ms – 2s
Release; 5ms – 5s
Range; 0 – 90dB
Key; Any Source
Key Listen
Freq/Width; 20 – 20kHzCompressor:
On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Gain; 0 to +40dB with Autogain Option
Link; Any Channel/Buss
Hi Crossover; 20Hz – 20kHz
Lo Crossover; 20Hz – 20kHz
S/C Source : Any source
S/C Listen : On/Off
S/C Filter Freq/Width: 20Hz – 20kHz
Insert B (Post EQ/Dyn) On/Off
EQ/Dyn Order EQ/Dyn or Dyn/EQ
Mute Channel Mute / Hard Mute
Solo Solo Buss 1 / Solo Buss 2 / Both, Auto Solo
Channel Safe Trim, EQ, Dyn, Fade/Mute, Inserts, Outputs, Full Safe
Output Routing Outputs, Insert A, Insert B, FX
Fader 100mm Motorised Fader ∞ to +10dB
Mustard Processing
Preamplifier Tubes Variable Drive
Odd / Even / Overdrive / Distortion / Crunch / Hi Distortion Presets
Variable Output Gain
Preamplifier Amp Variable Drive
Odd/Even 1st stage harmonics
Bias & Saturate control
Off/Odd/Even 2nd stage harm
Variable HF Boost
Variable Output Gain
Equalisation 4 band EQ: Parametric (lowshelf / bell, lower-mid bell / all-pass, upper-mid bell / all-pass, hishelf / bell)
HPF & LPF 4th order filters
Dynamics 1 Classic VCA Compressor / Vintage VCA Compressor / Optical Compressor / FET Limiter
Dynamics 2 Gate / Ducker
