Description

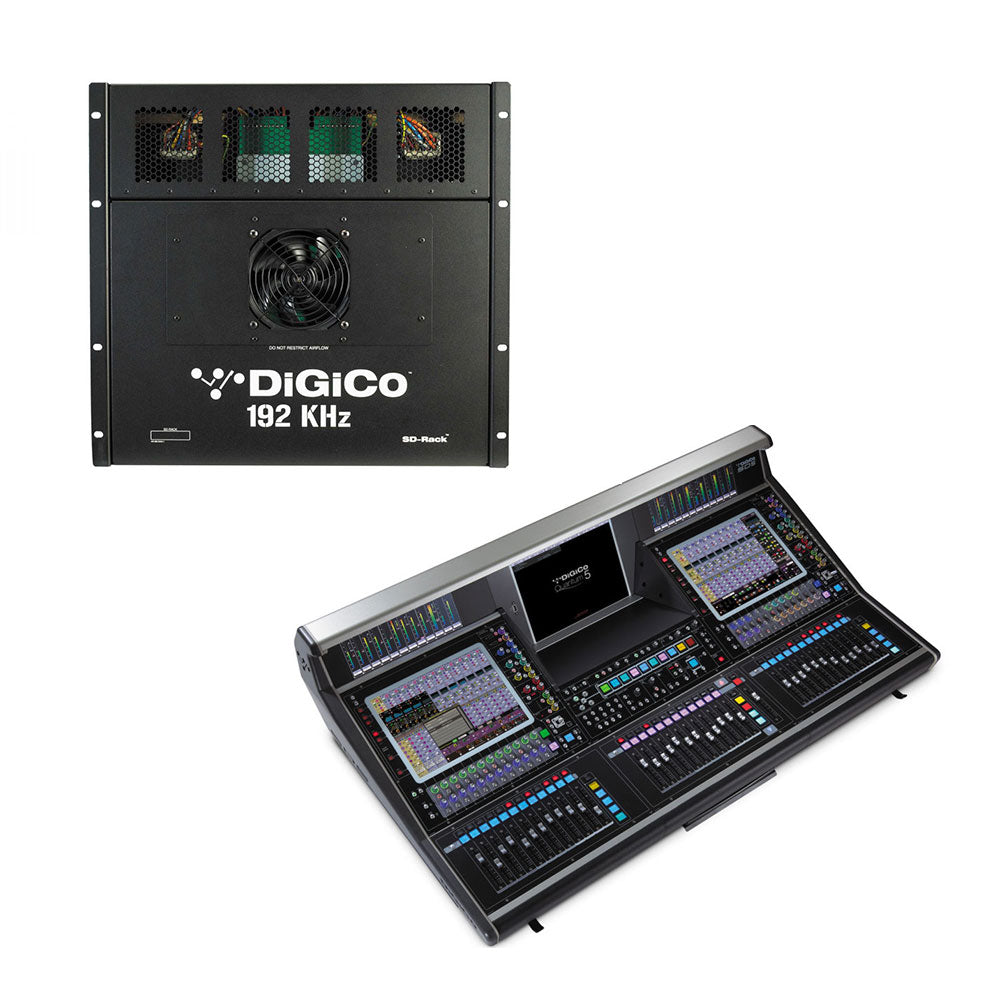

Quantum5 Control Surface - MADI and One Multi-Mode Optics HMA
Package Includes: one SD HMA Rack (56 Mic In x 40 Out x 16 AES-O)
Ultimate Stadius' 32-Bit Mic Pre Amp and 32-Bit Output Package
HMA Optics cable 150M on spool (492 ft.) x 2
Connection: MADI x 8, Optics x 1, Internal Waves Card, UB-MADI, DMI Port x 2
Connectors: BNC, HMA
Quantum 5: Own the stage
The iconic SD5 paved the way to greatness with its immense power. The Quantum 7 showed you the supremacy to tackle any challenge, now the Quantum 5 is ready to take over.
Following on from the huge success of DiGiCo’s flagship Quantum 7, the Quantum 5 engine slots neatly into the existing SD5 frame. With its 37 faders and three 15-inch full colour TFT touchscreens, it provides Quantum processing features, power and connectivity in both new and existing hardware.
The Quantum 5 really does teach an old dog new tricks!
Quantum – The Power of Three
Continuing the legacy of previous Quantum consoles, the Quantum 5 brings you the extraordinary might of three large-scale FPGAs working in unison.
Developed with seventh generation FPGA devices that further expand audio processing power and allows DiGiCo to provide its users with unrivalled flexibility.
Inside the Quantum engine, up to 2,000 channels can be transported across 458 processing paths at 96kHz. New GTX ports run at 6.6GHz while simple two wire connections ensure the fastest possible data speeds to reach a new pinnacle in mixing capability. Fully scalable and designed to communicate seamlessly with the next generation of FPGAs, the Quantum engine is a uniquely formidable platform for an ambitious industry.
Under The Hood
Unlike the SD5, the Quantum 5 has over 450 processing paths at 96kHz. This includes 288 processing channels configurable as up to 256 input channels and up to 128 busses, plus a 36 x 36 matrix. The engine is also equipped with four redundant, or eight individual, MADI ports and two DMI slots (DiGiCo Multi-Channel Interface) for AoIP and other connectivity options from the complete family of DMI card options, plus a built-in Waves port and up to two Optocore loops.
Quantum 5 hosts the world’s most flexible and feature-rich mixing experience right at your very fingertips. Across both inputs and outputs includes Channel Delay, DiGiTube, Single and Multi-Channel Presets, Dual insert points, Hi- and Lo-pass filters at 24dB/octave, four-band parametric EQ (eight on outputs) with band curve selection and Dynamic EQ on each band, DiGiCo’s DYN 1 (Compressor, De-esser or Multiband Compressor) and DYN 2 (Gate, Compressor or Ducker).
Just like our other Quantum consoles, the Quantum 5 includes the legendary Mustard Processing. A fully integrated suite of additional processing that can be assigned to any strip to boost your mix with a range of modelled preamps, vintage dynamics units and EQ sections, all only a touch away.
In addition, 128 busses are assignable as mono/stereo groups or auxiliaries, while a 36×36 output matrix, dual solo busses with True Solo, and a LR/LCR/5.1 Master buss is available for even deeper configurability.
Last but not least, with the inclusion of the now highly regarded Nodal Processing which allows monitor engineers unrivalled creativity on their IEM mixes, and of course True Solo to allow them to hear exactly as their artist does.
Quantum 5 Features
I/O
More +
Product Specs
General Specifications | |
Faders | 37 x 100mm touch-sensitive, motorised |
Screens | 3 x 15” LCD high – resolution touch screens |
Meterbridge | 2 x Custom Mounted LCD high-resolution TFT-LCD screens |
Internal PSU | x 2 |
Processing Channels | Up to 330 (combination of Input Channels / Aux / Solo Group Busses) |
Busses | Up to 128 Aux / Group busses with full processing Mono / Stereo / LCR / 5.1 |
Matrix | Up to 36 Input / 36 Outputs with full processing |
Control Groups | Up to 36, selectable for VCA-style, Moving fader, Mute Group |
Graphic Eq | 32 x 32-band, Gain +/- 12dB |
Internal FX | Up to 36 stereo effects comprising 16 floating point reverbs and 32 delay/chorus/pitch/enhancer |
Local I/O | 8 x mic/line I/O, 8 x AES I/O 8 x MADI interfaces @ 48kHz, 4 redundant interfaces @ 96kHz, BNC connectivity Standard Optocore (Dual Loop – Optional) |
Sampling rates | 48kHz / 96kHz |
GPIO | 2 x DSub37 |
DMI | 2 x DiGiCo Multichannel Interface |
Waves | Fitted as Standard |
Ext Sync | Wordclock, AES, Video, MADI, Optocore |
Quantum 5 Dimensions | 1465mm (w) x 838mm (d) x 458mm (h) |
Quantum 5 Weight | 116Kg / 256lbs (235Kg / 518 lbs. with flightcase) |
Quantum 5 Flightcase | 1600mm (w) x 600mm (d) x 1200mm (h) |
Power Requirements | 90V-260V, 50-60Hz, 790VA |
Audio Specification | |
Sample Rate | 48kHz or 96kHz |
Processing Delay | 2ms Typical @ 48k (253 Channels, Stage Input Through L-R Buss to Stage Output) 1.1ms @96k |
Internal Processing | Up to 40-bit, Floating Point |
A>D & D>A | 24-bit Converter Bit Depth |
Frequency Response | +/- 0.6dB (20Hz – 20kHz) |
THD | <0.05% @ Unity Gain,: 10dB Input @ 1kHz |
Channel Separation | Better Than 90dB: (40Hz – 15kHz) |
Residual Output Noise | <90dBu Typical (20Hz – 20kHz) |
Microphone Input | Better Than -126dB: Equivalent Noise |
Maximum Output Level | +22dBu |
Maximum Input Level | +22dBu |
Processing Channel Specification | |
Input Channel | |
Name | User-Defined / Presets |
Channel Selection | Mono / Stereo / Multi |
Input Routing | Main / Alternate Input |
Analogue Gain | -20 to +60dB |
Phase | Normal / Reverse |
Digital Trim | -40 to +40dB |
Delay | >1 Sec (Coarse + Fine Control) |
DiGiTuBe | Drive 0.01 – 50.0 Bias 0 – 6 |
LPF | 20 – 20kHz, 24dB/Oct |
HPF | 20 – 20kHz, 24dB/Oct |
Insert A | (Pre EQ/Dyn) On/Off |
Equalisation | 4 Band EQ: Parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/ Hi Shelf, Hi/Hishelf) On/Off Freq; 20 – 20kHz Gain; +/- 18dB Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf) Dynamic EQ On/Off Over/Under Band On/Off Threshold; -60 – 0dB Attack; 500us – 100ms Release; 10ms – 10s Ratio; 1:1 – 50:1 |
Dynamics 1 | Single or Multiband (3-Band) Compressor: On/Off Threshold; -60 – 0dB Attack; 500us – 100ms Release; 10ms – 10s Ratio; 1:1 – 50:1 Gain; 0 to +40dB with Autogain Option Link; Any Channel/Buss Hi Crossover; 20Hz – 20kHz Lo Crossover; 20Hz – 20kHz Knee : Hard, Med, Soft De-Esser: Threshold : 20us – 20ms Release : 1ms – 100ms Ratio : 1:1 – 50:1 Ess-Band : Listen On/Off Ess-Band Filter Freq / Width: 20Hz – 20kHz |
Dynamics 2 | On/Off Gate / Ducker: Threshold; -60 – 0dB Attack; 50us – 100ms Hold; 2ms – 2s Release; 5ms – 5s Range; 0 – 90dB Key; Any Source Key Listen Freq/Width; 20 – 20kHz Compressor: On/Off Threshold; -60 – 0dB Attack; 500us – 100ms Release; 10ms – 10s Ratio; 1:1 – 50:1 Gain; 0 to +40dB with Autogain Option Link; Any Channel / Buss Hi Crossover; 20Hz – 20kHz Lo Crossover; 20Hz – 20kHz S/C Source : Any Source S/C Listen : On/Off S/C Filter Freq/Width: 20Hz – 20kHz |
Insert B | (Post EQ/Dyn) On/Off EQ/Dyn order: EQ/Dyn or Dyn/EQ Mute: Channel Mute / Hard Mute Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo Channel Safe: Input, EQ, Dyn, Aux, Pan, Fade/Mute, Inserts, Buss, Directs, Full Safe Output Routing: Buss, Insert A, Insert B, FX Direct: On/Off, Pre-Mute / Pre-Fade / Post-Fade, Level +/- 18dB Fader: 100mm Motorised Fader ∞ to +10dB |
Processing Channel Specification | |
Aux / Group / Matrix Output | |
Name | User-Defined / Presets |
Phase | Normal / Reverse |
Digital Trim | -20 to +60dB |
Delay | >1 Sec (Coarse & Fine control) |
DiGiTuBe | Drive 0.01 – 50.0 Bias 0 – 6 |
LPF | 20 – 20kHz, 24dB / Oct |
HPF | 20 – 20kHz, 24dB / Oct |
Insert A | (Pre EQ/Dyn) On/Off |
Equalisation | 8 Band EQ: 4 band Parametric and 4 band parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hi Shelf, Hi/Hishelf) On/Off Freq; 20 – 20kHz Gain; +/- 18dB Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf) Dynamic EQ On/Off Over/Under Band On/Off Threshold; -60 – 0dB Attack; 500us – 100ms Release; 10ms – 10s Ratio; 1:1 – 50:1 |
Dynamics 1 | Single or Multiband (3-band) Compressor: On/Off Threshold; -60 – 0dB Attack; 500us – 100ms Release; 10ms – 10s Ratio; 1:1 – 50:1 Gain; 0 to +40dB with Autogain Option Link; Any Channel / Buss Hi Crossover; 20Hz – 20kHz Lo Crossover; 20Hz – 20kHz Knee : Hard, Med, Soft De-Esser: Threshold: 20us – 20ms Release: 1ms – 100ms Ratio: 1:1 – 50:1 Ess-Band: Listen On/Off Ess-Band Filter Freq/Width: 20Hz – 20kHz |
Dynamics 2 | On/Off Gate / Ducker: Threshold; -60 – 0dB Attack; 50us – 100ms Hold; 2ms – 2s Release; 5ms – 5s Range; 0 – 90dB Key; Any Source Key Listen Freq/Width; 20 – 20kHz Compressor: On/Off Threshold; -60 – 0dB Attack; 500us – 100ms Release; 10ms – 10s Ratio; 1:1 – 50:1 Gain; 0 to +40dB with Autogain Option Link; Any Channel/Buss Hi Crossover; 20Hz – 20kHz Lo Crossover; 20Hz – 20kHz S/C Source : Any source S/C Listen : On/Off S/C Filter Freq/Width: 20Hz – 20kHz |
Insert B | (Post EQ/Dyn) On/Off |
EQ/Dyn Order | EQ/Dyn or Dyn/EQ |
Mute | Channel Mute / Hard Mute |
Solo | Solo Buss 1 / Solo Buss 2 / Both, Auto Solo |
Channel Safe | Trim, EQ, Dyn, Fade/Mute, Inserts, Outputs, Full Safe |
Output Routing | Outputs, Insert A, Insert B, FX |
Fader | 100mm Motorised Fader ∞ to + 10dB |
