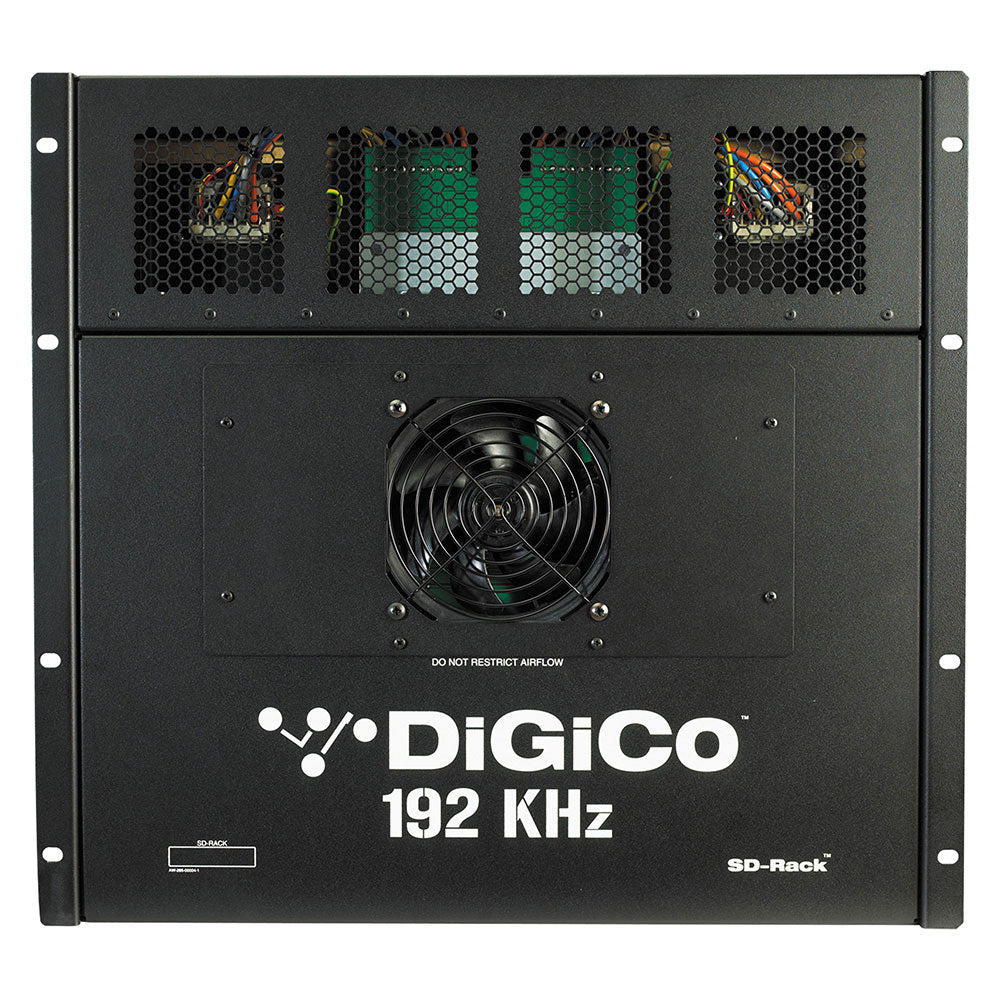

DiGiCo X-SD-RACK-ST - SD-Rack Digital Stage Box (Multi Mode ST)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DiGiCo SD-Rack is a 14 slot input and output rack, allowing up to 56 inputs and 56 outputs. The SD-Rack is compatible with a large selection of analogue and digital modules including DiGiCo's 32-bit DACs, Dante, AES/EBU and Aviom. Based on the same Stealth FPGA technology as the world-renowned SD-Range of consoles, the result is industry-leading A/D conversion complete with DiGiCo's famous Gain Tracking™.
Features:
- 14 card module slots (up to 56 inputs and 56 outputs)
- 10U Rack Mountable
- Gain Tracking™
- Proven touring ready rugged design
- Easily accessible, hot-swappable, redundant PSUs
- Removable PSUs and MADI Pod for cleaning and repair
- MADI Split outputs
- Inbuilt SRC for MADI Split outputs
- Flashing screen to indicate system OK from a distance
- Locked controls to prevent accidental setting changes
- Internal Oscillator
- Can be used as a standalone rack
| WORKSURFACE | 14 card module slots (7 input and 7 output) 2 x Redundant, hot-swappable PSUs 1 x Optocore Interface (Optional) 1 x LCD Menu Screen 4 x Menu Buttons 1 x MADI Main I/O BNC 1 x MADI Aux I/O BNC 1 x MADI Split Main Output BNC 1 x MADI Split Aux Output BNC Word Clock I/O BNC 1 x USB 2.0 Type B port |
| SIGNAL PROCESSING | Internal Oscillator Inbuilt Sample Rate Conversion for split outputs Gain Trackingª |
| OPTIONS | Optocore Interface (HMA, OpticalCon or ST connectivity) Upgrade to SingleMode Optocore Compatible Cards: 32-Bit Mic Pre / 32-Bit DAC / ADC / DAC / AES I/O XLR / AES I/O BNC / AES Input / AES Output / AES42 / Dante / ADAT / SDI I/O / Aviom Blanking Plate |
| Sample Rate | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176kHz or 192kHz |
| Optocore Fibre Speed | 1G or 2G |
| Split Output MADI Type | 56 Ch, SD Rack or 64 Ch |
| Oscillator Level | -96dB to 0dB |
| Oscillator Frequency | 20Hz to 22kHz |
| Dimensions | 482.7mm (w) x 371mm (d) x 443.7mm (h) |
| Weight | 26kg (Unloaded) |
| Power Requirements | 85-264 VAC, 47-440Hz, 4A MAX |
| Redundancy | Internal hot-swappable PSUs x 2 |
The DiGiCo SD-Rack is a 14 slot input and output rack, allowing up to 56 inputs and 56 outputs. The SD-Rack is compatible with a large selection of analogue and digital modules including DiGiCo's 32-bit DACs, Dante, AES/EBU and Aviom. Based on the same Stealth FPGA technology as the world-renowned SD-Range of consoles, the result is industry-leading A/D conversion complete with DiGiCo's famous Gain Tracking™.
Features:
- 14 card module slots (up to 56 inputs and 56 outputs)
- 10U Rack Mountable
- Gain Tracking™
- Proven touring ready rugged design
- Easily accessible, hot-swappable, redundant PSUs
- Removable PSUs and MADI Pod for cleaning and repair
- MADI Split outputs
- Inbuilt SRC for MADI Split outputs
- Flashing screen to indicate system OK from a distance
- Locked controls to prevent accidental setting changes
- Internal Oscillator
- Can be used as a standalone rack
| WORKSURFACE | 14 card module slots (7 input and 7 output) 2 x Redundant, hot-swappable PSUs 1 x Optocore Interface (Optional) 1 x LCD Menu Screen 4 x Menu Buttons 1 x MADI Main I/O BNC 1 x MADI Aux I/O BNC 1 x MADI Split Main Output BNC 1 x MADI Split Aux Output BNC Word Clock I/O BNC 1 x USB 2.0 Type B port |
| SIGNAL PROCESSING | Internal Oscillator Inbuilt Sample Rate Conversion for split outputs Gain Trackingª |
| OPTIONS | Optocore Interface (HMA, OpticalCon or ST connectivity) Upgrade to SingleMode Optocore Compatible Cards: 32-Bit Mic Pre / 32-Bit DAC / ADC / DAC / AES I/O XLR / AES I/O BNC / AES Input / AES Output / AES42 / Dante / ADAT / SDI I/O / Aviom Blanking Plate |
| Sample Rate | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176kHz or 192kHz |
| Optocore Fibre Speed | 1G or 2G |
| Split Output MADI Type | 56 Ch, SD Rack or 64 Ch |
| Oscillator Level | -96dB to 0dB |
| Oscillator Frequency | 20Hz to 22kHz |
| Dimensions | 482.7mm (w) x 371mm (d) x 443.7mm (h) |
| Weight | 26kg (Unloaded) |
| Power Requirements | 85-264 VAC, 47-440Hz, 4A MAX |
| Redundancy | Internal hot-swappable PSUs x 2 |
