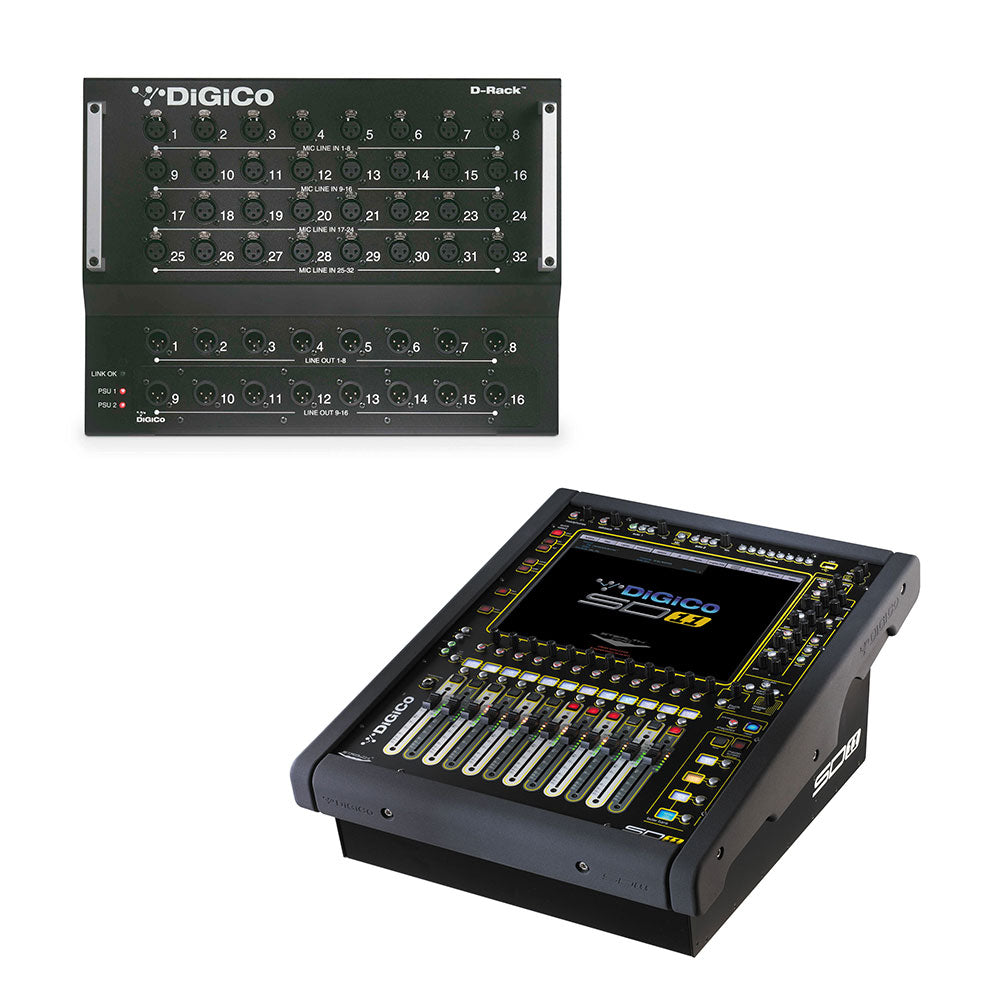

DiGiCo X-SD11I-2P - SD11 Digital Mixer Rack Pack with BNC MADI

DiGiCo SD11i Rack Pack - MADI Only
D-Racks x 1 (part# X-D-RACK-2) 32/8 I/O (expandable to 32/16)
Includes: MADI CAT6 75M (246 ft.) Cables x 1, Dust Cover and Littlites x 1
Connections: D-MADI, MADI
Connectors: EtherCON, BNC (Surface)

Imagine the firepower of seventh generation FPGA technology at your fingertips in a 19-inch rack mount or table top format small enough to travel in the back seat of a car – that’s the SD11, as remarkable for its full feature set as it is for its diminutive footprint. The SD11 shares the same Stealth Digital Processing and floating point Super FPGA technology as its larger flagship consoles, making it the definitive portable mixer for the new generation of musical creativity.

With its steel chassis and polycarbonate-overlaid aluminium worksurface enveloping the trademark 15-inch TFT LCD touch screen and 12 touch-sensitive moving faders, the SD11 is the very epitome of strength and agility.

Under The Hood
The SD11 is compact whilst providing a high channel count: a full 48 input channels at 48kHz or 96kHz. Standard channel processing across all inputs and outputs includes Channel Delay, Single and Multi-Channel Presets, Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ with band curve selection, Dual insert points, DiGiCo’s DYN 1 (Compressor, De-esser or Multi-Band Compressor) and DYN 2 (Gate, Compressor or Ducker).

Regardless of how the console is set up, you’ll benefit from the power of 83 Dynamic EQ processors that are assignable to any of the input or output channels, offering dynamic processing on each of the four standard parametric bands, plus 83 Multiband Compressors. Whatever the gig, the SD11 delivers the same high quality signal path and feature set.

The master section incorporates 12 gangable 32-band graphic EQs, six stereo effects (selectable from a palette of 33), and eight control groups (VCAs); using snapshots, you can switch between complete configurations in any live environment easier than ever before, be it at rehearsals, during system setup, or even at a show.

In addition, 24 busses are assignable as mono/stereo groups or auxiliaries; while an 8×8 output matrix, dual solo busses, and a Master buss provide even deeper configurability.

I/O
The SD11’s I/O capability punches far above its weight: sporting 16 mic/line inputs, eight line outs, two mono AES/EBU, one MADI port, and one dedicated D-Rack port allowing expansion to a further 32 inputs and eight or 16 outputs, as well as a factory fit Optocore option for connectivity to all DiGiCo racks and consoles in a redundant loop.

Get instant access to 32 fully integrated low-latency Waves stereo MultiRacks, each with up to eight plug-ins per rack, by fitting optional DiGiCo SoundGrid modules linked to external SoundGrid or DiGiGrid servers, giving a total of 128 additional I/O.
