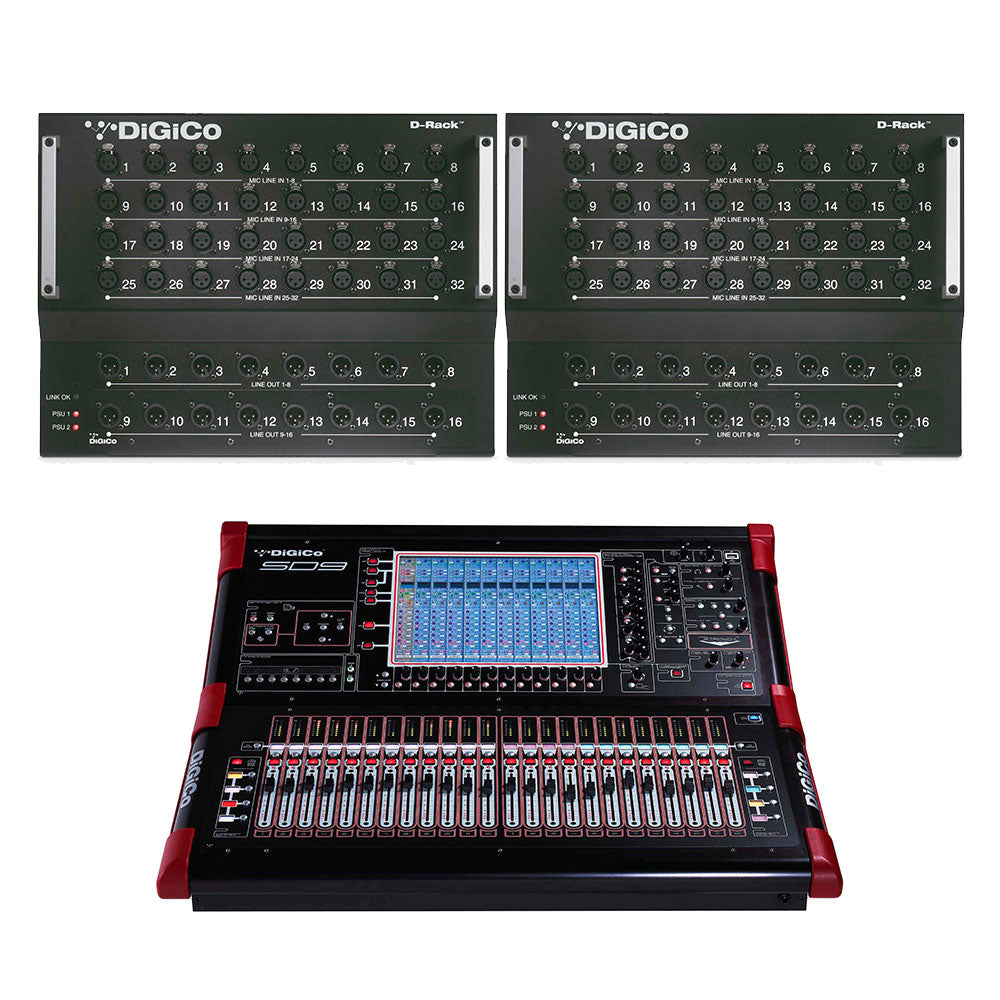

DiGiCo X-SD9-2P-RP - SD9 Digital Mixing Bundle - D-Rack Pack Install Package with BNC MADI


  • Dale #:

    DICO-XSD92PRP
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

SD9 RACK PACK Install Package - MADI Only D-Racks x 2 (part# X-D-RACK-2) 64/16 I/O (expandable to 64/32) Includes: MADI CAT6 75M (246 ft.) Cables x 2, Dust Cover and Littlites x 2 Connections: D-MADI x 2, MADI x 1 Connectors: EtherCON, BNC (Surface) DiGiCo SD9: Compact, affordable, e... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

SD9 RACK PACK Install Package - MADI Only
D-Racks x 2 (part# X-D-RACK-2) 64/16 I/O (expandable to 64/32)
Includes: MADI CAT6 75M (246 ft.) Cables x 2, Dust Cover and Littlites x 2
Connections: D-MADI x 2, MADI x 1
Connectors: EtherCON, BNC (Surface)

DiGiCo SD9: Compact, affordable, extraordinary.
Compact in size but big on features, the DiGiCo SD9 brings the strength of Stealth Digital Processing and floating point Super FPGA technology to an exceptionally accessible price point. Coupling the speed and efficiency of DiGiCo’s renowned workflow to the lightweight, small-footprint construction of a desk that fits every application, the fully integrated SD9 is as effective on the road as it is in a theatre, conference centre or house of worship.

Built for efficient and familiar operation, the SD9 work surface puts 24 touch-sensitive, motorised faders at your fingertips plus quick access function buttons within easy reach. A 15-inch, high resolution backlit TFT LCD touchscreen provides ease-of-use and at a glance operation, while dedicated multi-function control knobs and electronic labelling ensures the show is always a success. Welcome to the SD9 – your introduction to extraordinary high-end performance.

Under The Hood
Boasting 96 channels at 48kHz/96kHz, the SD9 delivers a wealth of functionality. Standard channel processing (inputs and outputs) includes Channel Delay, Single and Multi-Channel Presets, Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ with band curve selection, Dual insert points, DiGiCo’s DYN 1 (Compressor, De-esser or Multi Band Compressor) and DYN 2 (Gate, Compressor or Ducker).

Also onboard are 155 Dynamic EQ processors which can be assigned to any of the input or output channels; 155 Multiband Compressors and 155 DiGiTuBes. All channels deliver the same pure signal path and feature set, so no matter how you set up your console, you never lose any resources. Within the master section are 16 gangable 32 band graphic EQs, 12 stereo effects (selectable from a palette of 33), and 12 control groups (VCAs). Using snapshots, engineers can switch between complete configurations at a touch.

The SD9’s 48 busses are all assignable as groups or auxiliary busses while further configurability comes courtesy of a 12×8 output matrix, dual solo busses, and a Master buss. Unlike all other digital console manufacturers, you don’t lose Aux or Group Busses when using the Matrix as they are in addition, including the Master buss.

I/O
The SD9’s vast local I/O section offers eight mic inputs, eight line outs, four mono AES/EBU, one MADI port, and two dedicated D-Rack Ports. As standard, every SD9 is accompanied by a D-Rack, with 32-inputs and eight outputs (extendable to 16). A second D-Rack can be connected for a total of 72 mic inputs.

Users can also choose a factory-fit Optocore option which allows for connectivity to all DiGiCo racks and consoles in a redundant loop, and a DiGiCo SoundGrid module giving instant access to 32 fully integrated low-latency Waves stereo MultiRacks.

More +

Product Specs

General Specifications
Faders 24 x 100mm Touch-sensitive, motorised
Screens 1 x 15” (38cm) LCD high – resolution touch screen
Meters 24 x 8-Segment LED bargraph
Input Channels 96 Input Channels
Busses 48 Aux/ Sub-Group Busses
Solo Busses 2 Stereo Busses
Matrix 12 x 8 Matrix (additional to busses above)
Control Groups 12, Selectable for VCA-style, Moving Fader, Mute Group
Graphic EQ 16 x 32-band, Gain +/- 12dB
Internal FX 12 Stereo FX Processors
Local I/O 8 x Mic/Line I/O, 4 x AES/EBU: I/O (Mono)
MADI Interface In / Out
Optional Optics Optocore, HMA or ST
MIDI Interface In / Out / Thru
VGA Port DB-15 Mini-Female (1024 x 768 Resolution)
USB Ports 3 x USB2
Light Connection 2 x XLR3 1.2 – 12V
Ext Sync Word Clock, MADI
Headphone TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
GPI 2 x 1/4” Jack
GPO 2 x 1/4” Jack
SD9 Dimensions 878mm (w) x 785mm (d) x 262mm (h)
SD9 Weight 36Kg (105Kg with optional flightcase)
SD9 Flightcase 1063mm (w) x 1131mm (h) x 472mm (d) (Optional)
SD9 Power 90-264 VAC, 47-63Hz Auto Sensing. 208 watts, 232VA Requirements
Redundancy Internal PSU x 2 (Optional)
Audio Specification
Sample Rate 48kHz or 96kHz
Processing Delay 2ms Typical @ 48k (48 Stereo Channels, Stage Input Through L-R Buss to Stage Output) 1.1ms @ 96k
Internal Processing Up to 40-bit, Floating Point
A>D & D>A 24-bit Converter Bit Depth
Frequency Response +/- 0.6dB (20Hz – 20kHz)
THD <0.05% @ Unity Gain,: 10dB Input @ 1kHz
Channel Seperation Better Than 90dB: (40Hz – 15kHz)
Residual Output <90dBu Typical
Noise (20Hz – 20kHz)
Microphone Input: Better Than -126dB: Equivalent Noise
Maximum Output Level +22dBu
Maximum Input Level +22dBu
Processing Channel Specification
Input Channel
Name User-Defined / Presets
Channel Selection Mono / Stereo / Multi
Input Routing Main & Alternate Input
Analogue Gain -20 to +60dB
Phase Normal / Reverse
Digital Trim -40 to +40dB
Delay >1 Sec (Coarse & Fine Control)
DiGiTuBe Drive 0.01 – 50.0
Bias 0 – 6
LPF 20 – 20kHz, 24dB/Oct
HPF 20 – 20kHz, 24dB/Oct
Insert A (Pre EQ/Dyn) On/Off
Equalisation 4 Band EQ: Parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/
Hi Shelf, Hi/Hishelf)
On/Off
Freq; 20 – 20kHz
Gain; +/- 18dB
Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf)
Dynamic EQ On/Off
Over/Under
Band On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Dynamics 1 Single or Multiband (3-Band) Compressor: On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Gain; 0 to +40dB with
Autogain Option
Link; Any Channel/Buss
Hi Crossover; 20Hz – 20kHz
Lo Crossover; 20Hz – 20kHz
Knee : Hard, Med, Soft De-Esser: Threshold : 20us – 20ms
Release : 1ms – 100ms
Ratio : 1:1 – 50:1
Ess-Band : Listen On/Off
Ess-Band Filter Freq / Width: 20Hz – 20kHz
Dynamics 2 On/OffGate / Ducker: Threshold; -60 – 0dB
Attack; 50us – 100ms
Hold; 2ms – 2s
Release; 5ms – 5s
Range; 0 – 90dB
Key; Any Source
Key Listen
Freq/Width; 20 – 20kHz Compressor: On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Gain; 0 to +40dB with
Autogain Option
Link; Any Channel / Buss
Hi Crossover; 20Hz – 20kHz
Lo Crossover; 20Hz – 20kHz
S/C Source : Any Source
S/C Listen : On/Off
S/C Filter Freq/Width: 20Hz – 20kHz
Insert B (Post EQ/Dyn) On/Off
EQ/Dyn order EQ/Dyn or Dyn/EQ
Mute Channel Mute / Hard Mute
Solo Solo Buss 1 / Solo Buss 2 / Both, Auto Solo
Channel Safe Input, EQ, Dyn, Aux, Pan, Fade/Mute, Inserts, Buss, Directs, Full Safe
Output Routing Buss, Insert A, Insert B, FX
Direct On/Off, Pre-Mute / Pre-Fade / Post-Fade, Level +/- 18dB
Fader 100mm Motorised Fader ∞ to +10dB
Processing Channel Specification
Aux / Group / Matrix Output
Name User-Defined / Presets
Phase Normal / Reverse
Digital Trim -20 to +60dB
Delay >1 Sec (Coarse & Fine control)
DiGiTuBe Drive 0.01 – 50.0
Bias 0 – 6
LPF 20 – 20kHz, 24dB / Oct
HPF 20 – 20kHz, 24dB / Oct
Insert A (Pre EQ/Dyn) On/Off
Equalisation 4 Band Parametric or Dynamic
Parametric Only
(Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hi Shelf, Hi/Hishelf)
On/Off
Freq; 20 – 20kHz
Gain; +/- 18dB
Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf)
Dynamic EQ On/Off
Over/Under
Band On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Dynamics 1 Single or Multiband (3-band) Compressor: On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Gain; 0 to +40dB
with Autogain Option
Link; Any Channel / Buss
Hi Crossover; 20Hz – 20kHz
Lo Crossover; 20Hz – 20kHz
Knee : Hard, Med, SoftDe-Esser: Threshold: 20us – 20ms
Release: 1ms – 100ms
Ratio: 1:1 – 50:1
Ess-Band: Listen On/Off
Ess-Band Filter Freq/Width: 20Hz – 20kHz
Dynamics 2 On/OffGate / Ducker: Threshold; -60 – 0dB
Attack; 50us – 100ms
Hold; 2ms – 2s
Release; 5ms – 5s
Range; 0 – 90dB
Key; Any Source
Key Listen
Freq/Width; 20 – 20kHz Compressor: On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Gain; 0 to +40dB
with Autogain Option
Link; Any Channel/Buss
Hi Crossover; 20Hz – 20kHz
Lo Crossover; 20Hz – 20kHz
S/C Source : Any source
S/C Listen : On/Off
S/C Filter Freq/Width: 20Hz – 20kHz
Insert B (Post EQ/Dyn) On/Off
EQ/Dyn Order EQ/Dyn or Dyn/EQ
Mute Channel Mute / Hard Mute
Solo Solo Buss 1 / Solo Buss 2 / Both, Auto Solo
Channel Safe Trim, EQ, Dyn, Fade/Mute, Inserts, Outputs, Full Safe
Output Routing Outputs, Insert A, Insert B, FX
Fader 100mm Motorised Fader ∞ to + 10dB
