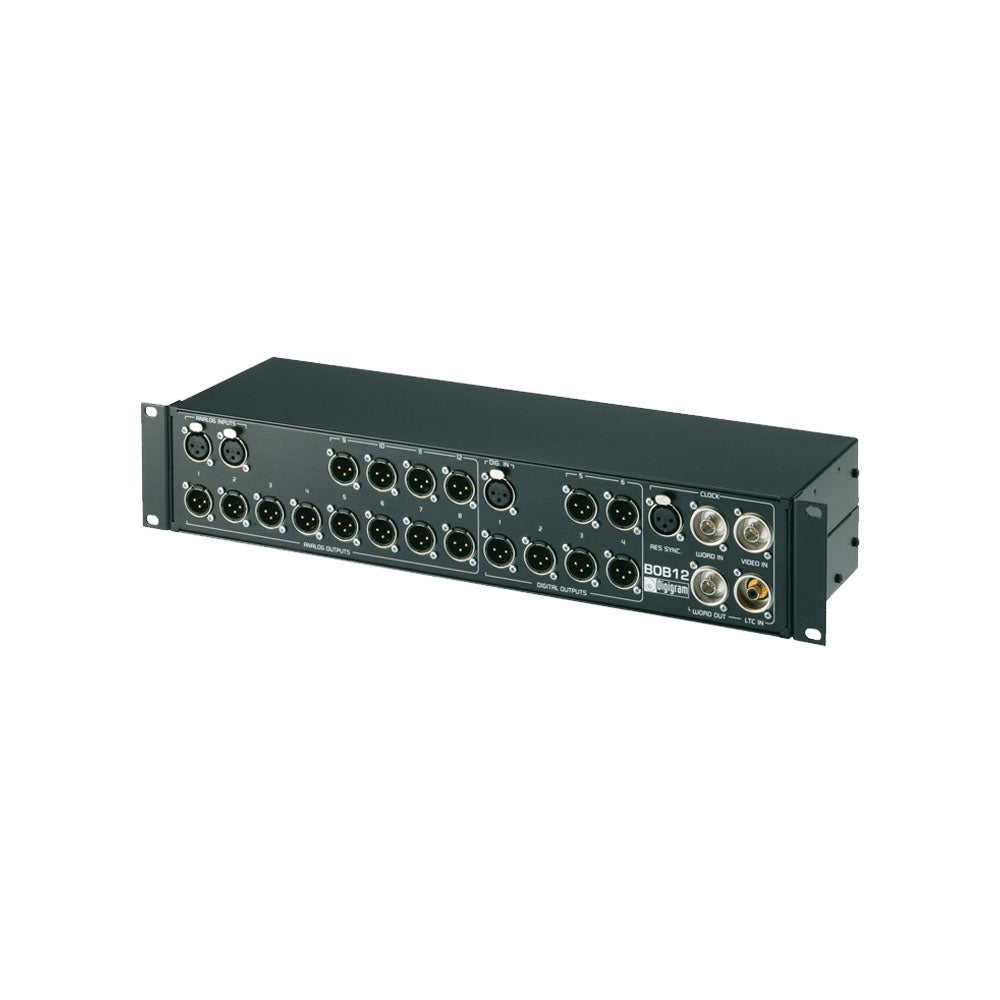

Digigram BOB12 Breakout Box for Digigram Multi-Channel Soundcards
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
BOB12 is an elegant, safe, and ergonomic solution to connect audio input and output signals to Digigram’s multichannel sound cards via a sturdy 2U 19? rack. BOB12 is the perfect match for the Digigram’s twelve channel sound cards. It can be used with the following cards:
VX1222HR, VX1221HR, VX12222e, VX1221e, PCX1222HR, PCX1221HR, PCX1222e, PCX1221e
Features
- 2U 19’’ rack
- Allows connections on a front panel of:
– 2 balanced analog input and 12 balanced analog output signals
– 1 stereo balanced AES/EBU input and 2 stereo balanced AES/EBU output signals
– external synchronisation signals
| Dimensions | 2U 16ÕÕ rack (440 x 88 x 150 mm (Width x height x depth) |
| Weight | ~2.60 kg (~5.75 lbs) |
| Connectors | 2 balanced analog inputs + 12 balanced analog outputs on XLR 1 stereo AES/EBU input + 6 stereo AES/EBU outputs on XLR 1 AES synchronization input on XLR 1 Wordclock synchronization input and output on BNC connectors 1 Video reference input on BNC connector 1 LTC input on RCA connector |
| Physical | Rugged mechanical design and high-quality Neutrikª connectors Digigram design, tested against EMC requirements Four mounting configurations: rack front end, rack back end, under a table, top of a table |
| Compatible with | Ð VX1222HR, VX1221HR, VX12222e, VX1221e Ð PCX1222HR, PCX1221HR, PCX1222e, PCX1221e |
| Options | Optional label carrier sets |
BOB12 is an elegant, safe, and ergonomic solution to connect audio input and output signals to Digigram’s multichannel sound cards via a sturdy 2U 19? rack. BOB12 is the perfect match for the Digigram’s twelve channel sound cards. It can be used with the following cards:
VX1222HR, VX1221HR, VX12222e, VX1221e, PCX1222HR, PCX1221HR, PCX1222e, PCX1221e
Features
- 2U 19’’ rack
- Allows connections on a front panel of:
– 2 balanced analog input and 12 balanced analog output signals
– 1 stereo balanced AES/EBU input and 2 stereo balanced AES/EBU output signals
– external synchronisation signals
| Dimensions | 2U 16ÕÕ rack (440 x 88 x 150 mm (Width x height x depth) |
| Weight | ~2.60 kg (~5.75 lbs) |
| Connectors | 2 balanced analog inputs + 12 balanced analog outputs on XLR 1 stereo AES/EBU input + 6 stereo AES/EBU outputs on XLR 1 AES synchronization input on XLR 1 Wordclock synchronization input and output on BNC connectors 1 Video reference input on BNC connector 1 LTC input on RCA connector |
| Physical | Rugged mechanical design and high-quality Neutrikª connectors Digigram design, tested against EMC requirements Four mounting configurations: rack front end, rack back end, under a table, top of a table |
| Compatible with | Ð VX1222HR, VX1221HR, VX12222e, VX1221e Ð PCX1222HR, PCX1221HR, PCX1222e, PCX1221e |
| Options | Optional label carrier sets |
