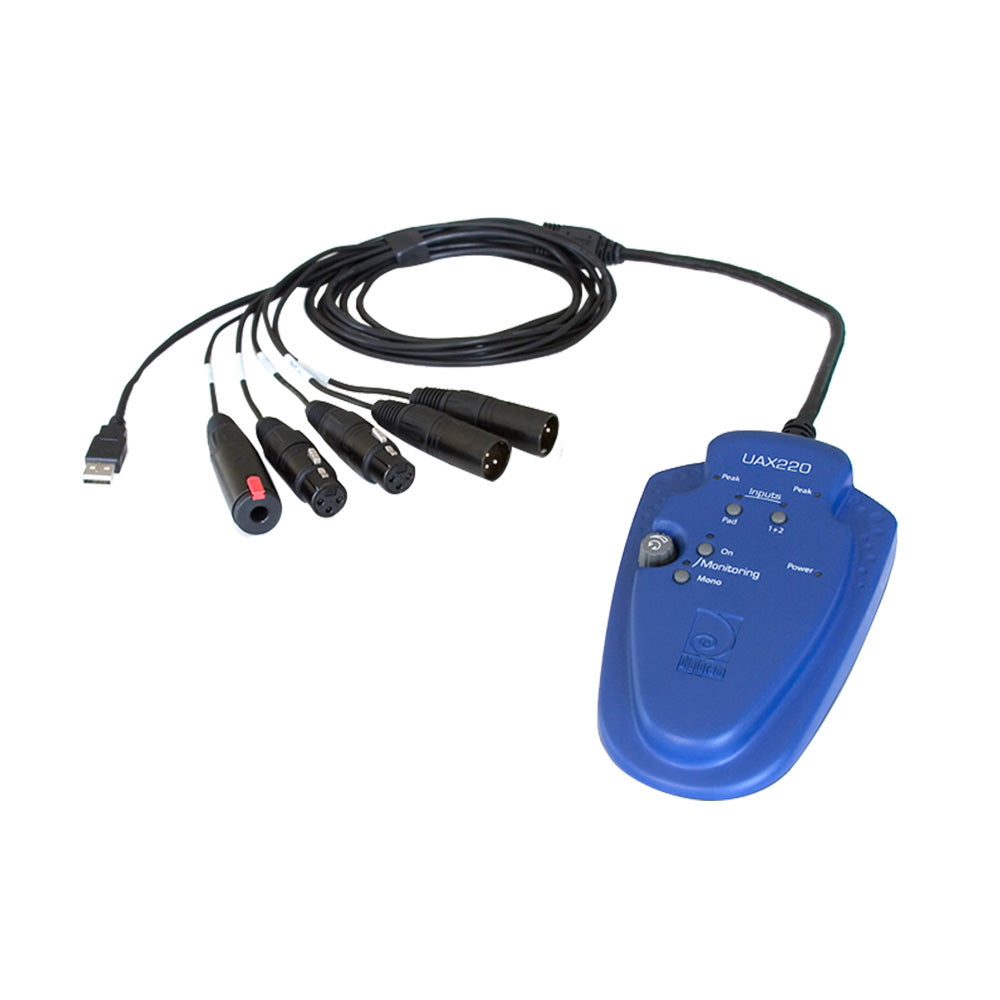

Digigram UAX220v2 Professional USB Audio Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The UAX220-V2 is a professional stereo USB Audio interface designed for broadcast and other demanding pro audio applications that require high quality audio acquisition of analog sources. Because it is USB Audio compliant, it can be used with multiple computers (laptop or desktop) and thrid party software applications without installing a dedicated driver.
UAX220v2 offers 2/2 balanced analog high-quality I/Os. Under its compact and sleek design, it combines Digigram's leading edge experience in audio performance with the ease of use of standard USB Audio.
Features:
- USB Audio stereo interface: no driver to be installed
- Self powered on USB
- Supported under Windows, Mac OS X, and Linux
- 2 balanced analog mono inputs +22 dBu max signal level
- 2 balanced analog mono outputs +10 dBu max signal level
- 1 stereo headphone output with knob for gain adjustment
- Switchable zero-latency direct hardware monitoring (mixed with the playback)
- Push buttons for -12 dB input attenuation, left+right mode, and monitoring
- Neutrik connectors (XLR, 6.35mm jack)
| CONFIGURATION | |
| Bus/Format | USB 1.1, compatible 2.0 |
| Size | 144 mm X 87 mm X 34 mm, Integrated USB cable: 1.5 m, Integrated audio cable: 0.75 m |
| Power consumption | 500 mA max |
| Operating: temp / humidity (non-condensing) | 0¡C / +50¡C ¥ 5% / 90% |
| Storage: temp / humidity (non-condensing) | -5¡C / +70¡C ¥ 0% / 95% Inputs |
| Analog line inputs (mono) | 2 balanced |
| Maximum input level/impedance | +22 dBu />10 kOhms |
| Outputs | |
| Analog line outputs (mono) | 2 servo-balanced |
| Maximum output level / impedance | +10 dBu / <100 Ohms |
| Programmable output gain | by steps of 1 dB, from -60 dBr to +10 dBr |
| Other outputs | 1 stereo headphones output with dedicated output stage and level adjustment knob (Maximum output power/minimum load: 2*40 mW / 32 Ohms) |
| Connectors | |
| External connectors | Ð Standard USB type A for connection with computer Ð 2 Neutrikª XLR-3 female for line inputs Ð 2 Neutrikª XLR-3 male for line outputs Ð Locking _Ó Neutrikª cable jack, female, for headphones output |
| Audio Specification | |
| Sampling frequencies available | 32 / 44.1 / 48 kHz |
| A/D and D/A converter resolution | 24 bits |
| Supported audio formats | PCM (8, 16 et 24 bits, full-duplex) |
| Operating modes | Either selected by application or user-selectable at a fixed resolution (modes selected via UAX Manager application) |
| Monitoring | Zero latency hardware monitoring mixed with playback to the line and headphones outputs |
| Monitoring control | On/off and mono/stereo push buttons |
| Analog audio performance | |
| Frequency response (record + play) | 20 Hz Ð 20 kHz: ±0.2 dB |
| Channel phase difference | 20/20kHz: <0.2¡/2¡ |
| Dynamic range (A-weighted) | Ð Input:>104 dB Ð Output:>104 dB |
| THD + noise 1 kHz at Ð1 dBfs | Ð Input: <-98 dB Ð Output: <-97 dB Ð Loop: <-93 dB |
| Crosstalk (Analog in or out) | Ð 1 kHz: <-110 dB Ð 15 kHz: <-95 dB |
| ENVIRONMENTS | |
| Supported operating systems | Windows, Mac OS X, Linux |
| Management | Depending on the host operating systemÕs implementation of the USB Audio specification: DirectSound, Core Audio, ALSA |
| Additional management | Digigram np SDK through Virtual PCX Third-party Asio driver |
