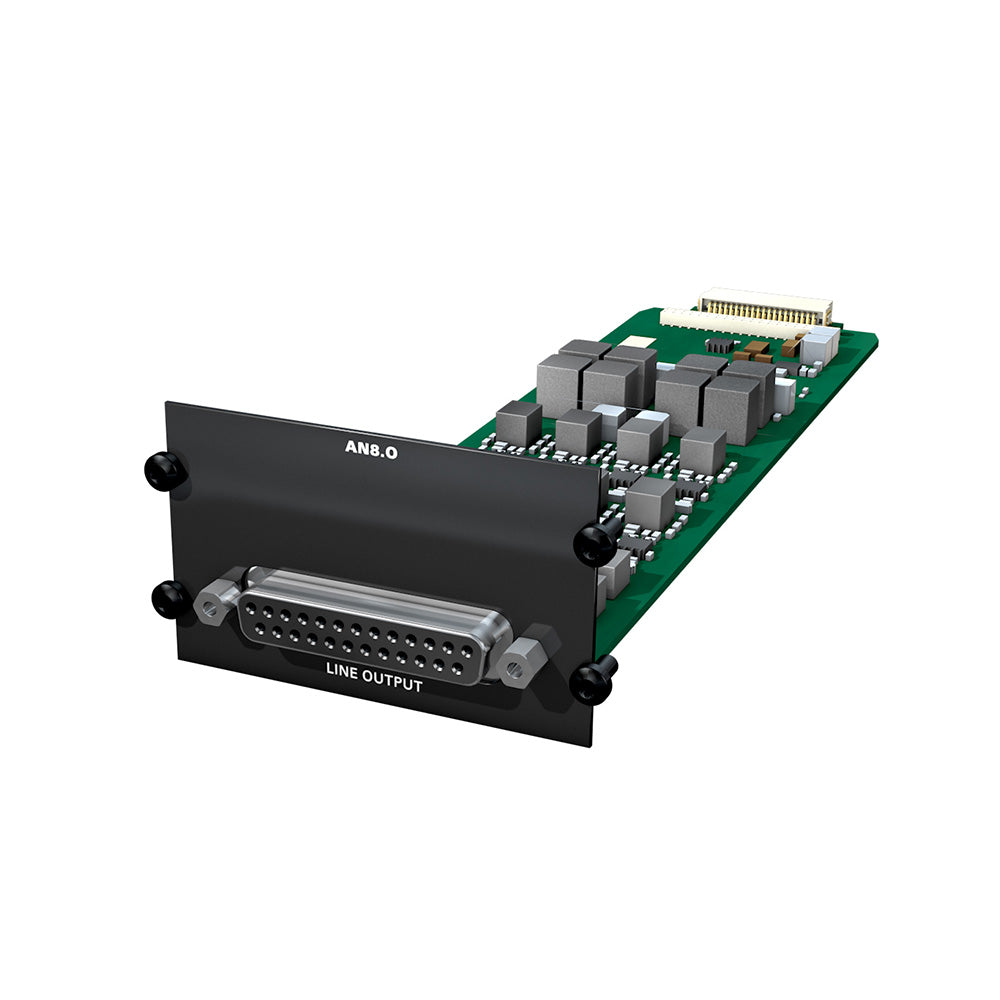

DirectOut AN8.O - 8-Channel Analog Output Card for PRODIGY or MAVEN Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
AN8.O is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A.
Eight analog audio output channels are interfaced via a DSUB-25 connector.
The line outputs are balanced and the reference level can be adjusted to either +15 / +18 or +24 dBU via jumper - individually per channel.
| Channels | 8 channels line output |
| Reference levels | +15 / +18 / +24 dBu via jumper |
| SNR | -116,8 dB RMS (20 Hz - 20 kHz) / -119,5 dB(A) THD @ -1 dBFS: -109 dB |
| Frequency response | -0,5 dB (10 Hz) / -0,15 dB (20 kHz) |
| Pin Configuration | 1 x DSUB-25 connector (output)*, according to AES59 * suitable cabling to connect with BREAKOUT is available from DirectOut GmbH |
AN8.O is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A.
Eight analog audio output channels are interfaced via a DSUB-25 connector.
The line outputs are balanced and the reference level can be adjusted to either +15 / +18 or +24 dBU via jumper - individually per channel.
| Channels | 8 channels line output |
| Reference levels | +15 / +18 / +24 dBu via jumper |
| SNR | -116,8 dB RMS (20 Hz - 20 kHz) / -119,5 dB(A) THD @ -1 dBFS: -109 dB |
| Frequency response | -0,5 dB (10 Hz) / -0,15 dB (20 kHz) |
| Pin Configuration | 1 x DSUB-25 connector (output)*, according to AES59 * suitable cabling to connect with BREAKOUT is available from DirectOut GmbH |
