DALE SKU # DIOU-DOBOB0888

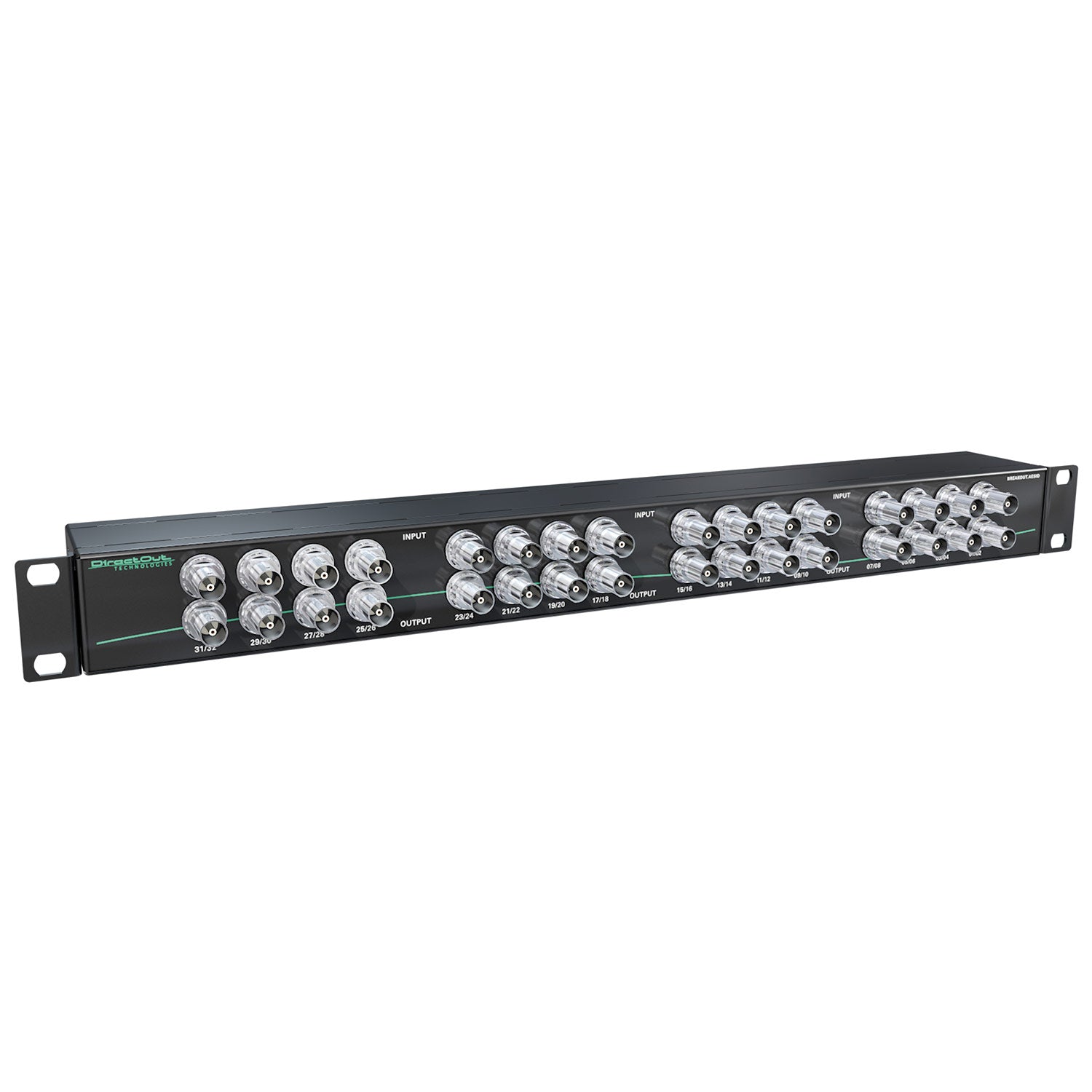

DirectOut BREAKOUT.AESID - 32-Channel DB25 to AESid Breakout Box

Sale price$1,237.00 Regular price$1,374.00
Save $137.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The BREAKOUT Series is a range of adaptor boxes available in different variants to extend the coverage of the ANDIAMO series.

    They are equipped with XLR or BNC connectors on the front panel and DSUB-25 connectors on the rear panel. Audio signals are carried passively between the front and rear panels.

    The small form factor and angle brackets also allow for mounting the devices on the back of an ANDIAMO unit.

    5 Variants:

    • BREAKOUT.AN8 - analog input / output, 8 channels
    • BREAKOUT.AN16I - analog input, 16 channels
    • BREAKOUT.AN16O - analog output, 16 channels
    • BREAKOUT.AES - digital input / output, 8 AES ports (16 channels)
    • BREAKOUT.AESid - digital input / output, 16 AESid ports (32 channels)

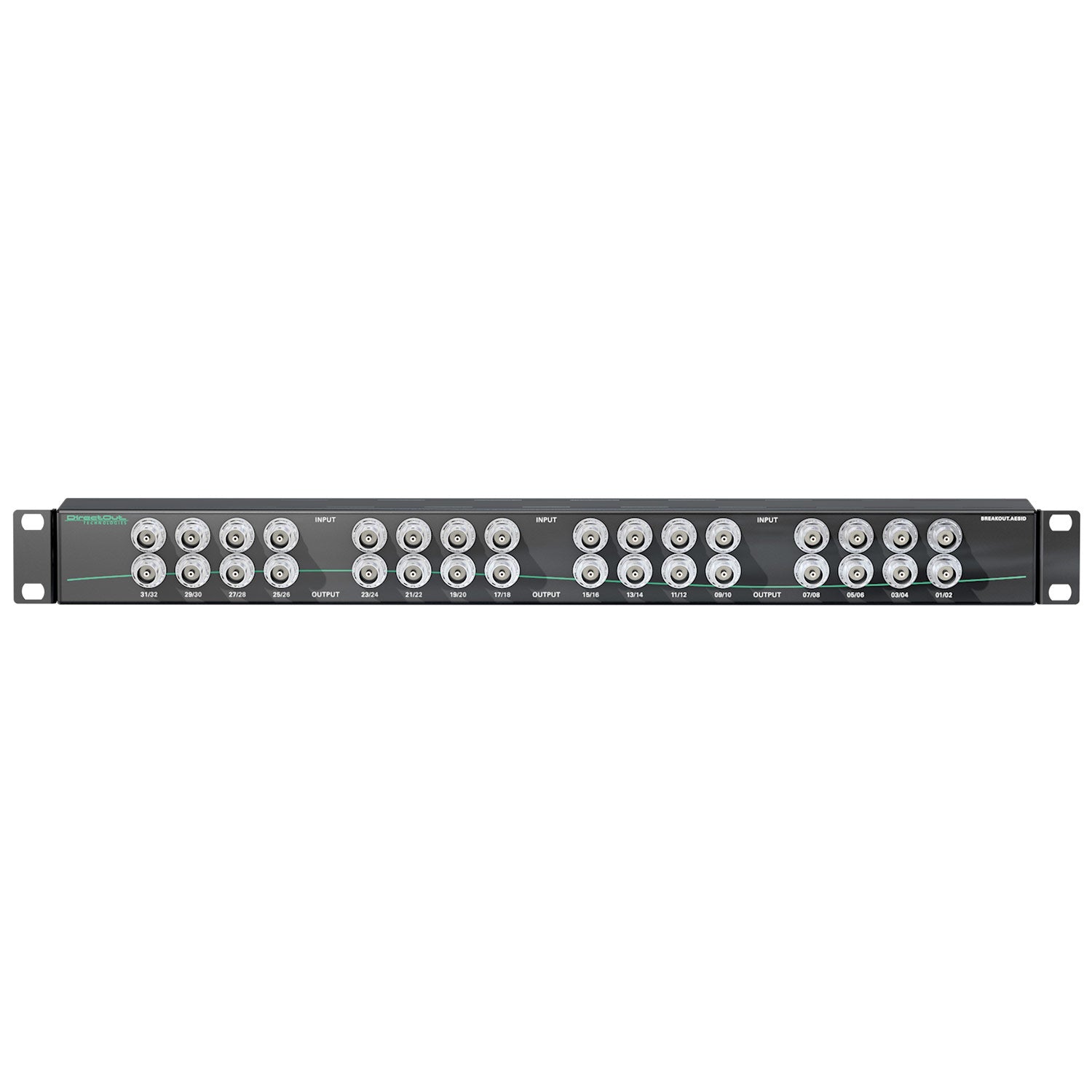

    Front32 x coaxial BNC, 75 ?*
    Rear4 x DSUB-25, AES59 compliant
    Width19" (483 mm)
    Height1 RU (44.5 mm)
    Depth2.56" (65 mm)
    AccessoryDSUB-25 patch cable

    * Impedance and level are adapted according the specific format.

    AES3: 110 ?, 2-7 Vp-p <> AES3id: 75 ?, 1 Vp-p

    The BREAKOUT Series is a range of adaptor boxes available in different variants to extend the coverage of the ANDIAMO series.

    They are equipped with XLR or BNC connectors on the front panel and DSUB-25 connectors on the rear panel. Audio signals are carried passively between the front and rear panels.

    The small form factor and angle brackets also allow for mounting the devices on the back of an ANDIAMO unit.

    5 Variants:

    • BREAKOUT.AN8 - analog input / output, 8 channels
    • BREAKOUT.AN16I - analog input, 16 channels
    • BREAKOUT.AN16O - analog output, 16 channels
    • BREAKOUT.AES - digital input / output, 8 AES ports (16 channels)
    • BREAKOUT.AESid - digital input / output, 16 AESid ports (32 channels)
    Front32 x coaxial BNC, 75 ?*
    Rear4 x DSUB-25, AES59 compliant
    Width19" (483 mm)
    Height1 RU (44.5 mm)
    Depth2.56" (65 mm)
    AccessoryDSUB-25 patch cable

    * Impedance and level are adapted according the specific format.

    AES3: 110 ?, 2-7 Vp-p <> AES3id: 75 ?, 1 Vp-p
