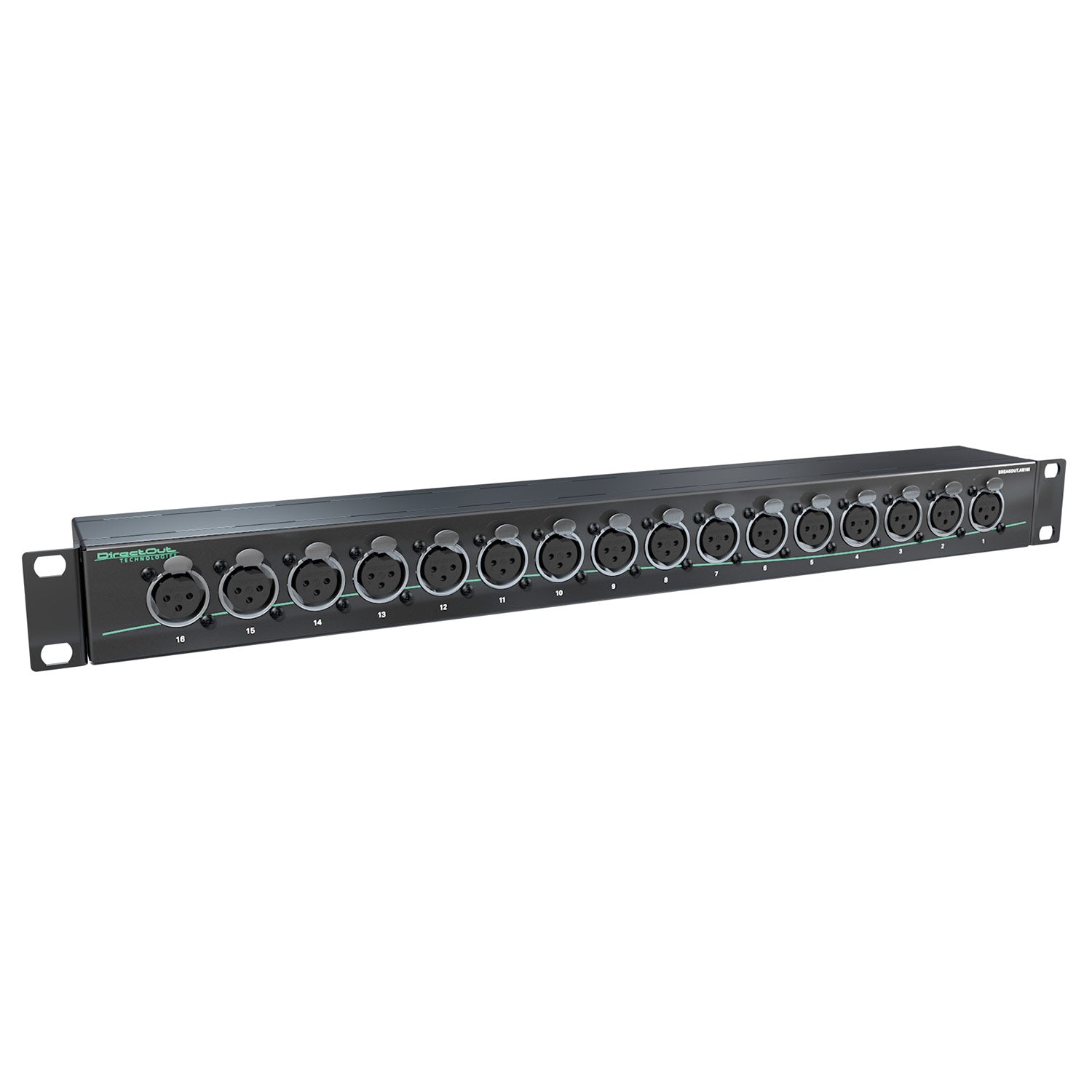

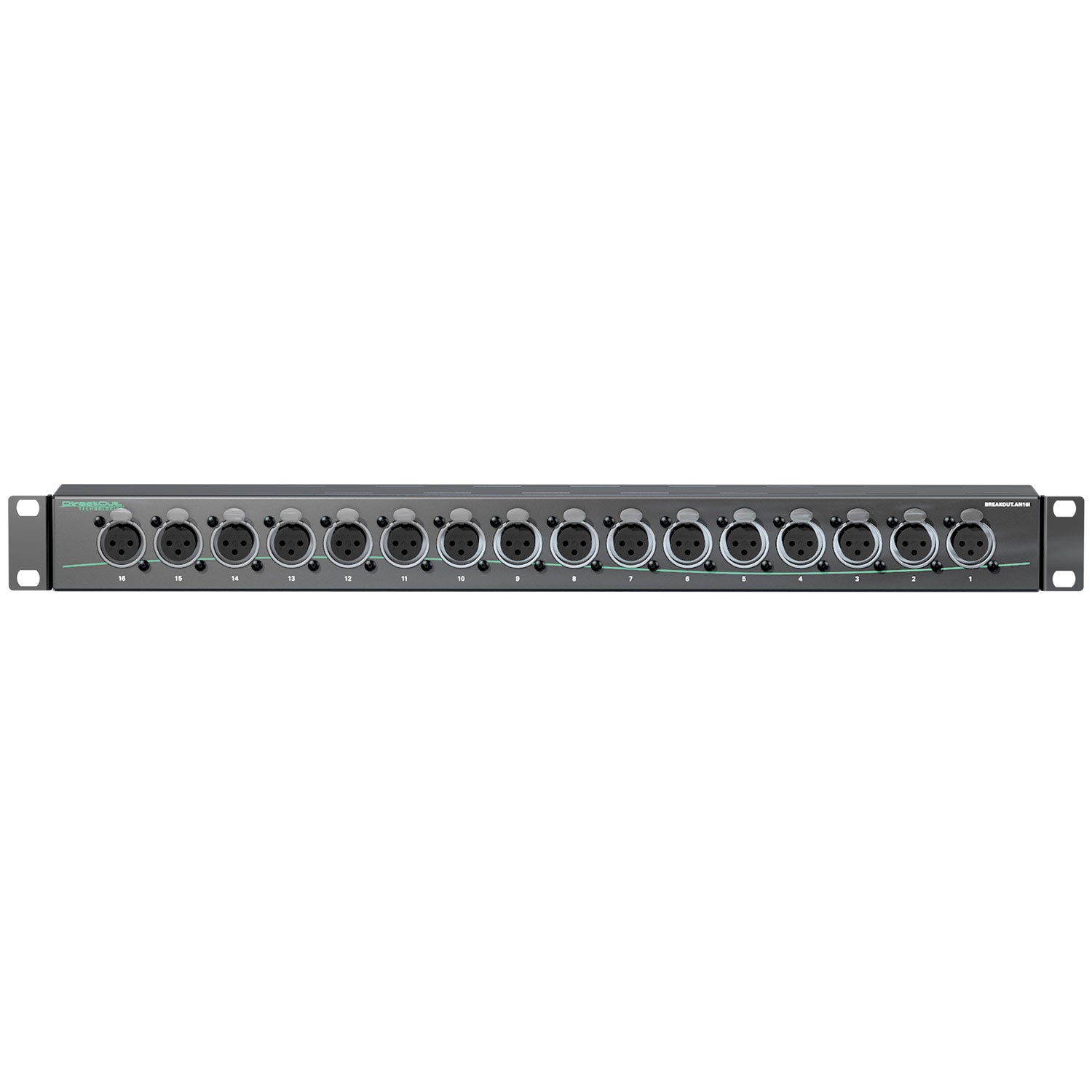

DirectOut BREAKOUT.AN16I - 16-Channel DB25 to XLR Analog Input Breakout Box

  • Dale #:

    DIOU-DOBOB0890
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The BREAKOUT Series is a range of adaptor boxes available in different variants to extend the coverage of the ANDIAMO series.They are equipped with XLR or BNC connectors on the front panel and DSUB-25 connectors on the rear panel. Audio signals are carried passively between the front and rear pan... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The BREAKOUT Series is a range of adaptor boxes available in different variants to extend the coverage of the ANDIAMO series.

They are equipped with XLR or BNC connectors on the front panel and DSUB-25 connectors on the rear panel. Audio signals are carried passively between the front and rear panels.

The small form factor and angle brackets also allow for mounting the devices on the back of an ANDIAMO unit.

5 Variants:

  • BREAKOUT.AN8 - analog input / output, 8 channels
  • BREAKOUT.AN16I - analog input, 16 channels
  • BREAKOUT.AN16O - analog output, 16 channels
  • BREAKOUT.AES - digital input / output, 8 AES ports (16 channels)
  • BREAKOUT.AESid - digital input / output, 16 AESid ports (32 channels)

More +

Product Specs

Front16 x XLR connector female
Rear2 x DSUB-25, AES59 compliant
Width19" (483 mm)
Height1 RU (44.5 mm)
Depth2.56" (65 mm)
AccessoryDSUB-25 patch cable
