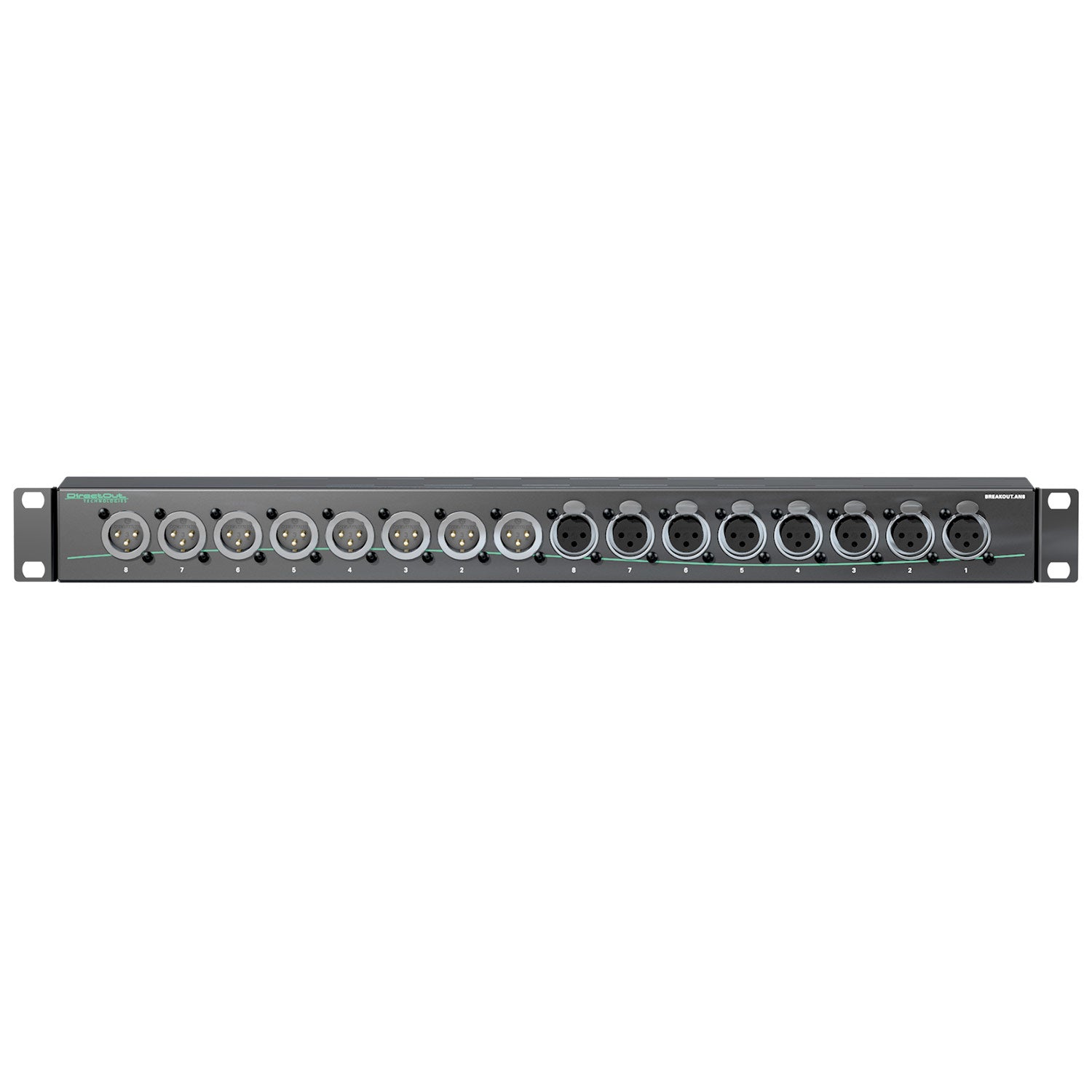

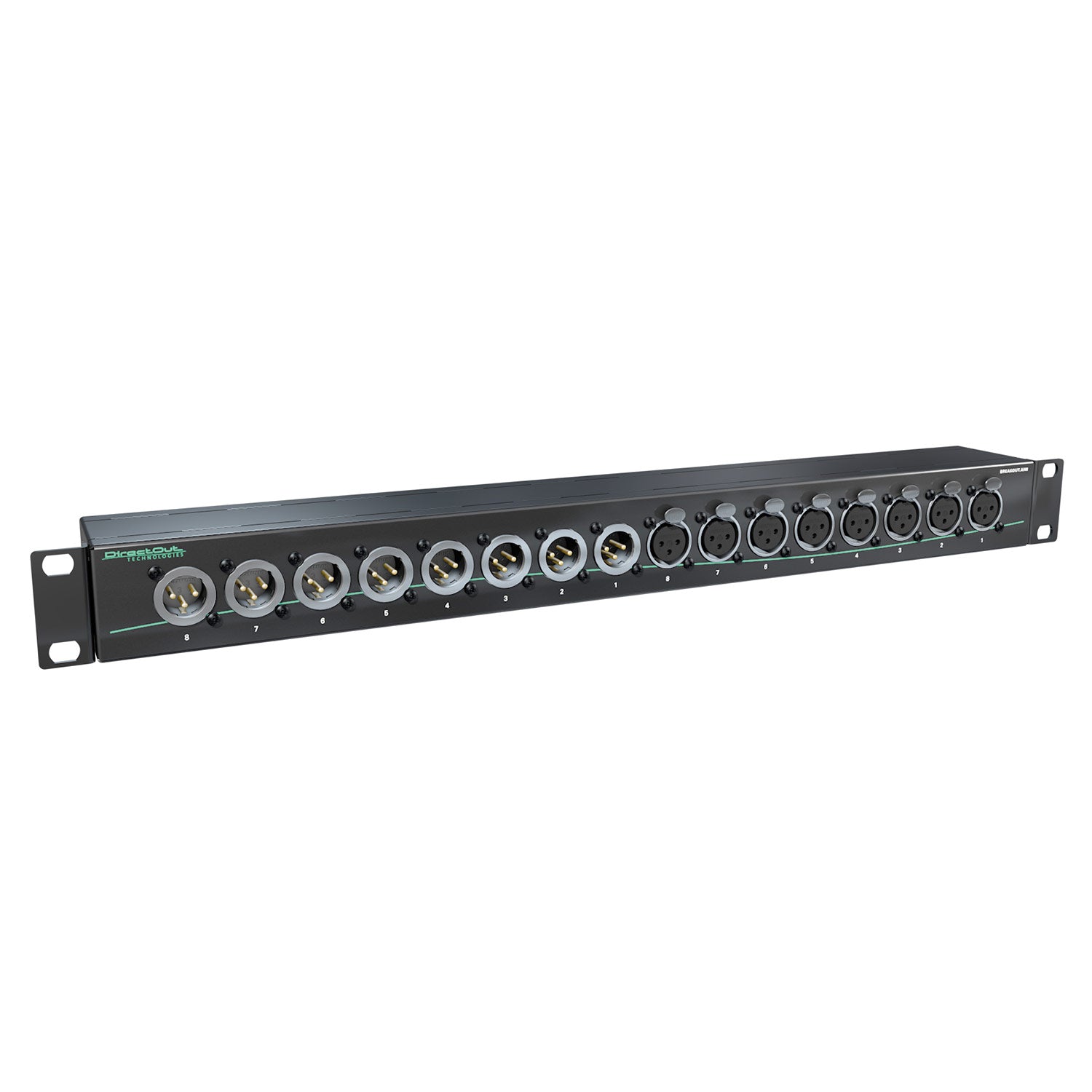

DirectOut BREAKOUT.AN8 - 8-Channel DB25 to XLR I/O Breakout Box
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The BREAKOUT Series is a range of adaptor boxes available in different variants to extend the coverage of the ANDIAMO series.
They are equipped with XLR or BNC connectors on the front panel and DSUB-25 connectors on the rear panel. Audio signals are carried passively between the front and rear panels.
The small form factor and angle brackets also allow for mounting the devices on the back of an ANDIAMO unit.
5 Variants:
- BREAKOUT.AN8 - analog input / output, 8 channels
- BREAKOUT.AN16I - analog input, 16 channels
- BREAKOUT.AN16O - analog output, 16 channels
- BREAKOUT.AES - digital input / output, 8 AES ports (16 channels)
- BREAKOUT.AESid - digital input / output, 16 AESid ports (32 channels)
| Front | 8 x XLR connector male 8 x XLR connector female |
| Rear | 2 x DSUB-25, AES59 compliant |
| Width | 19" (483 mm) |
| Height | 1 RU (44.5 mm) |
| Depth | 2.56" (65 mm) |
| Accessory | DSUB-25 patch cable |
The BREAKOUT Series is a range of adaptor boxes available in different variants to extend the coverage of the ANDIAMO series.
They are equipped with XLR or BNC connectors on the front panel and DSUB-25 connectors on the rear panel. Audio signals are carried passively between the front and rear panels.
The small form factor and angle brackets also allow for mounting the devices on the back of an ANDIAMO unit.
5 Variants:
- BREAKOUT.AN8 - analog input / output, 8 channels
- BREAKOUT.AN16I - analog input, 16 channels
- BREAKOUT.AN16O - analog output, 16 channels
- BREAKOUT.AES - digital input / output, 8 AES ports (16 channels)
- BREAKOUT.AESid - digital input / output, 16 AESid ports (32 channels)
| Front | 8 x XLR connector male 8 x XLR connector female |
| Rear | 2 x DSUB-25, AES59 compliant |
| Width | 19" (483 mm) |
| Height | 1 RU (44.5 mm) |
| Depth | 2.56" (65 mm) |
| Accessory | DSUB-25 patch cable |
