Description
This omnidirectional condenser lavalier microphone is small in size, but mighty in flexibility. Due to its miniature size, it exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. The omnidirectio... Read MoreOur Price: $520.00
Free Shipping (Continental US)
Suggested Accessories
Description

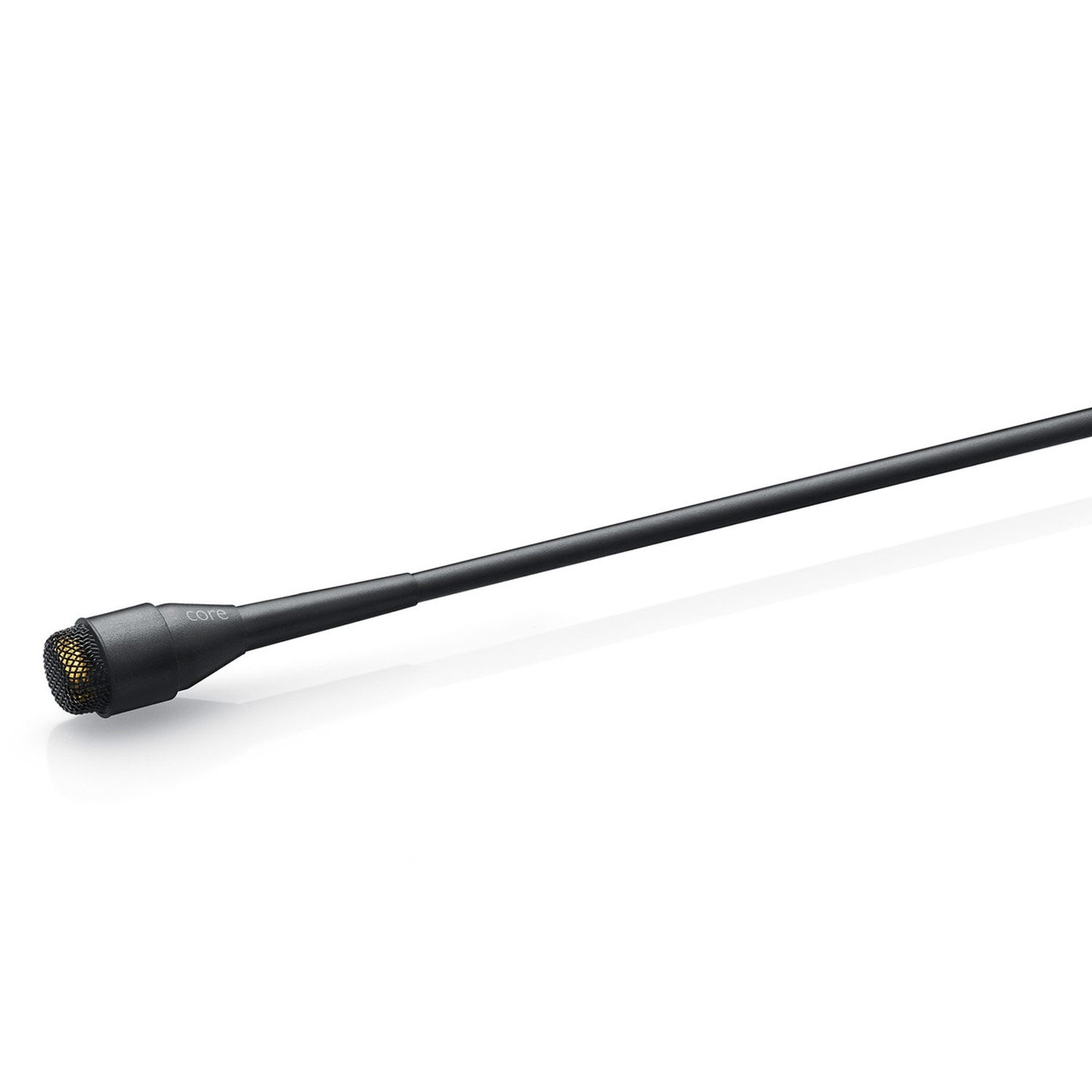

This omnidirectional condenser lavalier microphone is small in size, but mighty in flexibility. Due to its miniature size, it exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. The omnidirectional pattern also makes it less sensitive to handling noise as well as pop and wind noise.
DPA originally designed this microphone for use with wireless systems in theaters but today it is one of the most loved mics for television and film applications as well. It is especially suited for capturing speech in all of its nuances and can be used to close-mike a wide range of instruments. This microphone handles sound pressure levels up to 134 dB before clipping occurs. This mic is well suited for applications where the sound source is more remote or damped and you need to have a good balance signal versus noise.
Features:
The series was developed to withstand the toughest of conditions. They contain a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm. This unique, Double Vent Protection System makes the mics greatly resistant to humidity and sweat. These mics are also designed with a Kevlar-reinforced cable relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments.
The microphone is available in four colors: black, brown, beige and white. An even more robust, heavy-duty version is also available.
Flexible Adapter System
All of DPA’s microphones can be configured to run easily and effortlessly with a wireless system. We use a unique MicroDot termination on our microphones together with a changeable adapter to ensure secure configuration. All of the adapters we use are original, developed and manufactured by the wireless system brand you use. This ensures that your mic will work consistently with no connection trouble to your system.
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. When you make the switch, you won't hear any loss or change in sound quality.
More +
Product Specs
Directional pattern | Omnidirectional |
Principle of operation | Pressure |
Cartridge type | Pre-polarized condenser |
Frequency range | 20 Hz - 20 kHz |
Frequency range, ±2 dB | Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz |
Sensitivity, nominal, ±3 dB at 1 kHz | 20 mV/Pa; -34 dB re. 1 V/Pa |
Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)) |
Equivalent noise level, ITU-R BS.468-4 | Typ. 35 dB (max. 38 dB) |
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 71 dB(A) |
Total harmonic distortion (THD) | < 1% THD up to 129 dB SPL peak |
Dynamic range | Typ. 106 dB |
Max. SPL, peak before clipping | 134 dB |
Output impedance | 30 - 40 |
Cable drive capability | Up to 300 m (984 ft) |
Power supply (for full performance) | For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance |
Connector | MicroDot |
Color | Black, beige, brown or white |
Weight | 7.5 g (0.26 oz) incl. Cable and MicroDot connector |
Microphone diameter | 5.4 mm (0.21 in) |
Microphone length | 12.7 mm (0.5 in) |
Cable length | 1.8 m (5.9 ft) |
Polarity | Positively increasing sound pressure produces positive going voltage on MicroDot pin |
Temperature range | -40°C to 45°C (-40°F to 113°F) |
Relative humidity (RH) | Up to 90% |
