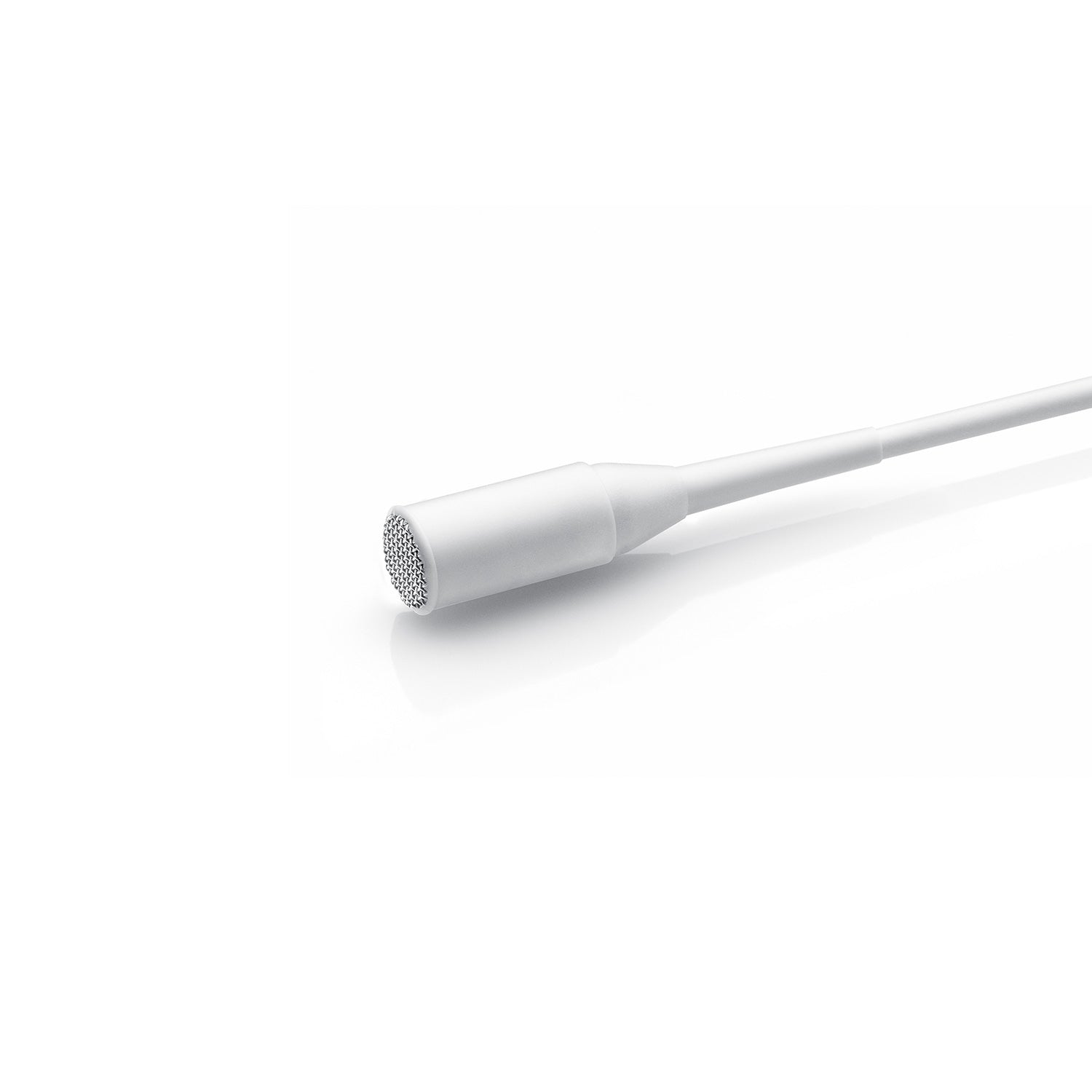

DPA Microphones 4071 CORE Omni Lavalier Microphone (Presence / Loud SPL / White / Microdot)


  • Dale #:

    DPA-4071OCCW00
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The 4071 Miniature Omnidirectional Microphone, Presence Boost is a fantastic omnidirectional condenser lavalier mic, which features a presence boost of typically 5 dB at 4 to 6 kHz. This is critical for a chest-placed microphone because the frequency range of the consonants spoken is damped in th... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The 4071 Miniature Omnidirectional Microphone, Presence Boost is a fantastic omnidirectional condenser lavalier mic, which features a presence boost of typically 5 dB at 4 to 6 kHz. This is critical for a chest-placed microphone because the frequency range of the consonants spoken is damped in this position, which results in poor intelligibility. The 4071 has a boost that maximizes speech intelligibility. This microphone will be able to handle sound pressure levels up to 144 dB before clipping occurs.

When recording voices from mic placement on a performer's body, no frequency below 100 Hz is attractive. For this reason, an acoustical low-cut at 100 Hz has been incorporated in the 4071’s capsule so the built-in preamplifier (and the wireless system) will have a much larger headroom. Furthermore, the low-cut filter removes low-frequency rumble, noise and proximity effect.

Because of its special optimization for speech, this mic is especially appropriate for ENG news crews since very few ENG mixers have the ability to make this type of compensation. It is also a fantastic choice for in-studio reporters or even hidden under clothing for film production use.

The series was developed to withstand the toughest of conditions. They contain a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm. This unique, Double Vent Protection System makes the mics greatly resistant to humidity and sweat. These mics are also designed with a Kevlar-reinforced cable relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments.

The 4071 is available in three colors: black, beige and white. An even more robust, heavy-duty version is also available.

Features:

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems

More +

Product Specs

Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser
Frequency response 20 Hz - 20 kHz
Effective frequency range ±2 dB 100 Hz - 15 kHz with typ. 5 dB soft boost at 4 - 6 kHz
Sensitivity, nominal, ±3 dB at 1 kHz 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 38 dB (max. 40 dB)
Distortion, THD < 1% - Legacy 120 dB SPL RMS, 123 dB SPL peak
Distortion, THD < 1% - CORE 134 dB SPL RMS, 137 dB SPL peak
Dynamic range - Legacy Typ. 97 dB
Dynamic range - CORE Typ. 111 dB
Max. SPL, THD 10% 144 dB SPL peak
Rated output impedance 30 - 40 ?
Cable drive capability Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Power supply (for full performance) For wireless systems: Min. 5 V - max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Color Black
Weight 7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter 5.4 mm (0.21 in)
Microphone length 17.6 mm (0.7 in)
Cable length 1.8 m (5.9 ft)
Polarity Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range -40¡C to 45¡C (-40¡F to 113¡F)
Relative humidity (RH) Up to 90%
