DALE SKU # DPA-4088DCAC10LHS

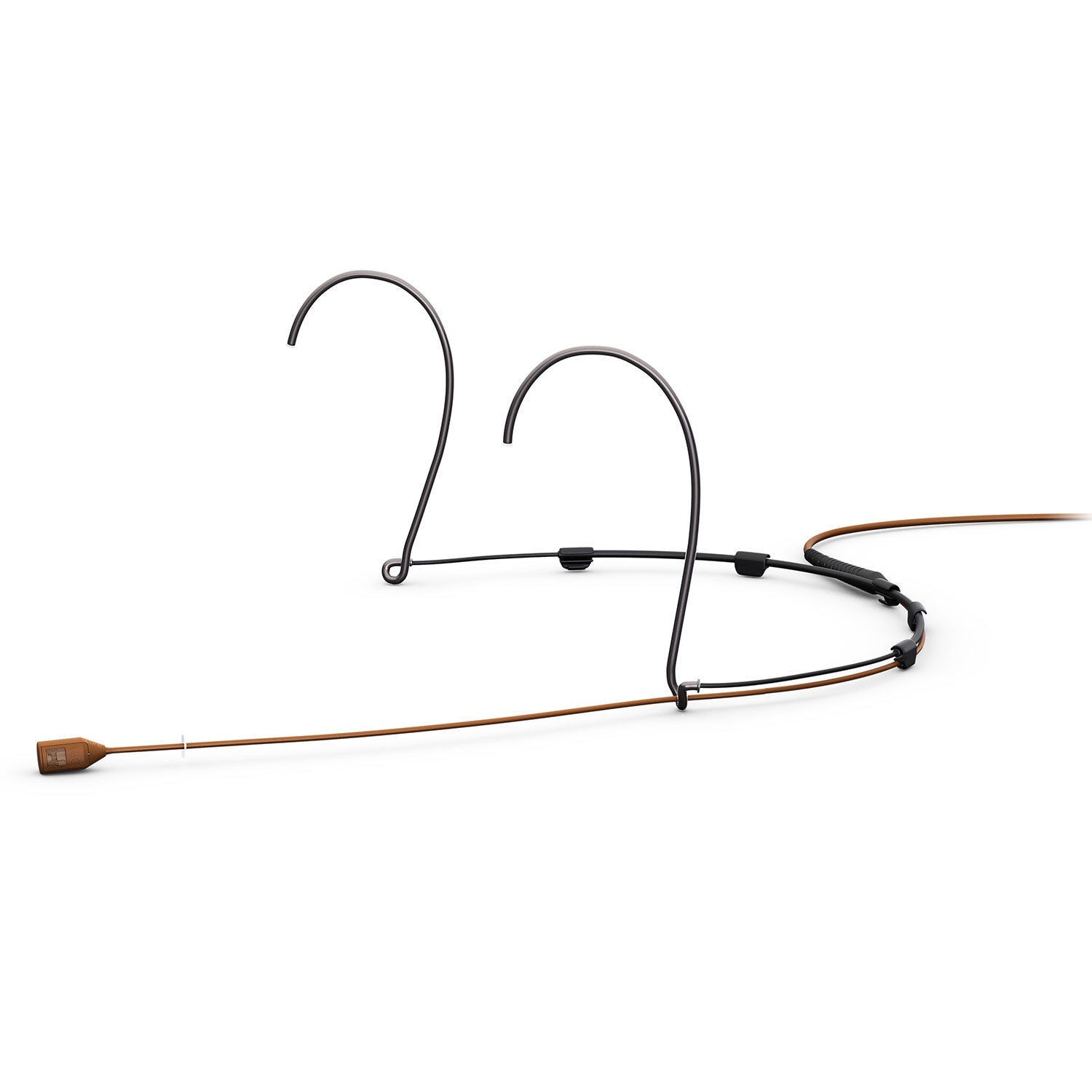

DPA Microphones 4088 CORE Cardioid Headset Microphone (Normal SPL / Brown / TA4F / Small)

Sale price$990.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The classic 4088 Directional Headset Microphone is the industry standard in professional headset mics. It offers an open and natural sound making it ideal for both spoken word and vocal performance applications.

    This mic provides excellent off-axis rejection in high-SPL situations. It efficiently suppresses distant sound sources making it perfect for demanding live performance environments where background noise and feedback are concerns. In high-SPL events, or when feedback is a concern, this microphone will tackle these challenges with ease. The bass response is designed for optimal linearity at 2-3 cm (1 inch) from the sound source. This means that the bass roll-off will be relatively prominent at a greater distance - a paramount factor when it comes to rejection of background noise and in the fight to avoid feedback.

    Features:

    • Pristine audio quality
    • Lightweight and flexible
    • Easy mounting to the left or right
    • Resistant to humidity
    • Flexible adapter system fits most professional wireless systems


    The smooth and elegant design of the 4088 Directional Headset Microphone makes it the most invisible head-worn true cardioid microphone in the world. This microphone has a secure, dual-ear design that can be used for various performing talent applications. It has a small .64 cm (.25 in) diameter, which allows for discreet use. It only weighs 14 g (.5 oz) and is very comfortable when worn for long periods. The microphone can be mounted on the right or left side.

    The boom is 3 cm (1 in) longer than on the omnidirectional version, which matches the need for placement at the corner of the mouth. To avoid popping, the capsule should not be placed directly in front of the mouth.

    IP58 certified
    All CORE by DPA technology microphones are IP58 certified. This durability is achieved through a number of defense mechanisms:

    • Water-repellant nano-coating of the cover and housing
    • Hermetic sealing of the sensitive amplifier at the core of the mic
    • Dual gold plating of the diaphragm

    Adapter system gives you flexibility
    The adapters for wireless systems give you flexible, simple and affordable possibilities when choosing the MicroDot termination and an adapter. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. When you make the switch, you won't hear any loss or change in sound quality.

    These miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.

    Directional patternCardioid
    Principle of operationPressure gradient
    Cartridge typePre-polarized condenser
    Frequency range20 Hz - 20 kHz
    Frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in)100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)
    Sensitivity, nominal, ±3 dB at 1 kHz6 mV/Pa; 44 dB re. 1 V/Pa
    Equivalent noise level, A-weightedTyp. 26 dB(A) re. 20 µPa (max. 28 dB(A))
    Equivalent noise level, ITU-R BS.468-4Typ. 38 dB (max. 40 dB)
    S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)Typ. 68 dB (A)
    Total harmonic distortion (THD) - Legacy< 1% up to 123 dB SPL peak; < 1% up to 120 dB SPL RMS sine
    Total harmonic distortion (THD) - CORE< 1% THD up to 137 dB SPL peak
    Dynamic range - LegacyTyp. 97 dB
    Dynamic range - CORETyp. 111 dB
    Max. SPL, peak before clipping144 dB
    Output impedance30 - 40 ?
    Cable drive capabilityUp to 300 m (984 ft)
    Power supply (for full performance)For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
    ConnectorMicroDot
    ColorBlack, beige or brown
    Weight14 g (0.5 oz) incl. Cable and MicroDot connector
    Microphone diameter5.5 mm (0.25 in)
    Microphone length11 mm (0.5 in)
    Cable length1.2 m (3.9 ft)
    Cable diameter1.6 mm (0.06 in)
    PolarityPositively increasing sound pressure produces positive going voltage on MicroDot pin
    Temperature range-40¡C to 45¡C (-40¡F to 113¡F)
    Relative humidity (RH)Up to 90%

    The classic 4088 Directional Headset Microphone is the industry standard in professional headset mics. It offers an open and natural sound making it ideal for both spoken word and vocal performance applications.

    This mic provides excellent off-axis rejection in high-SPL situations. It efficiently suppresses distant sound sources making it perfect for demanding live performance environments where background noise and feedback are concerns. In high-SPL events, or when feedback is a concern, this microphone will tackle these challenges with ease. The bass response is designed for optimal linearity at 2-3 cm (1 inch) from the sound source. This means that the bass roll-off will be relatively prominent at a greater distance - a paramount factor when it comes to rejection of background noise and in the fight to avoid feedback.

    Features:

    • Pristine audio quality
    • Lightweight and flexible
    • Easy mounting to the left or right
    • Resistant to humidity
    • Flexible adapter system fits most professional wireless systems


    The smooth and elegant design of the 4088 Directional Headset Microphone makes it the most invisible head-worn true cardioid microphone in the world. This microphone has a secure, dual-ear design that can be used for various performing talent applications. It has a small .64 cm (.25 in) diameter, which allows for discreet use. It only weighs 14 g (.5 oz) and is very comfortable when worn for long periods. The microphone can be mounted on the right or left side.

    The boom is 3 cm (1 in) longer than on the omnidirectional version, which matches the need for placement at the corner of the mouth. To avoid popping, the capsule should not be placed directly in front of the mouth.

    IP58 certified
    All CORE by DPA technology microphones are IP58 certified. This durability is achieved through a number of defense mechanisms:

    • Water-repellant nano-coating of the cover and housing
    • Hermetic sealing of the sensitive amplifier at the core of the mic
    • Dual gold plating of the diaphragm

    Adapter system gives you flexibility
    The adapters for wireless systems give you flexible, simple and affordable possibilities when choosing the MicroDot termination and an adapter. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. When you make the switch, you won't hear any loss or change in sound quality.

    These miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.

    Directional patternCardioid
    Principle of operationPressure gradient
    Cartridge typePre-polarized condenser
    Frequency range20 Hz - 20 kHz
    Frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in)100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)
    Sensitivity, nominal, ±3 dB at 1 kHz6 mV/Pa; 44 dB re. 1 V/Pa
    Equivalent noise level, A-weightedTyp. 26 dB(A) re. 20 µPa (max. 28 dB(A))
    Equivalent noise level, ITU-R BS.468-4Typ. 38 dB (max. 40 dB)
    S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)Typ. 68 dB (A)
    Total harmonic distortion (THD) - Legacy< 1% up to 123 dB SPL peak; < 1% up to 120 dB SPL RMS sine
    Total harmonic distortion (THD) - CORE< 1% THD up to 137 dB SPL peak
    Dynamic range - LegacyTyp. 97 dB
    Dynamic range - CORETyp. 111 dB
    Max. SPL, peak before clipping144 dB
    Output impedance30 - 40 ?
    Cable drive capabilityUp to 300 m (984 ft)
    Power supply (for full performance)For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
    ConnectorMicroDot
    ColorBlack, beige or brown
    Weight14 g (0.5 oz) incl. Cable and MicroDot connector
    Microphone diameter5.5 mm (0.25 in)
    Microphone length11 mm (0.5 in)
    Cable length1.2 m (3.9 ft)
    Cable diameter1.6 mm (0.06 in)
    PolarityPositively increasing sound pressure produces positive going voltage on MicroDot pin
    Temperature range-40¡C to 45¡C (-40¡F to 113¡F)
    Relative humidity (RH)Up to 90%
