DPA Microphones 4099 CORE Rock Touring Kit (10 Microphones / Accessories / Extreme SPL / Box)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

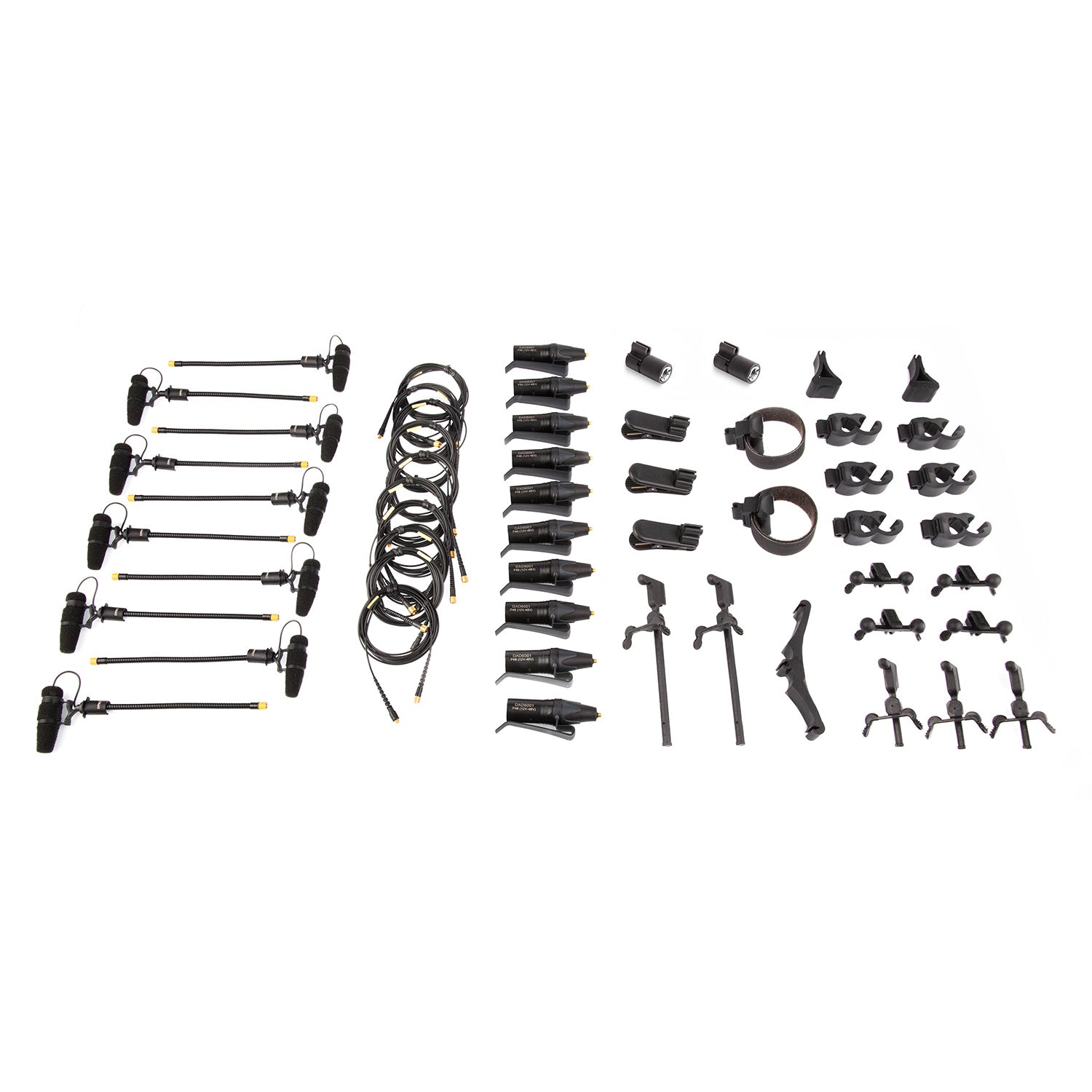

4099 CORE Rock Touring Kit, 10 Mics and accessories, Extreme SPL in a Cardboard Box.
The 4099 Rock Touring Kit offers a number of 4099 condenser microphones and a selection of accessories selected for typical use in a live rock music setting. With a max SPL, peak before clipping of 152 dB, the 4099 CORE Instrument Microphone for Extreme-SPL instruments was designed for use on drums, percussion instruments and other loud instruments, like the trumpet and saxophone.
The 4099 Instrument Microphoone is already the recognized standard for this type of microphone and the CORE version adds just another layer of sound quality that further distances this mic from its competitors.4099 brings more clarity and details to your music, across the entire dynamic range. Anyone looking for the very highest sound quality should choose CORE by DPA – every musician, live sound engineer and anyone else who takes pride in quality audio.
CORE by DPA is a powerful new technology at the heart of DPA miniature microphones. It minimizes distortion. From pianissimo to forte, you will experience increased clarity and openness.
From the piano to guitar; strings to woodwinds; brass to percussion, the 4099 Series sounds equally impressive on them all. This one microphone model can beautifully reinforce an entire orchestra. You can move the mic to another instrument; just make sure you have the right type of clip to mount it correctly.The award-winning 4099 Series gives you a much more natural sound than any clip-on microphone or pickup. This condenser microphone rejects unwanted noise and accurately captures the true voice of your acoustic instrument.
This microphone comes in two versions:
- 4099 CORE Mic, Loud SPL – used to close-mike most types of instruments
- 4099 CORE Mic, Extreme SPL – used to close-mike extremely loud instruments, such as drums and some brass
There are two different types of kits available and they can each be purchases with 4 or 10 microphones. Ready for on-the-road use for rental companies, musicians or theatres, the 4099 Classic Touring Kit offers microphones and a selection of accessories selected for typical use in an acoustic music setting. This kit features a number of 4099 CORE Instrument Microphones for Loud SPL, which are perfect for use on a wide range of instruments – from the flute to the guitar, and everything in between.
| Directional pattern | Supercardioid |
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency range | 20 Hz - 20 kHz |
| Frequency range, ± 2 dB, at 20 cm (7.9 in) | 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz | 2 mV/Pa; -54 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 28 dB(A) re. 20 ?Pa (max. 31 dB(A)) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 66 dB(A) |
| Total harmonic distortion (THD) | < 1% up to 137 dB SPL peak |
| Dynamic range | Typ. 109 dB |
| Max. SPL, peak before clipping | 152 dB |
| Output impedance | From MicroDot: 30 - 40 ?. From DAD4099/DAD6001-BC: 100 ? |
| Cable drive capability | Up to 300 m (984 ft) with DAD4099 or DAD6001-BC XLR Adapter |
| Output balance principle | Signal balanced with DAD4099 or DAD6001-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD4099 or DAD6001-BC XLR Adapter |
| Power supply (for full performance) | Min. 5 V to max. 50 V through DPA adapter for wireless systems |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD4099 or DAD6001-BC XLR Adapter |
| Connector | MicroDot |
| Color | Black |
| Weight | 28 g (0.95 oz) |
| Microphone diameter | 5.4 mm (0.21 in) |
| Microphone length | 45 mm (1.8 in) |
| Cable length | 1.8 m (5.9 ft) |
| Cable diameter | 1.6 mm (0.06 in) / 2.2 mm (0.09 in) |
| Polarity | +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099 or DAD6001-BC XLR adapter) |
| Temperature range | -40¡C to 45¡C (-40¡F to 113¡F) |
| Relative humidity (RH) | Up to 90% |
| Gooseneck length | 140 mm (5.5 in) |
4099 CORE Rock Touring Kit, 10 Mics and accessories, Extreme SPL in a Cardboard Box.
The 4099 Rock Touring Kit offers a number of 4099 condenser microphones and a selection of accessories selected for typical use in a live rock music setting. With a max SPL, peak before clipping of 152 dB, the 4099 CORE Instrument Microphone for Extreme-SPL instruments was designed for use on drums, percussion instruments and other loud instruments, like the trumpet and saxophone.
The 4099 Instrument Microphoone is already the recognized standard for this type of microphone and the CORE version adds just another layer of sound quality that further distances this mic from its competitors.4099 brings more clarity and details to your music, across the entire dynamic range. Anyone looking for the very highest sound quality should choose CORE by DPA – every musician, live sound engineer and anyone else who takes pride in quality audio.
CORE by DPA is a powerful new technology at the heart of DPA miniature microphones. It minimizes distortion. From pianissimo to forte, you will experience increased clarity and openness.
From the piano to guitar; strings to woodwinds; brass to percussion, the 4099 Series sounds equally impressive on them all. This one microphone model can beautifully reinforce an entire orchestra. You can move the mic to another instrument; just make sure you have the right type of clip to mount it correctly.The award-winning 4099 Series gives you a much more natural sound than any clip-on microphone or pickup. This condenser microphone rejects unwanted noise and accurately captures the true voice of your acoustic instrument.
This microphone comes in two versions:
- 4099 CORE Mic, Loud SPL – used to close-mike most types of instruments
- 4099 CORE Mic, Extreme SPL – used to close-mike extremely loud instruments, such as drums and some brass
There are two different types of kits available and they can each be purchases with 4 or 10 microphones. Ready for on-the-road use for rental companies, musicians or theatres, the 4099 Classic Touring Kit offers microphones and a selection of accessories selected for typical use in an acoustic music setting. This kit features a number of 4099 CORE Instrument Microphones for Loud SPL, which are perfect for use on a wide range of instruments – from the flute to the guitar, and everything in between.
| Directional pattern | Supercardioid |
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency range | 20 Hz - 20 kHz |
| Frequency range, ± 2 dB, at 20 cm (7.9 in) | 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz | 2 mV/Pa; -54 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 28 dB(A) re. 20 ?Pa (max. 31 dB(A)) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 66 dB(A) |
| Total harmonic distortion (THD) | < 1% up to 137 dB SPL peak |
| Dynamic range | Typ. 109 dB |
| Max. SPL, peak before clipping | 152 dB |
| Output impedance | From MicroDot: 30 - 40 ?. From DAD4099/DAD6001-BC: 100 ? |
| Cable drive capability | Up to 300 m (984 ft) with DAD4099 or DAD6001-BC XLR Adapter |
| Output balance principle | Signal balanced with DAD4099 or DAD6001-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD4099 or DAD6001-BC XLR Adapter |
| Power supply (for full performance) | Min. 5 V to max. 50 V through DPA adapter for wireless systems |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD4099 or DAD6001-BC XLR Adapter |
| Connector | MicroDot |
| Color | Black |
| Weight | 28 g (0.95 oz) |
| Microphone diameter | 5.4 mm (0.21 in) |
| Microphone length | 45 mm (1.8 in) |
| Cable length | 1.8 m (5.9 ft) |
| Cable diameter | 1.6 mm (0.06 in) / 2.2 mm (0.09 in) |
| Polarity | +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099 or DAD6001-BC XLR adapter) |
| Temperature range | -40¡C to 45¡C (-40¡F to 113¡F) |
| Relative humidity (RH) | Up to 90% |
| Gooseneck length | 140 mm (5.5 in) |
