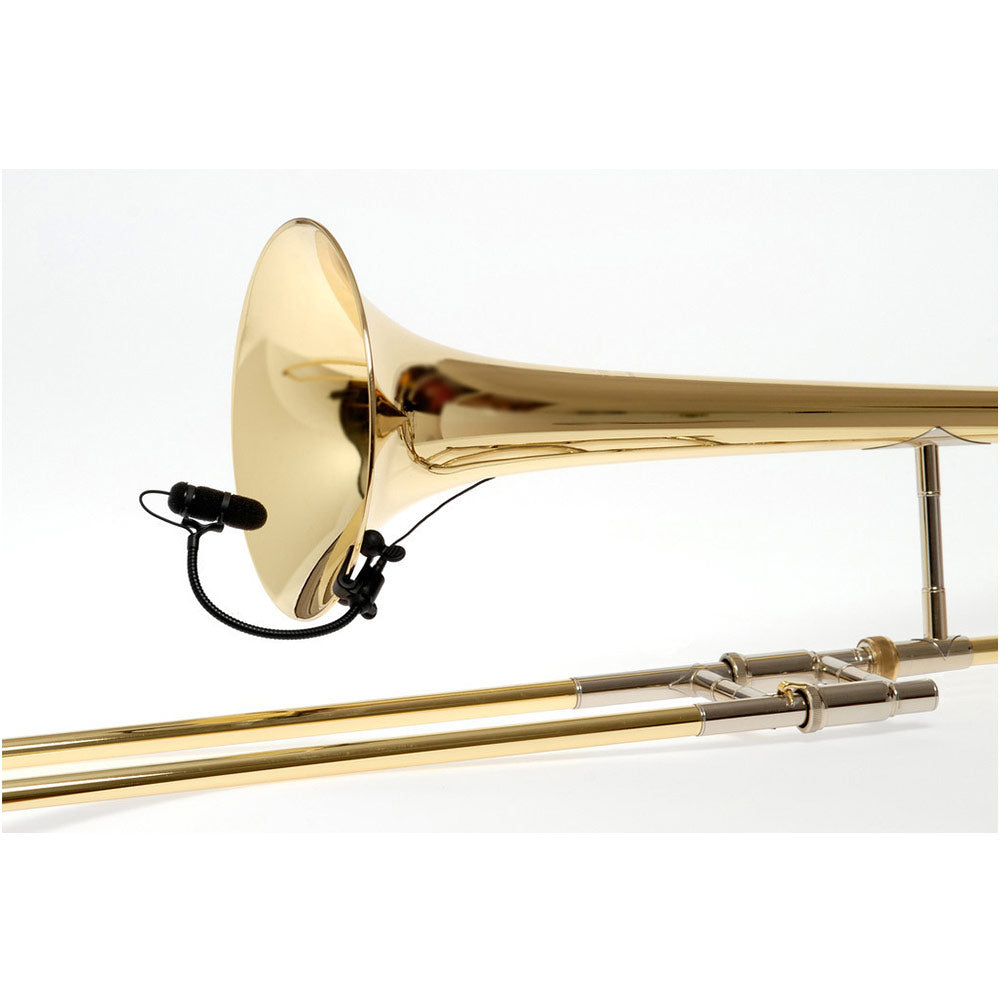

DPA Microphones 4099T - Clip On Condenser Brass Instrument Microphone

  • Dale #:

    DPA-4099DC2199T
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

An ideal tool for trumpet, trombone and other brass instruments, with or without mute, the 4099T effortlessly handles even the highest sound pressure levels. Its innovative mounting mechanism makes it easy to move the mic between instruments with only one hand. The 4099T is a unique clip micropho... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

An ideal tool for trumpet, trombone and other brass instruments, with or without mute, the 4099T effortlessly handles even the highest sound pressure levels. Its innovative mounting mechanism makes it easy to move the mic between instruments with only one hand. The 4099T is a unique clip microphone inheriting the sonic approach from the legendary DPA studio microphones to a new range of instrument microphones. The 4099 microphone and mounting system is meticulously designed and optimized for the brass family. This is to ensure the best possible mount and audio reinforcement is achieved when performing live.

Features:

  • Handles extreme sound pressure levels
  • Wireless compatible
  • Flexible and easy one-hand mounting
  • Fits any mute
  • Detachable cable and versatile gooseneck extender

Representing years of research and development, the 4099 condenser microphones feature supercardioid polar patterns for superior gain-before-feedback. Fully capable of handling the intense sound pressure levels from a trumpet, these microphones live up to their pedigree with sound as accurate as DPA's other world-class microphones.

Despite their tiny, discreet size and elegant, lightweight design, 4099 models are extremely rugged. The versatile gooseneck provides stable and repeatable positioning. The mics can be easily unclipped and repositioned or moved to another instrument with only one hand, while the mounting system is designed never to mar or scratch the finish of your instrument. Any mute can be used together with the microphone and it is easy to place the trumpet in a stand while keeping the 4099 clip on the instrument.

Through the use of an extensive adapter system, the 4099 is compatible with virtually any wireless system and can also be used as a standard 48V phantom powered microphone via the included XLR connector.

With its very flexible design for a wide variety of mounting and positioning possibilities along with its extremely natural sound, the 4099 is truly a musician's mic without equal. Continuing DPA's heritage of sonic excellence, this series of microphones achieves the purest reproduction of your instrument and therefore your full range of expression.

Optional gooseneck extension
Standard gooseneck length is 140 mm (5.5 in), which can be altered with the optional gooseneck extension unit, adding another 50% to the length, helping to achieve exactly the sweet spot for the instrument.

Detachable cables
From May 2012, the updated 4099 range features detachable cable from gooseneck, so it's more convenient to mount the mic on an instrument before connecting it. Furthermore, the choice of different cable qualities makes it possible to tailor your mic to the specific task, such as choosing the heavy duty 2.2 mm cable for PA/Live gigs or the easier-to-hide, thinner miniature cable for personal mounting on instruments where you don't want the cable weight to interfere with your performance. In case of cable break, service is easy and fast.

Adapters for wireless microphones
A wide range of connection adapters makes it possible to use DPA miniature microphones with all professional UHF, VHF or digital wireless system available plus 48 V Phantom.

DPA has specific adapters for AKG, Audio Ltd., Audio-Technica, Beyerdynamic, Electro-Voice, Lectrosonics, Micron, Mipro, Pastega, Telex ProStar, Ramsa, Samson, Sennheiser, Shure, Sony, Toa, Vega and other systems. Each adapter for your cordless microphone is guaranteed to perfectly mate to your system of choice.

More +

Product Specs

Directional characteristics: Supercardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz to 20 kHz
Frequency range, ± 2 dB, 20 cm (7.9 in) distance: 80 Hz to 15 kHz with 2 dB soft boost at 10 to 12 kHz, Second order low-cut filter at 80 Hz with DAD4099
Sensitivity, nominal, ±3 dB: 2 mV/Pa; -54 dB re. 1 V/Pa
Equivalent noise level A-weighted: Typ. 28 dB(A) re. 20 Pa (max. 31 dB(A))
S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 66 dB
Total harmonic distortion (THD): <1 % up to 123 dB SPL peak; <1 % up to 120 dB SPL RMS sine
Dynamic range: 95 dB
Max. SPL, peak before clipping: 152 dB
Output impedance: From MicroDot: 30 to 40 ohm, from DAD4099: 100 ohm
Cable drive capability: Up to 300 m (984 ft) with DAD4099
Output balance principle: Signal balanced with DAD4099 XLR adapter
Common Mode Rejection Ratio (CMRR): > 60 dB at 50 Hz to 15 kHz with DAD4099 XLR adapter
Power supply: Min. 5 V to max. 50 V through DPA adapter for wireless systems; 48 V phantom power ±4 V with DAD4099 XLR adapter
Current consumption: 1.5 mA; 3.5 mA with DAD4099 XLR adapter
Connector: MicroDot
Color: Black
Weight: 31 g (1.1 oz)
Capsule diameter: 5.4 mm (0.2 in)
Microphone length: 45 mm (1.8 in)
Cable length: 1.8 m (6 ft)
Cable color: Black
Polarity: Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD4099 XLR adapter)
Operating temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
Relative humidity: Up to 90 %
Gooseneck, length: 140 mm (5.5 in)
