Description
Combining the legendary sound of the 4088 Directional Capsule with the lightweight and DPA's flexible headset system, the 4288 Directional Headset Microphone is ideal for both spoken word and vocal performance applications. This headset mic offers accurate and natural voice intelligibility and very high-SPL capabilities – users can both speak and sing into the mic with no hint of distortion.
This mic provides excellent off-axis rejection in high-SPL situations. It efficiently suppresses distant sound sources making it perfect for demanding live performance environments where background noise and feedback are concerns. In high-SPL events, or when feedback is a concern, the 4088 Directional Capsule will tackle these challenges with ease. The bass response is designed for optimal linearity at 2-3 cm (1 in) from the sound source. This means that the bass roll-off will be relatively prominent at a greater distance – a paramount factor when it comes to rejection of background noise and in the fight to avoid feedback. The microphone capsule is also optimized for low distortion as well as humidity resistance.
Features:
- Pristine audio quality
- Lightweight and flexible
- Easy mounting to the left or right
- Minimal visual impact
- Resistant to humidity
- Flexible adapter system fits most professional wireless systems

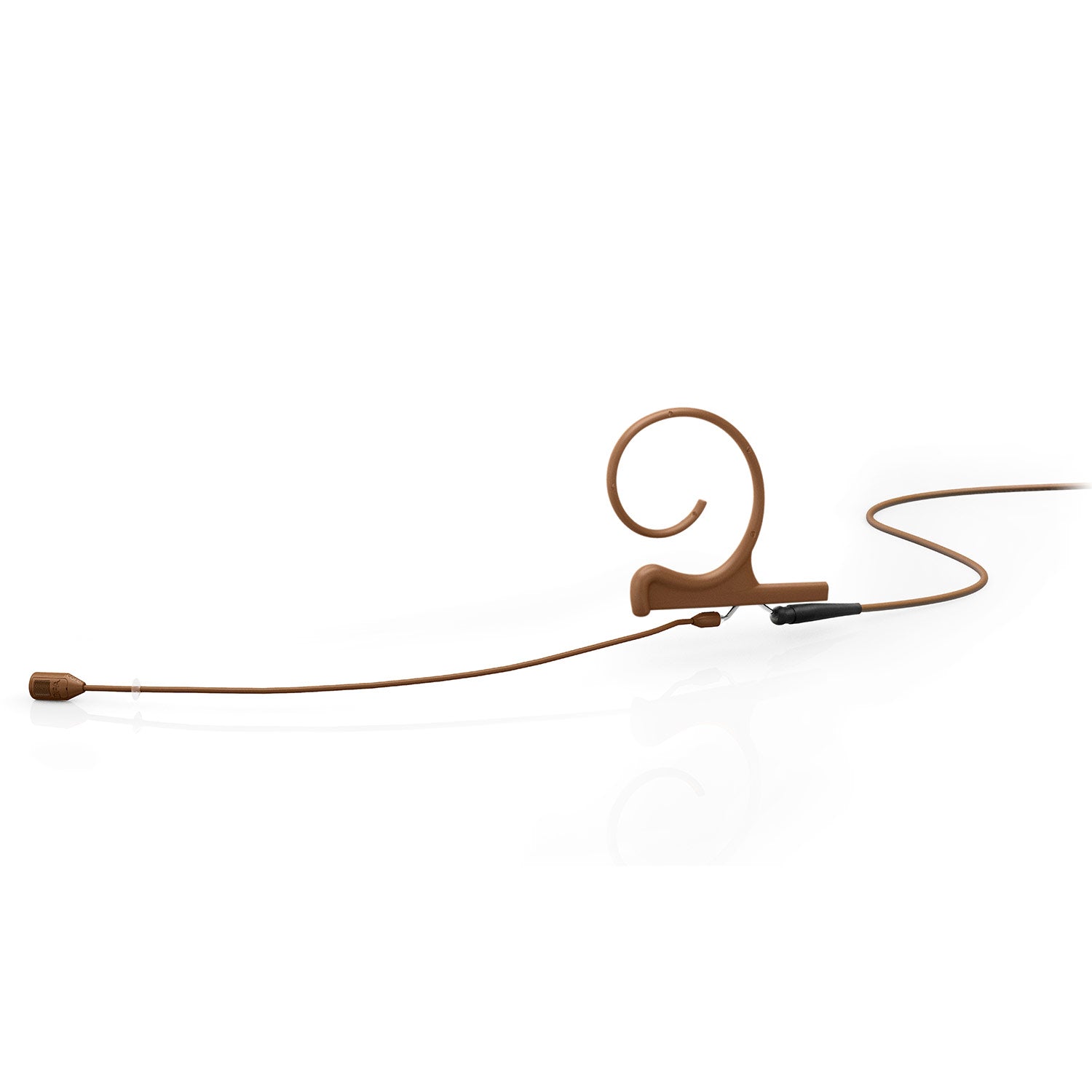

The 4288 is available as an earset or headset. Earset variants are the quickest to put on and often the best choice when miking needs to be fast and easy for example for conference use. Headset variants sit more securely around the head and are ideal for active performance situations. Both types are ergonomically designed to fit comfortably and easily. This mic adjusts to fit any ear size and head shape while at the same time it mounts securely and is hardly visible. By rotating the boom and the earhook, the microphone can be easily used on either the left or the right ear. The connector splits the cable from the microphone boom allowing you to swap broken cables and / or wireless connectors quickly.
Two directional boom lengths are available to accommodate different applications and head sizes: 120 mm (4.7 in) and 100 mm (3.9 in). The boom on this directional mic is 3 cm (1 in) longer than on the omnidirectional version, which matches the need for placement at the corner of the mouth. To avoid popping, the capsule should not be placed directly in front of the mouth. The 120 mm (4.7 in) is the standard boom length that fits most people.
IP58 certified
All CORE by DPA technology microphones are IP58 certified. This durability is achieved through a number of defense mechanisms:
- Water-repellant nano-coating of the cover and housing
- Hermetic sealing of the sensitive amplifier at the core of the mic
- Dual gold plating of the diaphragm
Adapter system gives you flexibility
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. When you make the switch, you won't hear any loss or change in sound quality.
DPA's miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.
Directional pattern | Cardioid |
Principle of operation | Pressure gradient |
Cartridge type | Pre-polarized condenser |
Frequency range | 20 Hz - 20 kHz |
Frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in) | 100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz) |
Sensitivity, nominal, ±3 dB at 1 kHz | 6 mV/Pa; -44 dB re. 1 V/Pa |
Equivalent noise level, A-weighted | Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) |
Equivalent noise level, ITU-R BS.468-4 | Typ. 38 dB (max. 40 dB) |
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 68 dB(A) |
Total harmonic distortion (THD) - Legacy | < 1% up to 123 dB SPL peak |
Total harmonic distortion (THD) - CORE | < 1% THD up to 137 dB SPL peak |
Dynamic range - Legacy | Typ. 97 dB |
Dynamic range - CORE | Typ. 111 dB |
Max. SPL, peak before clipping | 144 dB |
Output impedance | From MicroDot: 30 - 40 ?. From DAD6001: 100 ? |
Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
Output balance principle | Signal balanced with DAD6001-BC XLR Adapter |
Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter |
Power supply (for full performance) | Min. 5 V to max. 50 V through DPA adapter for wireless systems |
Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
Connector | MicroDot |
Color | Black, beige or brown |
Weight | Single Ear: 10 g (0.35 oz) |
Microphone diameter | 5.4 mm (0.21 in) |
Microphone length | 12.7 mm (0.5 in) |
Cable length | 1.25 m (4.1 ft) |
Cable color | Black, beige or brown |
Cable diameter | 1.6 mm (0.06 in) |
Polarity | Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter) |
Temperature range | -40¡C to 45¡C (-40¡F to 113¡F) |
Relative humidity (RH) | Up to 90% |
Combining the legendary sound of the 4088 Directional Capsule with the lightweight and DPA's flexible headset system, the 4288 Directional Headset Microphone is ideal for both spoken word and vocal performance applications. This headset mic offers accurate and natural voice intelligibility and very high-SPL capabilities – users can both speak and sing into the mic with no hint of distortion.
This mic provides excellent off-axis rejection in high-SPL situations. It efficiently suppresses distant sound sources making it perfect for demanding live performance environments where background noise and feedback are concerns. In high-SPL events, or when feedback is a concern, the 4088 Directional Capsule will tackle these challenges with ease. The bass response is designed for optimal linearity at 2-3 cm (1 in) from the sound source. This means that the bass roll-off will be relatively prominent at a greater distance – a paramount factor when it comes to rejection of background noise and in the fight to avoid feedback. The microphone capsule is also optimized for low distortion as well as humidity resistance.
Features:
- Pristine audio quality
- Lightweight and flexible
- Easy mounting to the left or right
- Minimal visual impact
- Resistant to humidity
- Flexible adapter system fits most professional wireless systems
The 4288 is available as an earset or headset. Earset variants are the quickest to put on and often the best choice when miking needs to be fast and easy for example for conference use. Headset variants sit more securely around the head and are ideal for active performance situations. Both types are ergonomically designed to fit comfortably and easily. This mic adjusts to fit any ear size and head shape while at the same time it mounts securely and is hardly visible. By rotating the boom and the earhook, the microphone can be easily used on either the left or the right ear. The connector splits the cable from the microphone boom allowing you to swap broken cables and / or wireless connectors quickly.
Two directional boom lengths are available to accommodate different applications and head sizes: 120 mm (4.7 in) and 100 mm (3.9 in). The boom on this directional mic is 3 cm (1 in) longer than on the omnidirectional version, which matches the need for placement at the corner of the mouth. To avoid popping, the capsule should not be placed directly in front of the mouth. The 120 mm (4.7 in) is the standard boom length that fits most people.
IP58 certified
All CORE by DPA technology microphones are IP58 certified. This durability is achieved through a number of defense mechanisms:
- Water-repellant nano-coating of the cover and housing
- Hermetic sealing of the sensitive amplifier at the core of the mic
- Dual gold plating of the diaphragm
Adapter system gives you flexibility
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. When you make the switch, you won't hear any loss or change in sound quality.
DPA's miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.
Directional pattern | Cardioid |
Principle of operation | Pressure gradient |
Cartridge type | Pre-polarized condenser |
Frequency range | 20 Hz - 20 kHz |
Frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in) | 100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz) |
Sensitivity, nominal, ±3 dB at 1 kHz | 6 mV/Pa; -44 dB re. 1 V/Pa |
Equivalent noise level, A-weighted | Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) |
Equivalent noise level, ITU-R BS.468-4 | Typ. 38 dB (max. 40 dB) |
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 68 dB(A) |
Total harmonic distortion (THD) - Legacy | < 1% up to 123 dB SPL peak |
Total harmonic distortion (THD) - CORE | < 1% THD up to 137 dB SPL peak |
Dynamic range - Legacy | Typ. 97 dB |
Dynamic range - CORE | Typ. 111 dB |
Max. SPL, peak before clipping | 144 dB |
Output impedance | From MicroDot: 30 - 40 ?. From DAD6001: 100 ? |
Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
Output balance principle | Signal balanced with DAD6001-BC XLR Adapter |
Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter |
Power supply (for full performance) | Min. 5 V to max. 50 V through DPA adapter for wireless systems |
Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
Connector | MicroDot |
Color | Black, beige or brown |
Weight | Single Ear: 10 g (0.35 oz) |
Microphone diameter | 5.4 mm (0.21 in) |
Microphone length | 12.7 mm (0.5 in) |
Cable length | 1.25 m (4.1 ft) |
Cable color | Black, beige or brown |
Cable diameter | 1.6 mm (0.06 in) |
Polarity | Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter) |
Temperature range | -40¡C to 45¡C (-40¡F to 113¡F) |
Relative humidity (RH) | Up to 90% |
