DALE SKU # DPA-6060OCUBUC

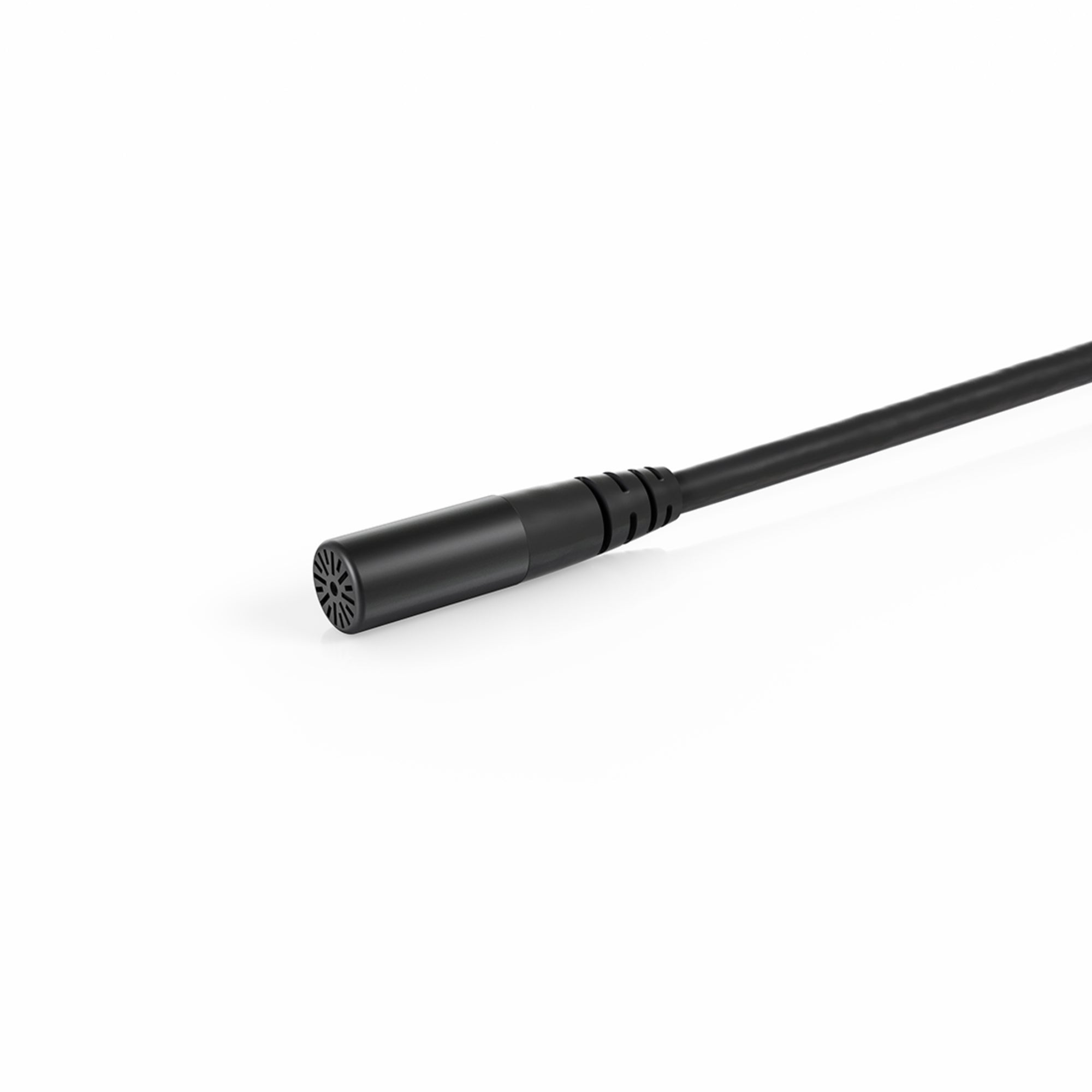

DPA Microphones 6060 CORE Omni Submini Lavalier Microphone (Normal SPL / Black / Unterminated)

Sale price$604.00 Regular price$640.00
Save $36.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The 6060 (normal SPL) and 6061 (loud SPL) CORE Subminiature Lavalier Microphones are just 3 mm (0.12 in) in size but pack the audio power of the larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability – three qualities that really matter. By shrinking CORE by DPA technology, you don't have to compromise on sound to focus on aesthetics.

    Features:

    • Amazing 3 mm CORE capsule technology
    • Renowned DPA sound in a 60% smaller package
    • Stainless steel, PVD-coated mic housing
    • Modular adapter system fits most professional wireless systems


    Shrinking CORE into a 3 mm

    CORE by DPA is a powerful new technology at the heart of their miniature microphones. From a whisper to a scream, you will experience increased clarity and openness.

    Now DPA takes the amazing CORE technology and shrunk it down to fit into their (0.12 in) subminiature mics. This means that, despite their small size, the performance of the 6060 CORE Subminiature Series is fully comparable to the 5 mm (0.20 in) miniature capsules that are beloved around the globe. These subminiatures have a lower noise floor than any other 3 mm (0.12 in) capsule on the market and they are better able to capture high sound pressure levels without distortion as well. In terms of technical specifications, the 6061 has a noise floor of only 26 dB(A), which is on par with the 5 mm (0.20 in) DPA miniature capsules.

    Advanced new mic design
    This tiny capsule has a cap that can be removed for cleaning and should be firmly reattached to the mic body with a firm click that can both be felt and heard. The supplied cap corresponds in its nature to the low-boost grid of 5 mm (0.20 in) versions. Both the mic itself plus the cap are made of stainless steel and treated with a Physical vapor deposition (PVD) coating that makes it extremely durable: able to tolerate high temperatures, resilient against impacts and resistant to abrasion. The entire subminiature lavalier mic has a pleasant matte look due to the coating making the entire headset look smaller and less obtrusive.

    IP58 certified
    The CORE Subminiatures are IP58 certified. This durability is achieved through a number of defense mechanisms:

    • Water-repellant nano-coating of the cover and housing
    • Hermetic sealing of the sensitive amplifier at the core of the mic
    • Dual gold plating of the diaphragm

    Adapter system gives you flexibility
    The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. When you make the switch, you won't hear any loss or change in sound quality.

    DPA's miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come. Should you prefer to have your mic hardwired to a specific connector type, DPA offers pre-terminated types for the most popular wireless systems.

    Directional pattern Omnidirectional
    Principle of operation Pressure
    Cartridge type Pre-polarized condenser
    Frequency response 20 Hz - 20 kHz
    Effective frequency range ±2 dB 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
    Sensitivity, nominal, ±2.4 dB at 1 kHz 20 mV/Pa; -34 dB re. 1 V/Pa
    Equivalent noise level, A-weighted Typ. 24 dB(A) re. 20 ?Pa (max. 26 dB(A))
    Distortion, THD < 1% 123 dB SPL RMS, 126 dB SPL peak
    Dynamic range Typ. 102 dB
    Max. SPL, THD 10% 134 dB SPL peak
    Rated output impedance 30 - 40 ?
    Cable drive capability Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
    Power supply (for full performance) For wireless systems: Min. 5 V - max. 10 V through DPA adapter
    With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
    Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
    Connector MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
    Color Black, beige, brown or white
    Weight 8 g (0.29 oz) incl. Cable and MicroDot connector
    Microphone head size (h x w x d) 3.4 / 14.4 mm (0.13 / 0.57 in)
    Capsule diameter 3 mm (0.12 in)
    Cable length 1.8 m (5.9 ft)
    Polarity Positively increasing sound pressure produces positive going voltage on MicroDot pin
    Temperature range -40¡C to 45¡C (-40¡F to 113¡F)
    Relative humidity (RH) Up to 90%

    The 6060 (normal SPL) and 6061 (loud SPL) CORE Subminiature Lavalier Microphones are just 3 mm (0.12 in) in size but pack the audio power of the larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability – three qualities that really matter. By shrinking CORE by DPA technology, you don't have to compromise on sound to focus on aesthetics.

    Features:

    • Amazing 3 mm CORE capsule technology
    • Renowned DPA sound in a 60% smaller package
    • Stainless steel, PVD-coated mic housing
    • Modular adapter system fits most professional wireless systems


    Shrinking CORE into a 3 mm

    CORE by DPA is a powerful new technology at the heart of their miniature microphones. From a whisper to a scream, you will experience increased clarity and openness.

    Now DPA takes the amazing CORE technology and shrunk it down to fit into their (0.12 in) subminiature mics. This means that, despite their small size, the performance of the 6060 CORE Subminiature Series is fully comparable to the 5 mm (0.20 in) miniature capsules that are beloved around the globe. These subminiatures have a lower noise floor than any other 3 mm (0.12 in) capsule on the market and they are better able to capture high sound pressure levels without distortion as well. In terms of technical specifications, the 6061 has a noise floor of only 26 dB(A), which is on par with the 5 mm (0.20 in) DPA miniature capsules.

    Advanced new mic design
    This tiny capsule has a cap that can be removed for cleaning and should be firmly reattached to the mic body with a firm click that can both be felt and heard. The supplied cap corresponds in its nature to the low-boost grid of 5 mm (0.20 in) versions. Both the mic itself plus the cap are made of stainless steel and treated with a Physical vapor deposition (PVD) coating that makes it extremely durable: able to tolerate high temperatures, resilient against impacts and resistant to abrasion. The entire subminiature lavalier mic has a pleasant matte look due to the coating making the entire headset look smaller and less obtrusive.

    IP58 certified
    The CORE Subminiatures are IP58 certified. This durability is achieved through a number of defense mechanisms:

    • Water-repellant nano-coating of the cover and housing
    • Hermetic sealing of the sensitive amplifier at the core of the mic
    • Dual gold plating of the diaphragm

    Adapter system gives you flexibility
    The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. When you make the switch, you won't hear any loss or change in sound quality.

    DPA's miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come. Should you prefer to have your mic hardwired to a specific connector type, DPA offers pre-terminated types for the most popular wireless systems.

    Directional pattern Omnidirectional
    Principle of operation Pressure
    Cartridge type Pre-polarized condenser
    Frequency response 20 Hz - 20 kHz
    Effective frequency range ±2 dB 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
    Sensitivity, nominal, ±2.4 dB at 1 kHz 20 mV/Pa; -34 dB re. 1 V/Pa
    Equivalent noise level, A-weighted Typ. 24 dB(A) re. 20 ?Pa (max. 26 dB(A))
    Distortion, THD < 1% 123 dB SPL RMS, 126 dB SPL peak
    Dynamic range Typ. 102 dB
    Max. SPL, THD 10% 134 dB SPL peak
    Rated output impedance 30 - 40 ?
    Cable drive capability Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
    Power supply (for full performance) For wireless systems: Min. 5 V - max. 10 V through DPA adapter
    With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
    Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
    Connector MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
    Color Black, beige, brown or white
    Weight 8 g (0.29 oz) incl. Cable and MicroDot connector
    Microphone head size (h x w x d) 3.4 / 14.4 mm (0.13 / 0.57 in)
    Capsule diameter 3 mm (0.12 in)
    Cable length 1.8 m (5.9 ft)
    Polarity Positively increasing sound pressure produces positive going voltage on MicroDot pin
    Temperature range -40¡C to 45¡C (-40¡F to 113¡F)
    Relative humidity (RH) Up to 90%
