Description

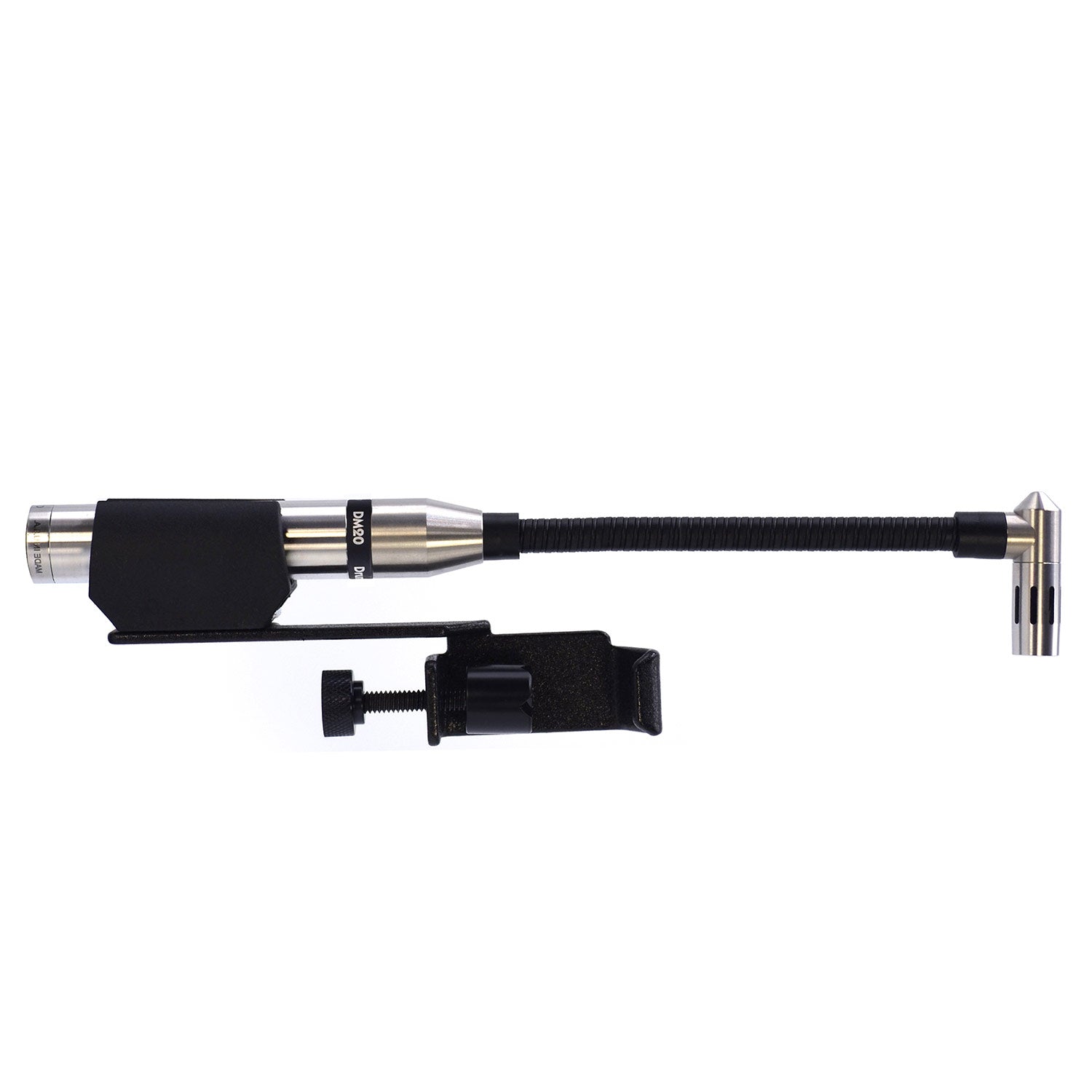

The Earthworks DM20 DrumMic™ is a precision engineered cardioid condenser microphone designed for close miking snare and toms in live performance and studio recording environments.
Isolation Like Never Before
Massive rear rejection and a polar pattern that's consistent across the entire frequency range means any off-axis leakage is virtually nonexistent.
Electrifying Onstage
A small diaphragm capsule coupled with a proprietary Class A amplifier circuit. A staggering max acoustic input of 150dB SPL. An incredible transient response delivered with each hit.
Goes Where You Want......And Stays There
The DM20's rugged gooseneck lets you easily and precisely position the microphone - and makes sure it stays in place - to get your best drum sound.
Goodbye Mic Stands
Keep your setup streamlined. Mount the DM20 directly onto your drum with the included RM1 RimMount™.
Frequency Response | 20Hz to 20kHz |
Polar Pattern | Cardioid |
Sensitivity | 8mV/Pa (-42dBV/Pa) |
Power Requirements | 24-48V Phantom, 10mA |
Max Acoustic Input | 150dB SPL |
Signal-to-Noise Ratio | 74dB A-weighted |
Output | XLR (pin 2+) |
Output Impedance | 200ë© balanced (between pins 2 / 3) |
Min Output Load | 1000ë© between pins 2 / 3 |
Noise | 20dB SPL equivalent (A weighted) |
Dimensions L x D | 282mm x 22mm (11.12 x .860 inches) |
Gooseneck Length | 121mm (4.75 inches) |
Weight | .55 lb. (.25kg) |
Included Accessories | (1) PW1 Foam Windscreen (1) RM1 RimMount䋢 |
The Earthworks DM20 DrumMic™ is a precision engineered cardioid condenser microphone designed for close miking snare and toms in live performance and studio recording environments.
Isolation Like Never Before
Massive rear rejection and a polar pattern that's consistent across the entire frequency range means any off-axis leakage is virtually nonexistent.
Electrifying Onstage
A small diaphragm capsule coupled with a proprietary Class A amplifier circuit. A staggering max acoustic input of 150dB SPL. An incredible transient response delivered with each hit.
Goes Where You Want......And Stays There
The DM20's rugged gooseneck lets you easily and precisely position the microphone - and makes sure it stays in place - to get your best drum sound.
Goodbye Mic Stands
Keep your setup streamlined. Mount the DM20 directly onto your drum with the included RM1 RimMount™.
Frequency Response | 20Hz to 20kHz |
Polar Pattern | Cardioid |
Sensitivity | 8mV/Pa (-42dBV/Pa) |
Power Requirements | 24-48V Phantom, 10mA |
Max Acoustic Input | 150dB SPL |
Signal-to-Noise Ratio | 74dB A-weighted |
Output | XLR (pin 2+) |
Output Impedance | 200ë© balanced (between pins 2 / 3) |
Min Output Load | 1000ë© between pins 2 / 3 |
Noise | 20dB SPL equivalent (A weighted) |
Dimensions L x D | 282mm x 22mm (11.12 x .860 inches) |
Gooseneck Length | 121mm (4.75 inches) |
Weight | .55 lb. (.25kg) |
Included Accessories | (1) PW1 Foam Windscreen (1) RM1 RimMount䋢 |
