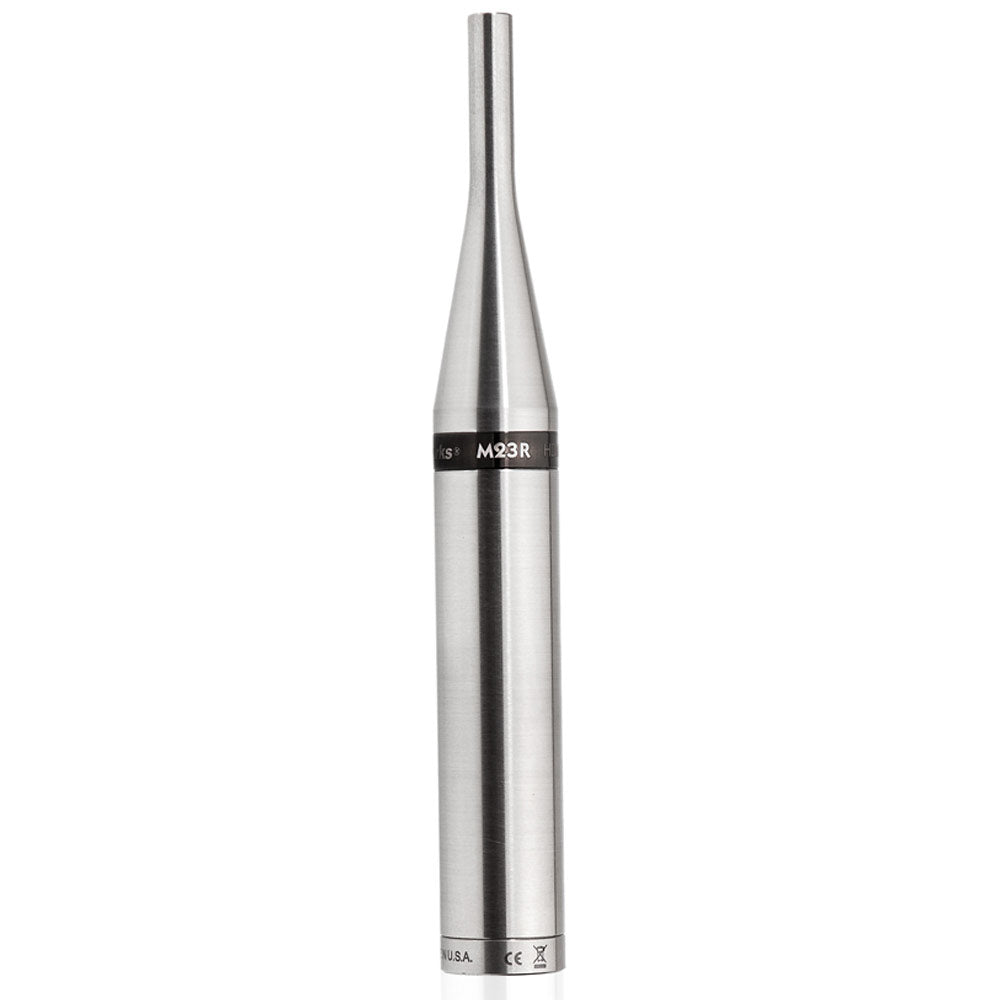

Earthworks M23R 23kHz Reference Measurement Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Earthworks M23R 23kHz Reference Measurement Microphone
Sale price$539.10
Regular price$599.00
Description
Go beyond matched pairs, quads, and octets. The M23R is infinitely matched.
Features:
-
Infinitely Matched
- A true Reference Microphone. Each and every M23R has the same frequency response and sensitivity - matched to within +/- 0.5dB across the entire operating frequency range (3Hz to 23kHz).
- This is made possible by proprietary Earthworks technologies which allow individual tuning and calibration of every measurement microphone produced.
-
Infinitely Flexible
-
A Matched Array That Grows With You
- Build your own matched array of reference microphones at your own speed. Simply add more M23Rs whenever you need them. They’ll match tomorrow or ten years from now.
-
Consistent Results Across Space and Time
- Equip all of your production teams with matching reference mics and get consistent results no matter where they are.
- Start doing multi-mic measurements or equip new teams at any time with confidence that all of their reference microphones match.
- Eliminate a common source of error - no ECF needed - the M23R is already flat. It's the definition of flat.
-
A Matched Array That Grows With You
Applications:
- Test / Measurement
| Frequency Response | 3Hz to 23kHz å± 0.5dB |
| Polar Pattern | Omnidirectional |
| Sensitivity | 35mV/Pa (-28.9dBV/Pa) |
| Matching Tolerance | å± 0.5dB (frequency resp. / sensitivity) |
| Power Requirements | 24 ‰ÛÒ 48V Phantom, 10mA |
| Max Acoustic Input | 140dB SPL |
| Output | XLR-3 (pin 2+) |
| Min Output Load | 600? between pins 2 / 3 |
| Noise | 20dB SPL equivalent (A weighted) |
| Operating Temp. Range | -4å¼ to 140å¼ F (-20å¼ to +60å¼ C) |
| Storage Temp. Range | -40å¼ to 176å¼ F (-40 to +80å¼ C) |
| Humidity | Up to 90% |
| Dimensions L x D | 165mm x 22mm (6.25 x .860 inches) |
| Weight | .35 lb. (160g) |
