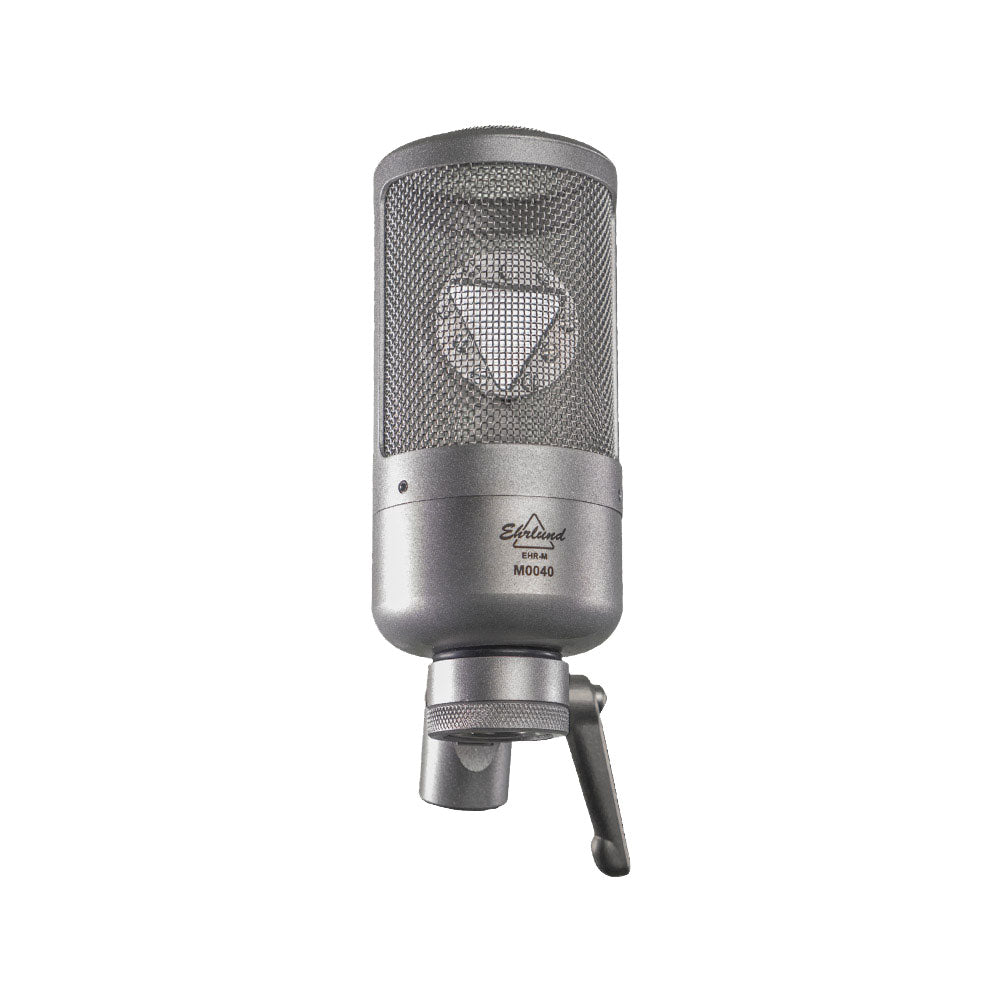

Ehrlund EHR-M - Large Diaphragm Condenser Microphone


  • Dale #:

    EHRL-EHRM
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Due to fluctuating exchange rates, please contact us for pricing.

Description

The EHR-M is a Swedish manufactured condenser microphone for studio use, it has been designed to deliver the cleanest sound possible. Its patented triangular membrane design has been allied to a patented very low noise and low power phantom feed amplifier. The EHR-M has both broad and smooth pick... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The EHR-M is a Swedish manufactured condenser microphone for studio use, it has been designed to deliver the cleanest sound possible. Its patented triangular membrane design has been allied to a patented very low noise and low power phantom feed amplifier. The EHR-M has both broad and smooth pickup characteristics, with deep bass and extended treble. This microphone has impressive stats in self-induced noise, sensitivity and frequency range. The output signal is strong and usually does not need much amplification.

Features:

  • Large diaphragm condenser microphone
  • Patented triangular membrane
  • Patented internal amplification and power circuits
  • Optimised for studio environments
  • Transparent and natural sound
  • Great low-noise performance
  • Phase and frequency linear internal amplifiers
  • Excels at distance miking
  • Broad pickup range, linear frequency response even at distance or off axis
  • Bass frequencies are picked up in an accurate way even at some distance
  • Natural reproduction of fast transients
  • Colouring of sound is negligible and true to the original source
  • Frequency range spans from infrasonic bass to ultrasonic treble
  • Low energy consumption, ~2.0 mA
  • Strong output signal; usually doesn't need any external amplification
  • No pre-filtering needed, Ehrlund microphones are made for flat EQs
  • Each and every Ehrlund microphone is stereo matched with its own model
  • Handles all impedances without altering frequency or phase

More +

Product Specs

Type Condenser microphone
Membrane type Triangular membrane, combines the characteristics of both large and small membranes
Pickup pattern Cardioid
Frequency range 7 – 87,000 Hz
Sensitivity at 1kHz -33 dBV/Pa (23 mV/Pa)
Impedance Handles all impedances
Equivalent noise level < 7 dBA
Signal-to-noise 87 dBA
Dynamic range 115 dB
Max SPL (peak) 0.5% THD 116 dB
1% THD 122 dB
Power supply 48 V Phantom power
Current consumption 2.0 mA
Connector XLR 3-pin
Materials Aircraft-grade aluminium body, hardened nickel-plated stainless-steel net
Finish Glass bead blasting
Dimensions Ø60 mm x 155 mm
Weight 340 grams
