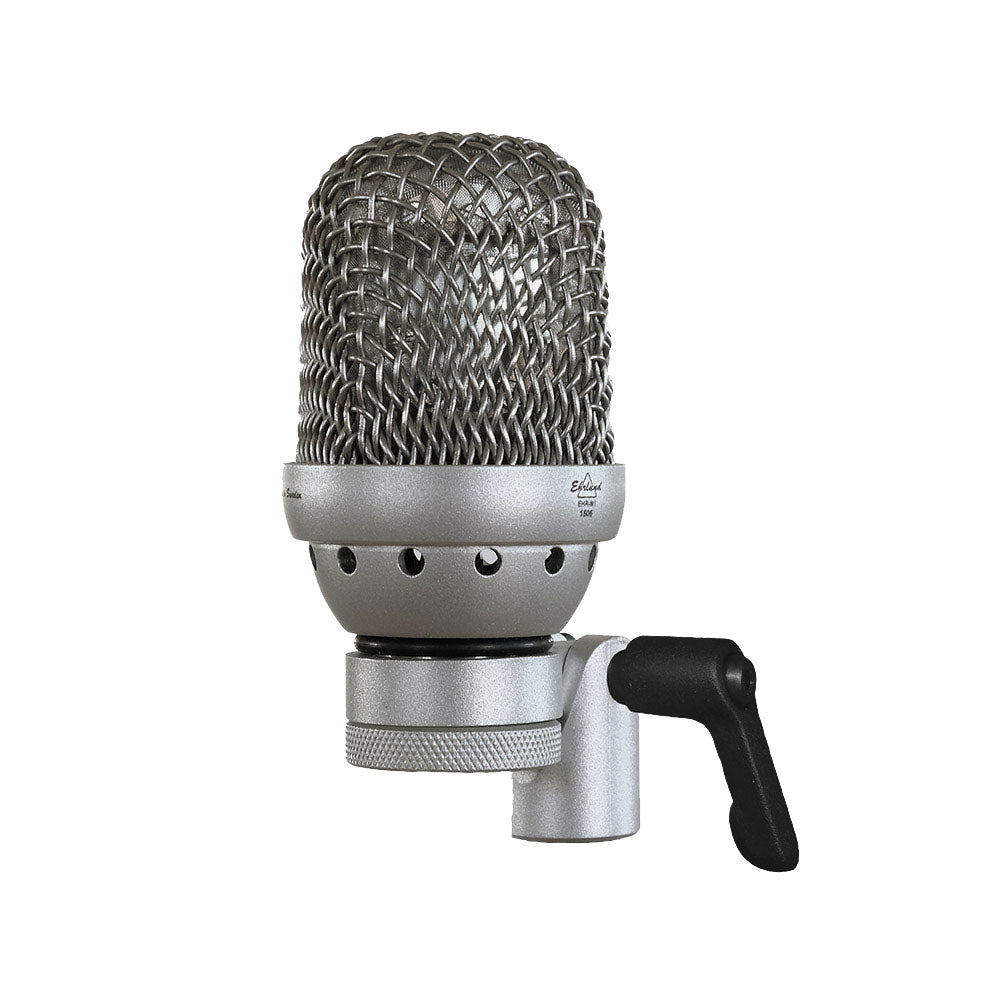

Ehrlund EHR-M1 Small Diaphragm Condenser Microphone


  • Dale #:

    EHRL-EHRM1
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Due to fluctuating exchange rates, please contact us for pricing.

Description

The EHR-M1 is a Swedish manufactured studio condenser microphone. It has been designed to endure rough conditions whilst on tour. The EHR-M1 is in many aspects like the EHR-M except it’s smaller size, has higher resistance and a built-in coarse dirt filter. Its patented triangular membrane design... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The EHR-M1 is a Swedish manufactured studio condenser microphone. It has been designed to endure rough conditions whilst on tour. The EHR-M1 is in many aspects like the EHR-M except it’s smaller size, has higher resistance and a built-in coarse dirt filter. Its patented triangular membrane design has been allied to a patented very low noise and low power phantom feed amplifier. The EHR-M1 has both broad and smooth pickup characteristics, with deep bass and extended treble. This microphone has impressive stats in self-induced noise, sensitivity and frequency range. The output signal is strong and usually does not need much amplification.

Features:

  • Large diaphragm condenser microphone
  • Patented triangular membrane
  • Patented internal amplification and power circuits
  • Optimised for podcast, broadcast and touring environments
  • Transparent and natural sound
  • Great low-noise performance
  • Phase and frequency linear internal amplifiers
  • Compact size and weight
  • Built-in coarse dirt filter
  • Durable design, built to endure the rough life on tour
  • Broad pickup range, linear frequency response even at distance or off axis
  • Bass frequencies are picked up in an accurate way even at some distance
  • Natural reproduction of fast transients
  • Colouring of sound is negligible and true to the original source
  • Frequency range spans from infrasonic bass to ultrasonic treble
  • Low energy consumption, ~2.0 mA
  • Strong output signal, usually doesn’t need any external amplification
  • No pre-filtering needed, Ehrlund microphones are made for flat EQs
  • Each and every Ehrlund microphone is stereo matched with its own model
  • Handles all impedances without altering frequency or phase

More +

Product Specs

Type Condenser microphone
Membrane type Triangular membrane, combines the characteristics of both large and small membranes
Pickup pattern Cardioid
Frequency range 7 – 87000 Hz
Sensitivity at 1kHz -33 dBV/Pa (23 mV/Pa)
Impedance Handles all impedances
Equivalent noise level < 7 dBA
Signal-to-noise 87 dBA
Dynamic range 115 dB
Max SPL (peak) 0.5% THD 116 dB
1% THD 122 dB
Power supply 48 V Phantom power
Current consumption 2.0 mA
Connector XLR 3-pin
Materials Aircraft-grade aluminium body, hardened nickel-plated stainless steel net
Finish Glass bead blasting
Dimensions Ø53 mm x 95 mm
Weight 185 grams
