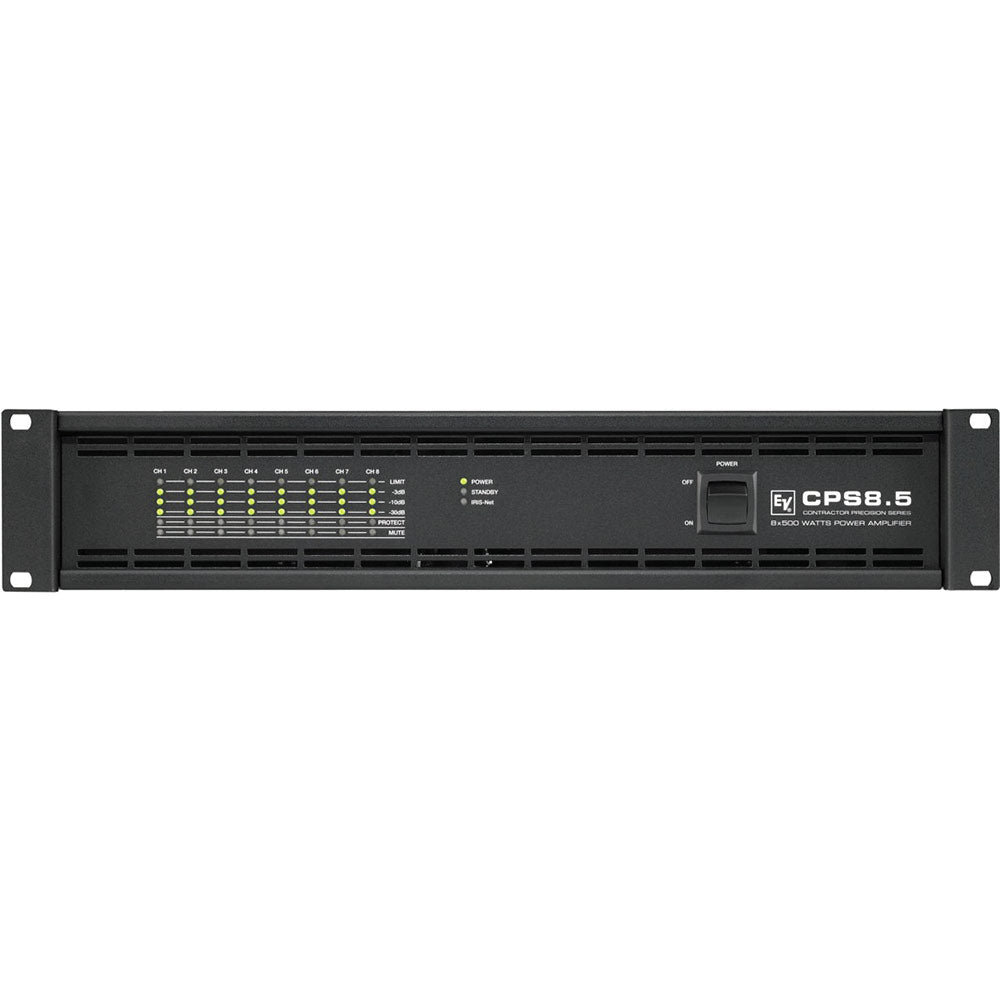

Electro-Voice CPS8.5 - Eight-Channel Commercial Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

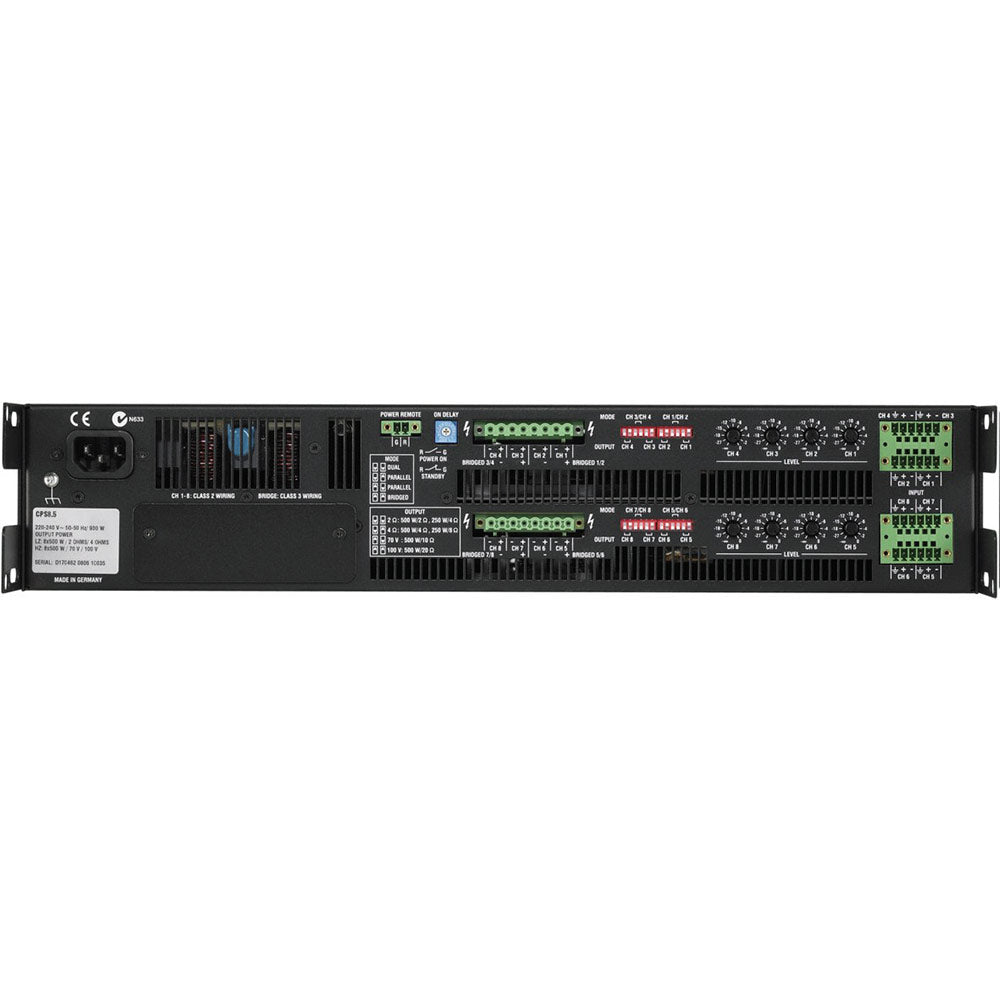

Contractor Precision Series amplifiers combine top-quality performance and reliability with innovative designs perfectly tailored to the needs of professional sound installation. Available in 2RU configurations of up to eight channels, CPS amps are compact and efficient to operate, with every detail thought through from the contractor's point of view. For fast installation and setup, each model features Phoenix-type input and output connectors, programmable power-on delay, remote power-on/off, rear-mounted attenuators and switchable high-pass filters.
For worry-free dependability, there's full protection against hazards, such as excessive heat, overloads, shorts, HF, DC, back EMF and inrush current. And for the ultimate in system control and supervision, the optional RCM-810 module enables the inclusion of CPS amps in IRIS-Net networks of up to 250 devices. Offering exceptional ease, flexibility and audio performance, CPS series is the ideal installation solution for cinema, club sound, commercial sound/life safety, and performance and sports venues.
Features:
- Eight channels in one compact rack-efficient unit
- 500 W per channel
- 70/100 V operation for distributed systems
- Class-D design for optimum efficiency
- Slot for optional RCM-810 module, allowing IRIS-Net control and monitoring
- IRIS-Net selection of each channel's impedance (2-10 Ω in 0.1 Ω steps)
- Rear-mounted attenuators
- Switchable 50 Hz high-pass filter (Hi-Z mode)
- Complete protection: thermal, overload, shorts, HF, DC, back-EMF, inrush current
- Phoenix-type input and output connections
- Remote power-on/off contact
- Programmable power-on delay settings
- Front-to-rear fans
| Height | 3.47" (88.1mm) |
| Width | 19" (482.6mm) |
| Depth | 16.59" (421.5mm) |
| Frequency Response (-3 dB) | 15 Hz-30,000 Hz |
| Weight Net | 30.64lbs (13.9kg) |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 8½ | 225Watts |
| Mains Voltage | 220 - 240 V, 50 - 60 Hz or 120 V, 50 - 60 Hz, 50 - 60 Hz |
| Maximum Bridged Output 8½ | 1000Watts |
| CAN Bus Interface | Optional (RCM-810 card) |
| Maximum Bridged Output 4½ | 1000Watts |
| Cooling | Front-to-Rear, continuously variable fans |
| Total Harmonic Distortion | 0.05% |
| Audio Network | No |
| Slew Rate | 28V/µs |
| Variable Load Drive (VLD) | Yes |
| DIM 30 | 0.02% |
| Topology | Class-D |
| Signal-to-Noise Ratio (A-weighted) | 100dB |
| Impedance | 2/4/8/8 VLD/71 V/100V½ |
| Input Impedance (Balanced) | 20k½ |
| Input Sensitivity | 0 dBu (.775V)-2_, +3 dBu (1.1V)-4/8_, +6 dBu (1.55) 70V/100V |
| Network Control (IRIS-Net) | Optional (RCM-810 card) |
| Amplifier Gain | 32 dB (Lo-Z), 33 dB (70V), 36dB ((100V)) |
| Continuous Rated Power (1 kHz, THD 1%) 4½ | 500Watts |
| Continuous Rated Power (1 kHz, THD 1%) 100v | 500Watts |
| Continuous Rated Power (1 kHz, THD 1%) 70v | 500Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 100v | 500Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 4½ | 450Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 70v | 450Watts |
| Electronics Type | Amplifier |
| Analog Inputs | 8, electronically balanced, Phoenix-type |
| Continuous Rated Power (1 kHz, THD 1%) 2½ | 500Watts |
| Maximum Input Voltage | +22 (9.76 Vrms) |
| Continuous Rated Power (1 kHz, THD 1%) 8½ | 250Watts |
Contractor Precision Series amplifiers combine top-quality performance and reliability with innovative designs perfectly tailored to the needs of professional sound installation. Available in 2RU configurations of up to eight channels, CPS amps are compact and efficient to operate, with every detail thought through from the contractor's point of view. For fast installation and setup, each model features Phoenix-type input and output connectors, programmable power-on delay, remote power-on/off, rear-mounted attenuators and switchable high-pass filters.
For worry-free dependability, there's full protection against hazards, such as excessive heat, overloads, shorts, HF, DC, back EMF and inrush current. And for the ultimate in system control and supervision, the optional RCM-810 module enables the inclusion of CPS amps in IRIS-Net networks of up to 250 devices. Offering exceptional ease, flexibility and audio performance, CPS series is the ideal installation solution for cinema, club sound, commercial sound/life safety, and performance and sports venues.
Features:
- Eight channels in one compact rack-efficient unit
- 500 W per channel
- 70/100 V operation for distributed systems
- Class-D design for optimum efficiency
- Slot for optional RCM-810 module, allowing IRIS-Net control and monitoring
- IRIS-Net selection of each channel's impedance (2-10 Ω in 0.1 Ω steps)
- Rear-mounted attenuators
- Switchable 50 Hz high-pass filter (Hi-Z mode)
- Complete protection: thermal, overload, shorts, HF, DC, back-EMF, inrush current
- Phoenix-type input and output connections
- Remote power-on/off contact
- Programmable power-on delay settings
- Front-to-rear fans
| Height | 3.47" (88.1mm) |
| Width | 19" (482.6mm) |
| Depth | 16.59" (421.5mm) |
| Frequency Response (-3 dB) | 15 Hz-30,000 Hz |
| Weight Net | 30.64lbs (13.9kg) |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 8½ | 225Watts |
| Mains Voltage | 220 - 240 V, 50 - 60 Hz or 120 V, 50 - 60 Hz, 50 - 60 Hz |
| Maximum Bridged Output 8½ | 1000Watts |
| CAN Bus Interface | Optional (RCM-810 card) |
| Maximum Bridged Output 4½ | 1000Watts |
| Cooling | Front-to-Rear, continuously variable fans |
| Total Harmonic Distortion | 0.05% |
| Audio Network | No |
| Slew Rate | 28V/µs |
| Variable Load Drive (VLD) | Yes |
| DIM 30 | 0.02% |
| Topology | Class-D |
| Signal-to-Noise Ratio (A-weighted) | 100dB |
| Impedance | 2/4/8/8 VLD/71 V/100V½ |
| Input Impedance (Balanced) | 20k½ |
| Input Sensitivity | 0 dBu (.775V)-2_, +3 dBu (1.1V)-4/8_, +6 dBu (1.55) 70V/100V |
| Network Control (IRIS-Net) | Optional (RCM-810 card) |
| Amplifier Gain | 32 dB (Lo-Z), 33 dB (70V), 36dB ((100V)) |
| Continuous Rated Power (1 kHz, THD 1%) 4½ | 500Watts |
| Continuous Rated Power (1 kHz, THD 1%) 100v | 500Watts |
| Continuous Rated Power (1 kHz, THD 1%) 70v | 500Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 100v | 500Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 4½ | 450Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 70v | 450Watts |
| Electronics Type | Amplifier |
| Analog Inputs | 8, electronically balanced, Phoenix-type |
| Continuous Rated Power (1 kHz, THD 1%) 2½ | 500Watts |
| Maximum Input Voltage | +22 (9.76 Vrms) |
| Continuous Rated Power (1 kHz, THD 1%) 8½ | 250Watts |
