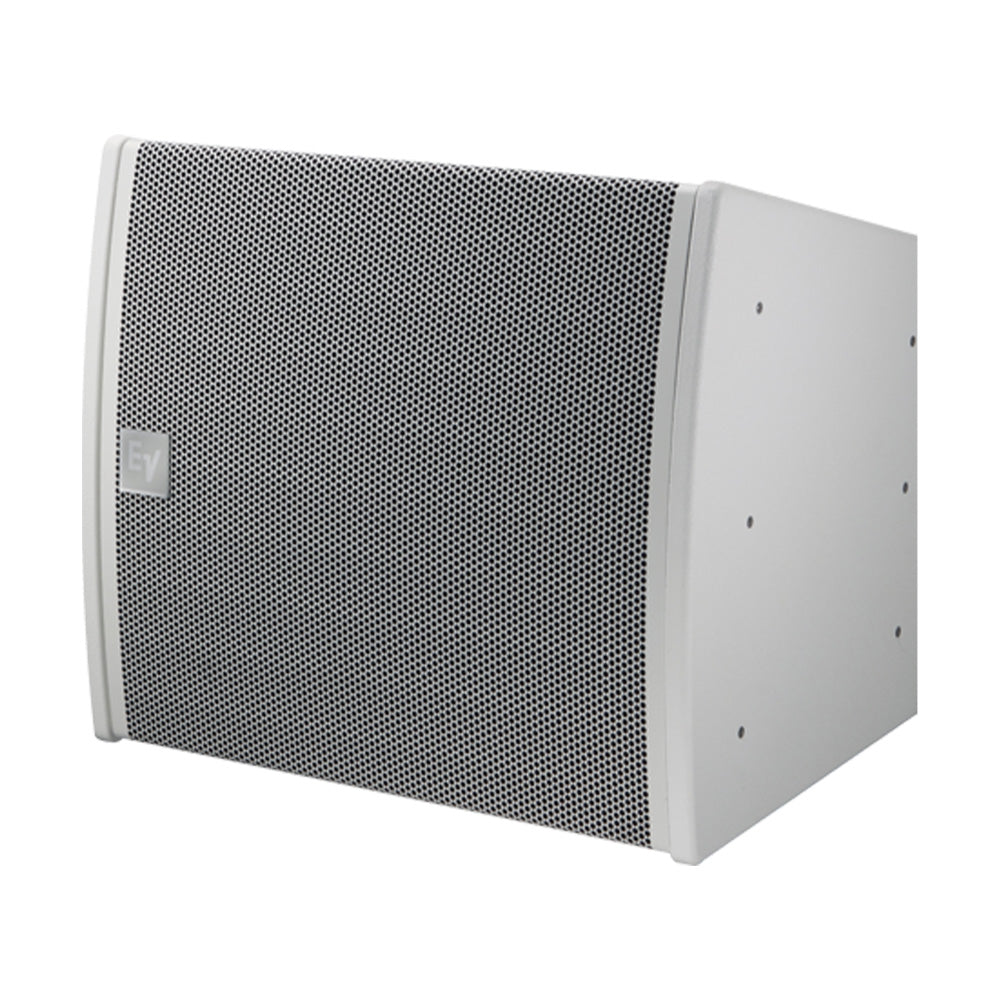

Electro-Voice EVA-2082S 906 - Dual-Element 90x60 Line Array Speaker (EVCoat / White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Expandable Vertical Array (EVA) series is a vertical line array with a unique, elegant system design that provides a simple solution for installed sound applications. EVA offers true line array performance and coherent far-field summing from the patented Hydra plane wave generator. The internal, hidden rigging not only looks great, but also makes EVA incredibly easy to install. The sophisticated internal crossover lets you power up to eight EVA full-range modules (16 line array elements) from a single amplifier channel, eliminating the need for external crossovers or DSP. The four full-range modules in the series are complemented by two matching subwoofers that can be flown in the array. If you think that your budget isn't big enough for a great sounding line array, EVA may be just the answer you're looking for.
Features:
- High performance, cost-effective
- Ideal for fixed installation line arrays
- Two array elements in each module
- Two 8" low-distortion woofers
- Four 1.25" titanium diaphragm HF drivers
- Advanced Hydra plane wave generators
- Constant Directivity waveguide
- High sensitivity (104 dB) for high output
- Super efficient: drive up to 8 boxes from a single amp channel
- Sixth-order passive crossover with HF protection
- Integrated hidden suspension hardware
- Choice of three finishes: indoor, PI and FG
- EVADA (EVA Design Assistant) software tool
| Frequency Range (-10 dB) | 45 - 20000kHz |
| Suspension | EVA Grid (Sold Separately) |
| Minimum Impedance | 12ë© |
| Nominal Impedance (Passive) | 16ë© |
| HF Transducer | (4) DH2005, 1.25 In (32mm) Diaphragm Compression Driver |
| Speaker Type | Full-Range, Line-array |
| Frequency Response (-3 dB)å_ | 60 - 19000Hz |
| Max. SPL/1m (calc)å_ | 135dB |
| Coverage (Nominal -6 dB) H | 120å¡ |
| LF Transducer | (2) EVS2008, 8 In (203mm) Driver |
| Coverage (Nominal -6 dB) V | 20å¡ |
| System Power Handling (Continuous/Program/Peak) | 350, 700, 1400Watts |
| Crossover Frequency | 1740Hz |
| Enclosure Material | Birch plywood |
| Grille | 16 GA Galvanneal, Powder-coated (PI Version - Stainless Steel with Hydrophobic Cloth |
| Sensitivity 1 W/1 m | 104dB (3 module array) |
| Height | 20.17" (512.2mm) |
| Width | 23.5" (596.9mm) |
| Recommended High-Pass Frequency | 50Hz |
| Depth | 14.53" (369.1mm) |
| Weight Net | 81.13lbs (36.8kg) |
| Passive Power Handling | 1400W peak |
| Input Connections | Phoenix/Euroblock style screw terminals |
The Expandable Vertical Array (EVA) series is a vertical line array with a unique, elegant system design that provides a simple solution for installed sound applications. EVA offers true line array performance and coherent far-field summing from the patented Hydra plane wave generator. The internal, hidden rigging not only looks great, but also makes EVA incredibly easy to install. The sophisticated internal crossover lets you power up to eight EVA full-range modules (16 line array elements) from a single amplifier channel, eliminating the need for external crossovers or DSP. The four full-range modules in the series are complemented by two matching subwoofers that can be flown in the array. If you think that your budget isn't big enough for a great sounding line array, EVA may be just the answer you're looking for.
Features:
- High performance, cost-effective
- Ideal for fixed installation line arrays
- Two array elements in each module
- Two 8" low-distortion woofers
- Four 1.25" titanium diaphragm HF drivers
- Advanced Hydra plane wave generators
- Constant Directivity waveguide
- High sensitivity (104 dB) for high output
- Super efficient: drive up to 8 boxes from a single amp channel
- Sixth-order passive crossover with HF protection
- Integrated hidden suspension hardware
- Choice of three finishes: indoor, PI and FG
- EVADA (EVA Design Assistant) software tool
| Frequency Range (-10 dB) | 45 - 20000kHz |
| Suspension | EVA Grid (Sold Separately) |
| Minimum Impedance | 12ë© |
| Nominal Impedance (Passive) | 16ë© |
| HF Transducer | (4) DH2005, 1.25 In (32mm) Diaphragm Compression Driver |
| Speaker Type | Full-Range, Line-array |
| Frequency Response (-3 dB)å_ | 60 - 19000Hz |
| Max. SPL/1m (calc)å_ | 135dB |
| Coverage (Nominal -6 dB) H | 120å¡ |
| LF Transducer | (2) EVS2008, 8 In (203mm) Driver |
| Coverage (Nominal -6 dB) V | 20å¡ |
| System Power Handling (Continuous/Program/Peak) | 350, 700, 1400Watts |
| Crossover Frequency | 1740Hz |
| Enclosure Material | Birch plywood |
| Grille | 16 GA Galvanneal, Powder-coated (PI Version - Stainless Steel with Hydrophobic Cloth |
| Sensitivity 1 W/1 m | 104dB (3 module array) |
| Height | 20.17" (512.2mm) |
| Width | 23.5" (596.9mm) |
| Recommended High-Pass Frequency | 50Hz |
| Depth | 14.53" (369.1mm) |
| Weight Net | 81.13lbs (36.8kg) |
| Passive Power Handling | 1400W peak |
| Input Connections | Phoenix/Euroblock style screw terminals |
