DALE SKU # EVI-EVF1181SPIW

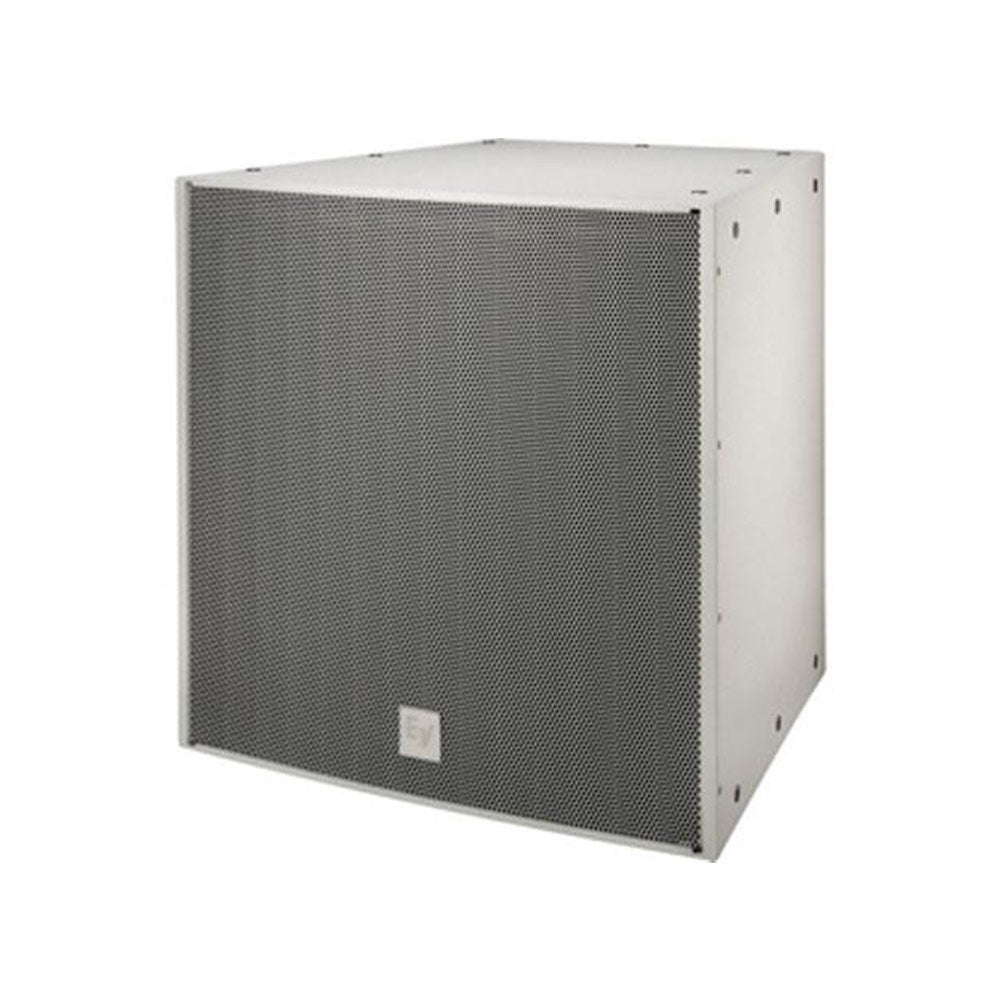

Electro-Voice EVF-1181S - Premium 18-Inch Arrayable Front-Loaded Bass Element (EVCoat PI / White)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    18" front?loaded subwoofer to complement EVF point-source systems. EVF is the most comprehensive standard line of front loaded loudspeaker systems ever offered for installed sound. Available in 12" or 15" two?way configurations and enhanced with dedicated low?frequency systems, EVF loudspeakers match exceptional audio performance, efficiency, ease?of?use and aesthetics with unprecedented value. EVF systems incorporate the latest Electro?Voice components to ensure years of reliability and exceptional sound.

    Using optional rigging accessories, you can create attractive clusters that include EVF full?range systems, as well as EVF subwoofers or EVH full?range systems. Cabinets are available in three finishes: EVCoat (interior use), PI (indirect weather exposure) or FG (fiberglass—for direct weather exposure); they include twenty?two M10 threaded suspension points.

    Features:

    • Ideal for installations
    • Low-distortion EVS18SB woofer
    • 99 dB sensitivity, 131 dB max SPL
    • Power: 400 W cont., 1600 W peak
    • Trapezoidal 13-ply plywood enclosure
    • EVCoat, PI, or fiberglass (FG) finish
    • M10 suspension points (28)
    Frequency Range (-10 dB) 28Ð650 HzkHz
    Suspension 28 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
    Weatherized Optional
    Minimum Impedance Passive: N/A, Biamp: 6 ?
    Nominal Impedance (Passive) Passive: N/A, Biamp: 8 ?
    Speaker Type Subwoofer
    Frequency Response (-3 dB)_ 35Ð100 HzHz
    Max. SPL/1m (calc)_ 131dB
    Coverage (Nominal -6 dB) H 360¡
    LF Transducer 18" EVS18SB driver
    System Power Handling (Continuous/Program/Peak) 400 , 800 , 1600 Watts
    Enclosure Material 13-ply weather-resistant birch
    Grille Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
    Sensitivity 1 W/1 m 99dB
    Height 30.26" (768.6mm)
    Width 26.6" (675.6mm)
    Recommended High-Pass Frequency 33Hz
    Depth 28.6" (726.4mm)
    Weight Net 101.19lbs (45.9kg)
    Available Coverage Patterns (Nominal -6 dB) HxV Omnidirectional in normal operating range¡
    Environmental Specs Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
    Nominal Impedance Passive: N/A, Bi-amp: 8? (Biamp)
    Internal Passive Crossover Frequency Hz
    Coverage (Nominal -6 dB) Omnidirectional in normal operating range
    Passive Power Handling 1600W peak
    Net Weight 101.2 lb (45.9 kg)
    Dimensions (H x W x D) 30.26" x 26.6" x 28.6" (768.6 x 675.6 x 726.4 )mm
    Input Connections Euroblock; PI and FG versions include dual gland nut input panel cover

    18" front?loaded subwoofer to complement EVF point-source systems. EVF is the most comprehensive standard line of front loaded loudspeaker systems ever offered for installed sound. Available in 12" or 15" two?way configurations and enhanced with dedicated low?frequency systems, EVF loudspeakers match exceptional audio performance, efficiency, ease?of?use and aesthetics with unprecedented value. EVF systems incorporate the latest Electro?Voice components to ensure years of reliability and exceptional sound.

    Using optional rigging accessories, you can create attractive clusters that include EVF full?range systems, as well as EVF subwoofers or EVH full?range systems. Cabinets are available in three finishes: EVCoat (interior use), PI (indirect weather exposure) or FG (fiberglass—for direct weather exposure); they include twenty?two M10 threaded suspension points.

    Features:

    • Ideal for installations
    • Low-distortion EVS18SB woofer
    • 99 dB sensitivity, 131 dB max SPL
    • Power: 400 W cont., 1600 W peak
    • Trapezoidal 13-ply plywood enclosure
    • EVCoat, PI, or fiberglass (FG) finish
    • M10 suspension points (28)
    Frequency Range (-10 dB) 28Ð650 HzkHz
    Suspension 28 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
    Weatherized Optional
    Minimum Impedance Passive: N/A, Biamp: 6 ?
    Nominal Impedance (Passive) Passive: N/A, Biamp: 8 ?
    Speaker Type Subwoofer
    Frequency Response (-3 dB)_ 35Ð100 HzHz
    Max. SPL/1m (calc)_ 131dB
    Coverage (Nominal -6 dB) H 360¡
    LF Transducer 18" EVS18SB driver
    System Power Handling (Continuous/Program/Peak) 400 , 800 , 1600 Watts
    Enclosure Material 13-ply weather-resistant birch
    Grille Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
    Sensitivity 1 W/1 m 99dB
    Height 30.26" (768.6mm)
    Width 26.6" (675.6mm)
    Recommended High-Pass Frequency 33Hz
    Depth 28.6" (726.4mm)
    Weight Net 101.19lbs (45.9kg)
    Available Coverage Patterns (Nominal -6 dB) HxV Omnidirectional in normal operating range¡
    Environmental Specs Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
    Nominal Impedance Passive: N/A, Bi-amp: 8? (Biamp)
    Internal Passive Crossover Frequency Hz
    Coverage (Nominal -6 dB) Omnidirectional in normal operating range
    Passive Power Handling 1600W peak
    Net Weight 101.2 lb (45.9 kg)
    Dimensions (H x W x D) 30.26" x 26.6" x 28.6" (768.6 x 675.6 x 726.4 )mm
    Input Connections Euroblock; PI and FG versions include dual gland nut input panel cover
