DALE SKU # EVI-EVH1152D43PIW

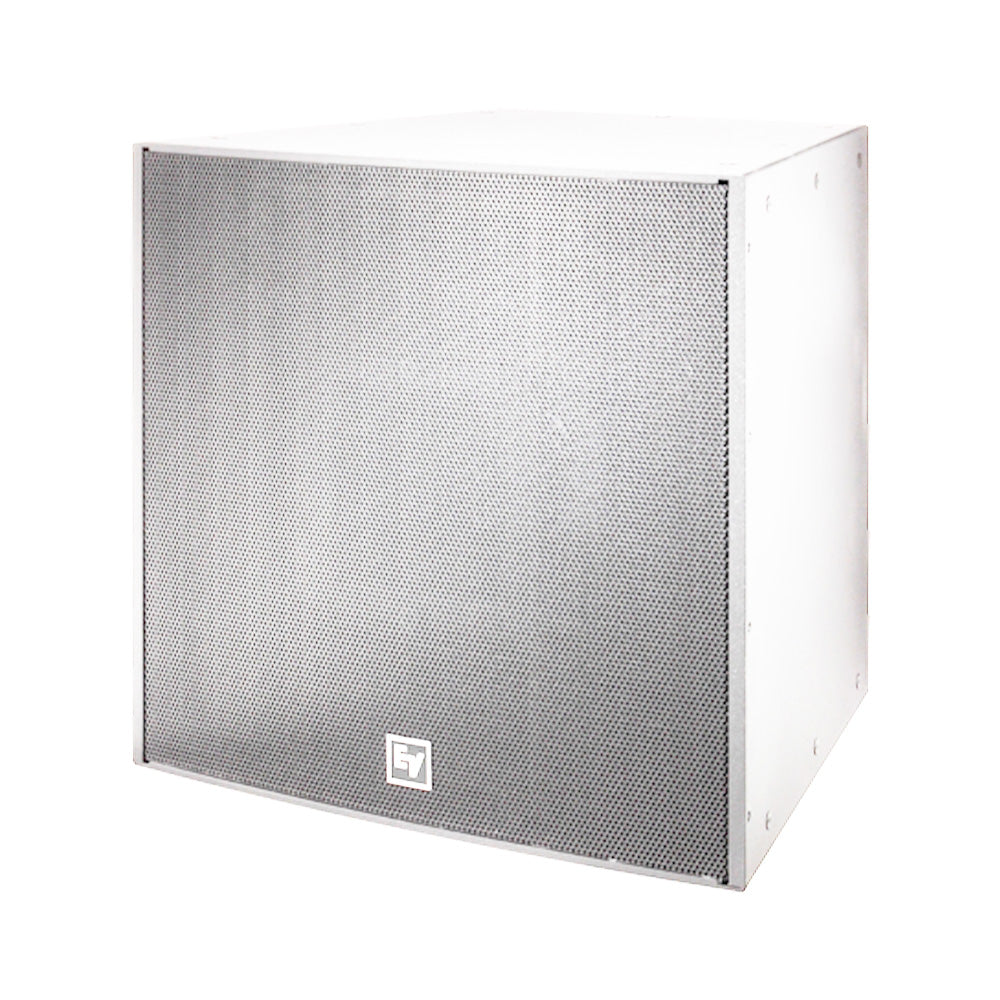

Electro-Voice EVH-1152D/43 - 40x30 Premium Arrayable 15-Inch Loudspeaker (EVCoat PI / White)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The EVH-1152D/43 utilizes the DH7N, a high-output 3" titanium compression driver, coupled to a Constant Directivity 40° x 30° waveguide. The SMX2151 15" woofer was developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability. This combination of technologies results in a smooth response to 20 kHz and excellent pattern control down to 500 Hz.

    Features:

    • Ideal for reverberant spaces
    • Pattern control maintained down to 500 Hz
    • 15-inch SMX2151 woofer
    • 3-inch DH7N titanium/neodymium HF compression driver
    • Rotatable Constant-directivity waveguide
    • Six available coverage patterns from 40º x 30º to 90º x 90º
    • 106 dB sensitivity, 139 dB maximum SPL
    • Power handling: 500 W continuous, 2000 W peak
    • 4th-order passive crossover with HF protection
    • Trapezoidal enclosure in three finishes: EVCoat, FG or PI
    • M10 threaded suspension points (28)
    Frequency Range (-10 dB) 50 Hz - 20 kkHz
    Suspension (28) M10 threaded suspension points
    Minimum Impedance 6.0?
    Nominal Impedance (Passive) 8?
    HF Transducer DH7N, 3" (76 mm) diaphragm compression driver
    Frequency Response (-3 dB)_ 60 Hz - 17 kHz
    Max. SPL/1m (calc)_ 139dB
    Coverage (Nominal -6 dB) H 40¡
    Coverage (Nominal -6 dB) V 30¡
    LF Transducer SMX2151, 15" (381 mm) driver
    System Power Handling (Continuous/Program/Peak) 500/1000/2000 Watts
    Crossover Frequency 1300Hz
    Enclosure Material 13-ply weather-resistant birch with EVCoat
    Grille 16 GA powder-coated galvanneal with rotatable logo
    Sensitivity 1 W/1 m 106dB
    Height 30.26" (768.6mm)
    Width 30.26" (768.6mm)
    Recommended High-Pass Frequency 60Hz
    Depth 26.78" (680.1mm)
    Weight Net 145.73lbs (66.1kg)
    Input Connections Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals

    The EVH-1152D/43 utilizes the DH7N, a high-output 3" titanium compression driver, coupled to a Constant Directivity 40° x 30° waveguide. The SMX2151 15" woofer was developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability. This combination of technologies results in a smooth response to 20 kHz and excellent pattern control down to 500 Hz.

    Features:

    • Ideal for reverberant spaces
    • Pattern control maintained down to 500 Hz
    • 15-inch SMX2151 woofer
    • 3-inch DH7N titanium/neodymium HF compression driver
    • Rotatable Constant-directivity waveguide
    • Six available coverage patterns from 40º x 30º to 90º x 90º
    • 106 dB sensitivity, 139 dB maximum SPL
    • Power handling: 500 W continuous, 2000 W peak
    • 4th-order passive crossover with HF protection
    • Trapezoidal enclosure in three finishes: EVCoat, FG or PI
    • M10 threaded suspension points (28)
    Frequency Range (-10 dB) 50 Hz - 20 kkHz
    Suspension (28) M10 threaded suspension points
    Minimum Impedance 6.0?
    Nominal Impedance (Passive) 8?
    HF Transducer DH7N, 3" (76 mm) diaphragm compression driver
    Frequency Response (-3 dB)_ 60 Hz - 17 kHz
    Max. SPL/1m (calc)_ 139dB
    Coverage (Nominal -6 dB) H 40¡
    Coverage (Nominal -6 dB) V 30¡
    LF Transducer SMX2151, 15" (381 mm) driver
    System Power Handling (Continuous/Program/Peak) 500/1000/2000 Watts
    Crossover Frequency 1300Hz
    Enclosure Material 13-ply weather-resistant birch with EVCoat
    Grille 16 GA powder-coated galvanneal with rotatable logo
    Sensitivity 1 W/1 m 106dB
    Height 30.26" (768.6mm)
    Width 30.26" (768.6mm)
    Recommended High-Pass Frequency 60Hz
    Depth 26.78" (680.1mm)
    Weight Net 145.73lbs (66.1kg)
    Input Connections Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals
