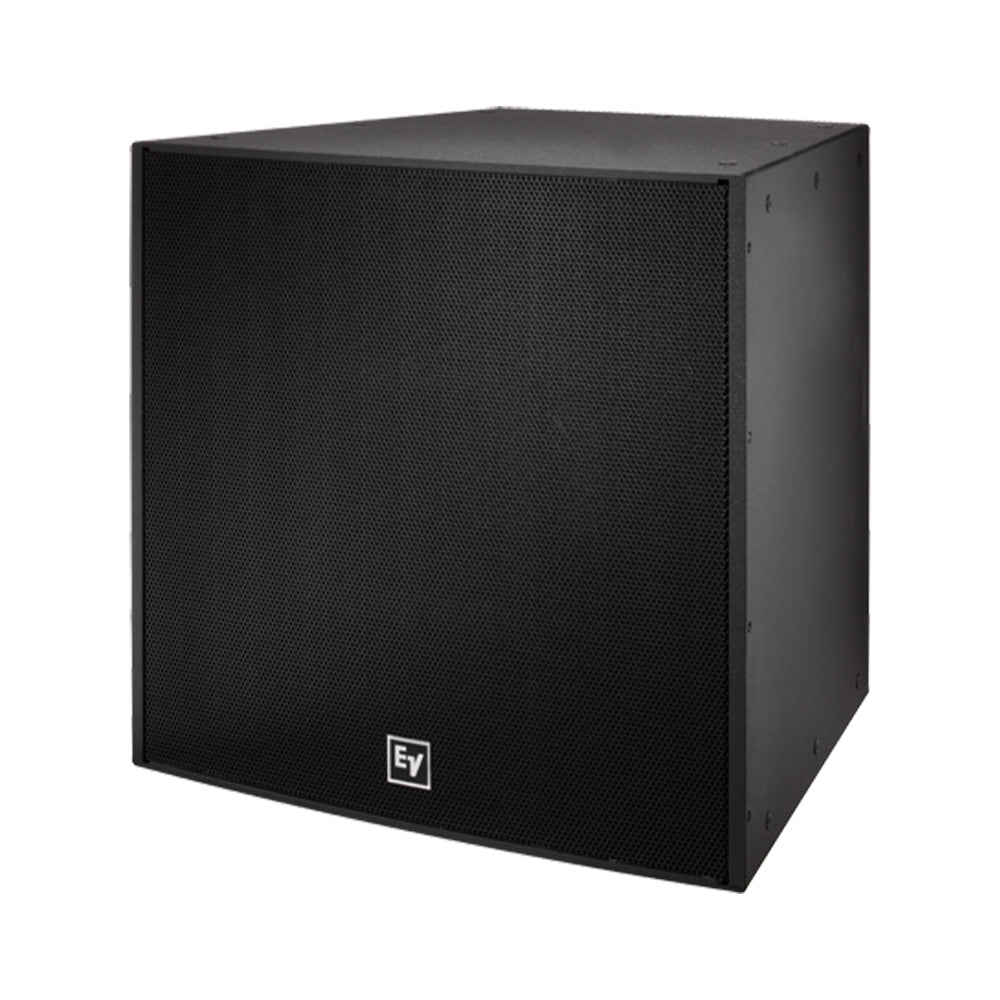

Electro-Voice EVH-1152S/94 - 90x40 Premium Arrayable 15-Inch Loudspeaker (Fiberglass / Black)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
EVH-1152S/94 features a 90° x 40° rotatable waveguide, design for medium field medium throw raw spread coverage pattern.
The EVH family of models employs an unmatched combination of superior acoustic design and rigging, allowing vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF or EVH Series. Twenty-eight suspension points for use with rated eyebolts or EV-I cluster hardware provide low-cost, simple rigging solutions.
Features:
- Ideal for reverberant spaces
- Pattern control maintained down to 500 Hz
- 15-inch SMX2151 woofer
- 2-inch ND2B titanium HF compression driver
- Rotatable Constant-directivity waveguide
- Six available coverage patterns from 40º x 30º to 90º x 90º
- 106 dB sensitivity, 139 dB maximum SPL
- Power handling: 500 W continuous, 2000 W peak
- 4th-order passive crossover with HF protection
- Trapezoidal enclosure in three finishes: EVCoat, FG or PI
- M10 threaded suspension points (28)
| Frequency Range (-10 dB) | 50 - 16000kHz |
| Suspension | (28) M10 Threaded Points |
| Minimum Impedance | 6? |
| Nominal Impedance (Passive) | 8? |
| HF Transducer | ND2B, 2 in (51 mm) Diaphragm Compression Driver |
| Frequency Response (-3 dB)_ | 60 - 15000Hz |
| Max. SPL/1m (calc)_ | 139dB |
| Coverage (Nominal -6 dB) H | 90¡ |
| LF Transducer | SMX2151, 15 in (381mm), 2000W Peak |
| Coverage (Nominal -6 dB) V | 40¡ |
| System Power Handling (Continuous/Program/Peak) | 500/1000/2000Watts |
| Crossover Frequency | 1300Hz |
| Enclosure Material | 13 Ply Weather Resistant Birch |
| Grille | 16 GA Galvanneal, Powdercoat, with Rotatable Logo |
| Sensitivity 1 W/1 m | 106dB |
| Height | 30.26" (768.6mm) |
| Width | 30.26" (768.6mm) |
| Recommended High-Pass Frequency | 60Hz |
| Depth | 26.78" (680.1mm) |
| Weight Net | 143.08lbs (64.9kg) |
| Input Connections | Phoenix/Euroblock style screw terminals |
