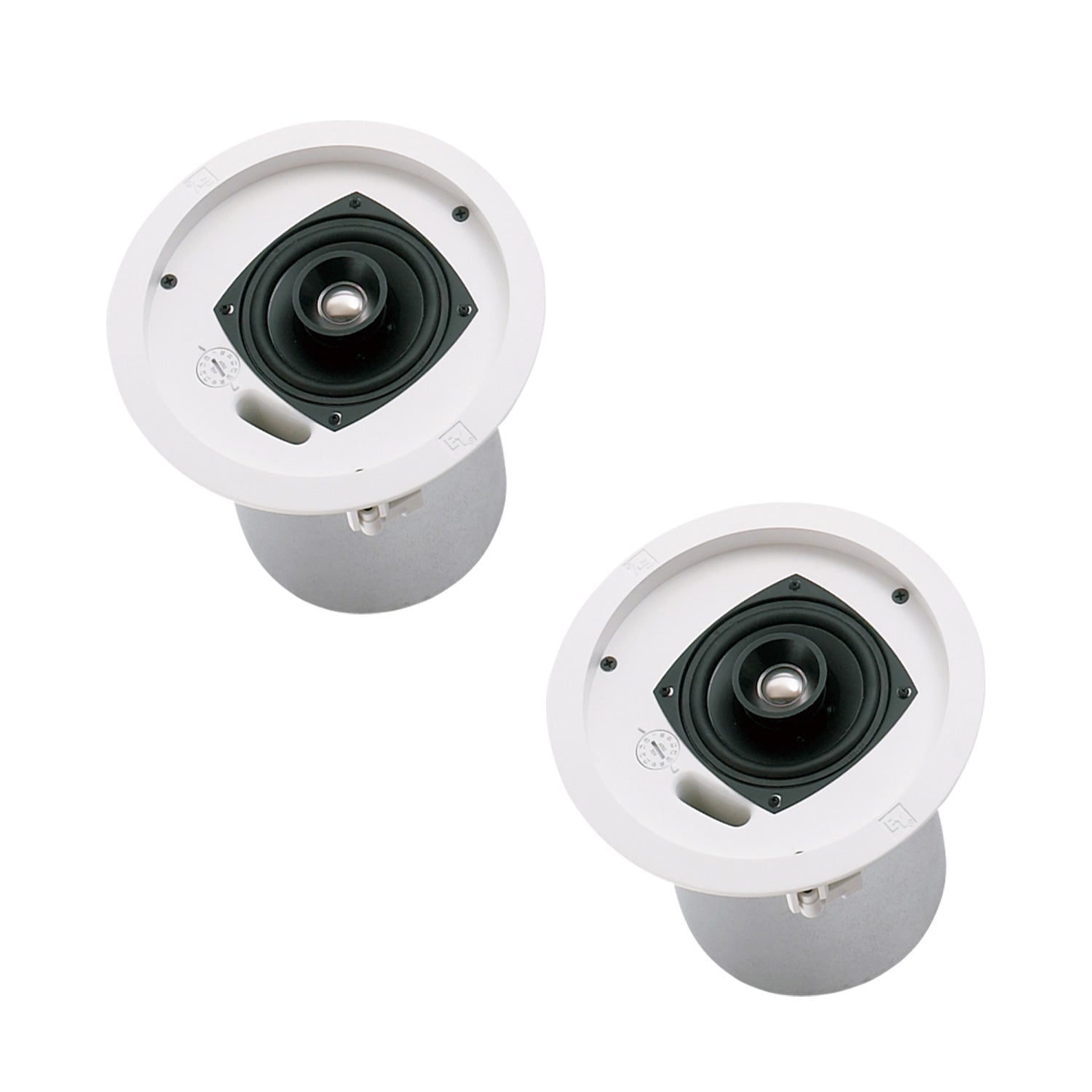

Electro-Voice EVID C4.2 - 4-Inch 2-Way Coaxial Ceiling Loudspeaker (White / Pair)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The Electro-Voice EVID C4.2 loudspeaker system is a complete two-way ceiling loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 4-inch coax two-way loudspeaker and internal line-matching transformer. The louspeaker features a waveguide coupled titanium coated dome tweeter. The EVID C4.2 loudspeaker utilizes a 2nd order crossover network at 3.3kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels.
The C.42 utilizes a transformer that offers a selection of 1.88 (70V only), 3.75, 7.5, 15 or 30 watts delivered to the louspeaker system using eith 70-V or 100-V lines, or 8Ω bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powdercoated enamel. The baffl e and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is contructed from zincplated, heavy gauge steel. The rear enclosure, with fiberglass damping material, provides an optimum internal volume for extended low-frequency performance. A rear cover, with provision for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge wire and provides pass-through to additional speakers.
The EVID C2.4D model features a 3-pin fire-safety rated input block. A tile bridge is included for safe suspension of the C4.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.
Features:
- Designed for air-handling spaces
- Ported enclosure for extended bass response
- Waveguide-coupled 0.75-inch titanium-coated tweeter
- Full-bandwidth overload protection
- Integrated transformer for 70 V, 100 V, or 8 Ω use
- Front-panel mode/wattage selector
- Safe, easy installation with included tile bridge and mounting ring
- White semi-gloss perforated grille
- Complete package, requires no additional accessories
| Frequency Range (-10 dB) | 65 - 20000kHz |
| Weatherized | No |
| HF Transducer | 0.75-inch (19 mm) Ti Mylar Laminate Dome |
| Speaker Type | Ported cabinet, internally damped, two-way (passive crossover included) |
| LF Transducer | 4-inch polypropylene cone |
| Power Rating | 200W |
| System Power Handling (Continuous/Program/Peak) | 50Watts (Overload Protected) |
| Enclosure Material | Steel enclosure and UL94V-0 rated baffle and bezel |
| Grille | Powder-coated steel |
| Sensitivity 1 W/1 m | 86dB |
| Available Color | White (paintable surface) |
| Height | 6.93" (176mm) |
| Weight Net | 5.95lbs (2.7kg) |
| Coverage (Nominal -6 dB) | 130 (conical) |
| Mounting Systems | Integrated 3-point toggle anchors |
| Chassis Size | 4" (101.6mm) |
| Regulatory Approvals | UL1480; UL2043 |
| Diameter (Max) | 7.13" (181mm) |
| Transformer Taps (Transformer Version Only) | (1.88 - 70 V only), 3.75, 7.5, 15, 30 |
| Transformer | Yes |
| Input Formats | 8_, 70 V, 100 V |
