Electro-Voice EVID C4.2LP Low-Profile Ceiling Speakers (White / Pair)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

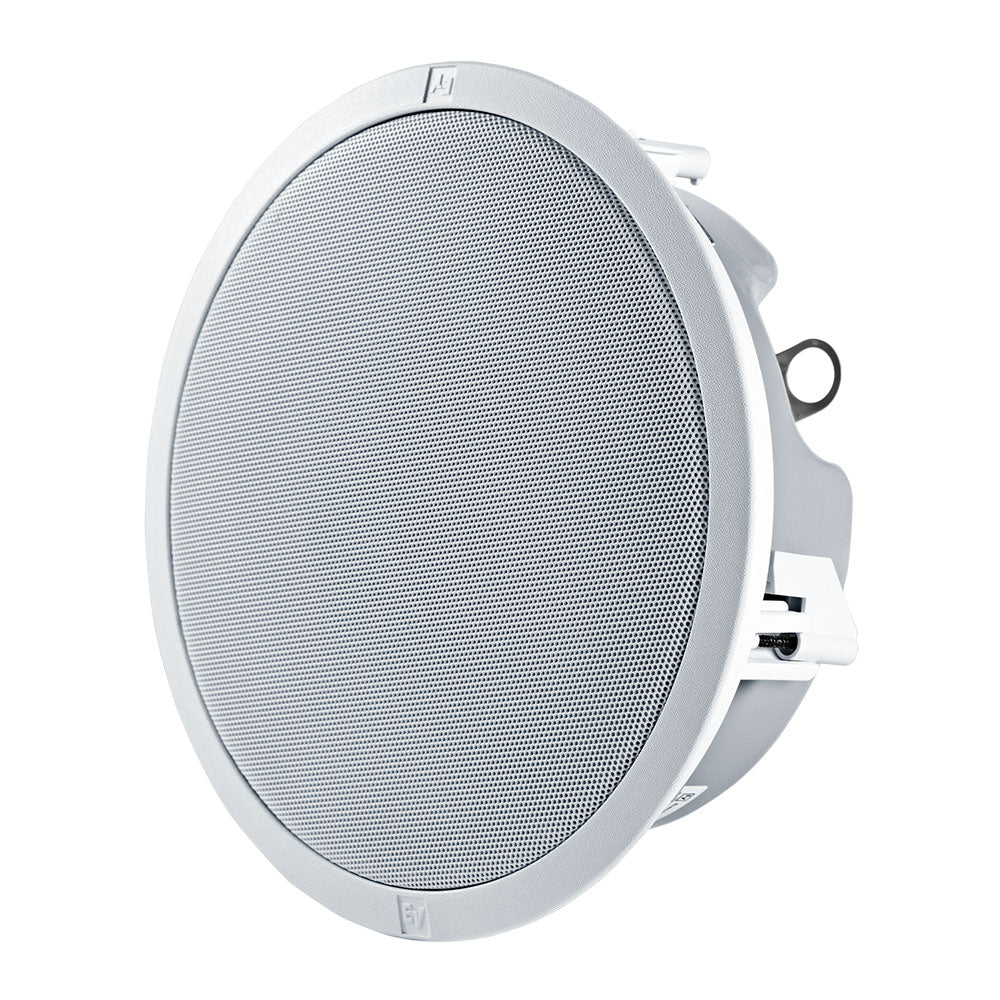

The Electro-Voice EVID-C4.2LP loudspeaker system is a complete two-way ceiling loudspeaker in a very low profile package. The package consists of a bezel assembly, grille, rear enclosure, 4-inch coax two-way loudspeaker and internal line-matching transformer.

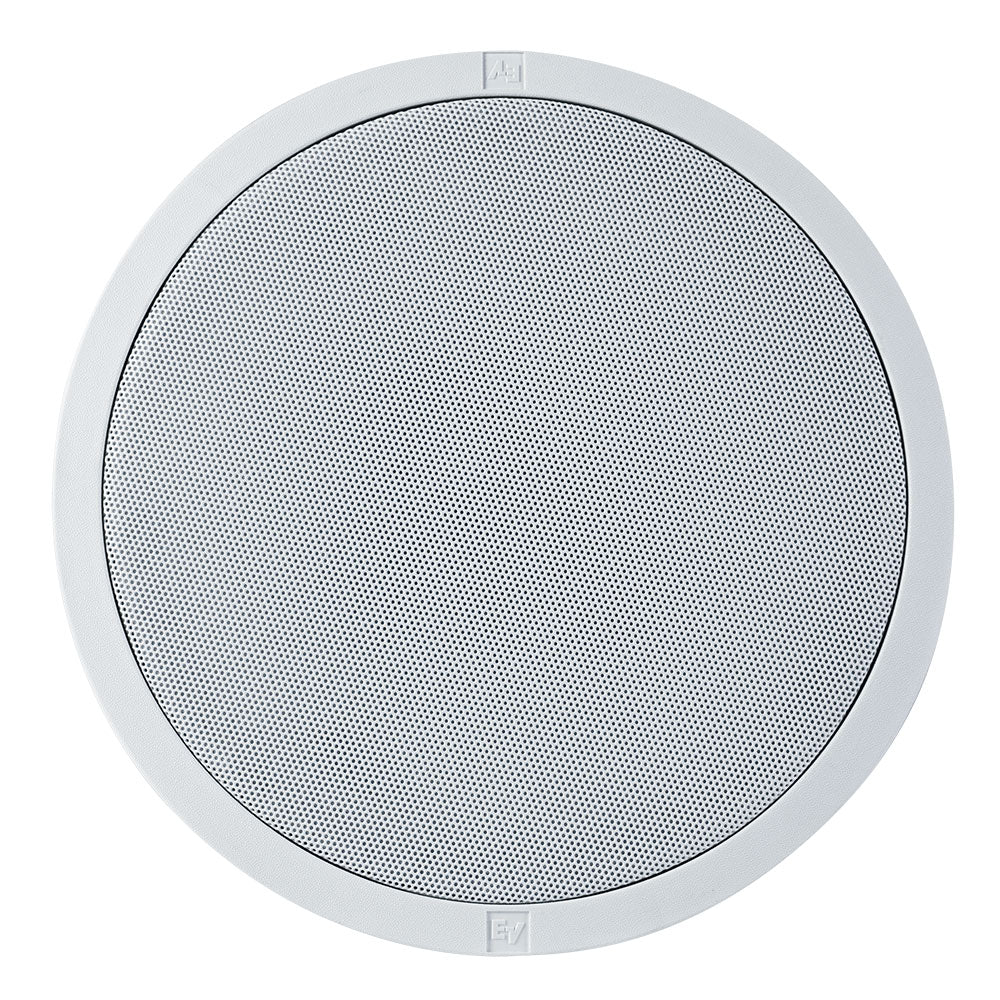

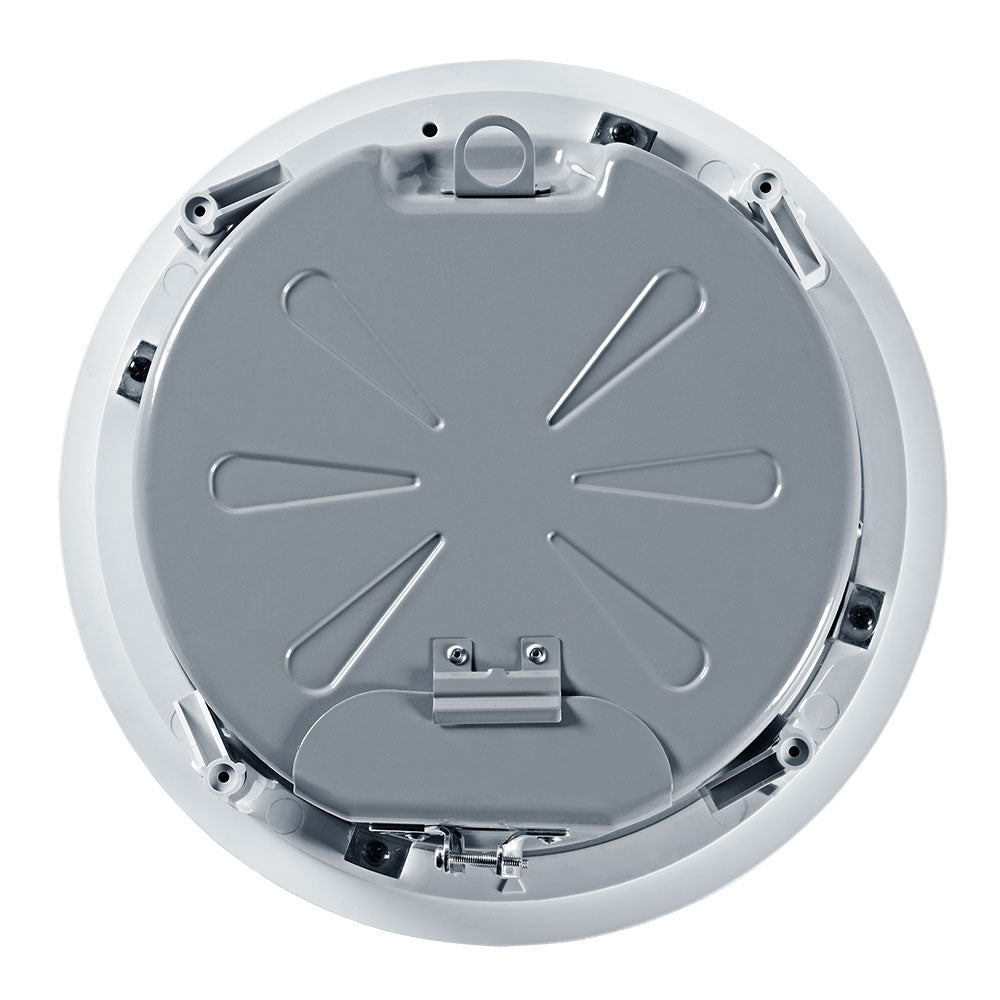

The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID-C4.2LP loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The EVID-C4.2LP utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5 or 15 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semigloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel.

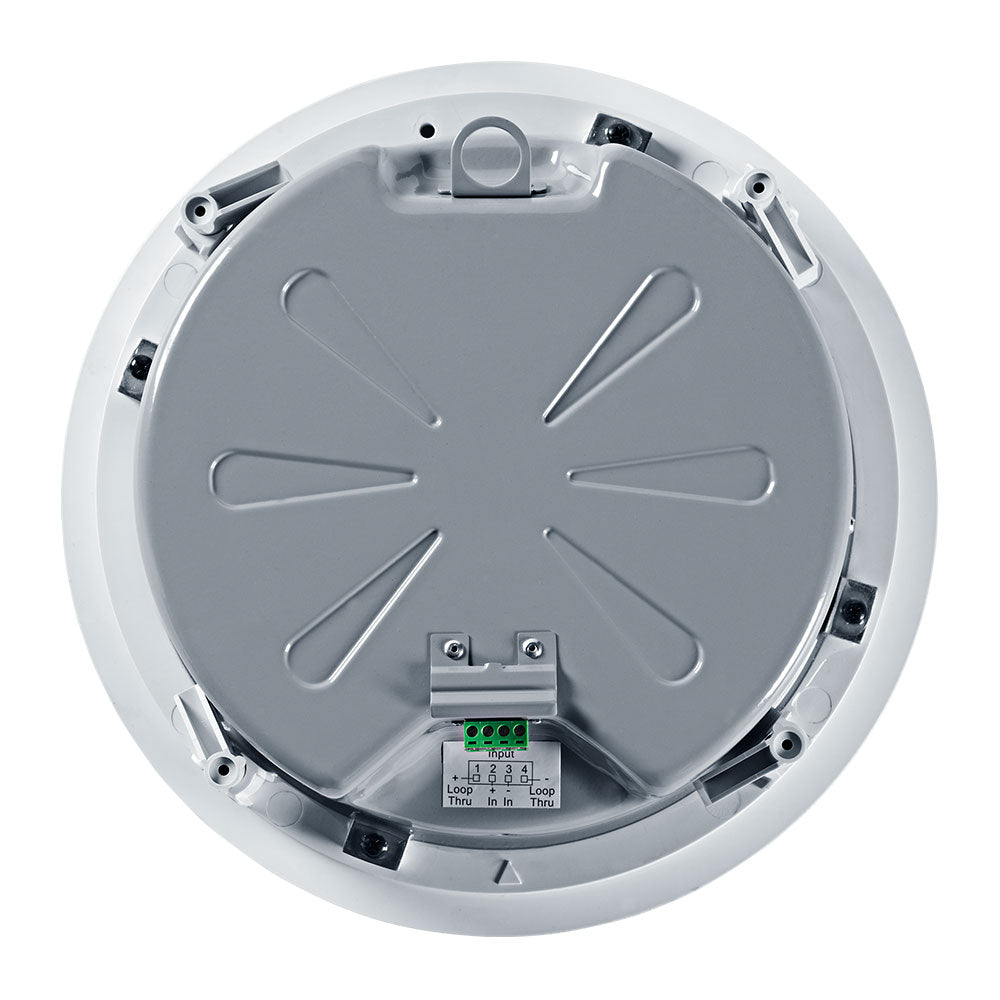

The low profile enclosure makes it easy to mount in very tight spaces. A side cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the EVIDC4.2LP ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.
Features:
- Low profile 4" coaxial two-way (3.7" deep)
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- Includes tile bridge and mounting ring for easy installation
- UL1480A and CSA 22.2 205 certified
| Frequency response | 60 Hz - 20 kHz |
| Sensitivity (SPL 1 W/1 m) | 86 dB |
| Coverage pattern | 130¡ conical |
| Power handling (@ 8½) | 50 W (with overload protection) |
| Rated Impedance | 8 ½ |
| Recommended High-Pass frequency | 65 Hz |
| Input configuration | 8½; 70V/100V |
| 70V/100V power taps | 1.8 (70V only)/3.7/7.5/15/30 W |
| LF transducer | 4 in (100 mm) high-compliance driver (weatherized cone) |
| HF transducer | 0.75 in (19 mm) Ti-coated dome |
| Mounting system | Integrated 4-point toggle anchors |
| Acoustic design | Ported cabinet, two-way design, internally damped, w/passive crossover |
| Cabinet construction | Steel enclosure and UL94V-0 rated baffle and bezel |
| Grille construction | Powder-coated steel |
| Color | White (paintable) |
| Cutout dimensions (diam.) | 10.6 in (269 mm) |
| Dimensions (depth x diam.) | 3.7 in x 11.8 in (94 mm x 300 mm) |
| Net weight | 7.35 lb (3.32 kg) |
| Included accessories | Tile bridge, mounting ring |
| Safety agency ratings | UL 1480 Safe for use in air handling spaces per UL 2043 |
