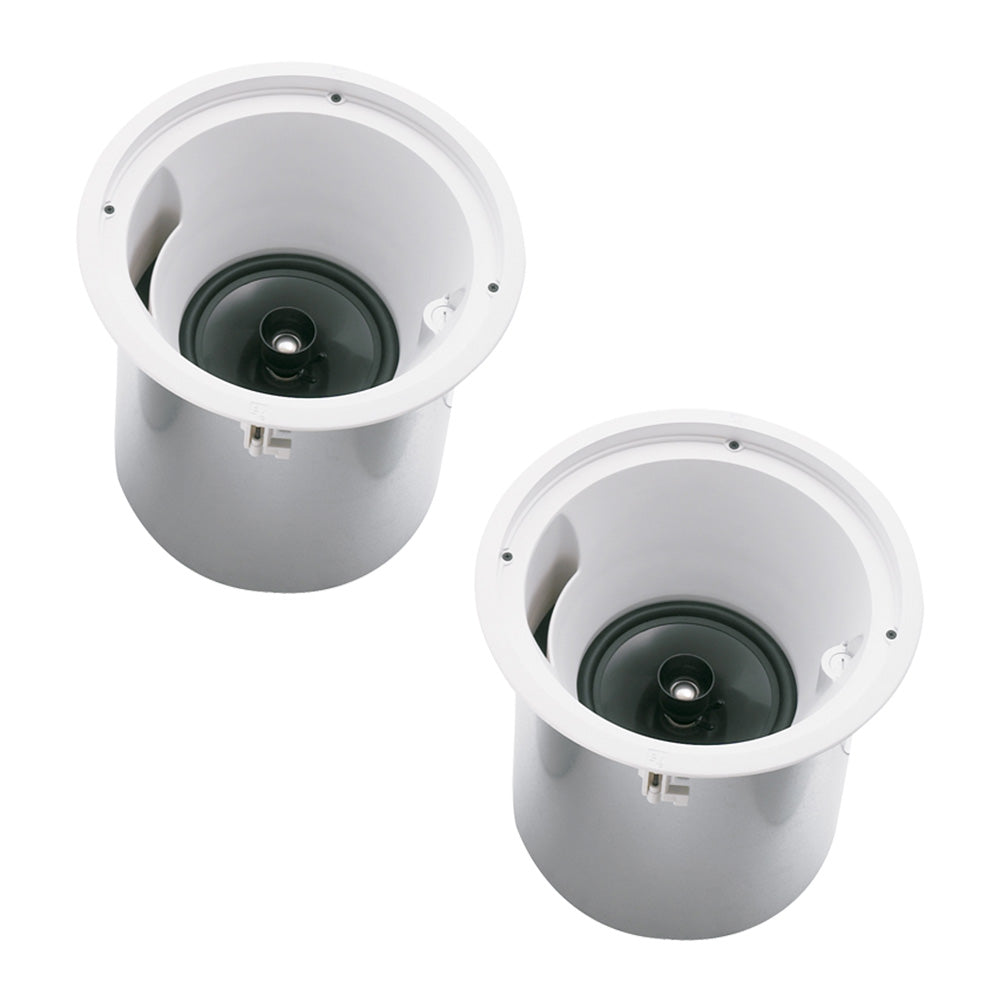

Electro-Voice EVID C8.2HC - Two-Way 8-Inch Coaxial Enhanced Pattern Ceiling Loudspeaker (White / Pair)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Electro-Voice EVID C8.2HC is an 8-inch coaxial transducer featuring an innovative waveguide (patent pending) that provides directivity control to 1 kHz. It provides much better music fidelity and speech intelligibility in spaces with high ceiling heights than typical flush units are capable of. Its 75° coverage pattern provides the same coverage area when used in a 21’ ceiling as a typical flush mount mounted unit in an 8’ ceiling. This loudspeaker system is a complete two-way ceiling loudspeaker package. The package consists of a bezel/waveguide assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker with waveguide coupled titanium coated dome tweeter and internal line-matching transformer.
The C8.2HC utilizes a transformer that offers a selection of 7.5 (70-V only), 15, 30 or 60 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front of the waveguide. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure, with fiberglass damping material, provides an optimum internal volume for extended lowfrequency performance. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the C8.2HC ceiling system in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.
The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide controlled dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.
Features:
- Maximum fidelity and intelligibility for high ceilings
- Ported enclosure for extended bass response
- Waveguide-coupled 1-inch titanium-coated tweeter
- Full-bandwidth overload protection
- Integrated transformer for 70 V, 100 V, or 8 Ω use
- Front-panel mode/wattage selector
- Safe, easy installation with included tile bridge and mounting ring
- White semi-gloss perforated grille
- Complete package, requires no additional accessories
| Frequency Range (-10 dB) | 50 - 20000kHz |
| Weatherized | No |
| HF Transducer | 1-inch (25 mm) Ti Mylar Laminate Dome |
| Speaker Type | Ported cabinet, internally damped, two-way (passive crossover included) |
| LF Transducer | 8-inch polypropylene cone plus waveguide |
| Power Rating | 300W |
| System Power Handling (Continuous/Program/Peak) | 100Watts (Overload Protected) |
| Enclosure Material | Steel enclosure and UL94V-0 rated baffle and bezel |
| Grille | Powder-coated steel |
| Available Color | White (paintable surface) |
| Sensitivity 1 W/1 m | 93dB |
| Height | 11.93" (303mm) |
| Weight Net | 13.23lbs (6kg) |
| Transformer | Yes |
| Input Formats | 8_, 70 V, 100 V |
| Coverage (Nominal -6 dB) | 75 (conical (@ >1 kHz)) |
| Mounting Systems | Integrated 3-point toggle anchors |
| Chassis Size | 203.2 mm |
| Regulatory Approvals | UL1480; UL2043 |
| Diameter (Max) | 12.6" (320mm) |
| Transformer Taps (Transformer Version Only) | (7.5 - 70 V only), 15, 30, 60 |
The Electro-Voice EVID C8.2HC is an 8-inch coaxial transducer featuring an innovative waveguide (patent pending) that provides directivity control to 1 kHz. It provides much better music fidelity and speech intelligibility in spaces with high ceiling heights than typical flush units are capable of. Its 75° coverage pattern provides the same coverage area when used in a 21’ ceiling as a typical flush mount mounted unit in an 8’ ceiling. This loudspeaker system is a complete two-way ceiling loudspeaker package. The package consists of a bezel/waveguide assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker with waveguide coupled titanium coated dome tweeter and internal line-matching transformer.
The C8.2HC utilizes a transformer that offers a selection of 7.5 (70-V only), 15, 30 or 60 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front of the waveguide. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure, with fiberglass damping material, provides an optimum internal volume for extended lowfrequency performance. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the C8.2HC ceiling system in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.
The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide controlled dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.
Features:
- Maximum fidelity and intelligibility for high ceilings
- Ported enclosure for extended bass response
- Waveguide-coupled 1-inch titanium-coated tweeter
- Full-bandwidth overload protection
- Integrated transformer for 70 V, 100 V, or 8 Ω use
- Front-panel mode/wattage selector
- Safe, easy installation with included tile bridge and mounting ring
- White semi-gloss perforated grille
- Complete package, requires no additional accessories
| Frequency Range (-10 dB) | 50 - 20000kHz |
| Weatherized | No |
| HF Transducer | 1-inch (25 mm) Ti Mylar Laminate Dome |
| Speaker Type | Ported cabinet, internally damped, two-way (passive crossover included) |
| LF Transducer | 8-inch polypropylene cone plus waveguide |
| Power Rating | 300W |
| System Power Handling (Continuous/Program/Peak) | 100Watts (Overload Protected) |
| Enclosure Material | Steel enclosure and UL94V-0 rated baffle and bezel |
| Grille | Powder-coated steel |
| Available Color | White (paintable surface) |
| Sensitivity 1 W/1 m | 93dB |
| Height | 11.93" (303mm) |
| Weight Net | 13.23lbs (6kg) |
| Transformer | Yes |
| Input Formats | 8_, 70 V, 100 V |
| Coverage (Nominal -6 dB) | 75 (conical (@ >1 kHz)) |
| Mounting Systems | Integrated 3-point toggle anchors |
| Chassis Size | 203.2 mm |
| Regulatory Approvals | UL1480; UL2043 |
| Diameter (Max) | 12.6" (320mm) |
| Transformer Taps (Transformer Version Only) | (7.5 - 70 V only), 15, 30, 60 |
