Description

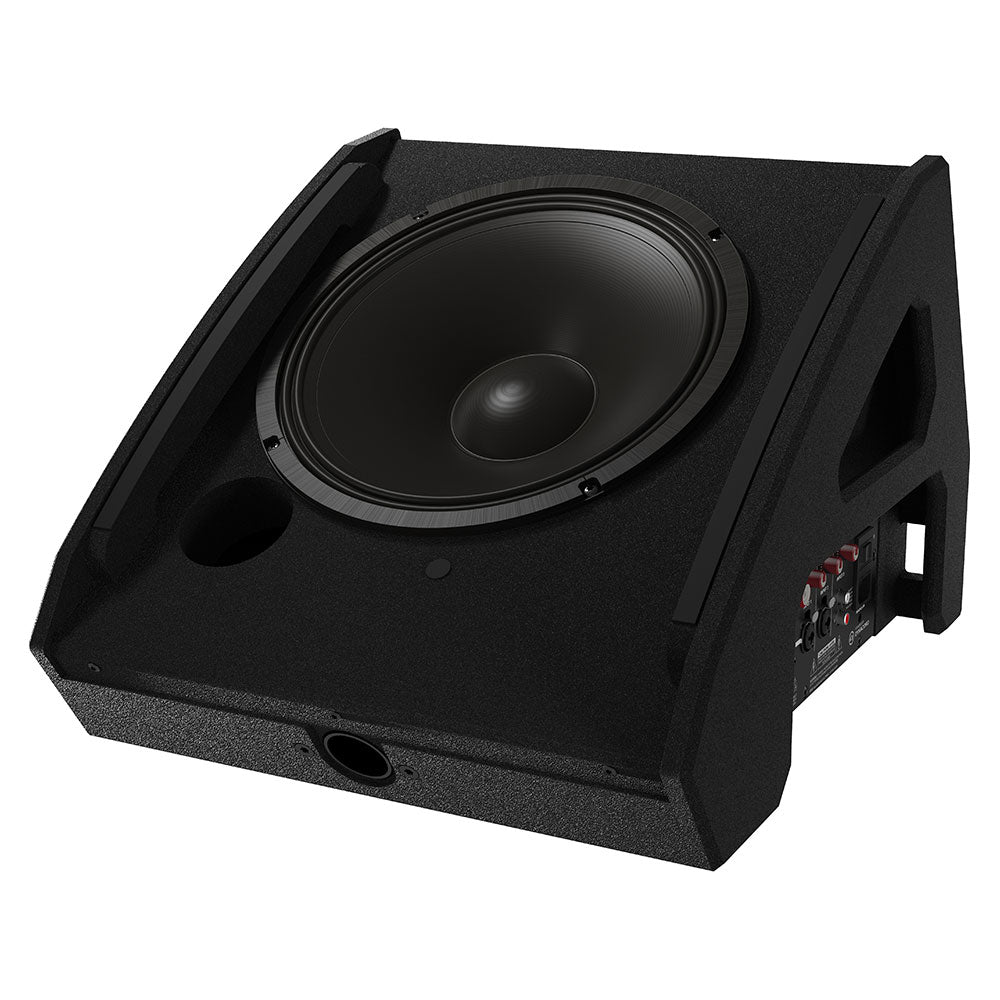

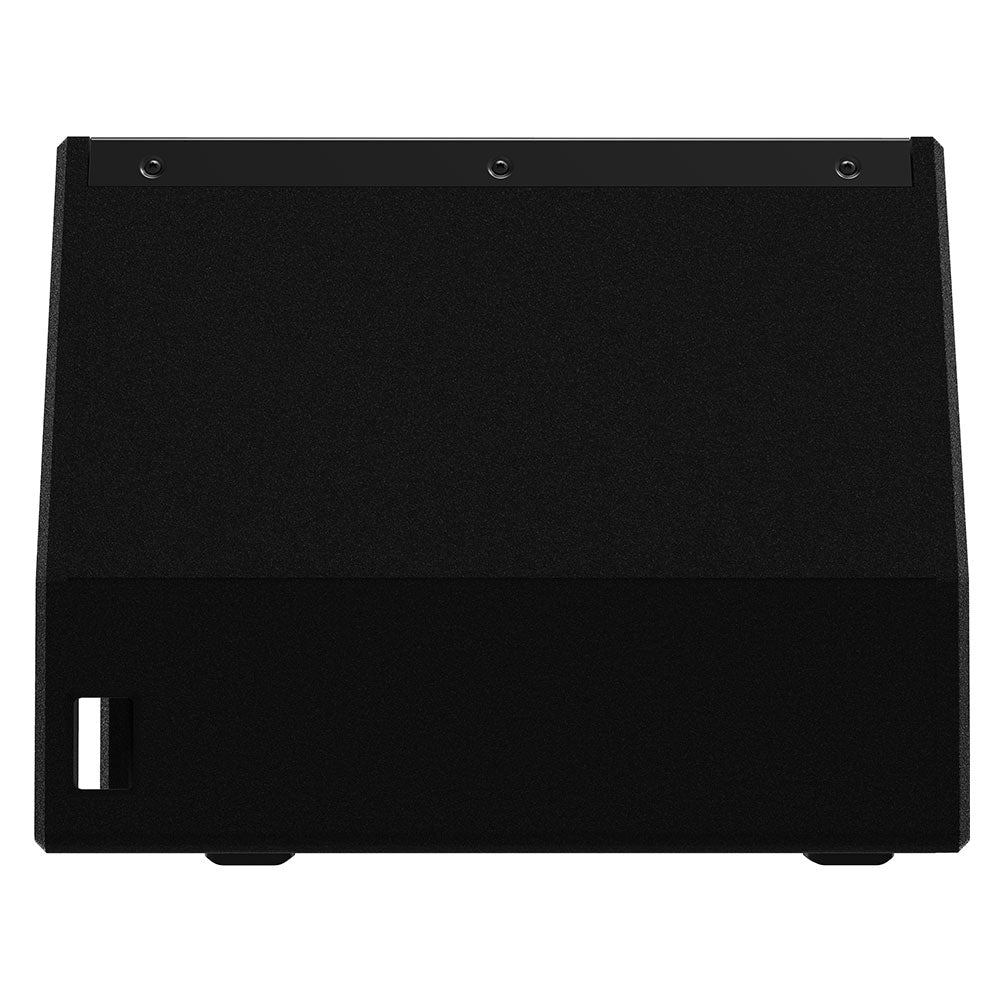

The PXM-12MP is a dedicated portable loudspeaker system designed to provide musicians, DJs, and audio engineers convenient and powerful monitoring and playback functionality. By providing a symmetrical 90° x 90° coverage pattern facilitated by a 12" / 1.75" coaxial driver, users can experience so... Read MoreRetail Price: $1,573.00 Our Price: $899.00
Shipping Charges Apply
Suggested Accessories
Description
The PXM-12MP is a dedicated portable loudspeaker system designed to provide musicians, DJs, and audio engineers convenient and powerful monitoring and playback functionality. By providing a symmetrical 90° x 90° coverage pattern facilitated by a 12" / 1.75" coaxial driver, users can experience solid, consistent coverage, which ensures that their mix can be heard clearly without constraining them to a limited part of the stage. The 55° monitoring angle enables users to stand as close or as far away from the system as necessary without sacrificing audio intelligibility. An integrated pole mount at the front allows for additional applications such fills, delays, or a main PA. With a dedicated subwoofer and the adjustable subwoofer matching LPFs of the PXM-12MP, a full 3-way system can be configured to create an extremely compact main PA.

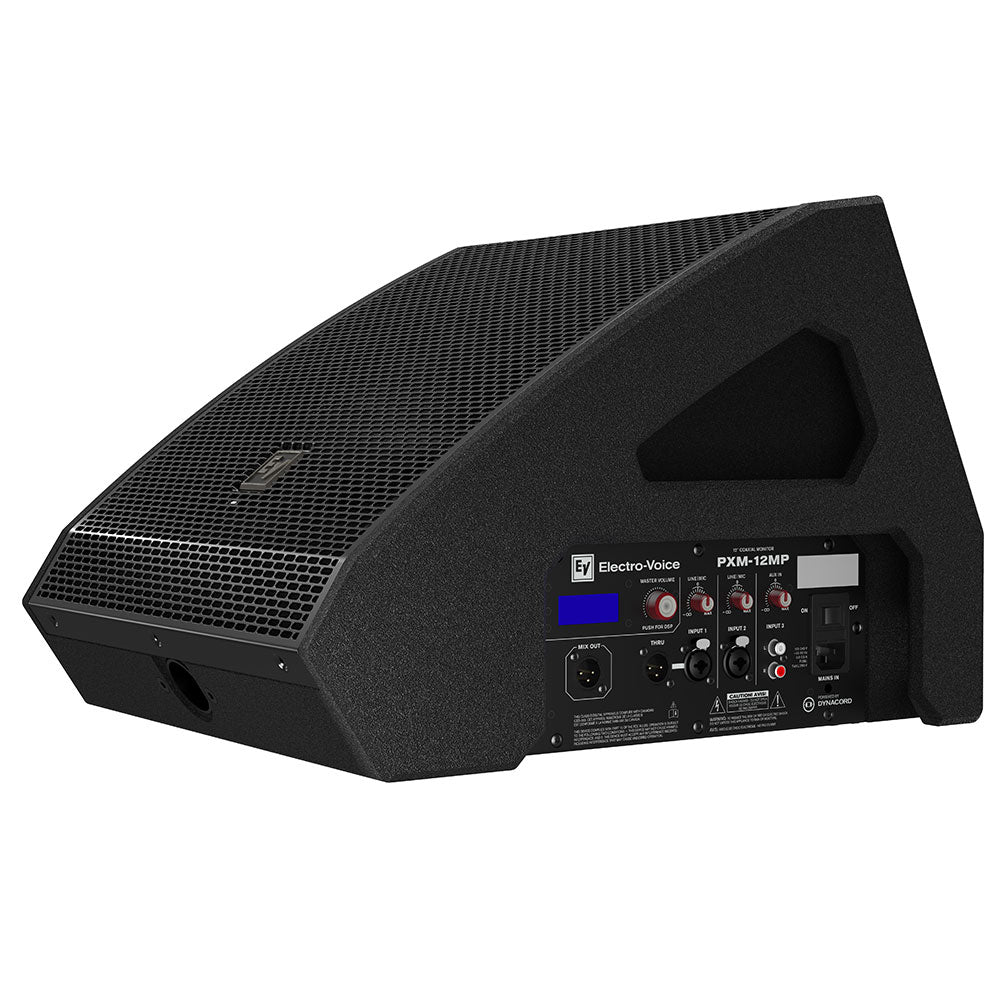

The integrated mixing section provides 3 input channels: 2x XLR / 1/4" combination connectors and a stereo RCA input. The DSP offers 4 EQ presets, high and low shelving, parametric midrange EQs, adjustable low-cut filters, a tunable feedback notch filter, and recallable user settings. The Class-D 700W amplifier provides enough power to satisfy the most demanding monitoring requirements, and system protection and limitation designed by Electro-Voice ensures that the PXM-12MP will play loudly and consistently even at the edge of its specifications.
Features:
More +
Product Specs
Frequency response (-3 dB) | 64 Hz - 20 kHz |
Frequency range (-10 dB) | 53 Hz - 20 kHz |
Monitor Angle | 55° |
Maximum SPL | 129 dB |
Coverage (H x V) | 90˚ x 90˚ |
Amplifier Rating | 700 W |
LF Channel Rating | 500 W |
HF Channel Rating | 200 W |
Crossover frequency | 1.6 kHz |
Transducer | CXCA2128-1NA 12” / 1.75” 2-way coaxial |
Connectors | 2x XLR/TRS combo input 1x Stereo RCA input 1x XLR THRU input |
Enclosure | 15 mm Plywood |
Grille | Steel with black powder coat |
Color | Black |
Dimensions (H x W x D) mm (in) | 334 mm x 409 mm x 484 mm (13.1 in x 16.1 in x 19.0 in) |
Net weight | 13.5 kg (29.8 lb) |
Shipping weight | 15.6 kg (34.3 lb) |
Power consumption | 100 - 240 V AC, 50 - 60 Hz, 0.8 - 0.5 A |
More +
