Description

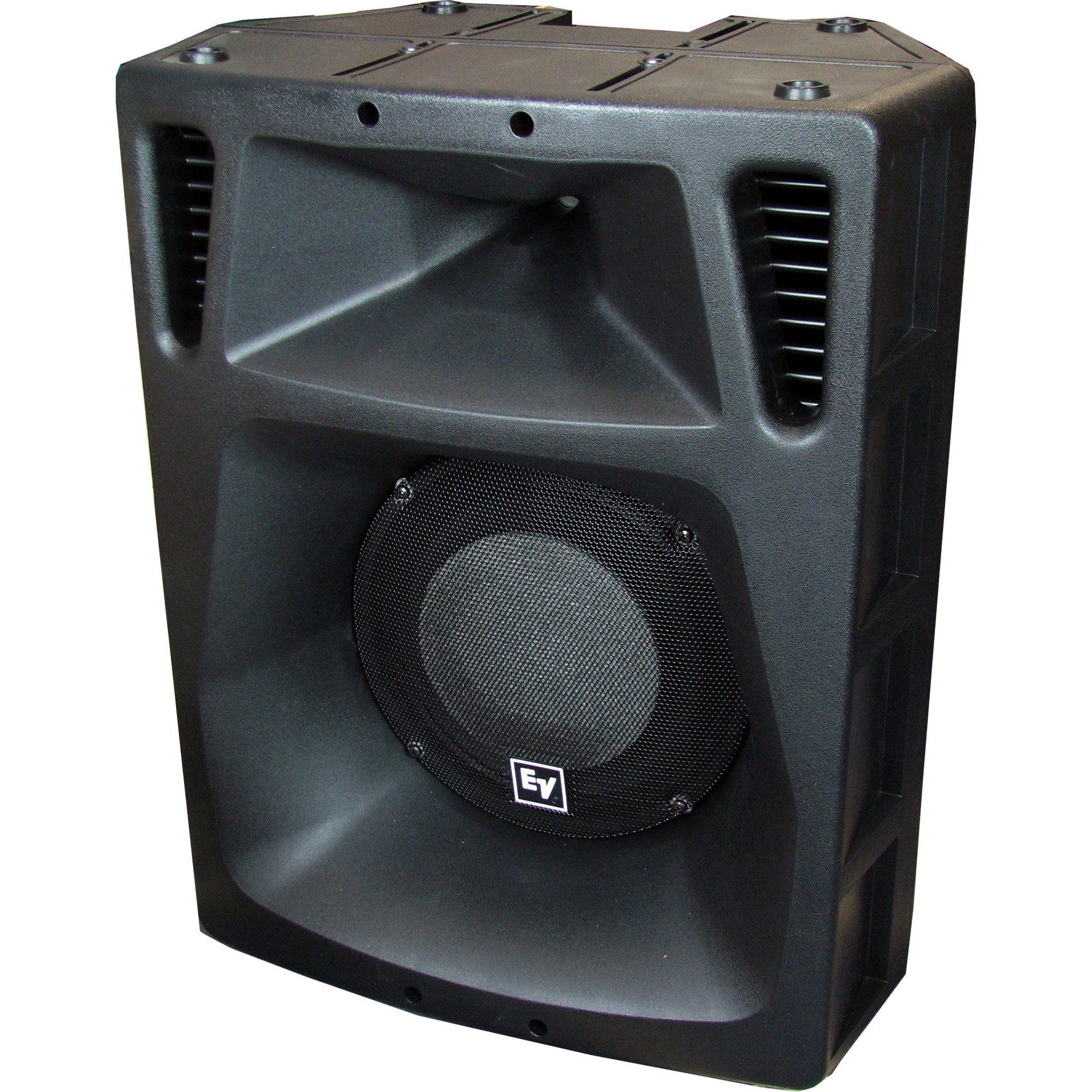

The Sx500+ is a two-way 15-inch full-range system with 400 watts continuous, 1,600 watts peak power handling. DL15SX 15-inch woofer and large enclosure volume extend and increase bass output. Asymmetric 75° x 60° constant-directivity high-frequency horn aims down 10° -- Helps direct sound at the audience when vertically stand mounted. Horn loading of the woofer controls the coverage pattern down to nearly 500 Hz -- an unheard of characteristic in a product of this size and price -- for higher vocal intelligibility and musical clarity. Also provides more bass punch at greater distances than conventional front-loaded woofers. Biampable, Suspension points accommodate optional Mb700 set of three forged eyebolts. Mb600 and horizontal array kits available for side-by-side arraying of two systems.
Features:- 400 Watt Continuous 1600 Watt Peak Power
- 60Hz to 16kHz Frequency Range
- Biampable Two-way 15 in. full-range system
- Ring-Mode Decoupling (RMD) for increased intelligibility
- (Pro Circuit) Solid-state self-resetting circuit protection
- Asymmetric 75° x 60° constant-directivity high-frequency horn aims down 10° to help direct sound at the audience when vertically stand mounted
- Mb600 and horizontal array kits available for side-by-side arraying of two systems (requires one Mb500 wall/ceiling bracket per speaker)
- Eight metric inserts for suspending the Sx500
Frequency Response (-10dB) | 43 - 20000 Hz |
Recommended High-Pass Frequency | 45 Hz |
Sensitivity 1W/1m | 99 dB |
Max. SPL / 1m (calc); full space | 130 dB |
Coverage (nominal -6dB) H° | 75 ° |
Coverage (nominal -6dB) V° | 60 ° |
System Power Handling (continuous/program/peak) | 400/800/1600 Watts |
LF Transducer | DL15ST |
HF Transducer | DH2T |
Crossover Frequency | 1600 Hz |
Nominal Impedance (Passive) | 8 Ohms |
Minimum Impedance | 5.2 Ohms |
Directivity Index | 15.2 dB |
Input Connections | Four-pin Speakon (2) |
Chassis Size | 15 inches |
Internal Crossover | Selectable |
Speaker Type | Fullrange, Two-Way |
Dimensions (W x H x D) | 673 mm (26.5 in.) x 838 mm (33.0 in.) x 448 mm (17.63 in.) |
Net Weight | 31.3 kg (69 lbs) |
Shipping Weight | 35.0 kg (77 lbs) |
The Sx500+ is a two-way 15-inch full-range system with 400 watts continuous, 1,600 watts peak power handling. DL15SX 15-inch woofer and large enclosure volume extend and increase bass output. Asymmetric 75° x 60° constant-directivity high-frequency horn aims down 10° -- Helps direct sound at the audience when vertically stand mounted. Horn loading of the woofer controls the coverage pattern down to nearly 500 Hz -- an unheard of characteristic in a product of this size and price -- for higher vocal intelligibility and musical clarity. Also provides more bass punch at greater distances than conventional front-loaded woofers. Biampable, Suspension points accommodate optional Mb700 set of three forged eyebolts. Mb600 and horizontal array kits available for side-by-side arraying of two systems.
Features:- 400 Watt Continuous 1600 Watt Peak Power
- 60Hz to 16kHz Frequency Range
- Biampable Two-way 15 in. full-range system
- Ring-Mode Decoupling (RMD) for increased intelligibility
- (Pro Circuit) Solid-state self-resetting circuit protection
- Asymmetric 75° x 60° constant-directivity high-frequency horn aims down 10° to help direct sound at the audience when vertically stand mounted
- Mb600 and horizontal array kits available for side-by-side arraying of two systems (requires one Mb500 wall/ceiling bracket per speaker)
- Eight metric inserts for suspending the Sx500
Frequency Response (-10dB) | 43 - 20000 Hz |
Recommended High-Pass Frequency | 45 Hz |
Sensitivity 1W/1m | 99 dB |
Max. SPL / 1m (calc); full space | 130 dB |
Coverage (nominal -6dB) H° | 75 ° |
Coverage (nominal -6dB) V° | 60 ° |
System Power Handling (continuous/program/peak) | 400/800/1600 Watts |
LF Transducer | DL15ST |
HF Transducer | DH2T |
Crossover Frequency | 1600 Hz |
Nominal Impedance (Passive) | 8 Ohms |
Minimum Impedance | 5.2 Ohms |
Directivity Index | 15.2 dB |
Input Connections | Four-pin Speakon (2) |
Chassis Size | 15 inches |
Internal Crossover | Selectable |
Speaker Type | Fullrange, Two-Way |
Dimensions (W x H x D) | 673 mm (26.5 in.) x 838 mm (33.0 in.) x 448 mm (17.63 in.) |
Net Weight | 31.3 kg (69 lbs) |
Shipping Weight | 35.0 kg (77 lbs) |
