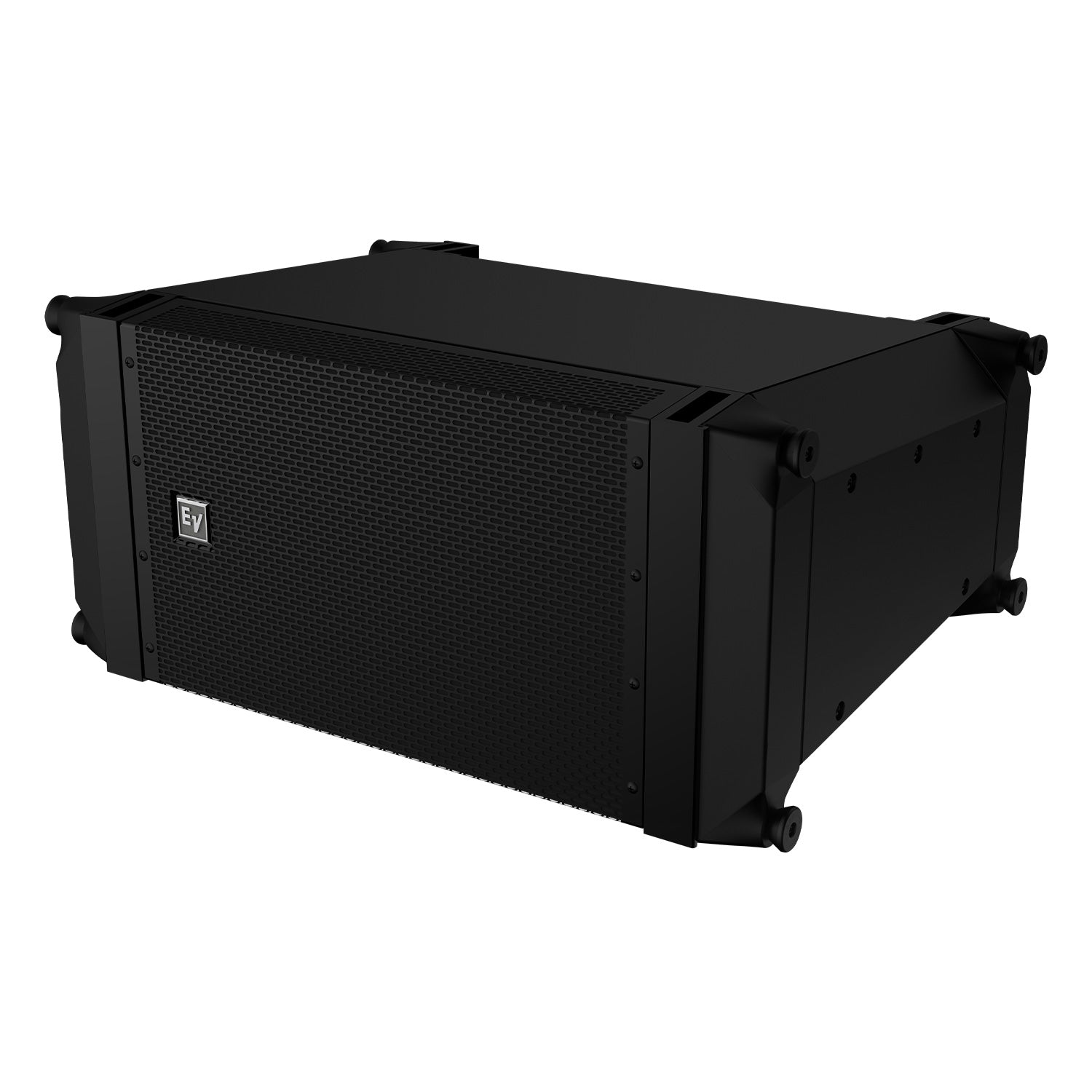

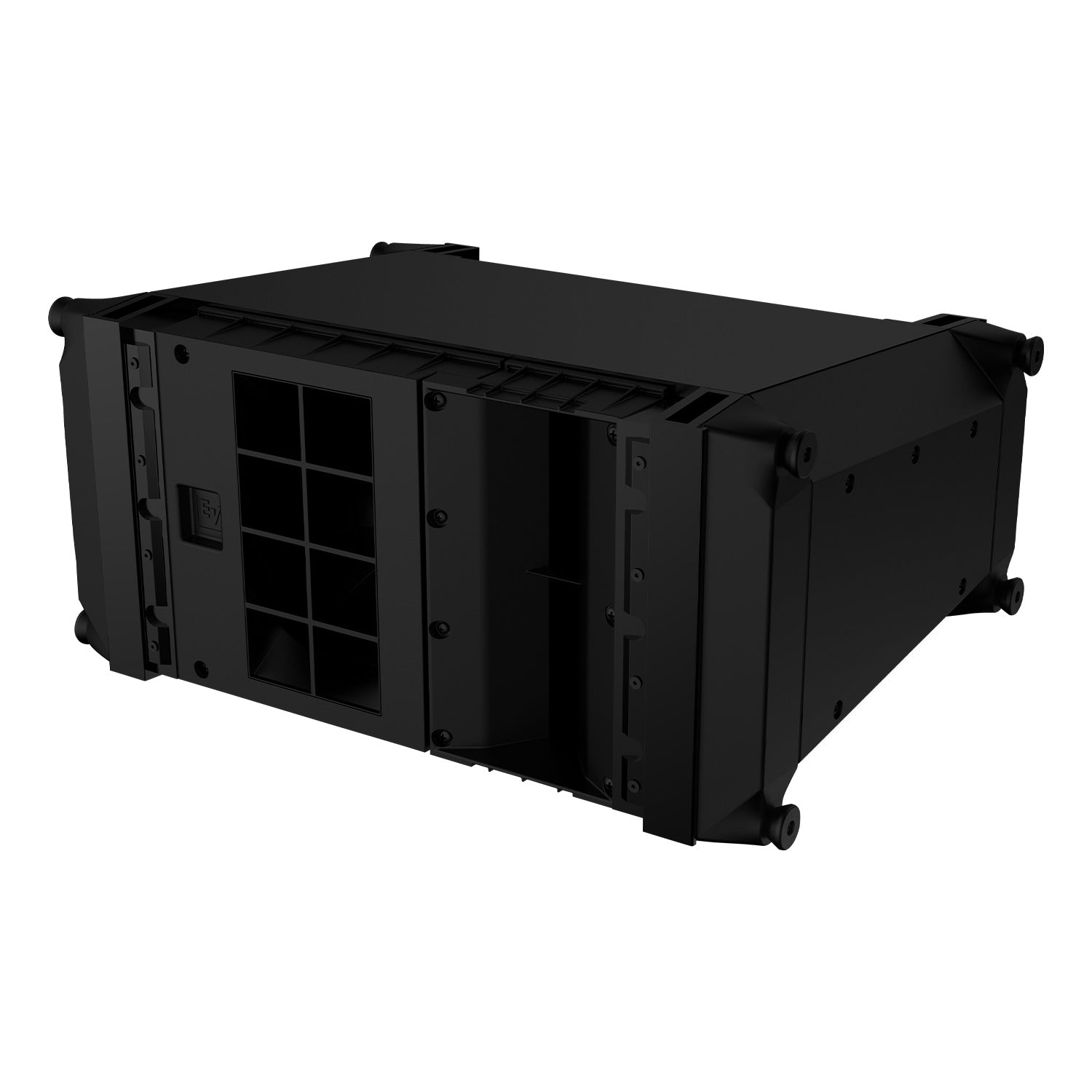

Electro-Voice X1-212/120 - Compact 12-Inch Verical Line Array Loudspeaker
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The X1-212/120 is two-way vertical line-array loudspeaker element providing 120-degree horizontal coverage, expanding the flexibility of the X-Line Advance family.
It is ideal for use as a wide-coverage system in permanent installations using all 120-degree elements, or as the near-field element in a combined line array positioned below 90-degree elements in either passive or bi-amplified mode.
The X-Line Advance family is designed for a wide variety of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package.
Features:
- Integrated Rigging System - (IRS)
- Mid-Band Hydra Line Source Technology - (MBH)
- Wavefront-shaping Circular Hydra - (WCH)
- Proprietary Electro-Voice FIR-Drive settings
- Compatible with all grids and dollies currently available for 90-degree versions
- New IRIS-Net speaker settings, EASE files, EDS documents, and LAPS 3.3 are available
| Freq. Response (-3 dB) | 57 Hz - 16 kHz |
| Horizontial Coverage | 120¡ |
| Vertical Coverage | Array dependent |
| Recommended High-Pass Freq. |
50 Hz |
| Max Calculated SPL | 142 db Peak |
| Configuration | Passive, Bi-amp |
| Passvie Crossover Freq. | 1600 Hz |
| Passive Axial Sensitivity | 98 dB (1 W/1 m) |
| Passive Power Handling | 500 W Continuous, 2000 Peak |
| Passive Impedance | 8 ? (nominal), 6.4? (min) |
| LF Transducer | SMX2121, 12-in (305 mm) driver |
| LF Axial Sensitivity | 98 dB (1 W/1 m) |
| LF Power Handling | 400 W Continuous, 1600 W Peak |
| LF Impedance | 8 ? (nominal), 6.1 ? (min) |
| HF Transducer | 2 x ND2R, 2-in (51 mm) diaphragm compression driver |
| HF Axial Sensitivity | 109 dB (1 W/1 m)Ê4 |
| HF Power Handling | 120 W Continuous, 480 W Peak |
| HF Impedance | 8 ? (nominal), 6.0 ? (min) |
| Connectors | Dual NL8 type connector |
| Enclosure | 13-ply weather resistant plywood with EVCoat |
| Grille | 16 GA powder coated galvanneal |
| Suspension | IRS Ñ Integrated Rigging System |
| Dimensions (H x W x D) | 13.5 in x 28.77 in x 12.04 in (342.9 mm x 730.8 mm x 534.4 mm) |
| Net Weight | 92 lb (41.7 kg) |
| Shipping Weight | 106 lb (48 kg) |
