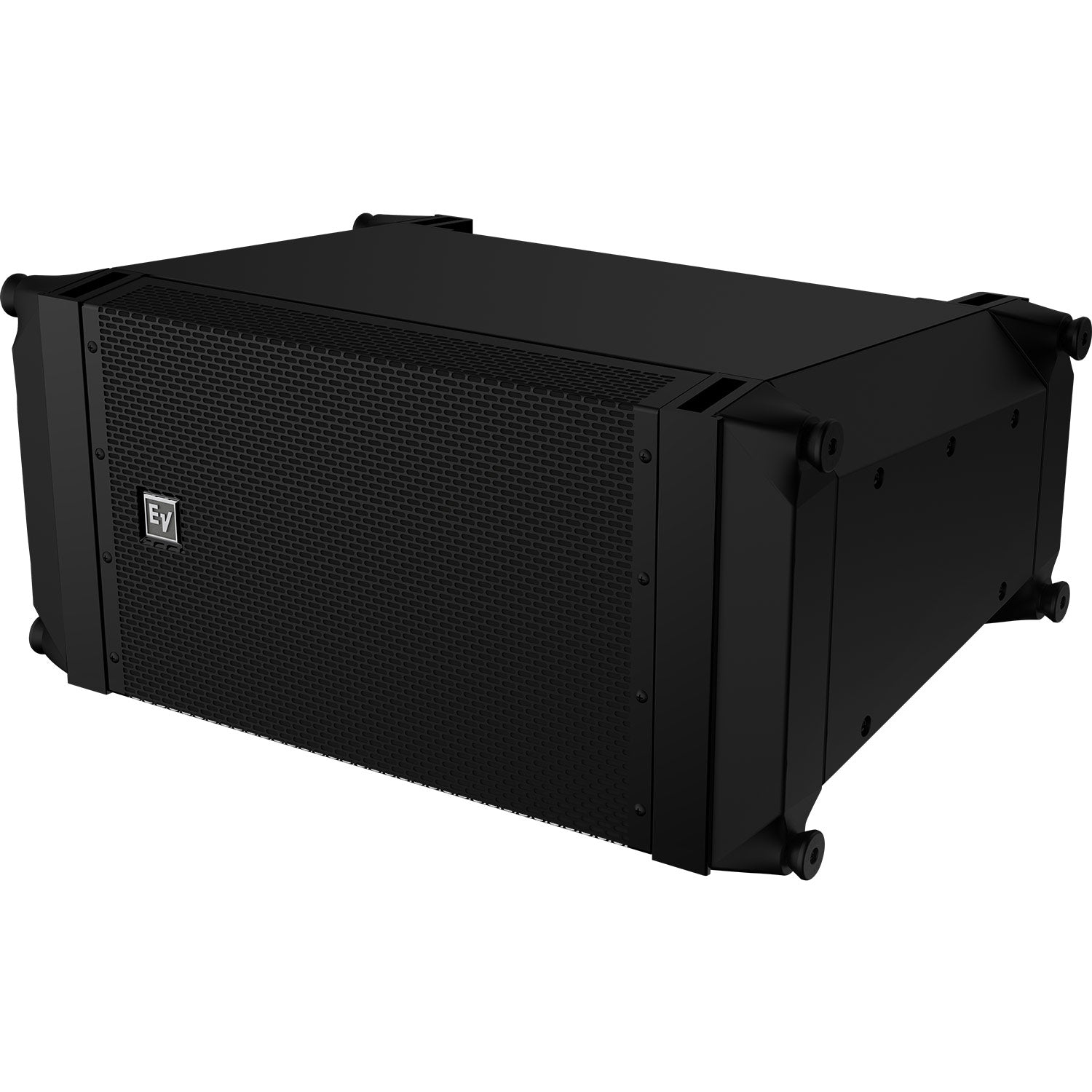

Electro-Voice X1-212/90 - Compact 12-Inch Verical Line Array Loudspeaker
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The X1 system combines innovative new technologies and time-saving features to advance the state of high-end sound reinforcement. The compact design of the X1 enables its use in a wide variety of applications.
Features:
- Mid-Band Hydra (MBH) Superior Box Coupling
- Wavefront-Shaping Circular Hydra (WCH) Extended Linear HF Performance
- Integrated Rigging System (IRS) Quick Setup
| Frequency Response (-3 dB) | 57 Hz - 16 kHz |
| Horizontial Coverage | 90¡ |
| Vertical Coverage | Array dependent |
| Rec. High-Pass Frequency | 50 Hz |
| Max Calculated SPL | 143 db Peak_ |
| Configuration | Passive, Bi-amp |
| Passvie Crossover Freq. | 1600 Hz |
| Passive Axial Sensitivity | 98 dB (1 W/1 m)? |
| Passive Power Handling | 500 W continuous, 2000 peak |
| Passive Impedance | 8 ? (nominal, 6.4 ? (min) |
| LF Transducer | SMX2121, 12-in (305 mm) driver |
| LF Axial Sensitivity | 98 dB (1 W/1 m)4 |
| LF Power Handling | 400 W continuous, 1600 W peak |
| LF Impedance | 8 ? (nominal), 6.1 ? (min) |
| HF Transducer | 2 x ND2R, 2-in (51 mm) diaphragm compression driver |
| HF Axial Sensitivity | 110 dB (1 W/1 m)? |
| HF Power Handling | 120 W continuous, 480 W peak_ |
| HF Impedance | 8 ? (nominal, 6.0 ? (min) |
| Connectors | Dual NL8 type connector |
| Enclosure | 13-ply weather resistant plywood with EVCoat |
| Grille | 16 GA powder coated galvanneal |
| Suspension | IRS - Integrated Rigging System |
| Dimensions (H x W x D) | 13.5 in x 28.77 in x 12.04 in (342.9 mm x 730.8 mm x 534.4 mm) |
| Net Weight | 92 lb (41.7 kg) |
| Shipping Weight | 106 lb (48 kg) |
