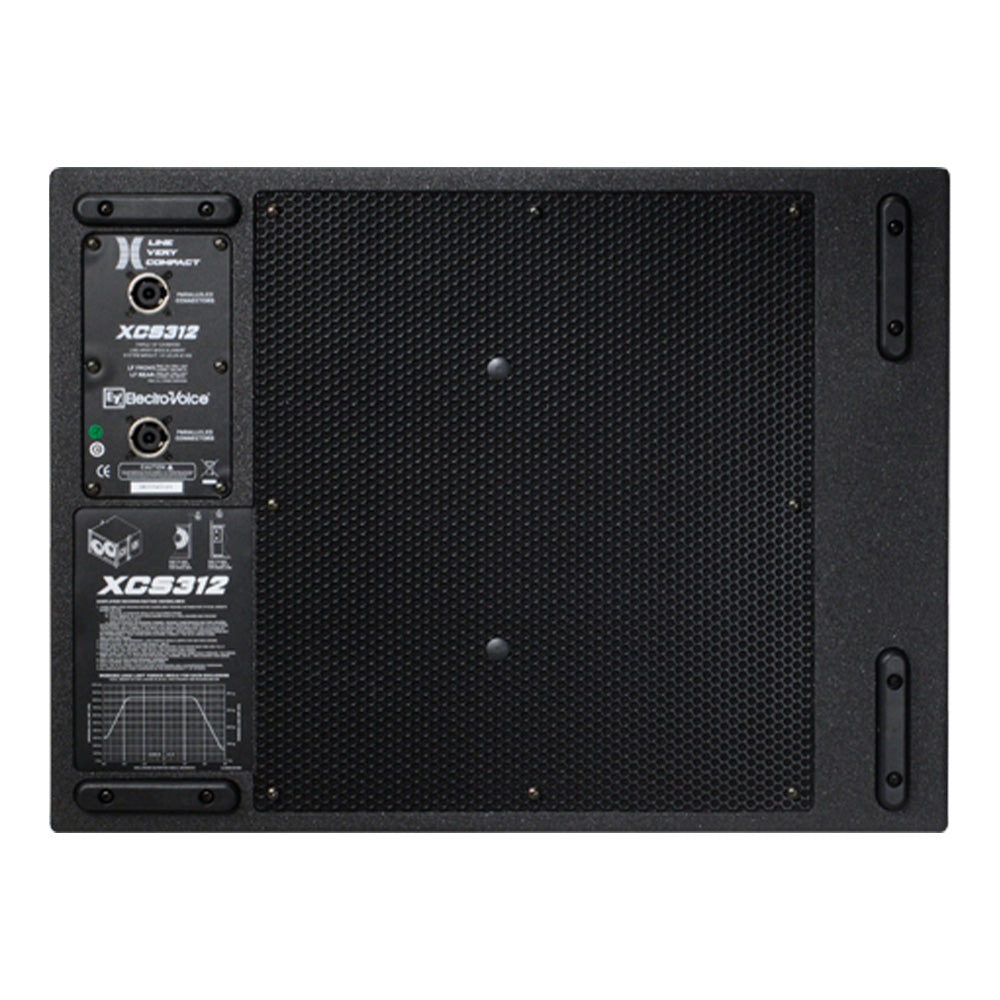

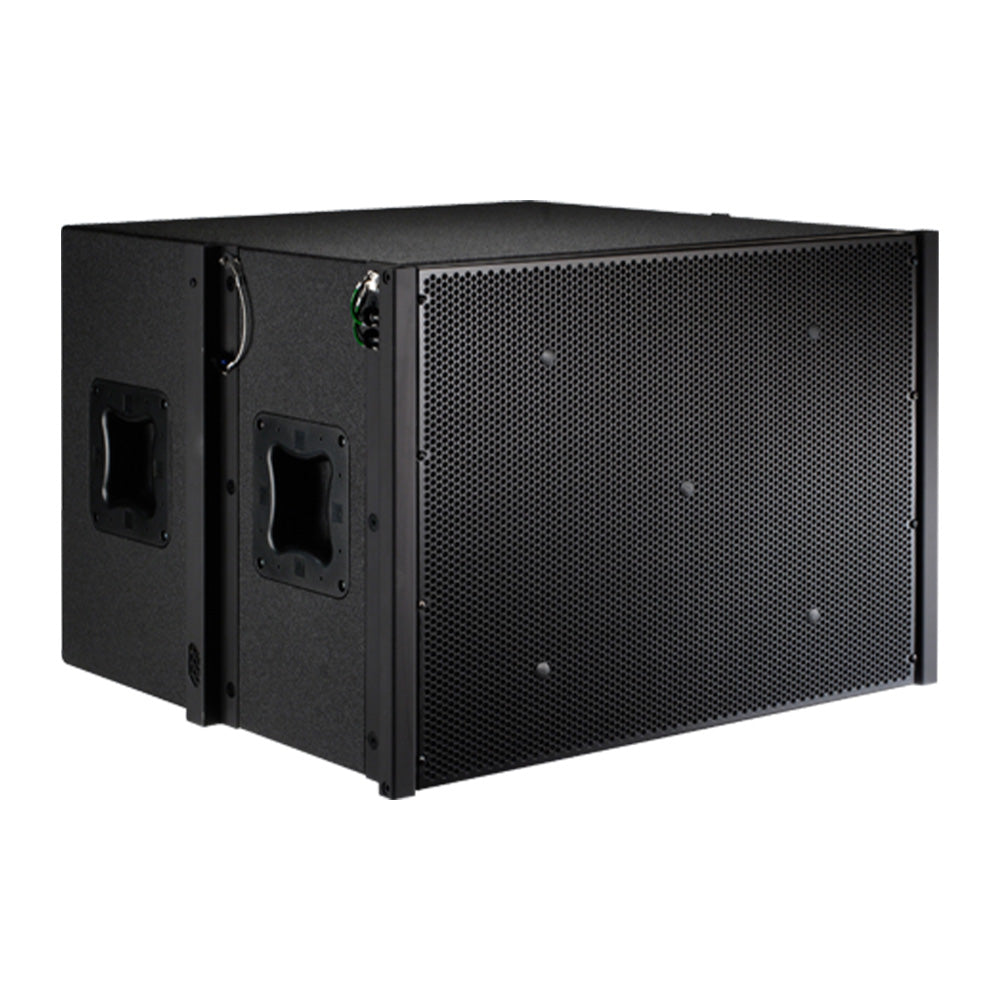

Electro-Voice XCS312-FGB - Triple 12-Inch Cardioid Line Array Subwoofer (Black / Fiberglass)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The XCS312 is designed for high-level low frequency extension to 40 Hz in a cardioid configuration. It uses three DVX3120A forced air-cooled 12 inch transducers capable of long, linear excursion and high power handling in a two channel configuration. XCS312 speakers are designed to be used with a ratio of two XLD281 or XLD291 full range systems for each XCS312 subwoofer. The XLVC family consists of two full-range Line Array Elements with dual woofers, two full-range Line Array Elements with single woofers and a one subwoofer systems. The dual woofer Line Array Element includes the XLD281 with a 120° horizontal coverage pattern and the XLD291 with a 90° horizontal coverage pattern. The XCS312 cardioid subwoofer module has the same rigging footprint as the XLD281 and XLD291 allowing it to be directly arrayed above, or below XLD281 or XLD291 full range systems. LAPS2 modeling software quickly provides array configurations and rigging information. X-Line Very Compact delivers unprecedented performance in applications ranging from live reinforcement to performing arts venues to houses of worship.
Features:
- Triple 12 inch Cardioid Very Compact Line-Array Bass Element
- Three DVX3120A 12 inch Low Frequency Transducers
- 1500 Watt Continuous, 6000 Watt Peak
- Versatile integration in main arrays
- Self-contained rigging hardware
- Supported by LAPS II aiming and flying software
| Frequency Range (-10 dB) | 40 - 100kHz |
| Flying | Included |
| HF Nominal Impedance | 8? |
| Speaker Type | Line Arrays, Subs |
| Frequency Response (-3 dB) | 45 - 100Hz |
| LF Nominal Impedance | 4? |
| Max. SPL/1m (calc) | 136dB (Half Space) |
| Coverage (Nominal -6 dB) H | 200¡ |
| LF Transducer | 3 x 12-in DVX3120A |
| LF Power Handling | 1000 W continuous, 4000 W peakWatts (60-100 Hz) |
| Crossover Frequency | 100Hz |
| Enclosure Material | EVCoat¨-coated birch plywood |
| Grille | Powder-coated steel |
| Available Color | Black |
| Sensitivity 1 W/1 m | 100dB (Half Space) |
| Height | 20" (508mm) |
| Width | 28.58" (726mm) |
| Recommended High-Pass Frequency | 40Hz |
| Depth | 26.65" (677mm) |
| Weight Net | 148lbs (67.13kg) |
| Chassis Size | 304.8 mm |
| Peak SPL @ 10m | 121dB (4 Box Array @ 10 Meters) |
| LF2 Power Handling | 500 W continuous, 2000 W peak (60-100 Hz) |
| Passive Power Handling | 6000W peak |

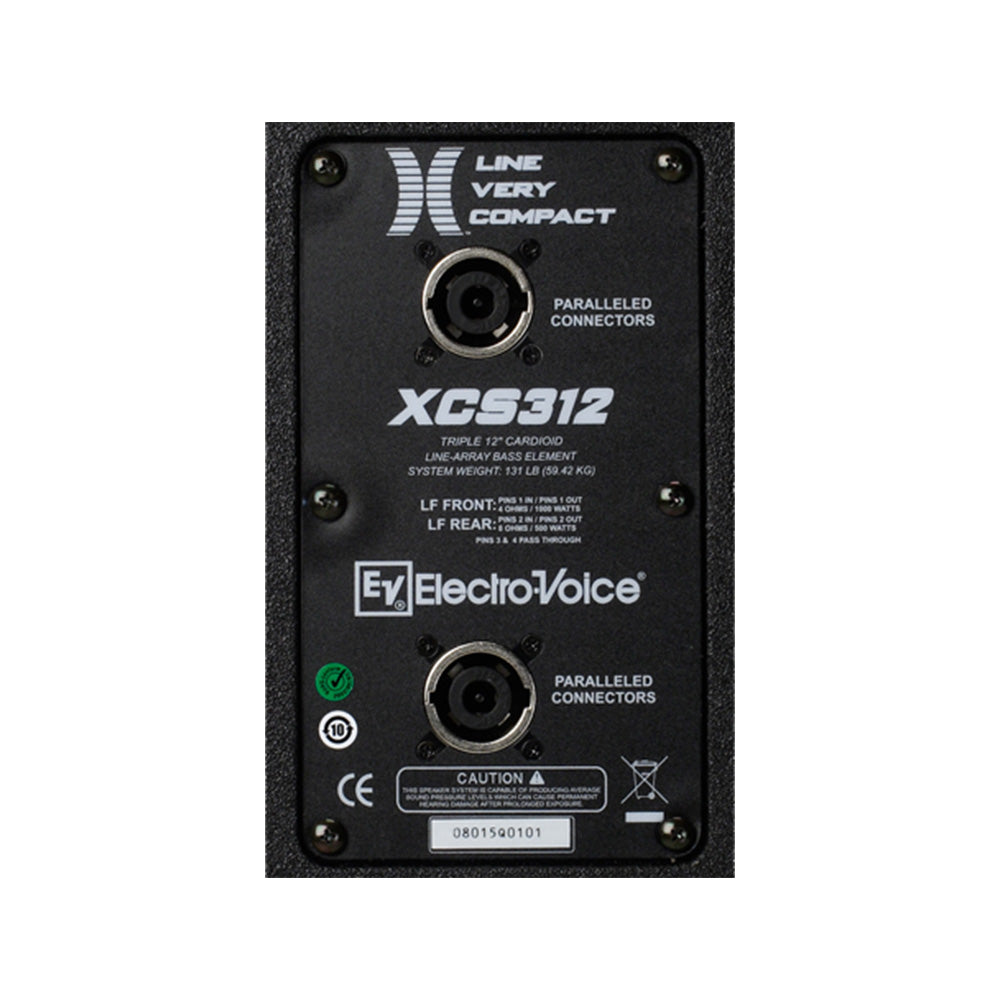

| Input Connections | 2 Neutrik¨ NL8 |
The XCS312 is designed for high-level low frequency extension to 40 Hz in a cardioid configuration. It uses three DVX3120A forced air-cooled 12 inch transducers capable of long, linear excursion and high power handling in a two channel configuration. XCS312 speakers are designed to be used with a ratio of two XLD281 or XLD291 full range systems for each XCS312 subwoofer. The XLVC family consists of two full-range Line Array Elements with dual woofers, two full-range Line Array Elements with single woofers and a one subwoofer systems. The dual woofer Line Array Element includes the XLD281 with a 120° horizontal coverage pattern and the XLD291 with a 90° horizontal coverage pattern. The XCS312 cardioid subwoofer module has the same rigging footprint as the XLD281 and XLD291 allowing it to be directly arrayed above, or below XLD281 or XLD291 full range systems. LAPS2 modeling software quickly provides array configurations and rigging information. X-Line Very Compact delivers unprecedented performance in applications ranging from live reinforcement to performing arts venues to houses of worship.
Features:
- Triple 12 inch Cardioid Very Compact Line-Array Bass Element
- Three DVX3120A 12 inch Low Frequency Transducers
- 1500 Watt Continuous, 6000 Watt Peak
- Versatile integration in main arrays
- Self-contained rigging hardware
- Supported by LAPS II aiming and flying software
| Frequency Range (-10 dB) | 40 - 100kHz |
| Flying | Included |
| HF Nominal Impedance | 8? |
| Speaker Type | Line Arrays, Subs |
| Frequency Response (-3 dB) | 45 - 100Hz |
| LF Nominal Impedance | 4? |
| Max. SPL/1m (calc) | 136dB (Half Space) |
| Coverage (Nominal -6 dB) H | 200¡ |
| LF Transducer | 3 x 12-in DVX3120A |
| LF Power Handling | 1000 W continuous, 4000 W peakWatts (60-100 Hz) |
| Crossover Frequency | 100Hz |
| Enclosure Material | EVCoat¨-coated birch plywood |
| Grille | Powder-coated steel |
| Available Color | Black |
| Sensitivity 1 W/1 m | 100dB (Half Space) |
| Height | 20" (508mm) |
| Width | 28.58" (726mm) |
| Recommended High-Pass Frequency | 40Hz |
| Depth | 26.65" (677mm) |
| Weight Net | 148lbs (67.13kg) |
| Chassis Size | 304.8 mm |
| Peak SPL @ 10m | 121dB (4 Box Array @ 10 Meters) |
| LF2 Power Handling | 500 W continuous, 2000 W peak (60-100 Hz) |
| Passive Power Handling | 6000W peak |
| Input Connections | 2 Neutrik¨ NL8 |
