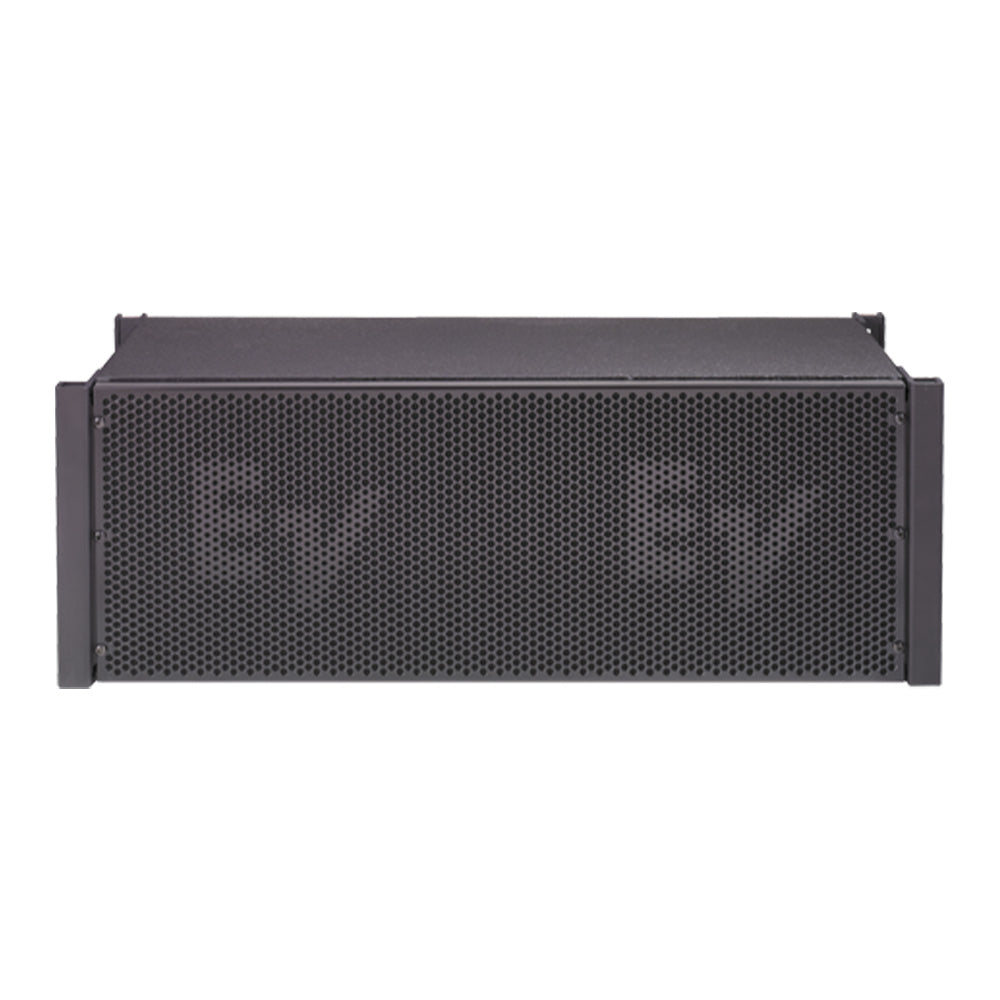

Electro-Voice XLD281 - 3-Way Compact Line Array Loudspeaker (Black / Indoor)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The XLD281 is a 3-way design using CCT (Coverage Control Technology) to control horizontal coverage to 200 Hz. It uses an 8 inch neodymium LF transducer, an 8 inch neodymium LF/MB transducer, and two neodymium 2 inch voice coil compression drivers combining through 2 hydra plane wave generators into a 120° x 10° waveguide. CCT uses both 8 inch transducers to provide maximum low frequency output and operating bandwidth while controlling horizontal beam width to 200 Hz by using DSP. The XLD281 can be used in tri-amp mode, or in bi-amp using a sophisticated internal passive network. Designed for use in arrays of four or more elements, the XLD281 delivers full bandwidth audio with precise, predictable coverage control. Integrated rigging with hinge points located correctly between array elements is simple to use and quickly provides uncompromised line array performance.
The XLVC family consists of two full-range systems with dual woofers, two full-range systems with single woofers and a subwoofer system. The dual-woofer versions include the XLD281 with a 120° horizontal coverage pattern and the XLD291 with a 90° horizontal coverage pattern. The single-woofer versions include the XLE181 with a 120° horizontal coverage pattern and the XLE191 with a 90° horizontal coverage pattern. The subwoofer module is the XCS312. Most applications using flown very compact elements require subwoofers integrated into the same array as the full-range systems. XLVC provides three methods to conveniently do this. The XCS312 subwoofer module can be directly arrayed above, or below XLD281 full-range systems. LAPS2 modeling software quickly provides array configurations and rigging information.
X-Line Very Compact delivers unprecedented performance in applications ranging from live reinforcement to performing arts venues to houses of worship.
Features:
- Full-bandwidth, three-way element (60 Hz - 20 kHz)
- CCT (Coverage Control Technology)
- Versatile subwoofer integration
- Bi-amp or tri-amp Operation
- Neodymium transducers
- Simple, quick, integrated rigging
- Supported by LAPS II aiming and flying software
| Frequency Response (-3 dB) | 75 Hz-18 kHz |
| Frequency Range (-10 db) | 60 Hz-20 kHz |
| Max Calculated SPL | 137 dB Cont., 143 dB Peak |
| Horizontal Coverage | 120¡ |
| Vertical Coverage | Array Dependant, Software Definable |
| Rigging | Fully Captive Aluminum, 1¡ increments, 16 elements with 8 to 1 Safety Factor |
| LF1 Power Handling | 200W Cont., 800W Peak |
| LF2 Power Handling | 200W Cont., 800W Peak |
| HF Power Handling | 80W Cont., 320W Peak |
| Biamp LF1/HF Power Handling | 200W Cont., 800W Peak LF2 - 200W Cont., 800W Peak |
| Bandpass Frequency | 50 - 250 Hz_ |
| LF1 to HF Crossover Frequency | 1760 Hz_ |
| LF 1 Passband | 1 x 8 inch DVN2080, 16 ohms |
| LF2 Passband | 1 x 8 inch DVN2080, 16 ohms |
| HF Passband | 2 x ND2S-8, 16 ohms |
| Biamp LF1/HF Passband | 16 ohms |
| Connectors | 2 x NL8 |
| Enclosure | 13-ply birch plywood with EVCoat |
| Grille | Galvannealed steel with powder coat paint |
| Environmental Specifications | IEC 529 IP24, MIL 810 |
| Dimensions (H x W x D) | 9.9 in x 28.58 in x 14.52 in (251 mm x 726 mm x 369 mm) |
| Net Weight | 48 lb (21.8 kg) |
| Shipping Weight | 51 lb (23.1 kg) |
The XLD281 is a 3-way design using CCT (Coverage Control Technology) to control horizontal coverage to 200 Hz. It uses an 8 inch neodymium LF transducer, an 8 inch neodymium LF/MB transducer, and two neodymium 2 inch voice coil compression drivers combining through 2 hydra plane wave generators into a 120° x 10° waveguide. CCT uses both 8 inch transducers to provide maximum low frequency output and operating bandwidth while controlling horizontal beam width to 200 Hz by using DSP. The XLD281 can be used in tri-amp mode, or in bi-amp using a sophisticated internal passive network. Designed for use in arrays of four or more elements, the XLD281 delivers full bandwidth audio with precise, predictable coverage control. Integrated rigging with hinge points located correctly between array elements is simple to use and quickly provides uncompromised line array performance.
The XLVC family consists of two full-range systems with dual woofers, two full-range systems with single woofers and a subwoofer system. The dual-woofer versions include the XLD281 with a 120° horizontal coverage pattern and the XLD291 with a 90° horizontal coverage pattern. The single-woofer versions include the XLE181 with a 120° horizontal coverage pattern and the XLE191 with a 90° horizontal coverage pattern. The subwoofer module is the XCS312. Most applications using flown very compact elements require subwoofers integrated into the same array as the full-range systems. XLVC provides three methods to conveniently do this. The XCS312 subwoofer module can be directly arrayed above, or below XLD281 full-range systems. LAPS2 modeling software quickly provides array configurations and rigging information.
X-Line Very Compact delivers unprecedented performance in applications ranging from live reinforcement to performing arts venues to houses of worship.
Features:
- Full-bandwidth, three-way element (60 Hz - 20 kHz)
- CCT (Coverage Control Technology)
- Versatile subwoofer integration
- Bi-amp or tri-amp Operation
- Neodymium transducers
- Simple, quick, integrated rigging
- Supported by LAPS II aiming and flying software
| Frequency Response (-3 dB) | 75 Hz-18 kHz |
| Frequency Range (-10 db) | 60 Hz-20 kHz |
| Max Calculated SPL | 137 dB Cont., 143 dB Peak |
| Horizontal Coverage | 120¡ |
| Vertical Coverage | Array Dependant, Software Definable |
| Rigging | Fully Captive Aluminum, 1¡ increments, 16 elements with 8 to 1 Safety Factor |
| LF1 Power Handling | 200W Cont., 800W Peak |
| LF2 Power Handling | 200W Cont., 800W Peak |
| HF Power Handling | 80W Cont., 320W Peak |
| Biamp LF1/HF Power Handling | 200W Cont., 800W Peak LF2 - 200W Cont., 800W Peak |
| Bandpass Frequency | 50 - 250 Hz_ |
| LF1 to HF Crossover Frequency | 1760 Hz_ |
| LF 1 Passband | 1 x 8 inch DVN2080, 16 ohms |
| LF2 Passband | 1 x 8 inch DVN2080, 16 ohms |
| HF Passband | 2 x ND2S-8, 16 ohms |
| Biamp LF1/HF Passband | 16 ohms |
| Connectors | 2 x NL8 |
| Enclosure | 13-ply birch plywood with EVCoat |
| Grille | Galvannealed steel with powder coat paint |
| Environmental Specifications | IEC 529 IP24, MIL 810 |
| Dimensions (H x W x D) | 9.9 in x 28.58 in x 14.52 in (251 mm x 726 mm x 369 mm) |
| Net Weight | 48 lb (21.8 kg) |
| Shipping Weight | 51 lb (23.1 kg) |
