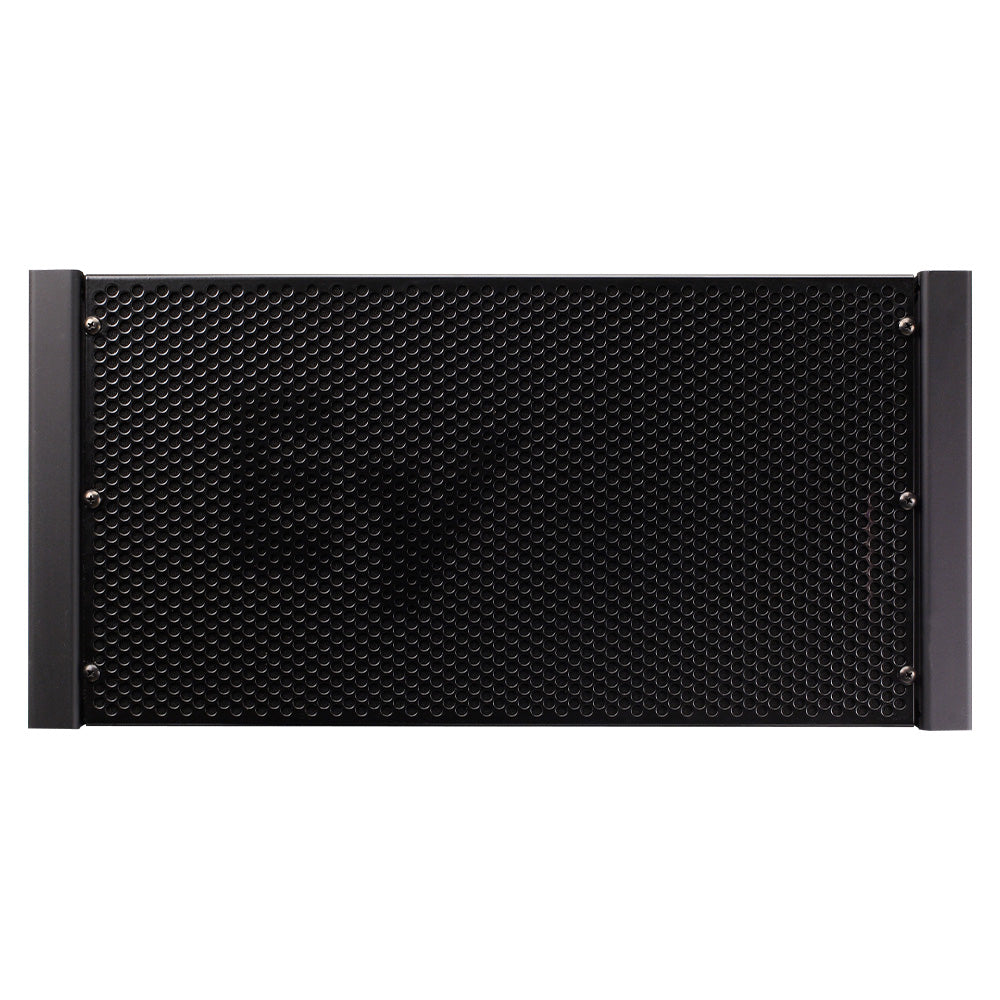

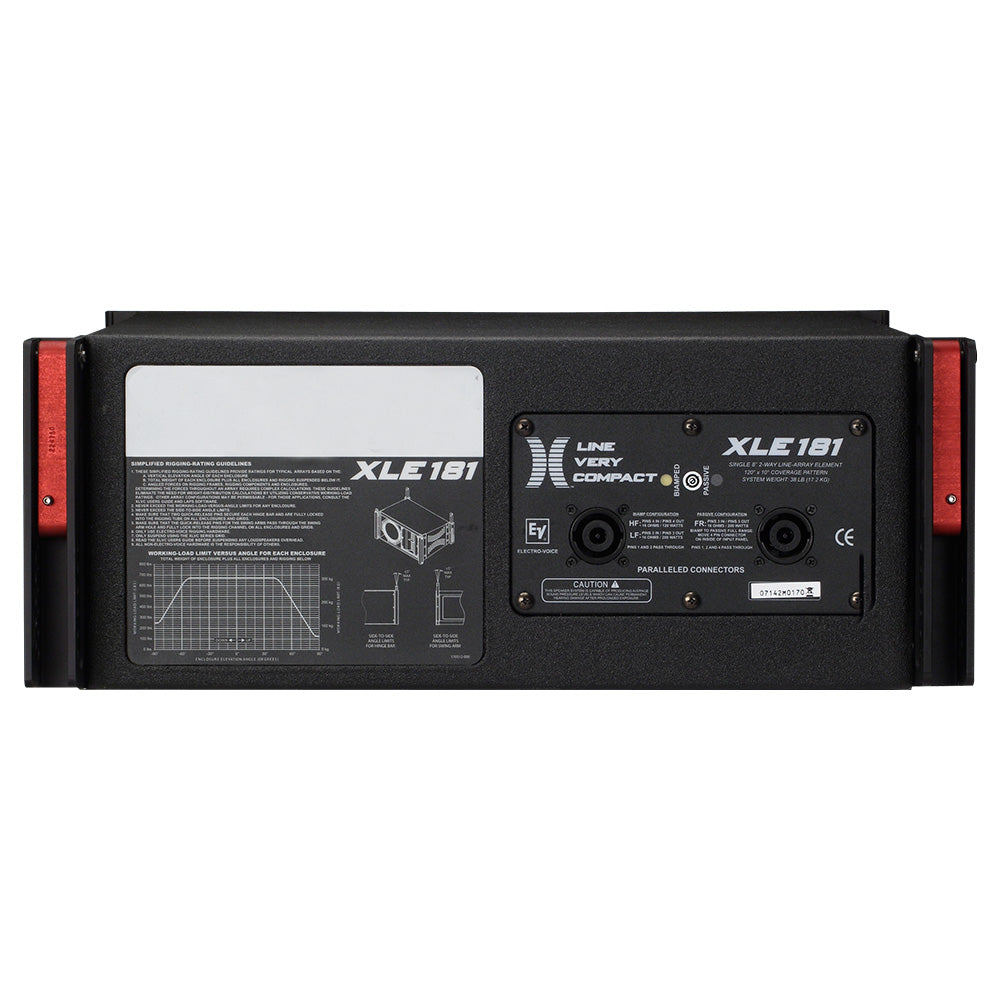

Electro-Voice XLE181-FGB - 2-Way Compact Line Array Loudspeaker (Black / Fiberglass)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The XLE181 is a 2–way using a single 8" neodymium LF transducer and two neodymium 2" voice coil compression drivers combining through 2 hydra plane wave generators into a 120° x 10° waveguide. The XLE181 can be used in biamp or full-range modes using a sophisticated internal passive network. It is designed for use in arrays of four or more elements. The XLE181 delivers full bandwidth audio with precise, predictable coverage control. Integrated rigging with hinge points located correctly between array elements is simple to use and quickly provides uncompromised line array performance.
The XLVC family consists of two full-range systems with dual woofers, two full-range systems with single woofers and a subwoofer system. The dual-woofer versions include the XLD281 with a 120° horizontal coverage pattern and the XLD291 with a 90° horizontal coverage pattern. The single woofer versions include the XLE181 with a 120° horizontal coverage pattern and the XLE191 with a 90° horizontal coverage pattern. LAPS2 modeling software quickly provides array configurations and rigging information.
X-Line Very Compact delivers unprecedented performance in applications ranging from live reinforcement to performing arts venues to houses of worship.
Features:
- 120° Horizontal Coverage
- Full-bandwidth, two-way elements
- Most compact, very lightweight
- Bi-amp or full-range operation
- Neodymium transducers
- Simple, quick, integrated rigging
- Supported by LAPS II aiming and flying software
| Frequency Response (-3dB) | 90 Hz-18 kHz |
| Frequency Range (-10 dB) | 75 Hz-20 kHz |
| Max Calculated SPL | 137 dB Cont., 143 dB Peak |
| Horizontal Coverage | 120¡ |
| Vertical Coverage | Array Dependant, Software Definable |
| Rigging | Fully Captive Aluminums, 1¡ increments, 16 elements with 8 to 1 Safety Factor |
| LF Power Handling | 200W Cont., 800W Peak |
| HF Power Handling | 80W Cont., 320W Peak |
| LF to HF Crossover Frequency | 1760 Hz |
| LF Passband | 1 x 8" DVN2080, 16 ohms |
| HF Passband | 2 x ND2S-8, 16 ohms |
| Connectors | Gland nut with 30 ft cable |
| Enclosure | 13-ply birch plywood with fiberglass and EVCoat |
| Grille | Stainless steel with powder coat paint and hydrophobic cloth |
| Environmental Specifications | IEC 60529, IP55 |
| Dimensions (H x W x D) | 9.90 in x 20.30 in x 14.52 in (251 mm x 516 mm x 369 mm) |
| Net Weight | 38 lb (17.2 kg) |
| Shipping Weight | 41 lb (18.4 kg) |
The XLE181 is a 2–way using a single 8" neodymium LF transducer and two neodymium 2" voice coil compression drivers combining through 2 hydra plane wave generators into a 120° x 10° waveguide. The XLE181 can be used in biamp or full-range modes using a sophisticated internal passive network. It is designed for use in arrays of four or more elements. The XLE181 delivers full bandwidth audio with precise, predictable coverage control. Integrated rigging with hinge points located correctly between array elements is simple to use and quickly provides uncompromised line array performance.
The XLVC family consists of two full-range systems with dual woofers, two full-range systems with single woofers and a subwoofer system. The dual-woofer versions include the XLD281 with a 120° horizontal coverage pattern and the XLD291 with a 90° horizontal coverage pattern. The single woofer versions include the XLE181 with a 120° horizontal coverage pattern and the XLE191 with a 90° horizontal coverage pattern. LAPS2 modeling software quickly provides array configurations and rigging information.
X-Line Very Compact delivers unprecedented performance in applications ranging from live reinforcement to performing arts venues to houses of worship.
Features:
- 120° Horizontal Coverage
- Full-bandwidth, two-way elements
- Most compact, very lightweight
- Bi-amp or full-range operation
- Neodymium transducers
- Simple, quick, integrated rigging
- Supported by LAPS II aiming and flying software
| Frequency Response (-3dB) | 90 Hz-18 kHz |
| Frequency Range (-10 dB) | 75 Hz-20 kHz |
| Max Calculated SPL | 137 dB Cont., 143 dB Peak |
| Horizontal Coverage | 120¡ |
| Vertical Coverage | Array Dependant, Software Definable |
| Rigging | Fully Captive Aluminums, 1¡ increments, 16 elements with 8 to 1 Safety Factor |
| LF Power Handling | 200W Cont., 800W Peak |
| HF Power Handling | 80W Cont., 320W Peak |
| LF to HF Crossover Frequency | 1760 Hz |
| LF Passband | 1 x 8" DVN2080, 16 ohms |
| HF Passband | 2 x ND2S-8, 16 ohms |
| Connectors | Gland nut with 30 ft cable |
| Enclosure | 13-ply birch plywood with fiberglass and EVCoat |
| Grille | Stainless steel with powder coat paint and hydrophobic cloth |
| Environmental Specifications | IEC 60529, IP55 |
| Dimensions (H x W x D) | 9.90 in x 20.30 in x 14.52 in (251 mm x 516 mm x 369 mm) |
| Net Weight | 38 lb (17.2 kg) |
| Shipping Weight | 41 lb (18.4 kg) |
