Furman M-8x2 Merit Series 8 Outlet Power Conditioner and Surge Protector
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
A Merit Series Power Conditioner is the perfect low-cost AC power solution for any rack mount system. Install an M-8x2 in to the top slot of your rack, and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load. The M-8x2 is designed for applications where lights are not required.
Features:
- Noise Filtration
AC noise filtering to reduce radio frequency and electromagnetic interference (RFI/EMI) - Surge Protection
Spike & surge protection ensures equipment stays safe and your power stays clean - 9 Total Outlets

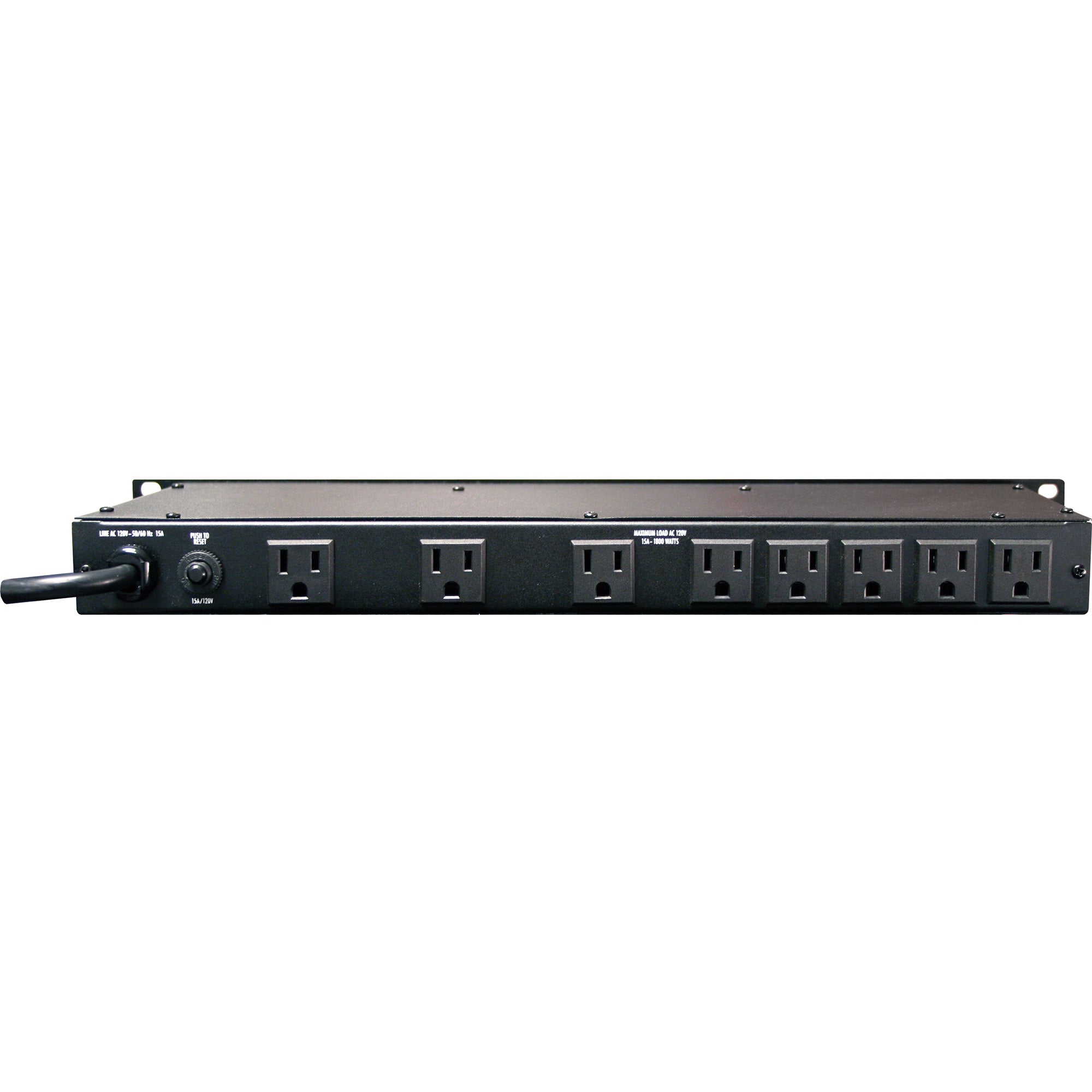

8 rear panel outlets and 1 front panel outlet - 15 Amp Rating
15 amp rating, with circuit breaker - "Protection OK" Indicator

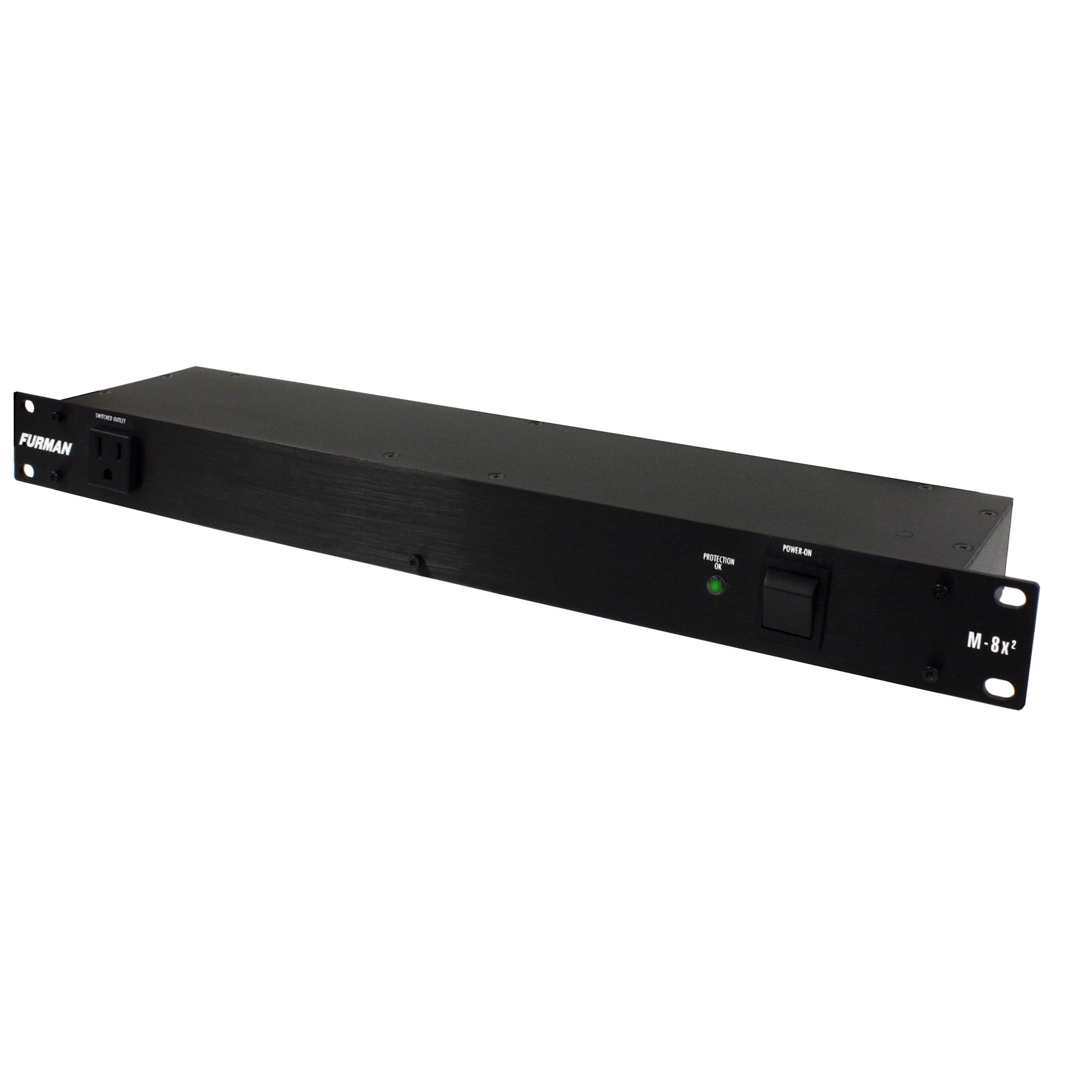

Front panel indicator LED lets you know that your equipment is being protected - Wall Wart Spacing Indicator
Rear outlets have been spaced to accommodate even the bulkiest of wall warts and adapters
| Maximum Output Current: | 15 amps |
| Line Cord: | 6 ft., captive, 14 AWG, with 3-conductor Edison plug |
| Operating Voltage: | 120VAC 60Hz |
| Spike Protection Mode: | Line to neutral |
| Energy Dissipation: | 170 joules |
| Peak Impulse Current: | 12,000 amps |
| Maximum Continuous Operating Voltage: | 130 VAC RMS |
| Let Through Voltage (@ 125 amps, 8/20uS waveform) | 400 volts |
| Noise Attenuation: | Transverse mode: Greater than 23dB, 200Khz to 10 Mhz |
| Dimensions: | 1.75" H x 19" W x 3.75" D |
| Weight: | 4.9 lbs. |
| Safety Agency Listing: | cTUVus |
| Warranty: | Merit Series units are protected by a limited three year warranty covering defects in materials and workmanship. |
A Merit Series Power Conditioner is the perfect low-cost AC power solution for any rack mount system. Install an M-8x2 in to the top slot of your rack, and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load. The M-8x2 is designed for applications where lights are not required.
Features:
- Noise Filtration
AC noise filtering to reduce radio frequency and electromagnetic interference (RFI/EMI) - Surge Protection
Spike & surge protection ensures equipment stays safe and your power stays clean - 9 Total Outlets
8 rear panel outlets and 1 front panel outlet - 15 Amp Rating
15 amp rating, with circuit breaker - "Protection OK" Indicator
Front panel indicator LED lets you know that your equipment is being protected - Wall Wart Spacing Indicator
Rear outlets have been spaced to accommodate even the bulkiest of wall warts and adapters
| Maximum Output Current: | 15 amps |
| Line Cord: | 6 ft., captive, 14 AWG, with 3-conductor Edison plug |
| Operating Voltage: | 120VAC 60Hz |
| Spike Protection Mode: | Line to neutral |
| Energy Dissipation: | 170 joules |
| Peak Impulse Current: | 12,000 amps |
| Maximum Continuous Operating Voltage: | 130 VAC RMS |
| Let Through Voltage (@ 125 amps, 8/20uS waveform) | 400 volts |
| Noise Attenuation: | Transverse mode: Greater than 23dB, 200Khz to 10 Mhz |
| Dimensions: | 1.75" H x 19" W x 3.75" D |
| Weight: | 4.9 lbs. |
| Safety Agency Listing: | cTUVus |
| Warranty: | Merit Series units are protected by a limited three year warranty covering defects in materials and workmanship. |
