Furman P-3600 AR G Global Voltage Regulator with SMP Protection and LiFT Noise Filtration
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

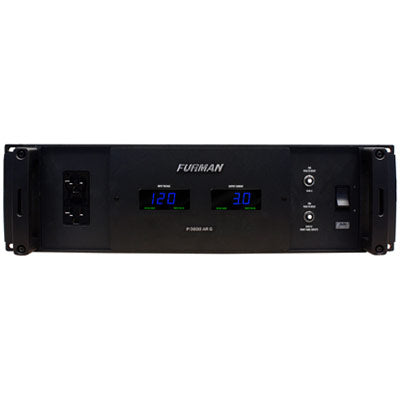

The Prestige Series P-3600 AR G is a 3RU power conditioner/True RMS voltage regulator that offers a one-of-a-kind power management solution for A/V professionals around the globe. The P-3600 AR G ensures stable 120V power delivery from any input voltage source between 100V to 127V or 208V to 240V. The unit provides connected 120V equipment with stable voltage, power protection, and AC line filtration, ideal for use with 120V A/V gear when travelling to countries with 100V, 220V, 230V, or 240V services. Features
- Global True RMS Voltage Regulation - Delivers a stable 120 volts of AC power (from any voltage source between 88V-134V and 170V-265V) to protect equipment from problems
- Surge Protection - Furman's exclusive SMP technology provides the highest level of surge & spike protection available.
- Noise Filtration - LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
- Voltage Protection - Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
- Diagnostic Lights - LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
- Large LED Voltmeter - Large LED voltmeter displays incoming line voltage.
- Large LED Ammeter - Large LED ammeter displays output current draw.
- 30 Amp Rating - 30 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
- 11 Total Outlets - 11 total outlets (nine rear panel outlets and two front panel convenience outlet).
The P-3600 AR G's predecessor, the Furman AR-PRO, has been an indispensable product for many professional users. The updated model features Furman's True RMS Regulation Technology (utilizing an ultra-low-noise torroidal isolation transformer/autoformer, high-current switching TRIACs, and micro-processing control) to step-down or step-up input voltages.
The unit also offers Furman's exclusive LiFT/SMP/EVS technologies for professional-level protection and linear AC noise filtration. These features, along with the P-3600 AR G's 30A output capacity and wide input voltage capture range, make it a unique solution among other portable power conditioner/voltage regulators and a reliable, application-specific alternative to typical step-up/step- down transformers.
| Max Current | 30 amps |
| Voltage Regulation | 120 VAC (å±4%) |
| In Regulation Range | (Low) 88-133 VAC @ 50/60Hz (High) 170-265 VAC @ 50/60Hz |
| Spike Protection Modes | Line to neutral, zero ground leakage |
| Spike Clamping Voltage | 191V Peak @ 3,000 Amps |
| Response time | 1 nanosecond |
| Maximum surge current | 6,500 amps |
| Noise Attenuation | 10 DB @ 10KHz, 40 DB @ 100 KHz, 55 DB @ 500 KHz |
| Receptacles (Front panel) | Two 120V 20A Edison Spec Grade NEMA-20 outlets |
| Receptacles (Rear panel) | One 120V L-5 30A female, Eight 120V 20A Edison Spec Grade NEMA-20 outlets |
| Line Cord | L-14 male twistlock inlet (twistlock cable-mount connector included) |
| Dimensions | 5.25 H x 19 W x 14.25 D. ( 133mm H x 483mm W x 305mm D) |
| Weight | 98 lbs. (44.5 kg) |
