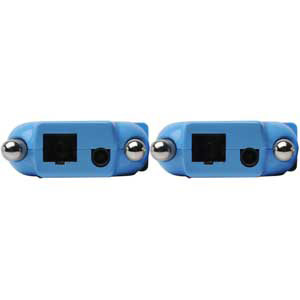

Gefen EXT-DVI-FM1000 DVI Over Fiber Optic Extender (1000 Foot)

  • Dale #:

    GEFE-EXTDVIFM1000
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The DVI FM1000 Extender extends your DVI display up to 3,280 feet (1km) away from your video source, with only two tiny transceivers required, using a 100% optical SC fiber solution with a single strand of fiber optic cable. Automatic EDID Programming enables quick and correct synchronization of ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The DVI FM1000 Extender extends your DVI display up to 3,280 feet (1km) away from your video source, with only two tiny transceivers required, using a 100% optical SC fiber solution with a single strand of fiber optic cable. Automatic EDID Programming enables quick and correct synchronization of the video source to the display without any manual configuration needed. It's a great way to extend DVI video easily and unobtrusively.The DVI FM1000 Sender unit plugs into a DVI port (either a computer source or another device transmitting a DVI signal). The DVI FM1000 Receiver unit plugs into a DVI display. A single strand of multimode SC fiber optic cable connects the sender to the receiver. Power is connected to the FM 1000 receiver using the 5V wall adapter and crisp, vibrant DVI video appears on the DVI display.

Features

  • Extends any DVI source up to 3,280 feet (1000 meters) from the source
  • Supports resolutions up to 1920 x 1200
  • Supports DDWG standard for DVI-compliant monitors
  • Uses single-strand multi-mode SC-terminated fiber optic cable
  • EDID Programming feature enables quick and correct sync of source to display
  • Fiber cable provides immunity from electromagnetic interference (EMI)
  • Eliminates computer noise at your workstation

More +

Product Specs

Maximum Pixel Clock165MHz
Input Video Signal1.2V p-p
Input DDC Signal5V p-p (TTL)

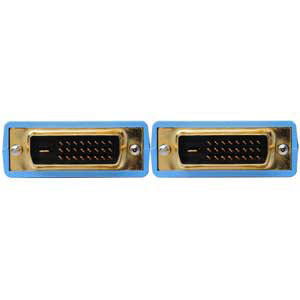

Video Input Connector (Sender)(1) DVI-D 19-pin, female (digital only)
Video Output Connector (Receiver)(1) DVI-D 19-pin, female (digital only)
Link Connector (Sender / Receiver)(1) Type SC Fiber connector
Fiber CableCAB-1SC-XXX (62.5ì multi-mode)
Operating Temperature Range0 to +50 deg C
Storage Temperature Range-30 to +70 deg C
Storage Relative Humidity10% to 85% RH
Power Supply (Receiver)5V DC
Power Consumption2.5W (max.)
Dimensions (Sender / Receiver)2.6" D x 1.6" W x 0.6" H
Shipping Weight2 lbs.

More +
