Gefen EXT-DVI-FM500 - DVI Over Fiber Extender System
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The Gefen DVI FM500 Extender provides a robust and reliable solution to extend DVI video over extremely long distances. This professional-grade DVI over fiber system utilizes a compact sender and receiver set to transmit high-resolution DVI signals up to 5,000 feet using just two strands of LC fiber optic cable. By supporting video resolutions up to 1920x1200, the extender ensures pristine image quality, while the nature of optical signal transmission provides complete immunity from electromagnetic interference (EMI), making it perfect for installations in challenging environments. The system's on-the-fly EDID programming feature enables quick and correct synchronization between the video source and the display, delivering a painless, high-performance extension solution ideal for demanding professional AV applications.
Comes with both Sender and Receiver units.
| Maximum Pixel Clock | 165MHz |
| Input Video Signal | 1.2V p-p |
| Input DDC Signal | 5V p-p (TTL) |

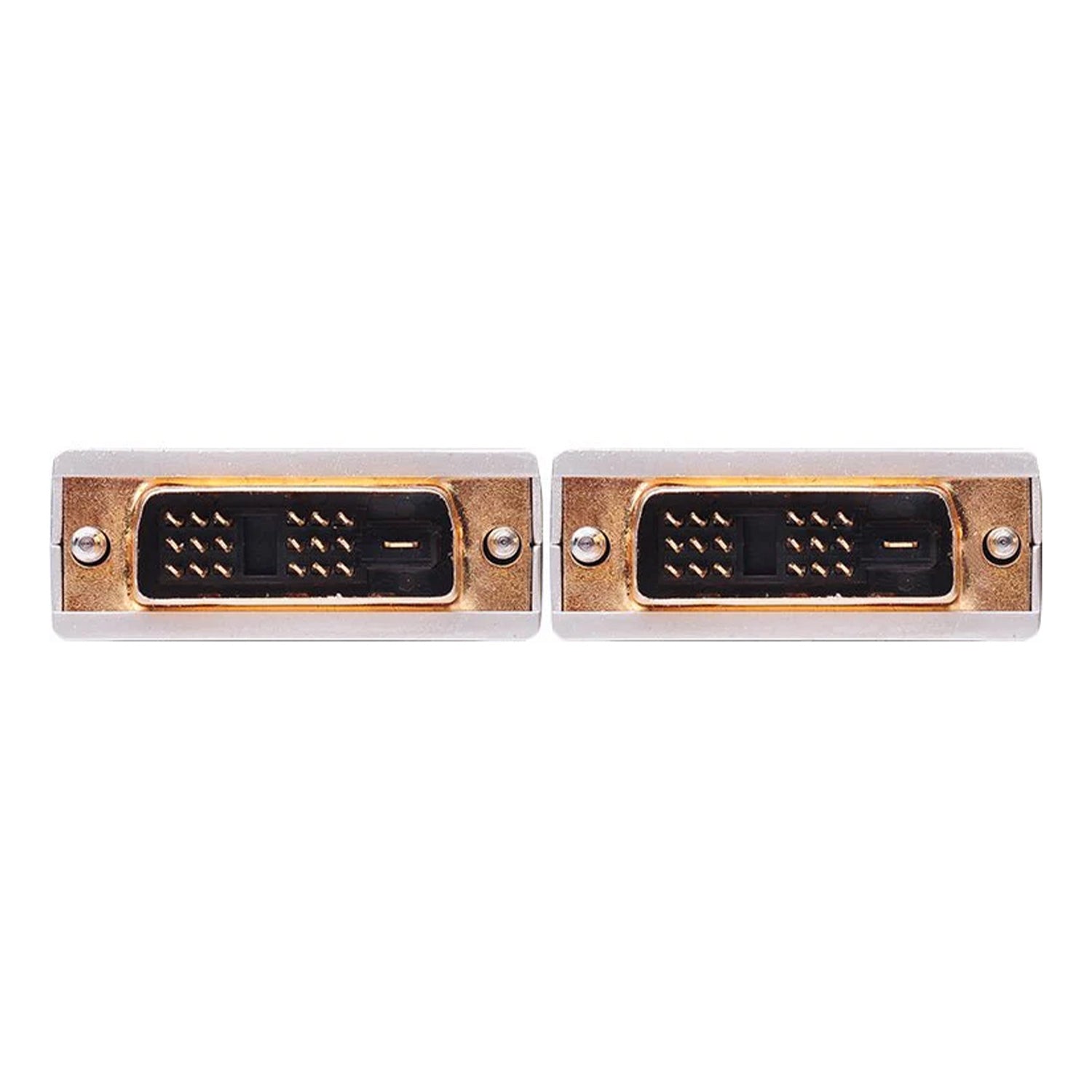

| Video Input Connector (Sender) | (1) DVI-D (19 pin), male (digital only) |
| Video Output Connector (Receiver) | (1) DVI-D (19 pin), male (digital only) |

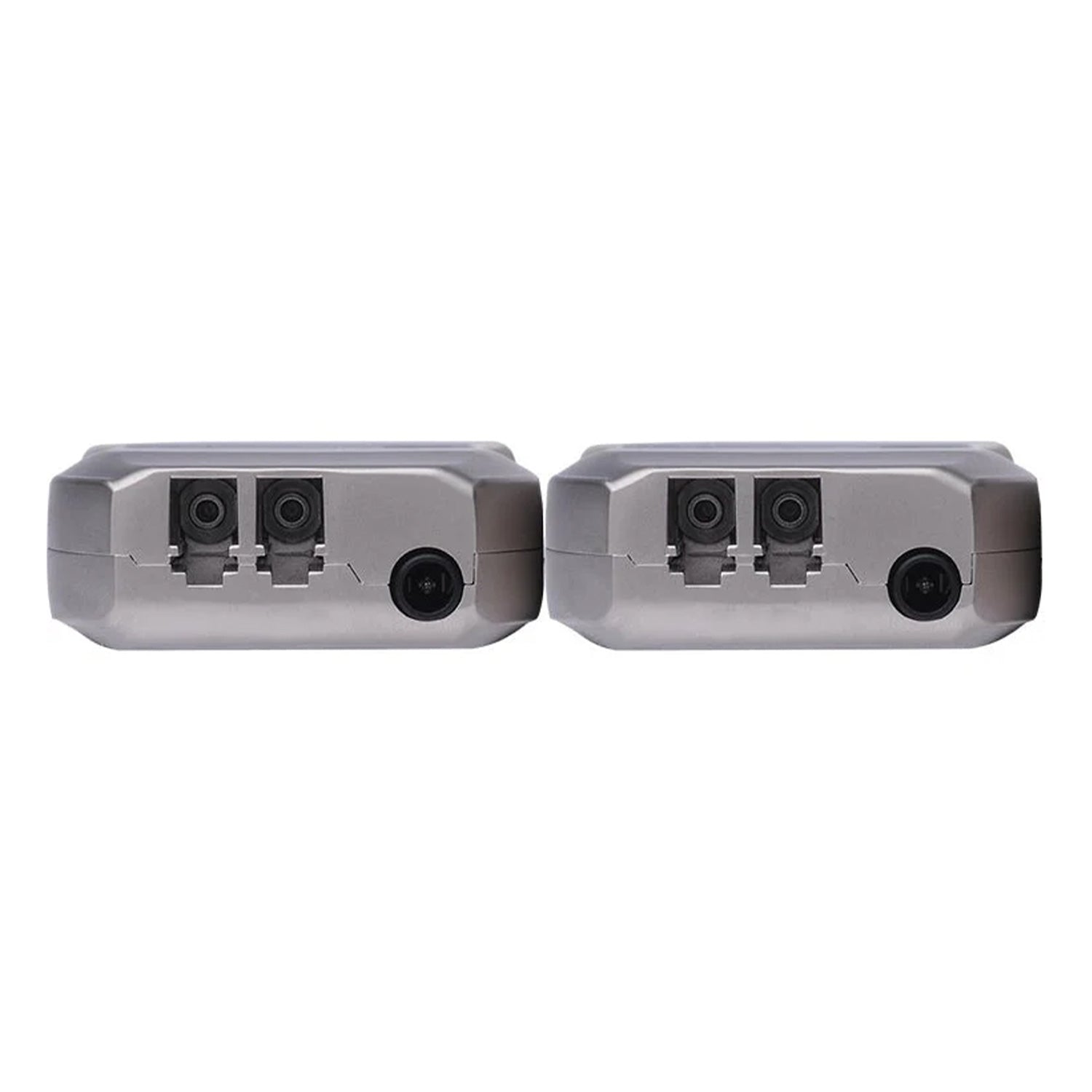

| Link Connectors (Sender / Receiver) | (2) Type LC (1 Duplex) fiber connectors |
| Supported Fiber Types | Single-mode 8/9µm (up to 5000 feet) or multi-mode 50/62.5µm (up to 1500 feet) |
| Default EDID | UXGA (1600x1200) |
| Power Supply | 5V DC |
| Power Consumption | 2.5W (max.) |
| Operating Temperature | 0°C - 50°C |
| Storage Temperature | 10°C - 85°C |
| Operating Humidity | 5% - 85% |
| Dimensions (Sender / Receiver) | 1.5" W x 0.5" H x 2.5" D |
| Shipping Weight | 2 lbs (1 kg) |
The Gefen DVI FM500 Extender provides a robust and reliable solution to extend DVI video over extremely long distances. This professional-grade DVI over fiber system utilizes a compact sender and receiver set to transmit high-resolution DVI signals up to 5,000 feet using just two strands of LC fiber optic cable. By supporting video resolutions up to 1920x1200, the extender ensures pristine image quality, while the nature of optical signal transmission provides complete immunity from electromagnetic interference (EMI), making it perfect for installations in challenging environments. The system's on-the-fly EDID programming feature enables quick and correct synchronization between the video source and the display, delivering a painless, high-performance extension solution ideal for demanding professional AV applications.
Comes with both Sender and Receiver units.
