Gefen EXT-DVI-FM500 DVI Over Fiber Optic Extender (500 Foot)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DVI-FM500 Extender lets you extend your DVI source up to 5,000 feet away using a 100% fiber optic extension solution. Attractive and compact DVI-to-fiber modules connect to each other via just two LC fiber optic cable strands. Extender units fit neatly behind equipment for a clean installation. The on the fly EDID programming feature enables quick and correct synchronization of the video resolution to the display without any manual configuration. It's a great way to extend DVI easily and cleanly. The DVI FM 500 Sender unit plugs into a DVI port (either a computer source or another device transmitting a DVI signal). The DVI FM 500 Receiver unit plugs into a DVI display - up to 5,000 feet away. Two-strand LC fiber optic cable connects the DVI FM 500 Sender unit and the DVI FM 500 Receiver units to each other. Power is connected to the DVI FM 500 receiver using the 5V wall adapter and a crisp, vibrant HD picture appears on the display. Optical signal transmission provides immunity from electromagnetic interference (EMI).
Features
- Extends DVI up to 5,000 feet (1500 meters) using single-mode(8/125 µm or 9/125 µm) fiber cable
- Extends DVI up to 1,500 feet (450 meters) using multi-mode (50 µm or 62.5 µm) fiber cable
- Supports resolutions up to 1920 x 1200
- Supports DDWG standard for DVI-compliant monitors
- EDID Programming feature enables quick and correct sync of source to display
- Fully supports DVI 1.0 and DDC2B via virtual DDC
- Supports both singlemode and multimode fiber optic cable types
- Fiber cable provides immunity from electromagnetic interference (EMI)
| Maximum Pixel Clock | >165MHz |
| Input Video Signal | >1.2V p-p |
| Input DDC Signal | >5V p-p (TTL) |
| Supported fiber types | >single-mode 89åµm (5000 feet) or multi-mode 50/62.5åµm (1500 feet) |
| Default EDID | >UXGA (1600 x 1200) |

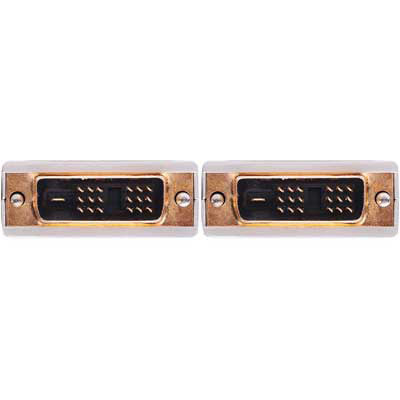

| Video Input Connector (Sender) | >(1) DVI-D (19 pin), male (digital only) |
| Video Output Connector (Receiver) | >(1) DVI-D (19 pin), male (digital only) |

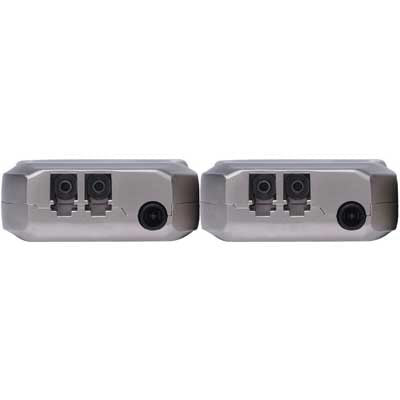

| Link Connectors (Sender / Receiver) | >(2) Type LC (1 Duplex) fiber connectors |
| LED Indicators (Sender / Receiver) | >(1) EDID Status |
| Program Button (Sender) | >EDID Program (recessed) |
| Fiber Cable | >CAB-2LC-XXX (62.5/125åµm multi-mode) |
| Power Supply (Receiver) | >5V DC (Second power supply included for use if source does not provide 5V power for Sender over DVI connector) |
| Power Consumption | >2.5W (max.) |
| Operating Temperature | >0å¡C - 50å¡C |
| Storage Temperature | >-10å¡C - 85å¡C |
| Operating Humidity | >5% - 85% |
| Dimensions (Sender / Receiver) | >1.5" W x 2.5" D x 0.5" H |
| Shipping Weight | >2 lbs. |
The DVI-FM500 Extender lets you extend your DVI source up to 5,000 feet away using a 100% fiber optic extension solution. Attractive and compact DVI-to-fiber modules connect to each other via just two LC fiber optic cable strands. Extender units fit neatly behind equipment for a clean installation. The on the fly EDID programming feature enables quick and correct synchronization of the video resolution to the display without any manual configuration. It's a great way to extend DVI easily and cleanly. The DVI FM 500 Sender unit plugs into a DVI port (either a computer source or another device transmitting a DVI signal). The DVI FM 500 Receiver unit plugs into a DVI display - up to 5,000 feet away. Two-strand LC fiber optic cable connects the DVI FM 500 Sender unit and the DVI FM 500 Receiver units to each other. Power is connected to the DVI FM 500 receiver using the 5V wall adapter and a crisp, vibrant HD picture appears on the display. Optical signal transmission provides immunity from electromagnetic interference (EMI).
