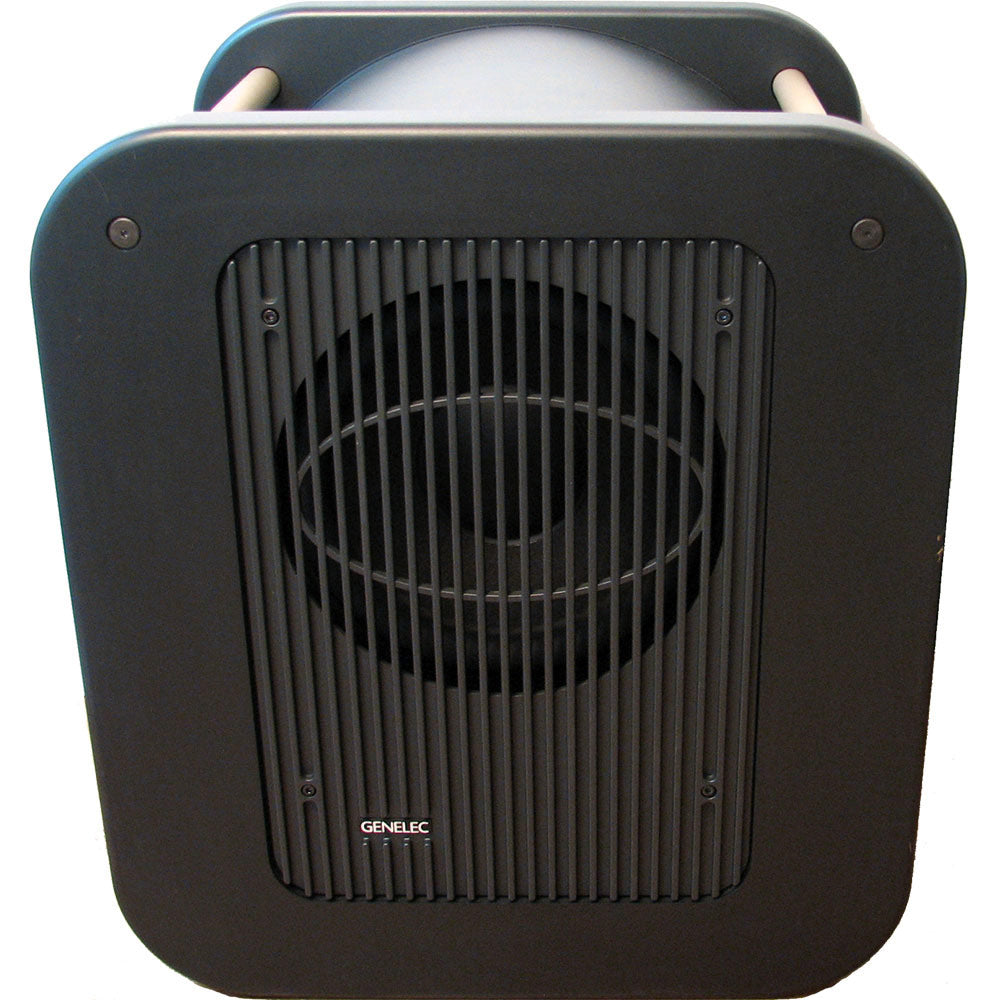

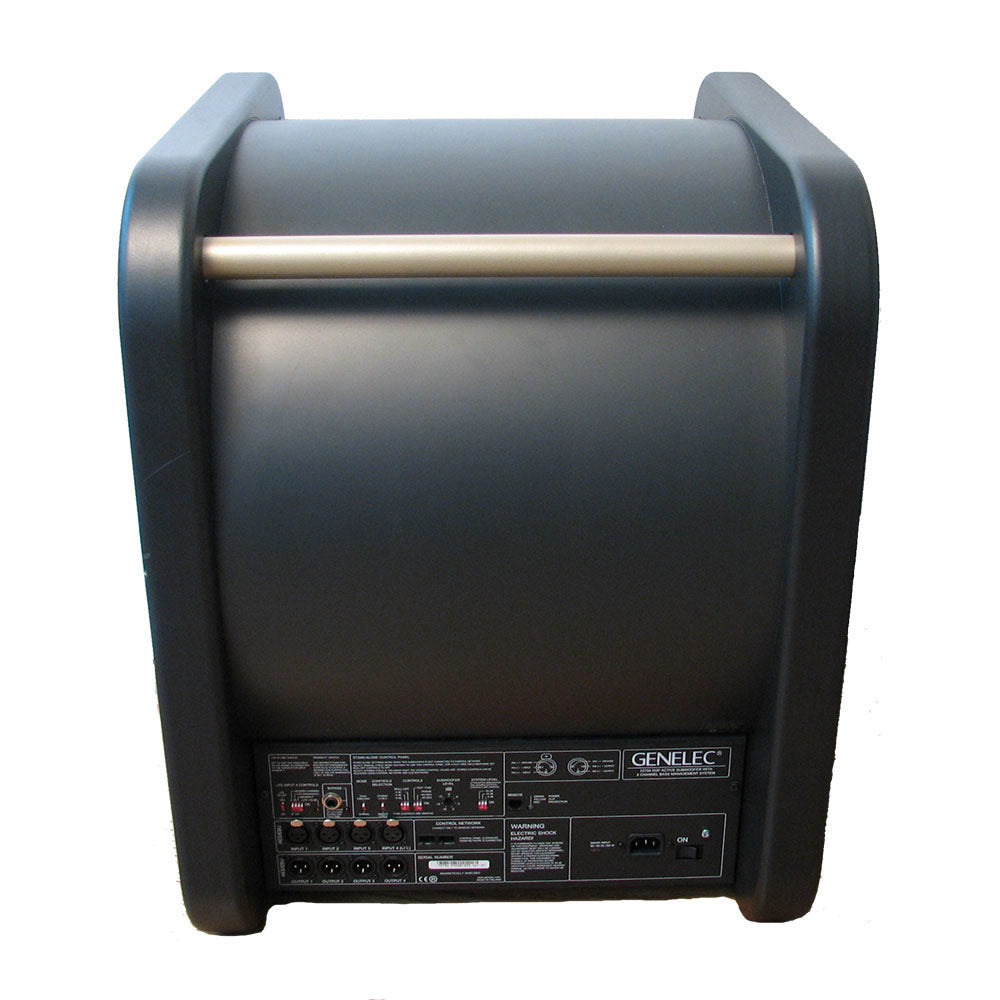

Genelec 7070APM 12-inch Active Subwoofer - Black - B-Stock
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Genelec 7070A Active Subwoofer is powerful and precise bass monitoring tool for modern 6.1 or 5.1 channel Surround Sound or traditional stereo systems. With its 19 Hz lower cut-off frequency, high sound pressure output capability and versatile bass management systems, it can be adapted to all low frequency monitoring situations. The amplifier unit integrated into the cabinet contains active crossover filters, driver overload protection circuits and power amplifiers. The in-built bass management unit has six signal input and output channels, summed signal output connectors and LFE input equipped with a selectable 85/120 Hz lowpass filter and a 0 / +10dB LFE sensitivity switch.
Features
- LSE™ Power efficient port/ enclosure design
- Highly configurable 6.1 channel Bass Management System
- Unparalleled low frequency performance
- Phase calibration test tone
- RJ11 remote control connection
- SUM out and in for “daisy chaining” units
| Free field frequency response (+/- 3 dB) | 19 Hz…85 Hz LFE 85/120 Hz |
| Maximum short term sine wave SPL output averaged from 30 to 85 Hz, measured in half space at 1 meter | ≥ 112 dB SPL |
| Maximum peak SPL output with random pink noise, measured in half space at 1 meter | ≥ 117 dB SPL |
| Self generated noise level in free field @ 1 m on axis (A-weighted) | ≤ 15 dB |
| Harmonic distortion at @ 1 m on axis in half space 2nd 3rd | @ 95 dB SPL 30 … 85 Hz ≤ 3 % ≤ 3 % |
| Driver, magnetically shielded | 305 mm (12”) |
| Weight | 50 kg (110 lbs) |
| Dimensions | |
| Height | 625 mm (24 5/8”) |
| Width | 555 mm (21 7/8”) |
| Depth | 490 mm (19 5/16”) |
Genelec 7070A Active Subwoofer is powerful and precise bass monitoring tool for modern 6.1 or 5.1 channel Surround Sound or traditional stereo systems. With its 19 Hz lower cut-off frequency, high sound pressure output capability and versatile bass management systems, it can be adapted to all low frequency monitoring situations. The amplifier unit integrated into the cabinet contains active crossover filters, driver overload protection circuits and power amplifiers. The in-built bass management unit has six signal input and output channels, summed signal output connectors and LFE input equipped with a selectable 85/120 Hz lowpass filter and a 0 / +10dB LFE sensitivity switch.
Features
- LSE™ Power efficient port/ enclosure design
- Highly configurable 6.1 channel Bass Management System
- Unparalleled low frequency performance
- Phase calibration test tone
- RJ11 remote control connection
- SUM out and in for “daisy chaining” units
| Free field frequency response (+/- 3 dB) | 19 Hz…85 Hz LFE 85/120 Hz |
| Maximum short term sine wave SPL output averaged from 30 to 85 Hz, measured in half space at 1 meter | ≥ 112 dB SPL |
| Maximum peak SPL output with random pink noise, measured in half space at 1 meter | ≥ 117 dB SPL |
| Self generated noise level in free field @ 1 m on axis (A-weighted) | ≤ 15 dB |
| Harmonic distortion at @ 1 m on axis in half space 2nd 3rd | @ 95 dB SPL 30 … 85 Hz ≤ 3 % ≤ 3 % |
| Driver, magnetically shielded | 305 mm (12”) |
| Weight | 50 kg (110 lbs) |
| Dimensions | |
| Height | 625 mm (24 5/8”) |
| Width | 555 mm (21 7/8”) |
| Depth | 490 mm (19 5/16”) |
