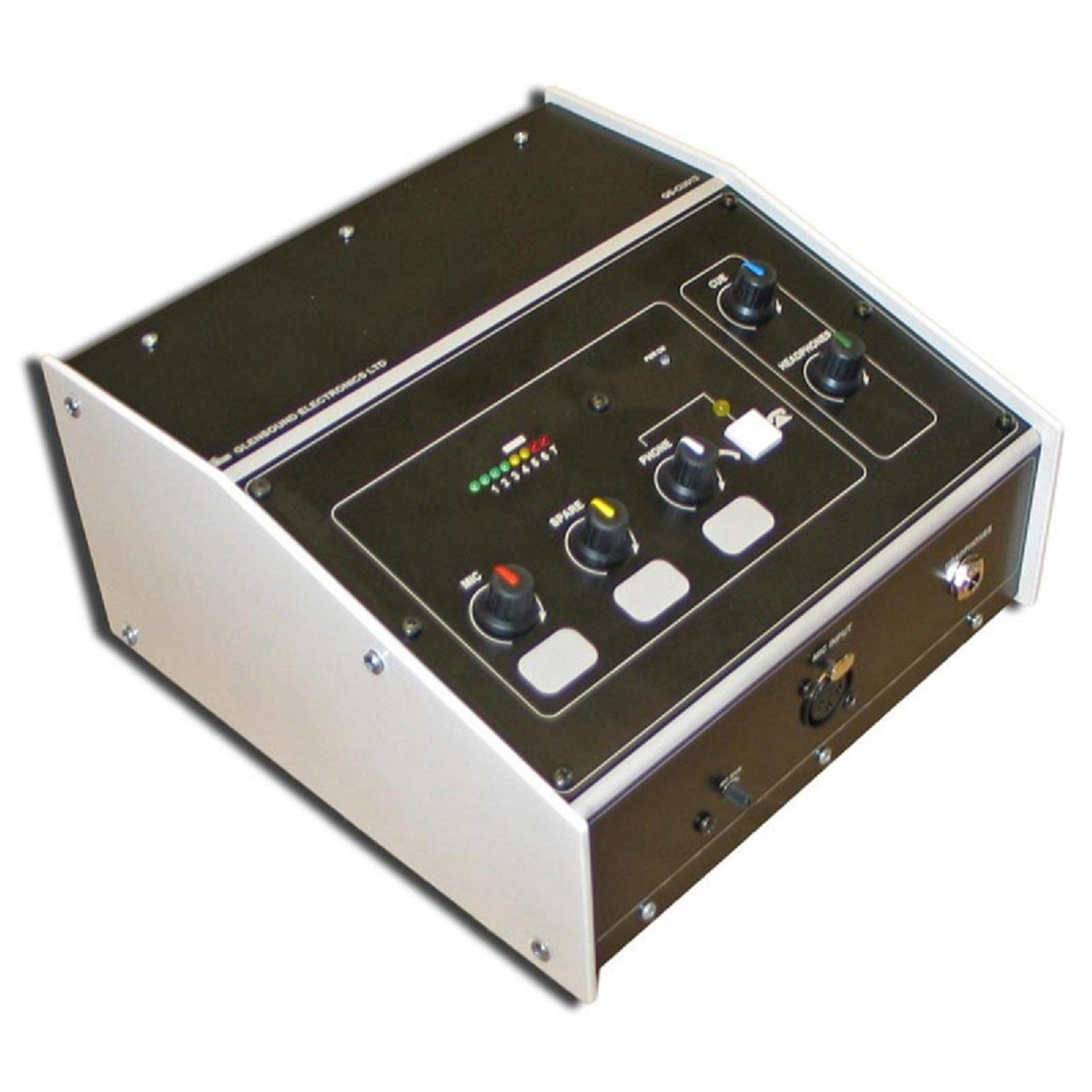

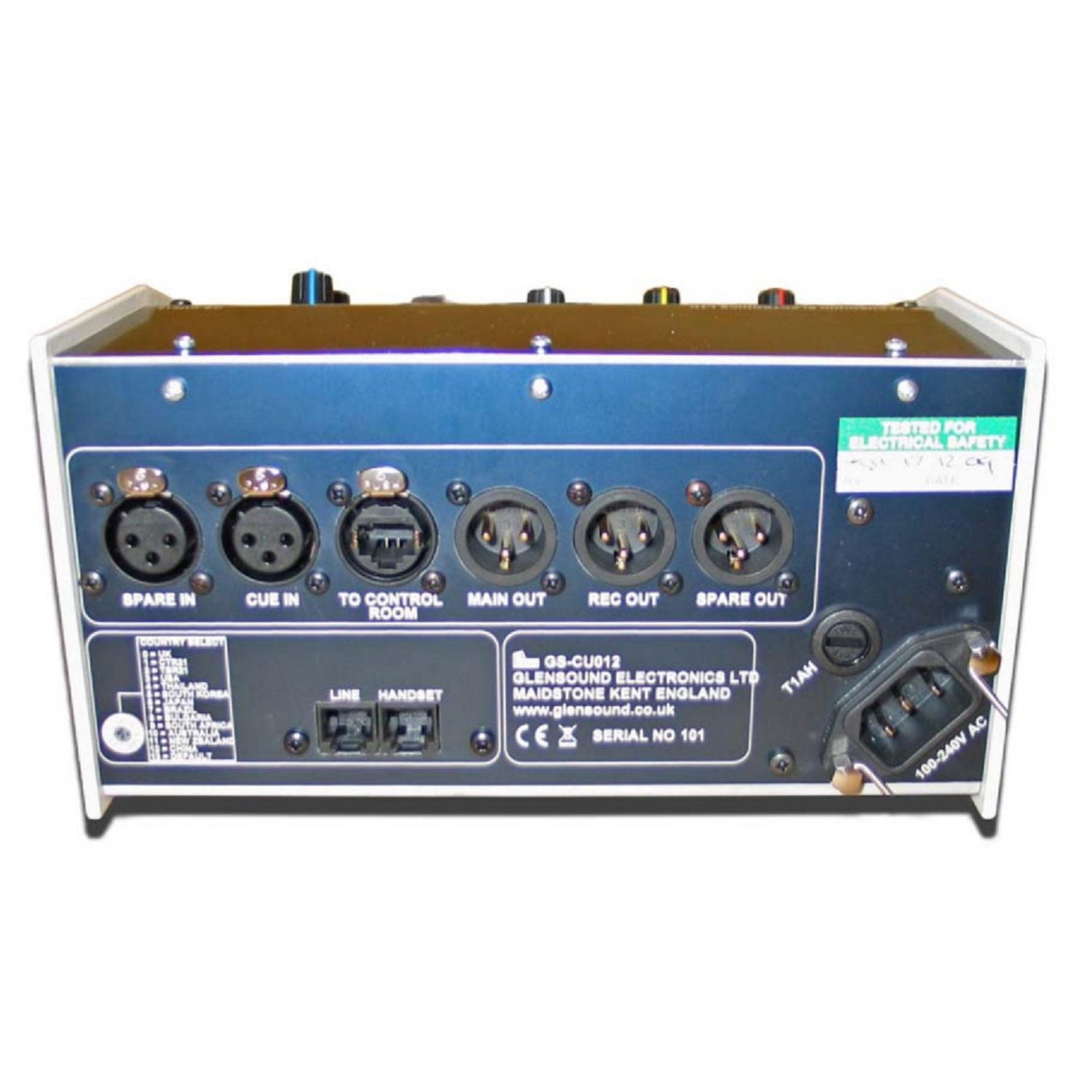

Glensound GS-CU012 (HAM) - Desktop Hybrid And Mixer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
A digital hybrid and mixer desktop unit for producing two way programme audio for recording or live use. Intended for small studio, newsroom type use where phone recordings need to be made with a small, simple to use box.
HYBRID Features:
- High specification digital hybrid
- Excellent separation
- Digital signal processing with echo canceller
- Multi country select for worldwide phone network compatibility
- Line on/off hook switching
- LED flashes on incoming call
- Standard phone connection for off air talking and dialing
MIXER Features:
- Headphone connection with side tone and hybrid return monitoring
- Microphone input for on air communication with telephone call
- Mixer for caller audio, mic input, plus a spare input
- Main output, spare output, cue output
- Internal PSU 100-240v
| Height | 110mm |
| Width | 209mm |
| Depth | 215mm |
| Power input | 90 - 250 VAC 50 - 60 Hz |
| XLR connectors | Neutrik |
| MIC INPUT | |
| Transformer balanced | on XLR |
| Input impedance | 1k2 |
| Minimum Input level | -71dBu (fader @ line up) |
| Maximum Input level | -47dBu (fader @ line up) |
| Gain control | trim pot by XLR |
| MIC Compressor/ Limiter | |
| Complex compressor/ limiter circuit | |
| Ratio starts @ 2:1 and finishes @ 5:1 | |
| Maximum Input before clipping | -13dBu |
| LINE INPUT (Spare) | |
| Transformer | balanced on neutrik XLR |
| Input impedance | >15k |
| Nominal Input Level | 0dBu |
| FADERS (Front panel rotary) | |
| Range | -90 to +10dB |
A digital hybrid and mixer desktop unit for producing two way programme audio for recording or live use. Intended for small studio, newsroom type use where phone recordings need to be made with a small, simple to use box.
HYBRID Features:
- High specification digital hybrid
- Excellent separation
- Digital signal processing with echo canceller
- Multi country select for worldwide phone network compatibility
- Line on/off hook switching
- LED flashes on incoming call
- Standard phone connection for off air talking and dialing
MIXER Features:
- Headphone connection with side tone and hybrid return monitoring
- Microphone input for on air communication with telephone call
- Mixer for caller audio, mic input, plus a spare input
- Main output, spare output, cue output
- Internal PSU 100-240v
| Height | 110mm |
| Width | 209mm |
| Depth | 215mm |
| Power input | 90 - 250 VAC 50 - 60 Hz |
| XLR connectors | Neutrik |
| MIC INPUT | |
| Transformer balanced | on XLR |
| Input impedance | 1k2 |
| Minimum Input level | -71dBu (fader @ line up) |
| Maximum Input level | -47dBu (fader @ line up) |
| Gain control | trim pot by XLR |
| MIC Compressor/ Limiter | |
| Complex compressor/ limiter circuit | |
| Ratio starts @ 2:1 and finishes @ 5:1 | |
| Maximum Input before clipping | -13dBu |
| LINE INPUT (Spare) | |
| Transformer | balanced on neutrik XLR |
| Input impedance | >15k |
| Nominal Input Level | 0dBu |
| FADERS (Front panel rotary) | |
| Range | -90 to +10dB |
